ns3::dsr::DsrOptionHeader Class Reference

Introspection did not find any typical Config paths. More...

#include "dsr-option-header.h"

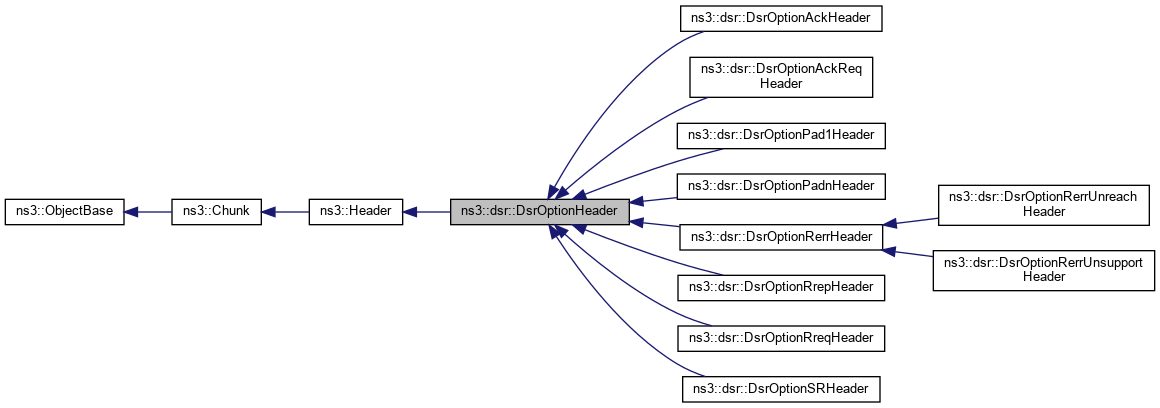

+ Inheritance diagram for ns3::dsr::DsrOptionHeader:

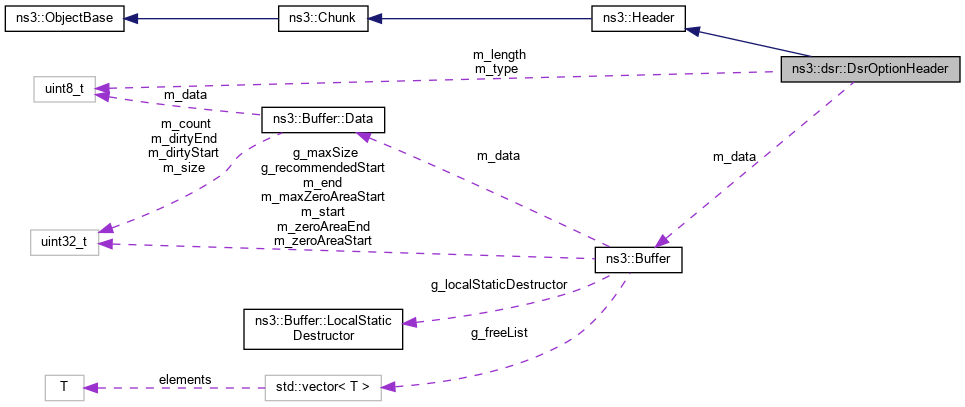

+ Collaboration diagram for ns3::dsr::DsrOptionHeader:

Classes

struct  Alignment
 represents the alignment requirements of an option header More...


Public Member Functions

 DsrOptionHeader ()
 Constructor. More...

virtual ~DsrOptionHeader ()
 Destructor. More...

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

virtual Alignment GetAlignment () const
 Get the Alignment requirement of this option header. More...

virtual TypeId GetInstanceTypeId () const
 Get the instance type ID. More...

uint8_t GetLength () const
 Get the option length. More...

virtual uint32_t GetSerializedSize () const
 Get the serialized size of the packet. More...

uint8_t GetType () const
 Get the type of the option. More...

virtual void Print (std::ostream &os) const
 Print some information about the packet. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetLength (uint8_t length)
 Set the option length. More...

void SetType (uint8_t type)
 Set the type of the option. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Buffer m_data
 The anonymous data of this option. More...

uint8_t m_length
 The option length. More...

uint8_t m_type
 The type of the option. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Introspection did not find any typical Config paths.

Header for Dsr Options.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 50 of file dsr-option-header.h.

Constructor & Destructor Documentation

ns3::dsr::DsrOptionHeader::DsrOptionHeader ( )

Constructor.

Definition at line 64 of file dsr-option-header.cc.

ns3::dsr::DsrOptionHeader::~DsrOptionHeader ( )
virtual

Destructor.

Definition at line 70 of file dsr-option-header.cc.

Member Function Documentation

DsrOptionHeader::Alignment ns3::dsr::DsrOptionHeader::GetAlignment ( ) const
virtual

Get the Alignment requirement of this option header.

Returns
The required alignment

Subclasses should only implement this method, if special alignment is required. Default is no alignment (1n+0).

Reimplemented in ns3::dsr::DsrOptionAckHeader, ns3::dsr::DsrOptionAckReqHeader, ns3::dsr::DsrOptionRerrUnsupportHeader, ns3::dsr::DsrOptionRerrUnreachHeader, ns3::dsr::DsrOptionRerrHeader, ns3::dsr::DsrOptionSRHeader, ns3::dsr::DsrOptionRrepHeader, and ns3::dsr::DsrOptionRreqHeader.

Definition at line 130 of file dsr-option-header.cc.

References NS_OBJECT_ENSURE_REGISTERED.

Referenced by ns3::dsr::DsrOptionField::AddDsrOption().

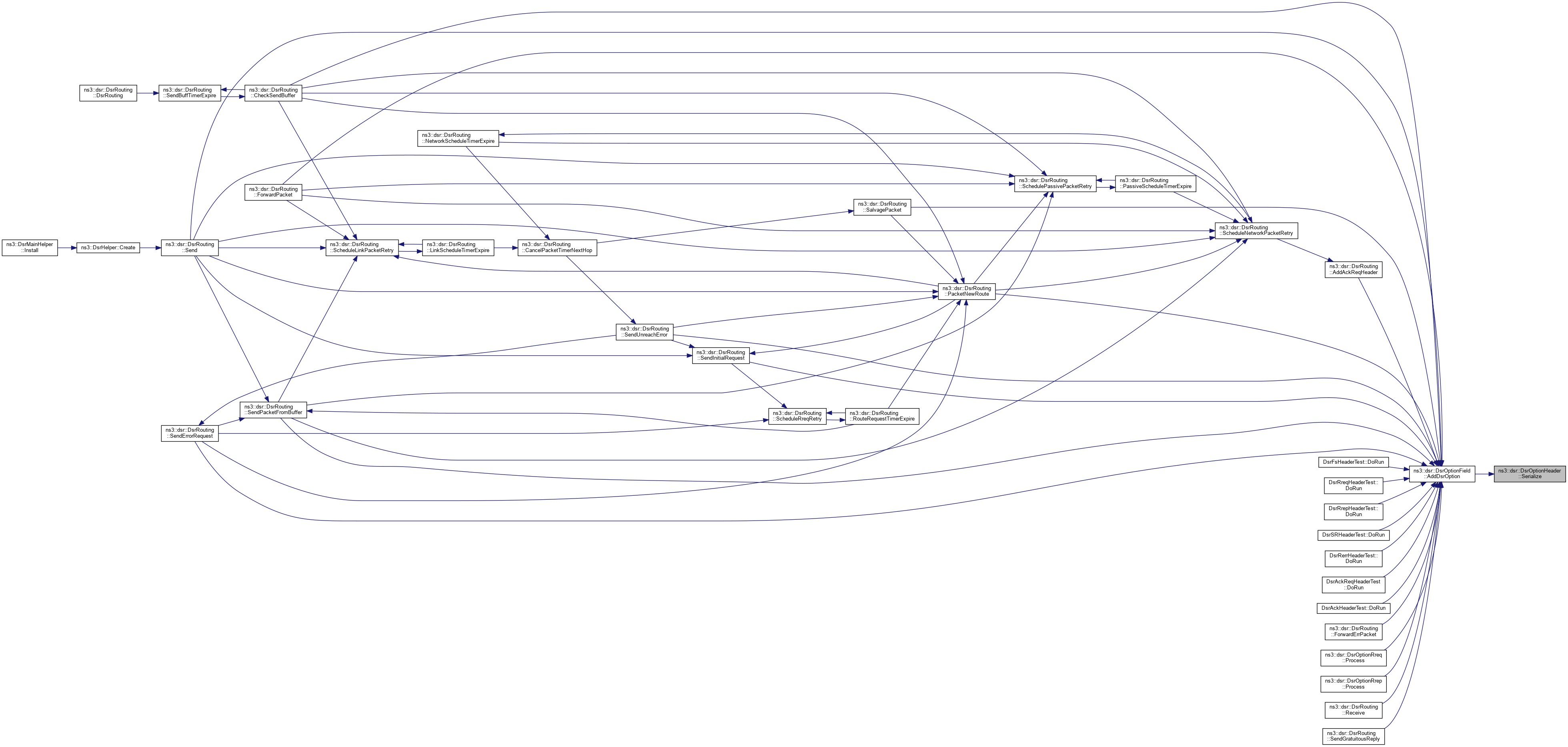

+ Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptionHeader::GetInstanceTypeId ( void  ) const
virtual
uint8_t ns3::dsr::DsrOptionHeader::GetLength ( ) const

Get the option length.

Returns
the option length

Definition at line 89 of file dsr-option-header.cc.

References m_length.

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), ns3::dsr::DsrRouting::CheckSendBuffer(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrRouting::ForwardErrPacket(), ns3::dsr::DsrRouting::ForwardPacket(), ns3::dsr::DsrOptionPadnHeader::GetSerializedSize(), ns3::dsr::DsrRouting::PacketNewRoute(), ns3::dsr::DsrOptionPadnHeader::Print(), ns3::dsr::DsrOptionRreqHeader::Print(), ns3::dsr::DsrOptionRrepHeader::Print(), ns3::dsr::DsrOptionSRHeader::Print(), ns3::dsr::DsrOptionRerrHeader::Print(), ns3::dsr::DsrOptionRerrUnreachHeader::Print(), ns3::dsr::DsrOptionRerrUnsupportHeader::Print(), ns3::dsr::DsrOptionAckReqHeader::Print(), ns3::dsr::DsrOptionAckHeader::Print(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrOptionRrep::Process(), ns3::dsr::DsrOptionSR::Process(), ns3::dsr::DsrRouting::SalvagePacket(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendAck(), ns3::dsr::DsrRouting::SendErrorRequest(), ns3::dsr::DsrRouting::SendGratuitousReply(), ns3::dsr::DsrRouting::SendInitialRequest(), ns3::dsr::DsrRouting::SendPacketFromBuffer(), ns3::dsr::DsrRouting::SendUnreachError(), ns3::dsr::DsrOptionPadnHeader::Serialize(), ns3::dsr::DsrOptionRreqHeader::Serialize(), ns3::dsr::DsrOptionRrepHeader::Serialize(), ns3::dsr::DsrOptionSRHeader::Serialize(), ns3::dsr::DsrOptionRerrHeader::Serialize(), ns3::dsr::DsrOptionRerrUnreachHeader::Serialize(), ns3::dsr::DsrOptionRerrUnsupportHeader::Serialize(), ns3::dsr::DsrOptionAckReqHeader::Serialize(), and ns3::dsr::DsrOptionAckHeader::Serialize().

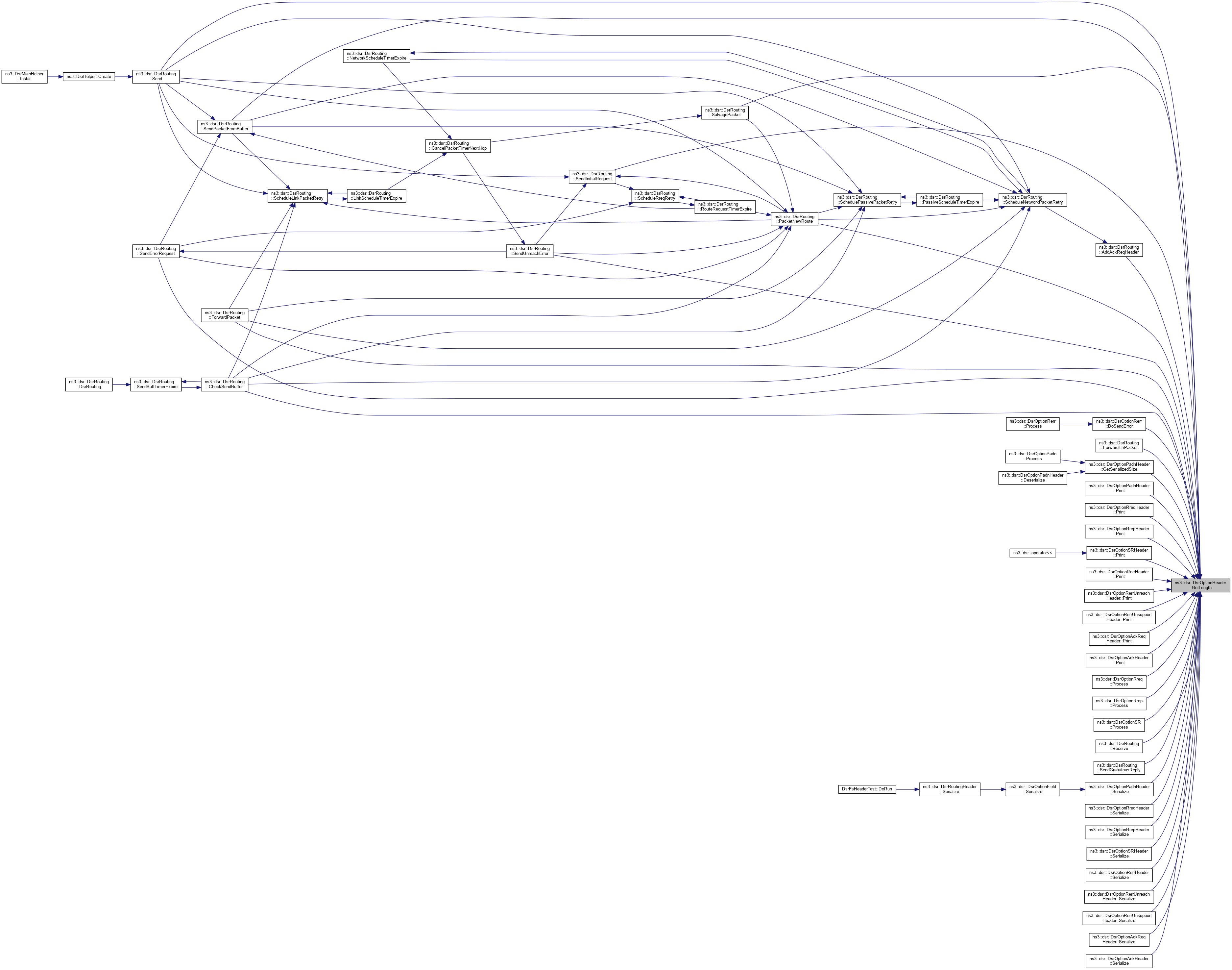

+ Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptionHeader::GetTypeId ( void  )
static

Get the type identificator.

Returns
type identificator

Definition at line 49 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId(), ns3::dsr::DsrOptionPad1Header::GetInstanceTypeId(), ns3::dsr::DsrOptionPadnHeader::GetInstanceTypeId(), and ns3::dsr::DsrOptionRreqHeader::GetInstanceTypeId().

+ Here is the call graph for this function:

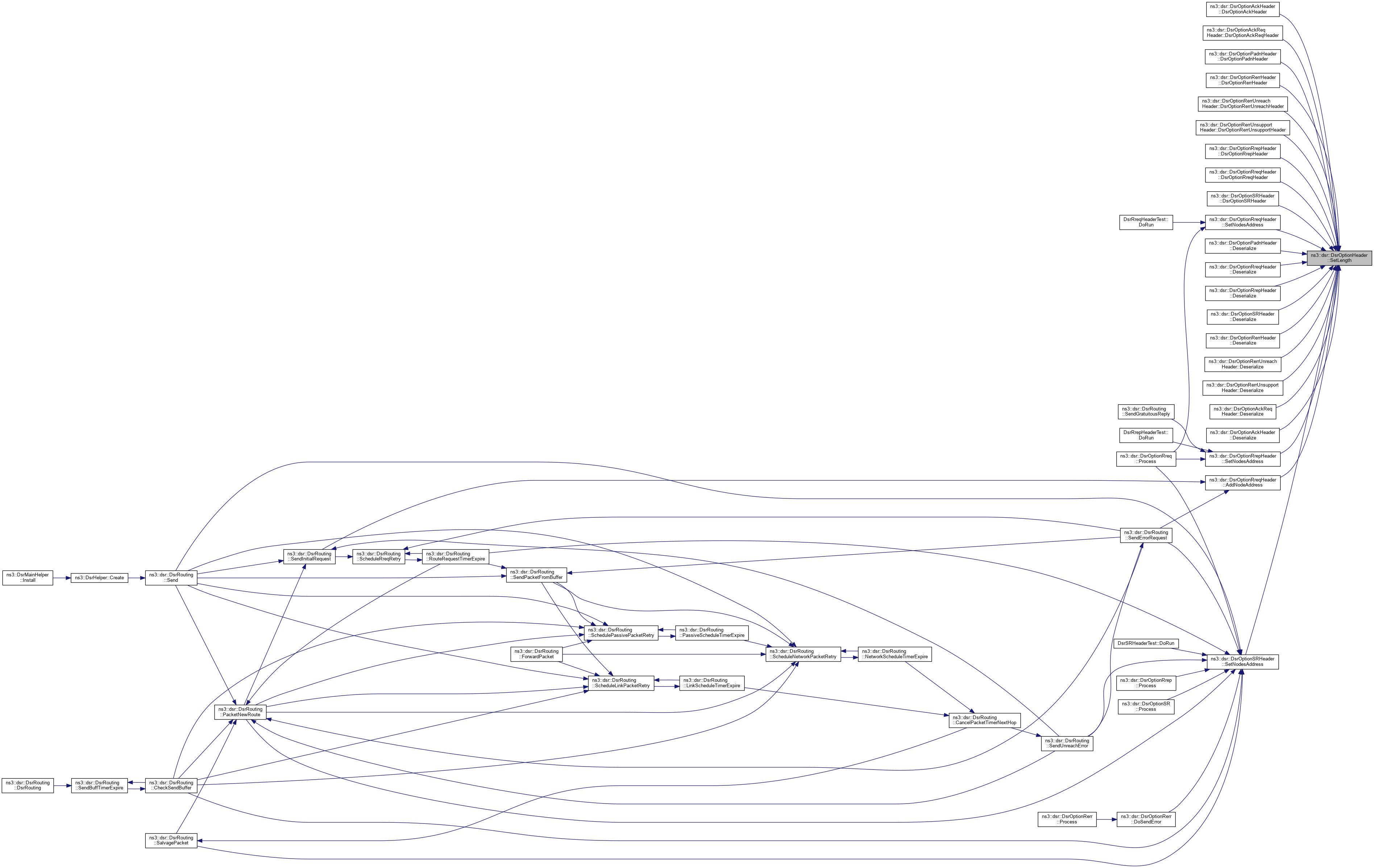

+ Here is the caller graph for this function:

void ns3::dsr::DsrOptionHeader::Print ( std::ostream &  os) const
virtual

Member Data Documentation

Buffer ns3::dsr::DsrOptionHeader::m_data
private

The anonymous data of this option.

Definition at line 143 of file dsr-option-header.h.

Referenced by Deserialize(), and Serialize().

uint8_t ns3::dsr::DsrOptionHeader::m_length
private

The option length.

Definition at line 139 of file dsr-option-header.h.

Referenced by Deserialize(), GetLength(), GetSerializedSize(), Print(), Serialize(), and SetLength().

uint8_t ns3::dsr::DsrOptionHeader::m_type
private

The type of the option.

Definition at line 135 of file dsr-option-header.h.

Referenced by Deserialize(), GetType(), Print(), Serialize(), and SetType().


The documentation for this class was generated from the following files:
