ns3::ThreeGppV2vHighwayPropagationLossModel Class Reference

Implements the pathloss model defined in 3GPP TR 37.885, Table 6.2.1-1 for the Highway scenario. More...

#include "three-gpp-v2v-propagation-loss-model.h"

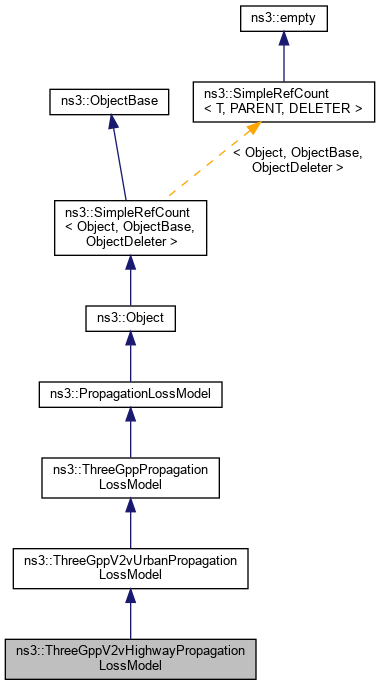

+ Inheritance diagram for ns3::ThreeGppV2vHighwayPropagationLossModel:
+ Collaboration diagram for ns3::ThreeGppV2vHighwayPropagationLossModel:

Public Member Functions

 ThreeGppV2vHighwayPropagationLossModel ()
 Constructor. More...

virtual ~ThreeGppV2vHighwayPropagationLossModel () override
 Destructor. More...

- Public Member Functions inherited from ns3::ThreeGppV2vUrbanPropagationLossModel
 ThreeGppV2vUrbanPropagationLossModel ()
 Constructor. More...

 ThreeGppV2vUrbanPropagationLossModel (const ThreeGppV2vUrbanPropagationLossModel &)=delete
 Copy constructor. More...

virtual ~ThreeGppV2vUrbanPropagationLossModel () override
 Destructor. More...

ThreeGppV2vUrbanPropagationLossModeloperator= (const ThreeGppV2vUrbanPropagationLossModel &)=delete
 Copy constructor. More...

- Public Member Functions inherited from ns3::ThreeGppPropagationLossModel
 ThreeGppPropagationLossModel ()
 Constructor. More...

 ThreeGppPropagationLossModel (const ThreeGppPropagationLossModel &)=delete
 Copy constructor. More...

virtual ~ThreeGppPropagationLossModel () override
 Destructor. More...

Ptr< ChannelConditionModelGetChannelConditionModel (void) const
 Returns the associated channel condition model. More...

double GetFrequency (void) const
 Return the current central frequency. More...

ThreeGppPropagationLossModeloperator= (const ThreeGppPropagationLossModel &)=delete
 Copy constructor. More...

void SetChannelConditionModel (Ptr< ChannelConditionModel > model)
 Set the channel condition model used to determine the channel state (e.g., the LOS/NLOS condition) More...

void SetFrequency (double f)
 Set the central frequency of the model. More...

- Public Member Functions inherited from ns3::PropagationLossModel
 PropagationLossModel ()

 PropagationLossModel (const PropagationLossModel &)=delete

virtual ~PropagationLossModel ()

int64_t AssignStreams (int64_t stream)
 If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

double CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
 Returns the Rx Power taking into account all the PropagationLossModel(s) chained to the current one. More...

Ptr< PropagationLossModelGetNext ()
 Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

PropagationLossModeloperator= (const PropagationLossModel &)=delete

void SetNext (Ptr< PropagationLossModel > next)
 Enables a chain of loss models to act on the signal. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ThreeGppV2vUrbanPropagationLossModel
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ThreeGppPropagationLossModel
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::PropagationLossModel
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

virtual double GetLossLos (double distance2D, double distance3D, double hUt, double hBs) const override
 Computes the pathloss between a and b considering that the line of sight is not obstructed. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ThreeGppPropagationLossModel
virtual void DoDispose () override
 Destructor implementation. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Static Protected Member Functions inherited from ns3::ThreeGppPropagationLossModel
static double Calculate2dDistance (Vector a, Vector b)
 Computes the 2D distance between two 3D vectors. More...

- Protected Attributes inherited from ns3::ThreeGppPropagationLossModel
Ptr< ChannelConditionModelm_channelConditionModel
 pointer to the channel condition model More...

double m_frequency
 operating frequency in Hz More...

Ptr< NormalRandomVariablem_normRandomVariable
 normal random variable More...

bool m_shadowingEnabled
 enable/disable shadowing More...

std::unordered_map< uint32_t, ShadowingMapItemm_shadowingMap
 map to store the shadowing values More...


Detailed Description

Implements the pathloss model defined in 3GPP TR 37.885, Table 6.2.1-1 for the Highway scenario.

Config Paths

ns3::ThreeGppV2vHighwayPropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppV2vUrbanPropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"
  • "/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel/$ns3::ThreeGppV2vHighwayPropagationLossModel"

No Attributes are defined for this type.

Attributes defined in parent class ns3::ThreeGppV2vUrbanPropagationLossModel

  • PercType3Vehicles: The percentage of vehicles of type 3 (i.e., trucks) in the scenario
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:100
    • Initial value: 0
    • Flags: construct write read

Attributes defined in parent class ns3::ThreeGppPropagationLossModel

  • Frequency: The centre frequency in Hz.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 5e+08
    • Flags: construct write read
  • ShadowingEnabled: Enable/disable shadowing.
    • Set with class: BooleanValue
    • Underlying type: bool
    • Initial value: true
    • Flags: construct write read
  • ChannelConditionModel: Pointer to the channel condition model.

No TraceSources are defined for this type.
Size of this type is 152 bytes (on a 64-bit architecture).

Definition at line 137 of file three-gpp-v2v-propagation-loss-model.h.

Constructor & Destructor Documentation

◆ ThreeGppV2vHighwayPropagationLossModel()

ns3::ThreeGppV2vHighwayPropagationLossModel::ThreeGppV2vHighwayPropagationLossModel ( )

Constructor.

Definition at line 213 of file three-gpp-v2v-propagation-loss-model.cc.

References NS_LOG_FUNCTION.

◆ ~ThreeGppV2vHighwayPropagationLossModel()

ns3::ThreeGppV2vHighwayPropagationLossModel::~ThreeGppV2vHighwayPropagationLossModel ( )
overridevirtual

Destructor.

Definition at line 219 of file three-gpp-v2v-propagation-loss-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetLossLos()

double ns3::ThreeGppV2vHighwayPropagationLossModel::GetLossLos ( double  distance2D,
double  distance3D,
double  hUt,
double  hBs
) const
overrideprivatevirtual

Computes the pathloss between a and b considering that the line of sight is not obstructed.

Parameters
distance2Dthe 2D distance between tx and rx in meters
distance3Dthe 3D distance between tx and rx in meters
hUtthe height of the UT in meters
hBsthe height of the BS in meters
Returns
pathloss value in dB

Reimplemented from ns3::ThreeGppV2vUrbanPropagationLossModel.

Definition at line 225 of file three-gpp-v2v-propagation-loss-model.cc.

References ns3::ThreeGppPropagationLossModel::m_frequency, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::ThreeGppV2vHighwayPropagationLossModel::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 203 of file three-gpp-v2v-propagation-loss-model.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

The documentation for this class was generated from the following files:
