Models the propagation loss through a transmission medium. More...

#include "propagation-loss-model.h"

Inheritance diagram for ns3::PropagationLossModel:

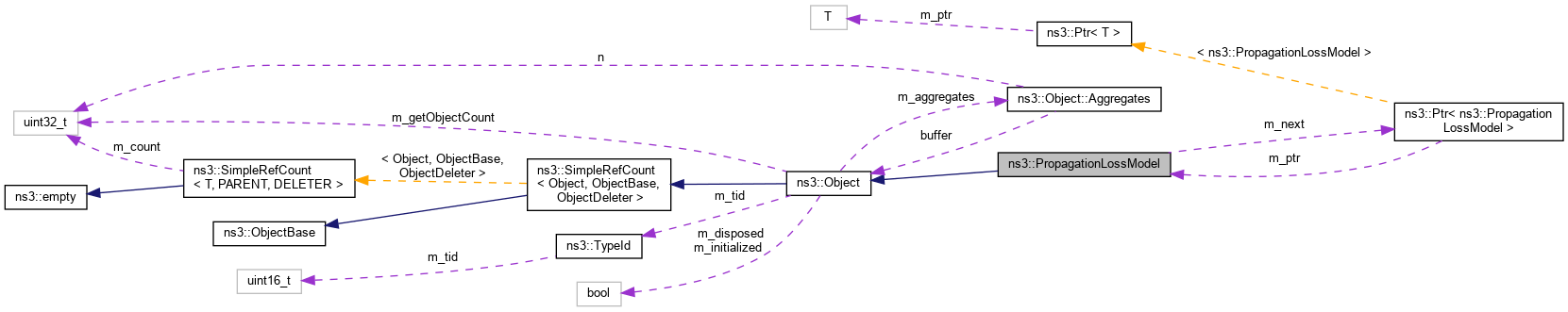

Collaboration diagram for ns3::PropagationLossModel:

Public Member Functions
	PropagationLossModel ()

	PropagationLossModel (const PropagationLossModel &)=delete

virtual	~PropagationLossModel ()

int64_t	AssignStreams (int64_t stream)
	If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

double	CalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const
	Returns the Rx Power taking into account all the PropagationLossModel(s) chained to the current one. More...

Ptr< PropagationLossModel >	GetNext ()
	Gets the next PropagationLossModel in the chain of loss models that act on the signal. More...

PropagationLossModel &	operator= (const PropagationLossModel &)=delete

void	SetNext (Ptr< PropagationLossModel > next)
	Enables a chain of loss models to act on the signal. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual int64_t	DoAssignStreams (int64_t stream)=0
	Assign a fixed random variable stream number to the random variables used by this model. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
virtual double	DoCalcRxPower (double txPowerDbm, Ptr< MobilityModel > a, Ptr< MobilityModel > b) const =0
	PropagationLossModel. More...

Private Attributes
Ptr< PropagationLossModel >	m_next
	Next propagation loss model in the list. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Models the propagation loss through a transmission medium.

Calculate the receive power (dbm) from a transmit power (dbm) and a mobility model for the source and destination positions.

Config Paths

ns3::PropagationLossModel is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::SpectrumChannel/PropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::WaveNetDevice/Channel/$ns3::YansWifiChannel/PropagationLossModel"
"/NodeList/[i]/DeviceList/[i]/$ns3::LrWpanNetDevice/Channel/PropagationLossModel"
"/ChannelList/[i]/$ns3::SpectrumChannel/PropagationLossModel"
"/ChannelList/[i]/$ns3::YansWifiChannel/PropagationLossModel"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 54 of file propagation-loss-model.h.

Constructor & Destructor Documentation

◆ PropagationLossModel() [1/2]

ns3::PropagationLossModel::PropagationLossModel ( )

Definition at line 51 of file propagation-loss-model.cc.

◆ ~PropagationLossModel()

ns3::PropagationLossModel::~PropagationLossModel ( )

virtual

Definition at line 56 of file propagation-loss-model.cc.

◆ PropagationLossModel() [2/2]

ns3::PropagationLossModel::PropagationLossModel ( const PropagationLossModel & )

delete

Member Function Documentation

◆ AssignStreams()

int64_t ns3::PropagationLossModel::AssignStreams ( int64_t stream )

If this loss model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'.

Return the number of streams (possibly zero) that have been assigned. If there are PropagationLossModels chained together, this method will also assign streams to the downstream models.

Parameters

stream the stream index offset start

Returns: the number of stream indices assigned by this model

Definition at line 86 of file propagation-loss-model.cc.

References AssignStreams(), DoAssignStreams(), and m_next.

Referenced by AssignStreams(), and ns3::YansWifiChannel::AssignStreams().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CalcRxPower()

double ns3::PropagationLossModel::CalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

Returns the Rx Power taking into account all the PropagationLossModel(s) chained to the current one.

Parameters

txPowerDbm	current transmission power (in dBm)
a	the mobility model of the source
b	the mobility model of the destination

Returns: the reception power after adding/multiplying propagation loss (in dBm)

Definition at line 73 of file propagation-loss-model.cc.

References CalcRxPower(), DoCalcRxPower(), and m_next.

Referenced by CalcRxPower(), ComputeSnr(), MatrixPropagationLossModelTestCase::DoRun(), ThreeGppV2vUrbanPropagationLossModelTestCase::DoRun(), ThreeGppV2vHighwayPropagationLossModelTestCase::DoRun(), ThreeGppShadowingTestCase::EvaluateLoss(), JakesPropagationExample::Next(), ns3::YansWifiChannel::Send(), ns3::SimpleOfdmWimaxChannel::Send(), ns3::MultiModelSpectrumChannel::StartTx(), ns3::SingleModelSpectrumChannel::StartTx(), TestDeterministic(), TestDeterministicByTime(), and TestProbabilistic().

Here is the call graph for this function:

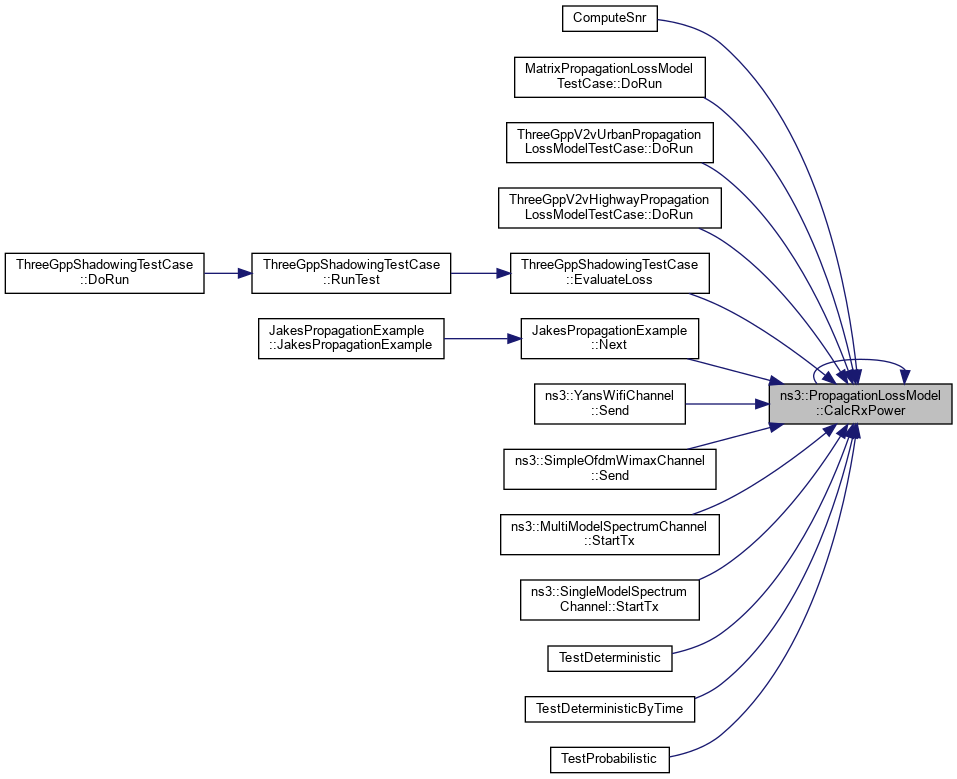

Here is the caller graph for this function:

◆ DoAssignStreams()

virtual int64_t ns3::PropagationLossModel::DoAssignStreams ( int64_t stream )

protectedpure virtual

Assign a fixed random variable stream number to the random variables used by this model.

Subclasses must implement this; those not using random variables can return zero.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Referenced by AssignStreams().

Here is the caller graph for this function:

◆ DoCalcRxPower()

virtual double ns3::PropagationLossModel::DoCalcRxPower	(	double	txPowerDbm,
		Ptr< MobilityModel >	a,
		Ptr< MobilityModel >	b
	)		const

privatepure virtual

PropagationLossModel.

Parameters

txPowerDbm	current transmission power (in dBm)
a	the mobility model of the source
b	the mobility model of the destination

Returns: the reception power after adding/multiplying propagation loss (in dBm)

Referenced by CalcRxPower().

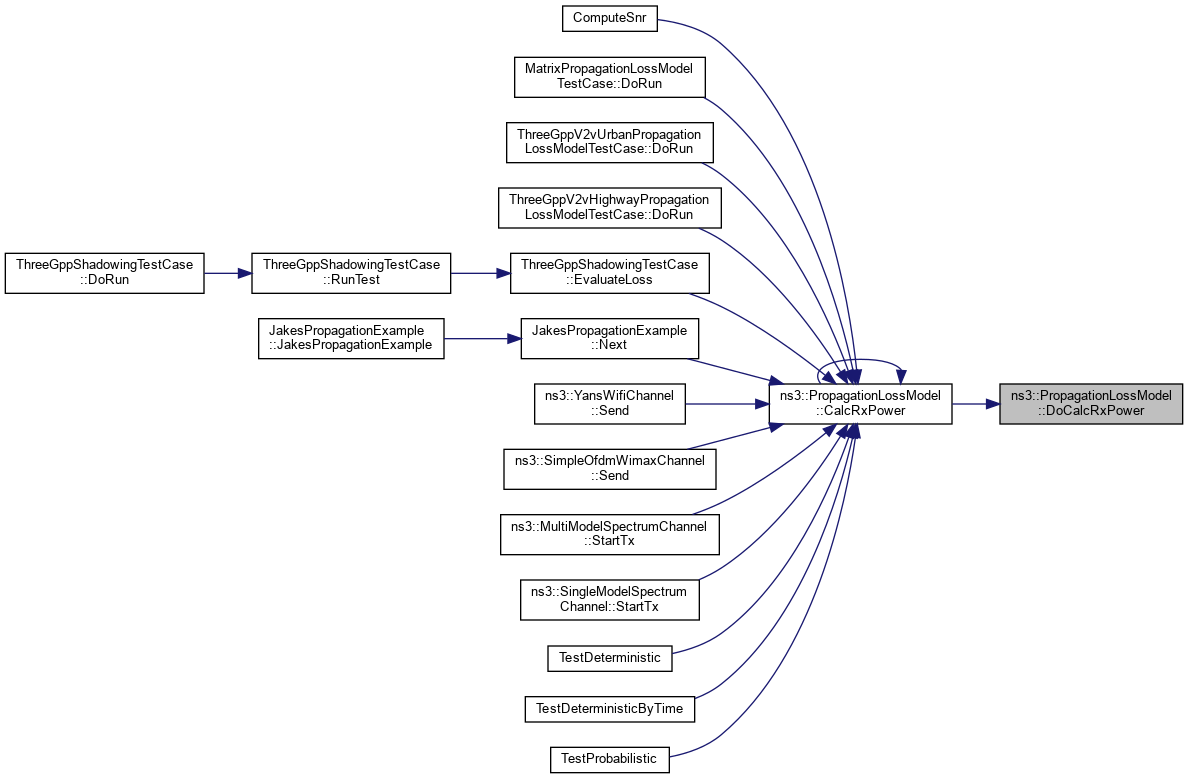

Here is the caller graph for this function:

◆ GetNext()

Ptr< PropagationLossModel > ns3::PropagationLossModel::GetNext ( void )

Gets the next PropagationLossModel in the chain of loss models that act on the signal.

Returns: The next PropagationLossModel in the chain

This method of chaining propagation loss models only works commutatively if the propagation loss of all models in the chain are independent of transmit power.

Definition at line 67 of file propagation-loss-model.cc.

References m_next.

◆ GetTypeId()

TypeId ns3::PropagationLossModel::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 42 of file propagation-loss-model.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ operator=()

PropagationLossModel& ns3::PropagationLossModel::operator= ( const PropagationLossModel & )

delete

◆ SetNext()

void ns3::PropagationLossModel::SetNext ( Ptr< PropagationLossModel > next )

Enables a chain of loss models to act on the signal.

Parameters

next	The next PropagationLossModel to add to the chain

This method of chaining propagation loss models only works commutatively if the propagation loss of all models in the chain are independent of transmit power.

Definition at line 61 of file propagation-loss-model.cc.

References m_next.

Referenced by ns3::SpectrumChannelHelper::AddPropagationLoss(), ns3::SpectrumChannel::AddPropagationLossModel(), and ns3::YansWifiChannelHelper::Create().

Here is the caller graph for this function:

Member Data Documentation

◆ m_next

Ptr<PropagationLossModel> ns3::PropagationLossModel::m_next

private

Next propagation loss model in the list.

Definition at line 143 of file propagation-loss-model.h.

Referenced by AssignStreams(), CalcRxPower(), GetNext(), and SetNext().

The documentation for this class was generated from the following files:

src/propagation/model/propagation-loss-model.h
src/propagation/model/propagation-loss-model.cc
