ns3::Object::AggregateIterator Class Reference

Iterate over the Objects aggregated to an ns3::Object. More...

#include "object.h"

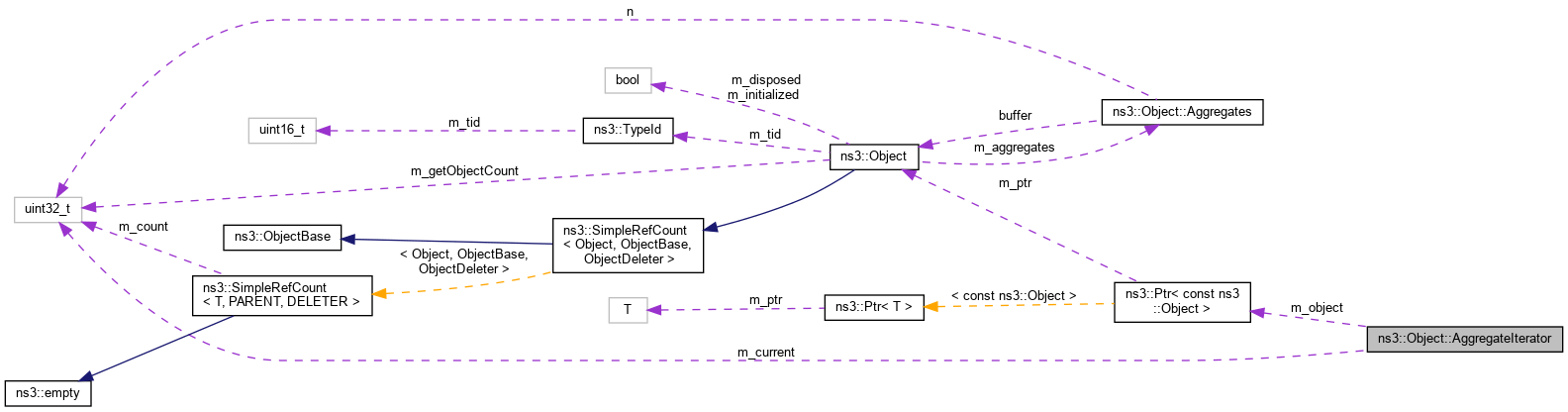

Collaboration diagram for ns3::Object::AggregateIterator:

Public Member Functions
	AggregateIterator ()
	Default constructor, which has no Object. More...
bool	HasNext (void) const
	Check if there are more Aggregates to iterate over. More...
Ptr< const Object >	Next (void)
	Get the next Aggregated Object. More...

Private Member Functions
	AggregateIterator (Ptr< const Object > object)
	Construct from an Object. More...

Private Attributes
uint32_t	m_current
	Current position in parent's aggregates. More...
Ptr< const Object >	m_object
	Parent Object. More...

Friends
class	Object
	Object needs access. More...

Detailed Description

Iterate over the Objects aggregated to an ns3::Object.

This iterator does not allow you to iterate over the parent Object used to call Object::GetAggregateIterator.

Note

This is a java-style iterator.

Definition at line 104 of file object.h.

Constructor & Destructor Documentation

AggregateIterator() [1/2]

ns3::Object::AggregateIterator::AggregateIterator

(

)

Default constructor, which has no Object.

Definition at line 49 of file object.cc.

References NS_LOG_FUNCTION.

AggregateIterator() [2/2]

ns3::Object::AggregateIterator::AggregateIterator ( Ptr< const Object >  object )

private

Construct from an Object.

This is private, with Object as friend, so only Objects can create useful AggregateIterators.

Parameters

[in]

object

The Object whose Aggregates should be iterated over.

Definition at line 70 of file object.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

HasNext()

bool ns3::Object::AggregateIterator::HasNext

(

void

)

const

Check if there are more Aggregates to iterate over.

Returns

true if Next() can be called and return a non-null pointer, false otherwise.

Definition at line 57 of file object.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::AttributeIterator::DoIterate().

Here is the caller graph for this function:

Next()

Ptr< const Object > ns3::Object::AggregateIterator::Next

(

void

)

Get the next Aggregated Object.

Returns

The next aggregated Object.

Definition at line 63 of file object.cc.

References ns3::Object::Aggregates::buffer, ns3::Object::m_aggregates, and NS_LOG_FUNCTION.

Referenced by ns3::AttributeIterator::DoIterate().

Here is the caller graph for this function:

Friends And Related Function Documentation

Object

friend class Object

friend

Object needs access.

Definition at line 127 of file object.h.

Member Data Documentation

m_current

uint32_t ns3::Object::AggregateIterator::m_current

private

Current position in parent's aggregates.

Definition at line 138 of file object.h.

m_object

Ptr<const Object> ns3::Object::AggregateIterator::m_object

private

Parent Object.

Definition at line 137 of file object.h.

---

The documentation for this class was generated from the following files:

• src/core/model/object.h
• src/core/model/object.cc
