ns3::Tag Class Referenceabstract

tag a set of bytes in a packet More...

#include "tag.h"

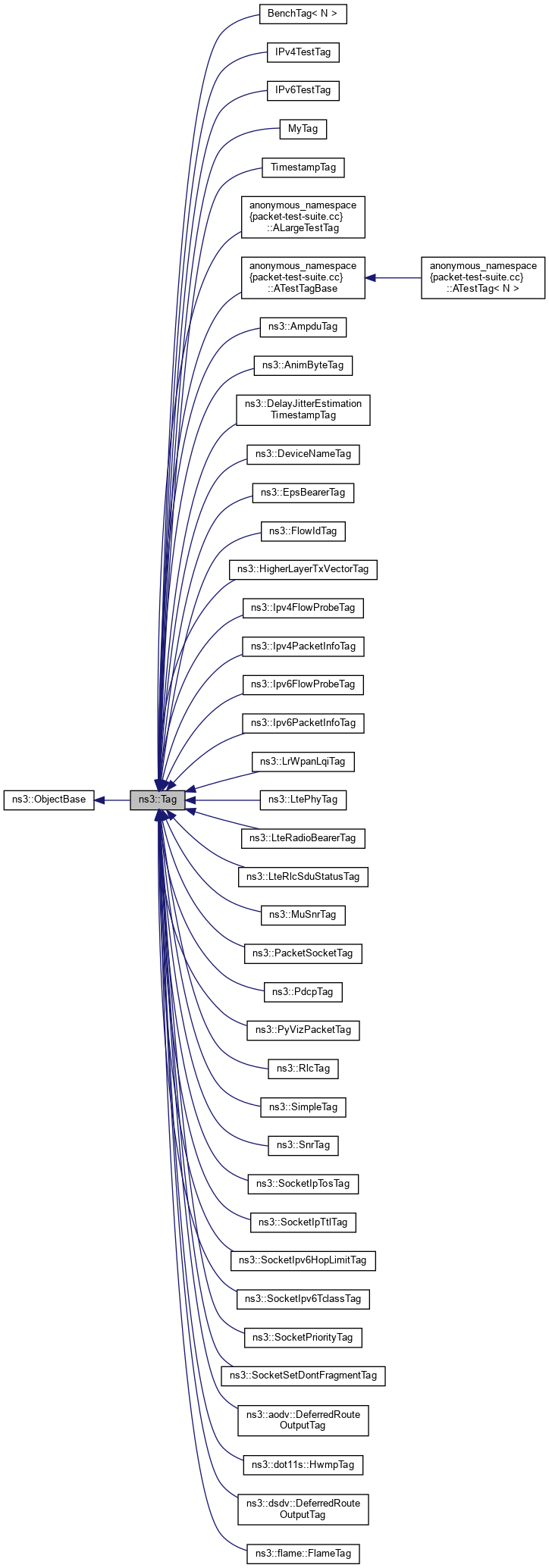

+ Inheritance diagram for ns3::Tag:
+ Collaboration diagram for ns3::Tag:

Public Member Functions

virtual void Deserialize (TagBuffer i)=0

virtual uint32_t GetSerializedSize (void) const =0

virtual void Print (std::ostream &os) const =0

virtual void Serialize (TagBuffer i) const =0

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

virtual TypeId GetInstanceTypeId (void) const =0
 Get the most derived TypeId for this Object. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

tag a set of bytes in a packet

Introspection did not find any typical Config paths.

New kinds of tags can be created by subclassing from this abstract base class.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 8 bytes (on a 64-bit architecture).

Definition at line 36 of file tag.h.

Member Function Documentation

◆ Deserialize()

◆ GetSerializedSize()

◆ GetTypeId()

TypeId ns3::Tag::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 27 of file tag.cc.

References ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ Print()

◆ Serialize()


The documentation for this class was generated from the following files:
