ns3::PacketSocketTag Class Reference

This class implements a tag that carries the dest address of a packet and the packet type. More...

#include "packet-socket.h"

+ Inheritance diagram for ns3::PacketSocketTag:

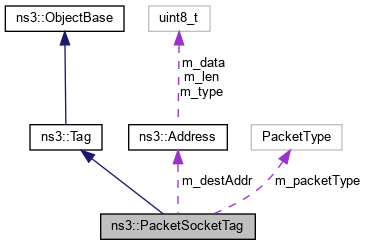

+ Collaboration diagram for ns3::PacketSocketTag:

Public Member Functions

 PacketSocketTag ()
 Create an empty PacketSocketTag. More...

virtual void Deserialize (TagBuffer i)

Address GetDestAddress (void) const
 Get the destination address of the corresponding packet. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

NetDevice::PacketType GetPacketType (void) const
 Get the packet type. More...

virtual uint32_t GetSerializedSize (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (TagBuffer i) const

void SetDestAddress (Address a)
 Set the destination address of the corresponding packet. More...

void SetPacketType (NetDevice::PacketType t)
 Set the packet type. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Tag
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Address m_destAddr
 Destination address. More...

NetDevice::PacketType m_packetType
 Packet type. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

This class implements a tag that carries the dest address of a packet and the packet type.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 219 of file packet-socket.h.

Constructor & Destructor Documentation

◆ PacketSocketTag()

ns3::PacketSocketTag::PacketSocketTag ( )

Create an empty PacketSocketTag.

Definition at line 535 of file packet-socket.cc.

Member Function Documentation

◆ Deserialize()

void ns3::PacketSocketTag::Deserialize ( TagBuffer  i)
virtual
Parameters
ithe buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 592 of file packet-socket.cc.

References ns3::Address::Deserialize(), m_destAddr, m_packetType, and ns3::TagBuffer::ReadU8().

+ Here is the call graph for this function:

◆ GetDestAddress()

Address ns3::PacketSocketTag::GetDestAddress ( void  ) const

Get the destination address of the corresponding packet.

Returns
the destination address of the corresponding packet

Definition at line 558 of file packet-socket.cc.

References m_destAddr.

◆ GetInstanceTypeId()

TypeId ns3::PacketSocketTag::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 576 of file packet-socket.cc.

References GetTypeId().

+ Here is the call graph for this function:

◆ GetPacketType()

NetDevice::PacketType ns3::PacketSocketTag::GetPacketType ( void  ) const

Get the packet type.

Returns
the packet type of the corresponding packet

Definition at line 546 of file packet-socket.cc.

References m_packetType.

◆ GetSerializedSize()

uint32_t ns3::PacketSocketTag::GetSerializedSize ( void  ) const
virtual
Returns
the number of bytes required to serialize the data of the tag.

This method is typically invoked by Packet::AddPacketTag or Packet::AddByteTag just prior to calling Tag::Serialize.

Implements ns3::Tag.

Definition at line 581 of file packet-socket.cc.

References ns3::Address::GetSerializedSize(), and m_destAddr.

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::PacketSocketTag::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 566 of file packet-socket.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::PacketSocketTag::Print ( std::ostream &  os) const
virtual
Parameters
osthe stream to print to

This method is typically invoked from the Packet::PrintByteTags or Packet::PrintPacketTags methods.

Implements ns3::Tag.

Definition at line 598 of file packet-socket.cc.

References m_packetType.

◆ Serialize()

void ns3::PacketSocketTag::Serialize ( TagBuffer  i) const
virtual
Parameters
ithe buffer to write data into.

Write the content of the tag in the provided tag buffer. DO NOT attempt to write more bytes than you requested with Tag::GetSerializedSize.

Implements ns3::Tag.

Definition at line 586 of file packet-socket.cc.

References m_destAddr, m_packetType, ns3::Address::Serialize(), and ns3::TagBuffer::WriteU8().

+ Here is the call graph for this function:

◆ SetDestAddress()

void ns3::PacketSocketTag::SetDestAddress ( Address  a)

Set the destination address of the corresponding packet.

Parameters
athe destination address of the corresponding packet

Definition at line 552 of file packet-socket.cc.

References m_destAddr.

Referenced by ns3::PacketSocket::ForwardUp().

+ Here is the caller graph for this function:

◆ SetPacketType()

void ns3::PacketSocketTag::SetPacketType ( NetDevice::PacketType  t)

Set the packet type.

Parameters
tthe packet type of the corresponding packet

Definition at line 540 of file packet-socket.cc.

References m_packetType.

Referenced by ns3::PacketSocket::ForwardUp().

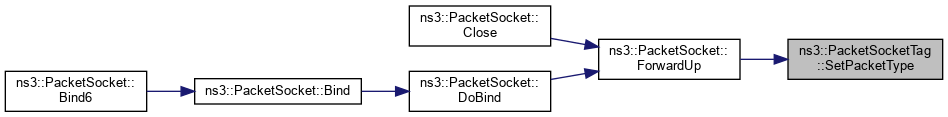

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_destAddr

Address ns3::PacketSocketTag::m_destAddr
private

Destination address.

Definition at line 260 of file packet-socket.h.

Referenced by Deserialize(), GetDestAddress(), GetSerializedSize(), Serialize(), and SetDestAddress().

◆ m_packetType

NetDevice::PacketType ns3::PacketSocketTag::m_packetType
private

Packet type.

Definition at line 259 of file packet-socket.h.

Referenced by Deserialize(), GetPacketType(), Print(), Serialize(), and SetPacketType().
