Basic MAC of mesh point Wi-Fi interface. More...

#include "mesh-wifi-interface-mac.h"

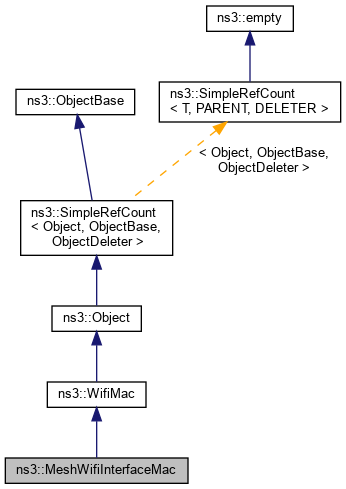

Inheritance diagram for ns3::MeshWifiInterfaceMac:

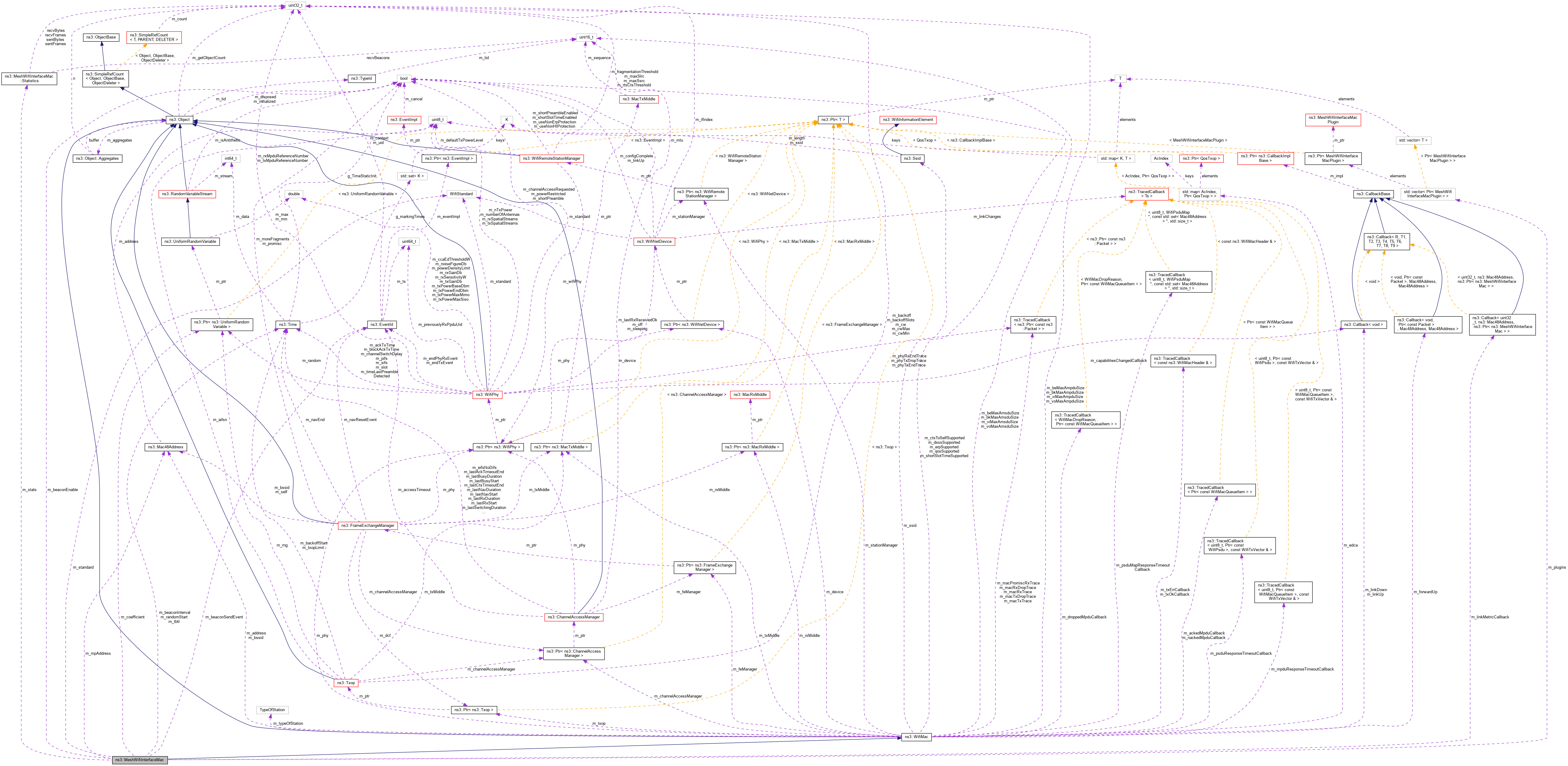

Collaboration diagram for ns3::MeshWifiInterfaceMac:

Classes
struct	Statistics
	Statistics: More...

Public Member Functions
	MeshWifiInterfaceMac ()
	C-tor. More...

virtual	~MeshWifiInterfaceMac ()
	D-tor. More...

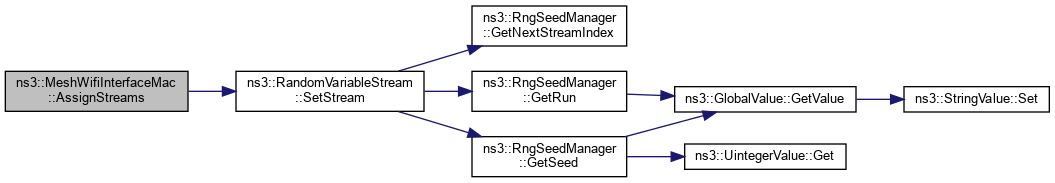

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

virtual bool	CanForwardPacketsTo (Mac48Address to) const
	Return true if packets can be forwarded to the given destination, false otherwise. More...

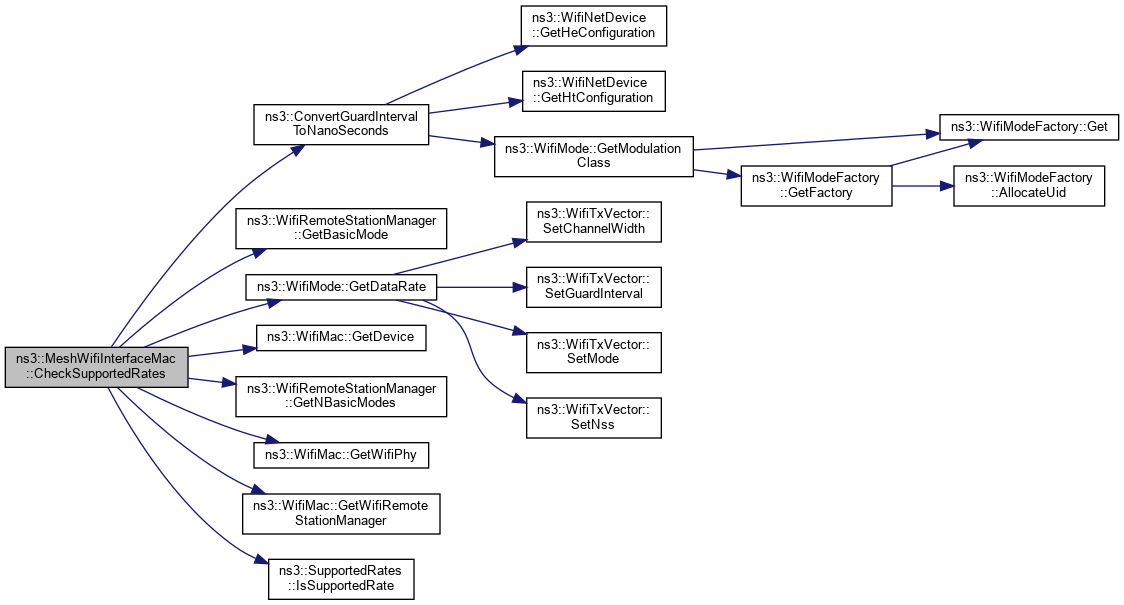

bool	CheckSupportedRates (SupportedRates rates) const
	Check supported rates. More...

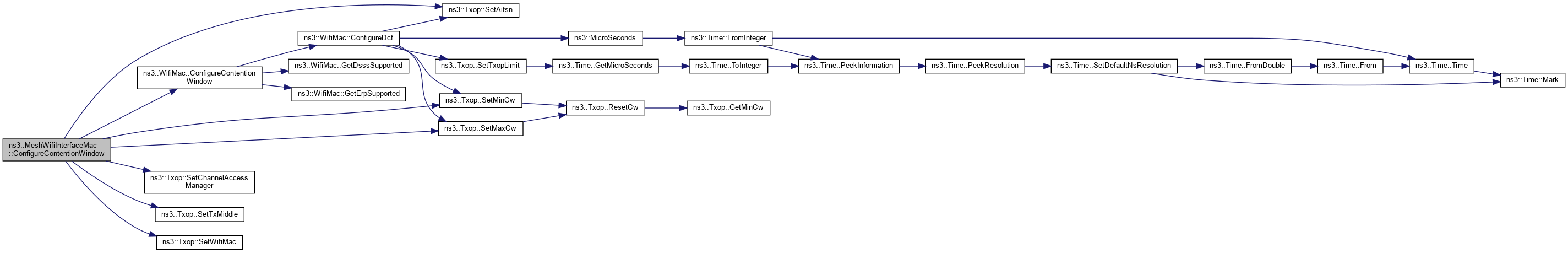

virtual void	ConfigureContentionWindow (uint32_t cwMin, uint32_t cwMax)

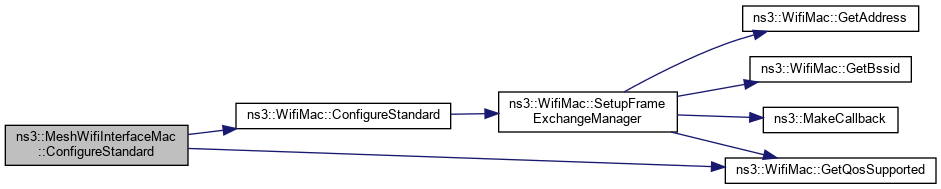

virtual void	ConfigureStandard (enum WifiStandard standard)
	Finish configuration based on the WifiStandard being provided. More...

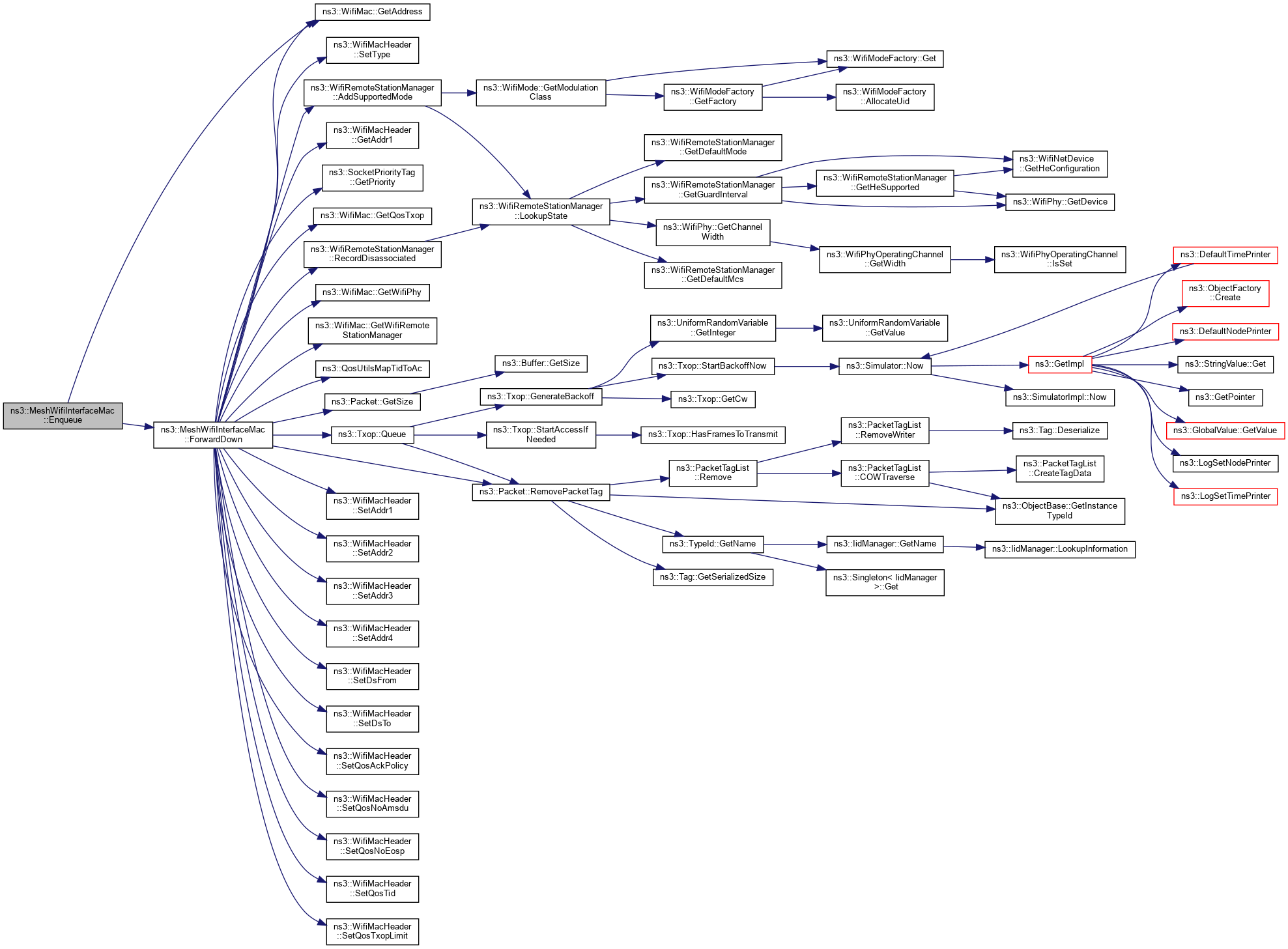

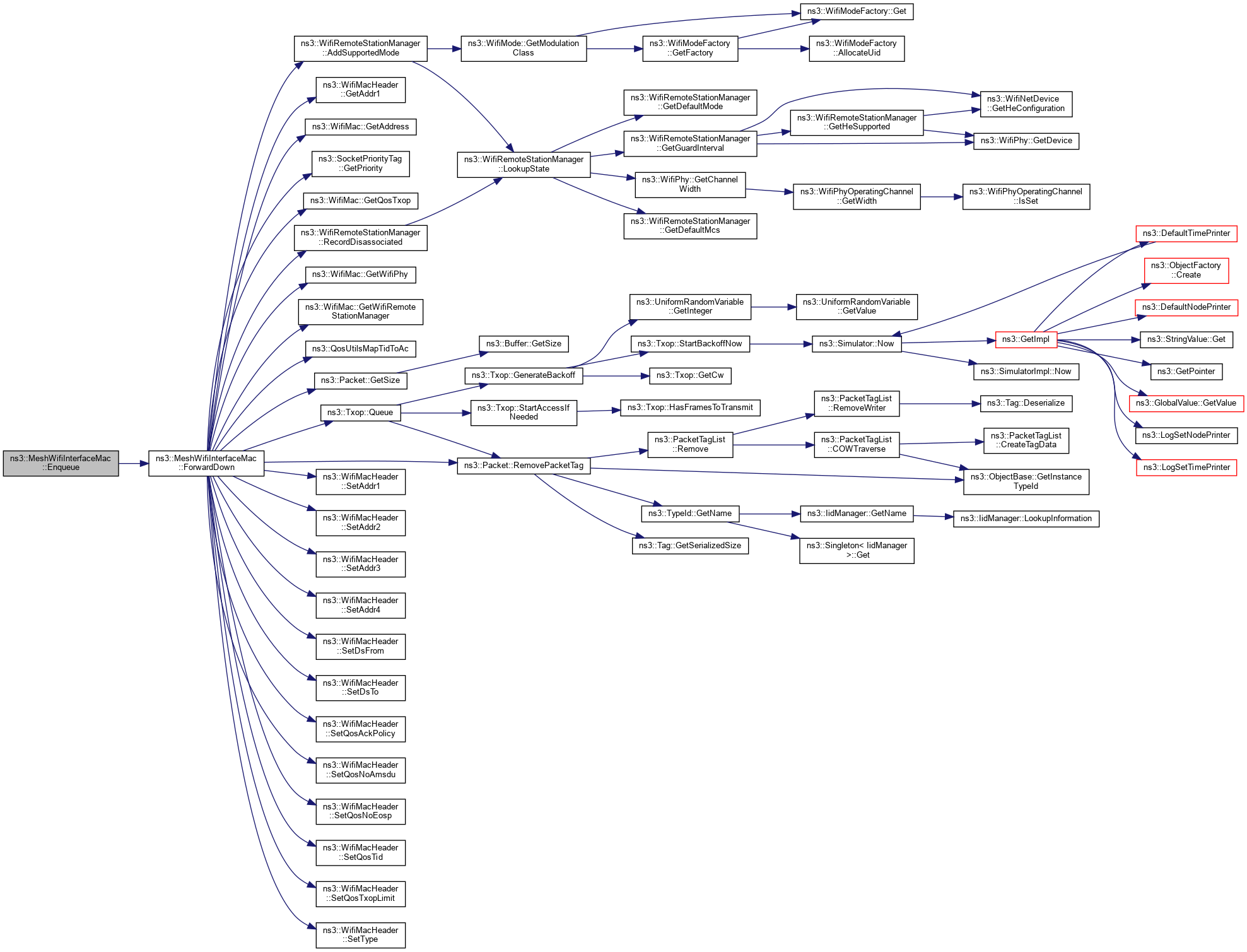

virtual void	Enqueue (Ptr< Packet > packet, Mac48Address to)

virtual void	Enqueue (Ptr< Packet > packet, Mac48Address to, Mac48Address from)

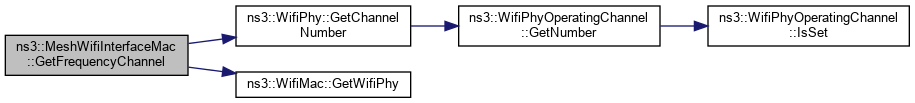

uint16_t	GetFrequencyChannel () const
	Current channel Id. More...

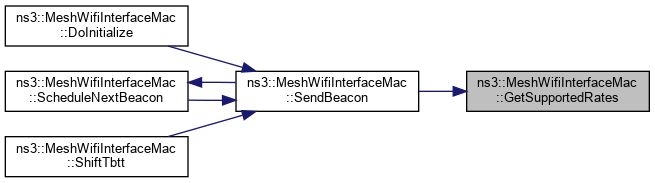

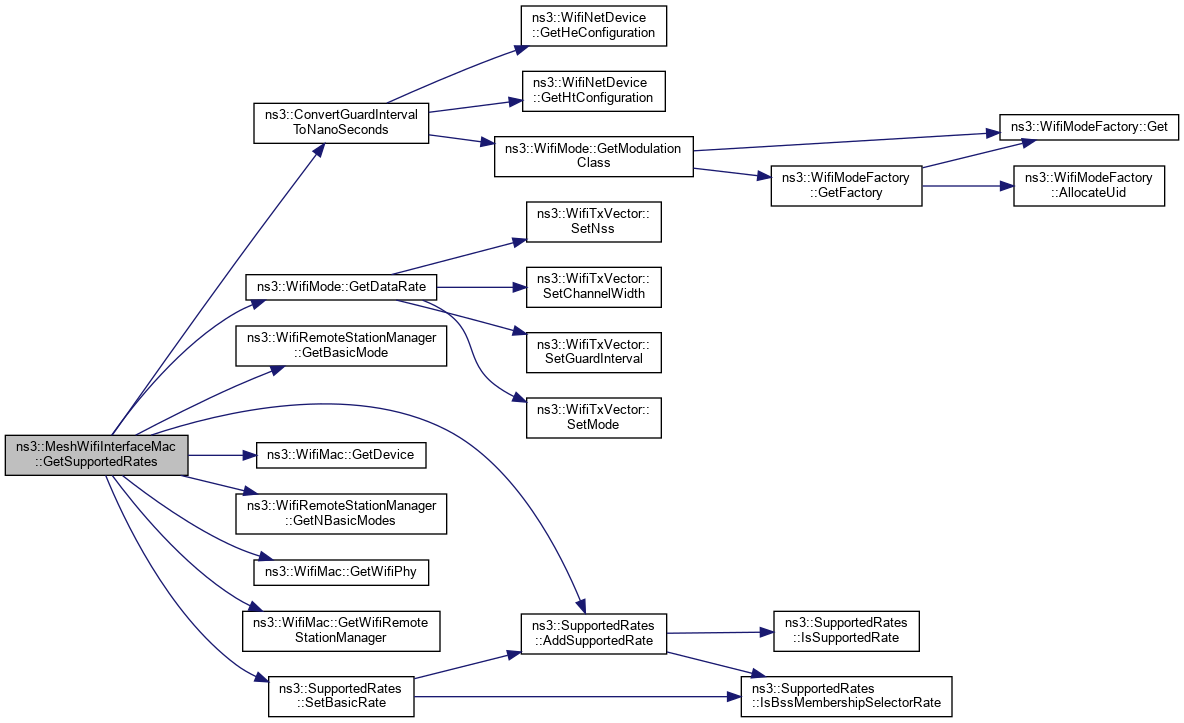

SupportedRates	GetSupportedRates () const

void	InstallPlugin (Ptr< MeshWifiInterfaceMacPlugin > plugin)
	Install plugin. More...

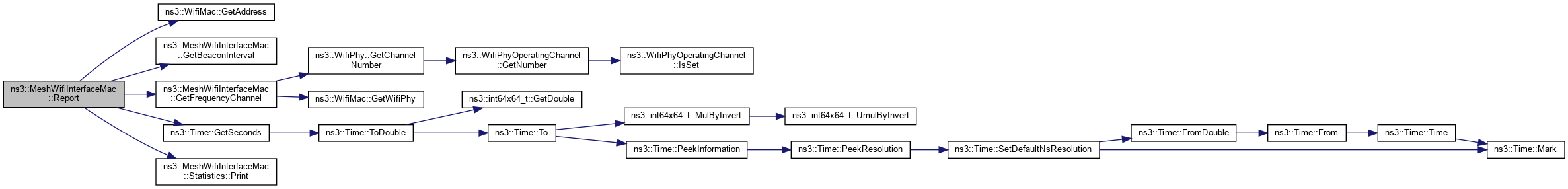

void	Report (std::ostream &os) const
	Report statistics. More...

void	ResetStats ()
	Reset statistics function. More...

void	SendManagementFrame (Ptr< Packet > frame, const WifiMacHeader &hdr)
	To be used by plugins sending management frames. More...

void	SetBeaconGeneration (bool enable)
	Enable/disable beacons. More...

virtual void	SetLinkUpCallback (Callback< void > linkUp)

virtual bool	SupportsSendFrom () const

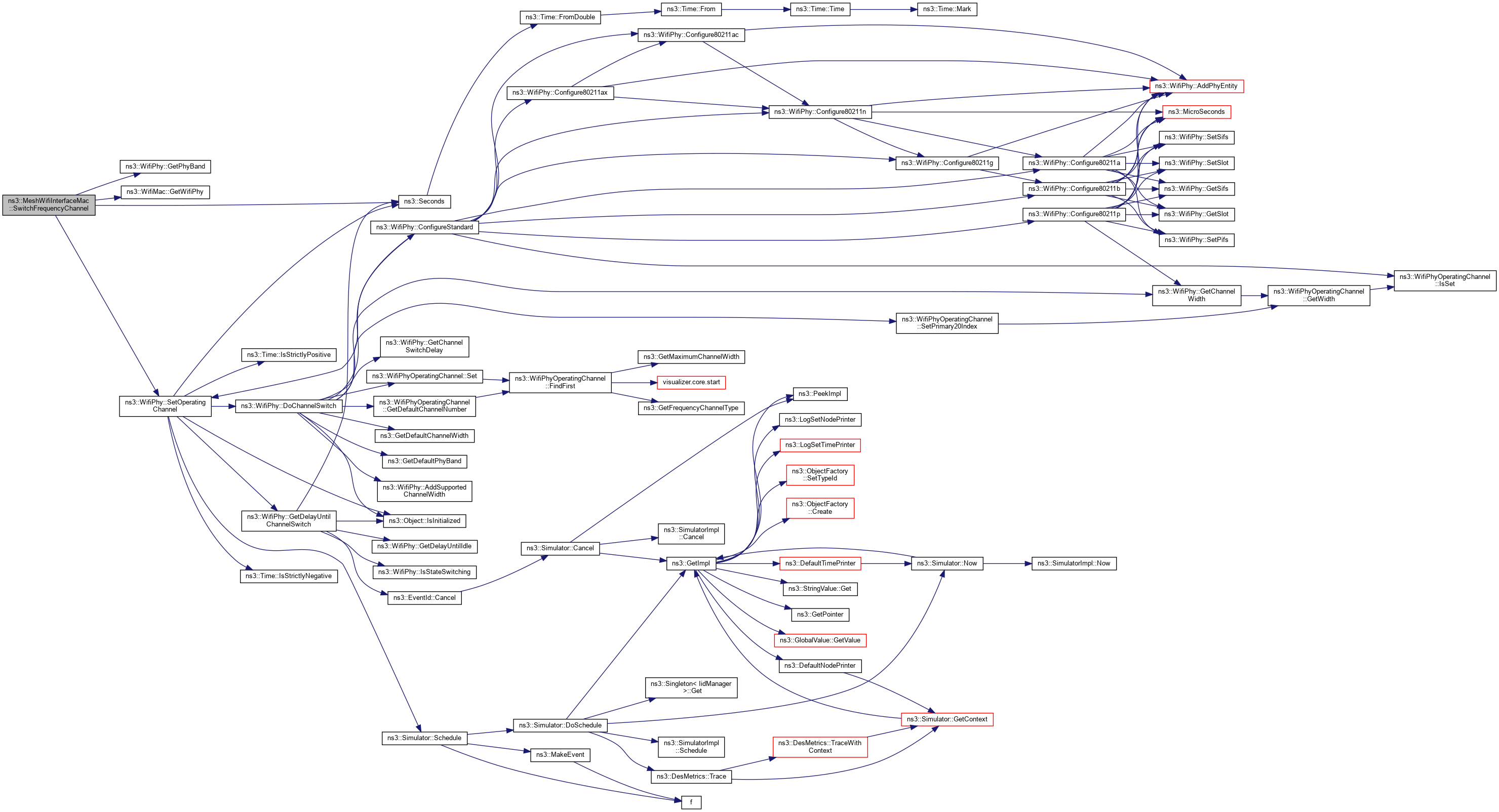

void	SwitchFrequencyChannel (uint16_t new_id)
	Switch frequency channel. More...

Each mesh point interface must know the mesh point address
void	SetMeshPointAddress (Mac48Address addr)
	Set the mesh point address. More...

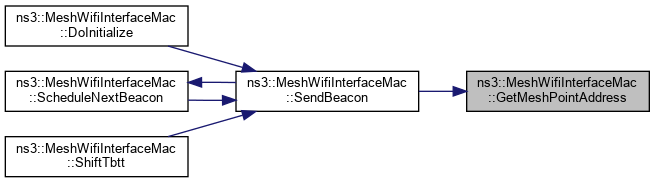

Mac48Address	GetMeshPointAddress () const
	Get the mesh point address. More...

Beacons
void	SetRandomStartDelay (Time interval)
	Set maximum initial random delay before first beacon. More...

void	SetBeaconInterval (Time interval)
	Set interval between two successive beacons. More...

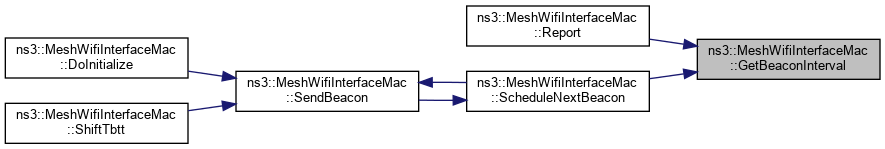

Time	GetBeaconInterval () const

Time	GetTbtt () const
	Next beacon frame time. More...

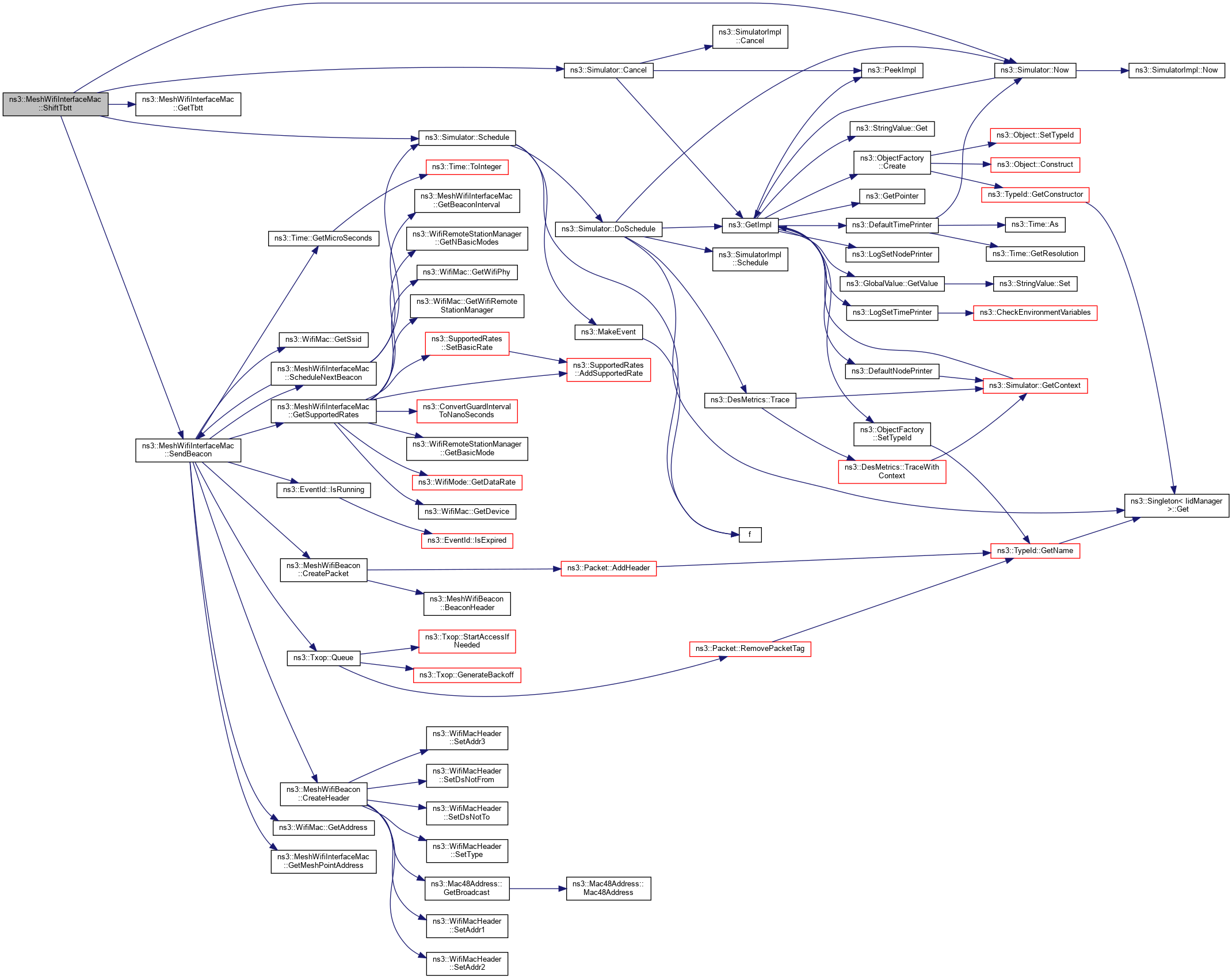

void	ShiftTbtt (Time shift)
	Shift TBTT. More...

Metric Calculation routines:
void	SetLinkMetricCallback (Callback< uint32_t, Mac48Address, Ptr< MeshWifiInterfaceMac > > cb)
	Set the link metric callback. More...

uint32_t	GetLinkMetric (Mac48Address peerAddress)
	Get the link metric. More...

Public Member Functions inherited from ns3::WifiMac
	WifiMac ()

virtual	~WifiMac ()

Mac48Address	GetAddress (void) const

Mac48Address	GetBssid (void) const

Ptr< WifiNetDevice >	GetDevice (void) const
	Return the device this PHY is associated with. More...

bool	GetDsssSupported () const
	Return whether the device supports DSSS. More...

bool	GetErpSupported () const
	Return whether the device supports ERP. More...

ExtendedCapabilities	GetExtendedCapabilities (void) const
	Return the extended capabilities of the device. More...

Ptr< FrameExchangeManager >	GetFrameExchangeManager (void) const
	Get the Frame Exchange Manager. More...

HeCapabilities	GetHeCapabilities (void) const
	Return the HE capabilities of the device. More...

Ptr< HeConfiguration >	GetHeConfiguration (void) const

bool	GetHeSupported () const
	Return whether the device supports HE. More...

HtCapabilities	GetHtCapabilities (void) const
	Return the HT capabilities of the device. More...

Ptr< HtConfiguration >	GetHtConfiguration (void) const

bool	GetHtSupported () const
	Return whether the device supports HT. More...

uint32_t	GetMaxAmpduSize (AcIndex ac) const
	Return the maximum A-MPDU size of the given Access Category. More...

uint16_t	GetMaxAmsduSize (AcIndex ac) const
	Return the maximum A-MSDU size of the given Access Category. More...

bool	GetQosSupported () const
	Return whether the device supports QoS. More...

Ptr< QosTxop >	GetQosTxop (AcIndex ac) const
	Accessor for a specified EDCA object. More...

Ptr< QosTxop >	GetQosTxop (uint8_t tid) const
	Accessor for a specified EDCA object. More...

Ssid	GetSsid (void) const

Ptr< Txop >	GetTxop (void) const
	Accessor for the Txop object. More...

virtual Ptr< WifiMacQueue >	GetTxopQueue (AcIndex ac) const
	Get the wifi MAC queue of the (Qos)Txop associated with the given AC, if such (Qos)Txop is installed, or a null pointer, otherwise. More...

TypeOfStation	GetTypeOfStation (void) const
	Return the type of station. More...

VhtCapabilities	GetVhtCapabilities (void) const
	Return the VHT capabilities of the device. More...

Ptr< VhtConfiguration >	GetVhtConfiguration (void) const

bool	GetVhtSupported () const
	Return whether the device supports VHT. More...

Ptr< WifiPhy >	GetWifiPhy (void) const

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (void) const

virtual void	NotifyChannelSwitching (void)
	Notify that channel has been switched. More...

void	NotifyPromiscRx (Ptr< const Packet > packet)

void	NotifyRx (Ptr< const Packet > packet)

void	NotifyRxDrop (Ptr< const Packet > packet)

void	NotifyTx (Ptr< const Packet > packet)

void	NotifyTxDrop (Ptr< const Packet > packet)

void	ResetWifiPhy (void)
	Remove currently attached WifiPhy device from this MAC. More...

virtual void	SetAddress (Mac48Address address)

void	SetBssid (Mac48Address bssid)

void	SetCtsToSelfSupported (bool enable)
	Enable or disable CTS-to-self feature. More...

void	SetDevice (const Ptr< WifiNetDevice > device)
	Sets the device this PHY is associated with. More...

void	SetForwardUpCallback (ForwardUpCallback upCallback)

void	SetLinkDownCallback (Callback< void > linkDown)

void	SetPromisc (void)
	Sets the interface in promiscuous mode. More...

void	SetSsid (Ssid ssid)

void	SetTypeOfStation (TypeOfStation type)
	This method is invoked by a subclass to specify what type of station it is implementing. More...

virtual void	SetWifiPhy (Ptr< WifiPhy > phy)

void	SetWifiRemoteStationManager (Ptr< WifiRemoteStationManager > stationManager)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiMac
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::vector< Ptr< MeshWifiInterfaceMacPlugin > >	PluginList
	PluginList typedef. More...

Private Member Functions

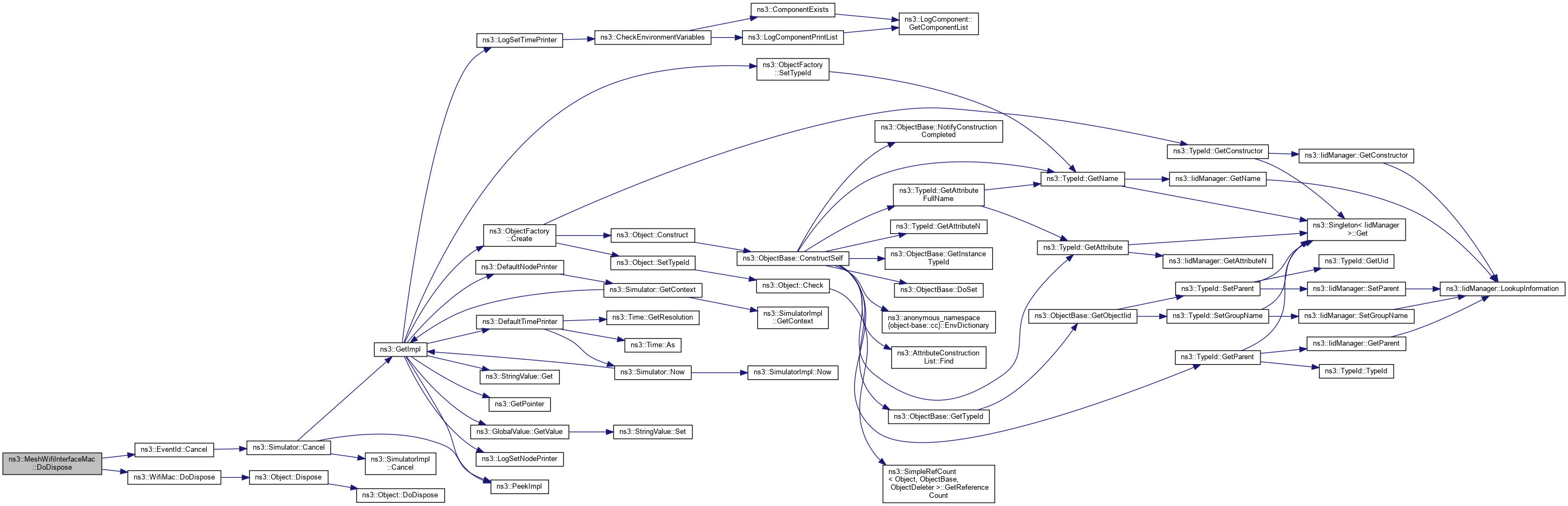

virtual void	DoDispose ()
	Real d-tor. More...

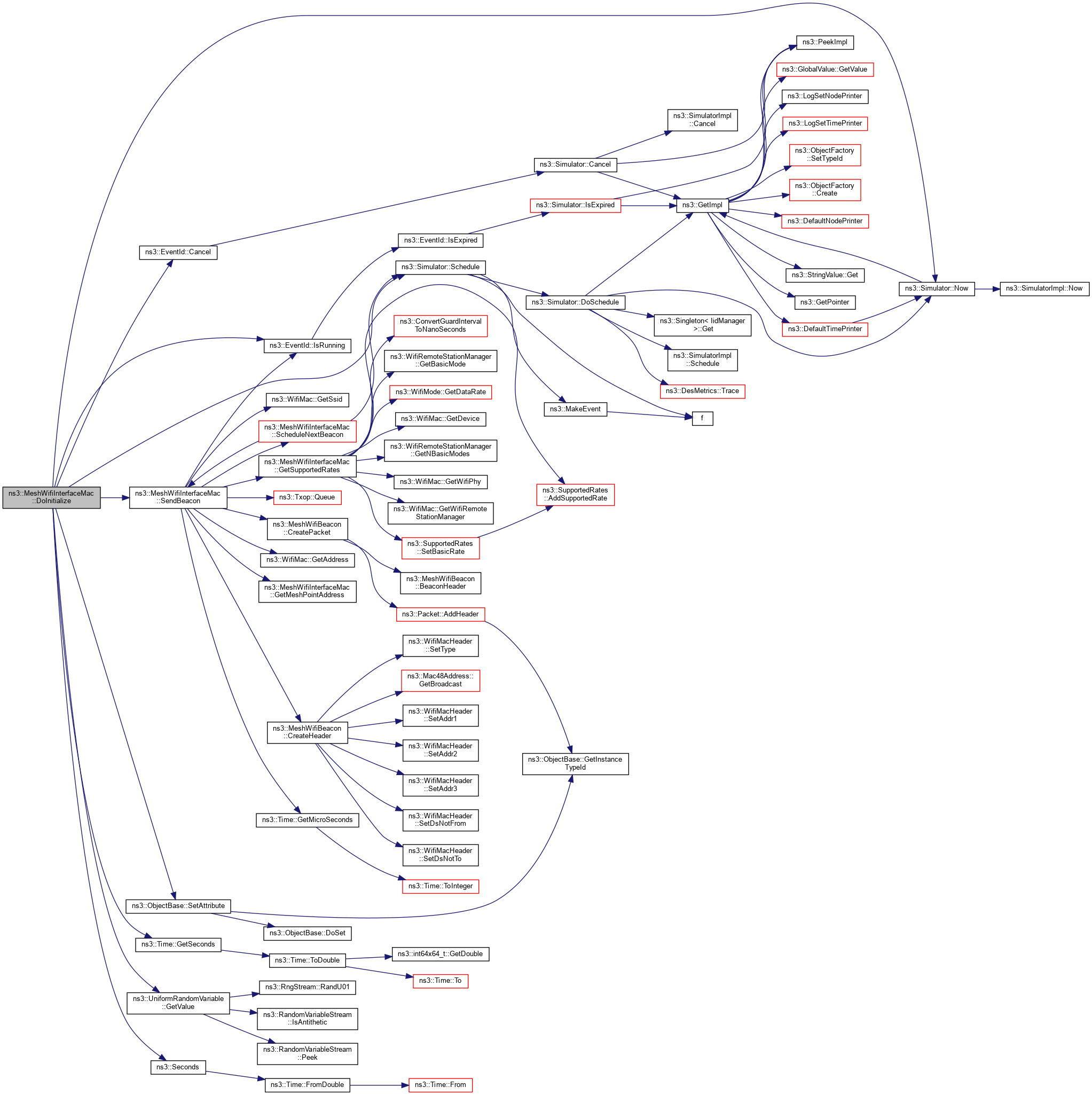

virtual void	DoInitialize ()
	Initialize() implementation. More...

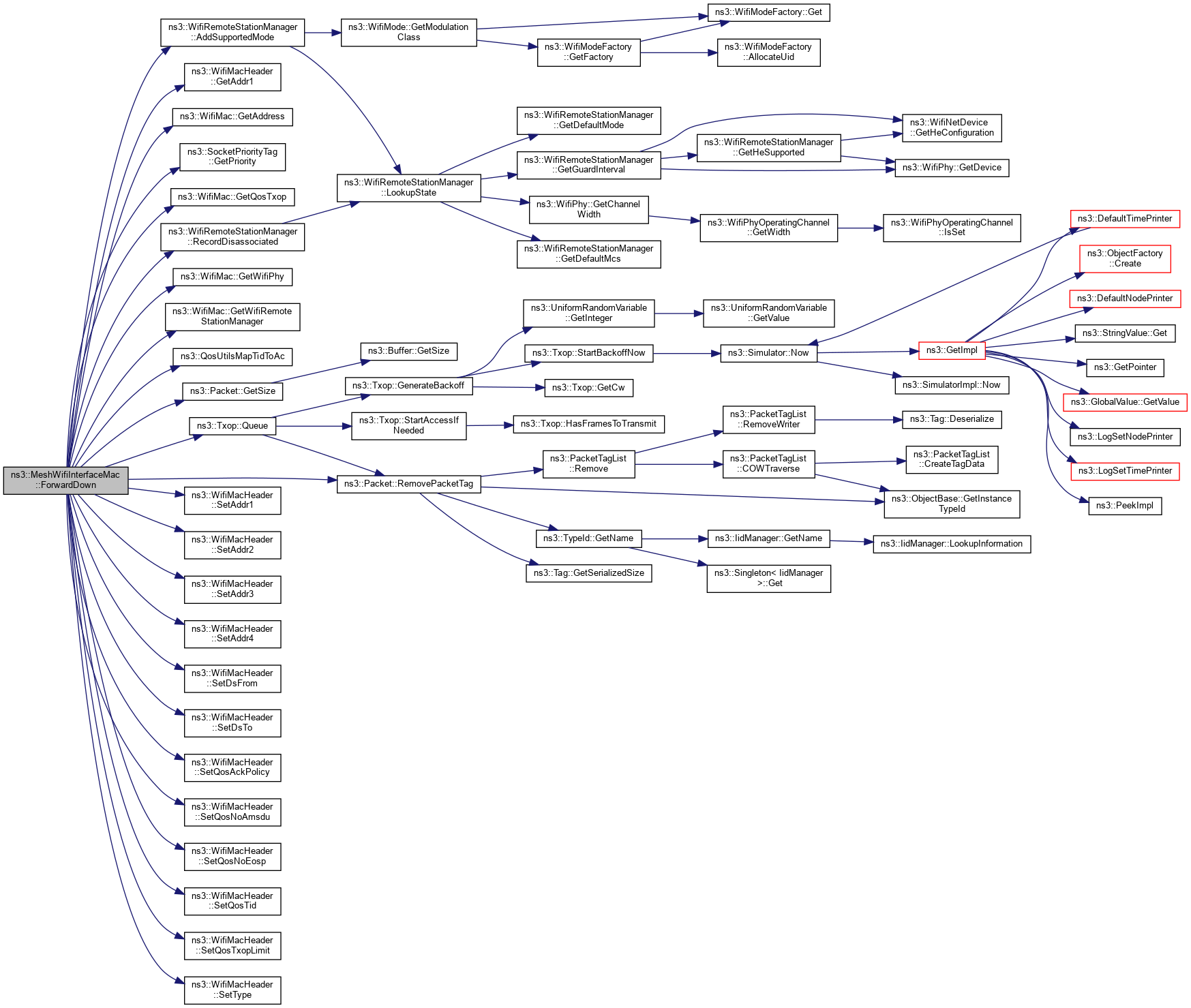

void	ForwardDown (Ptr< Packet > packet, Mac48Address from, Mac48Address to)
	Send frame. More...

bool	GetBeaconGeneration () const
	Get current beaconing status. More...

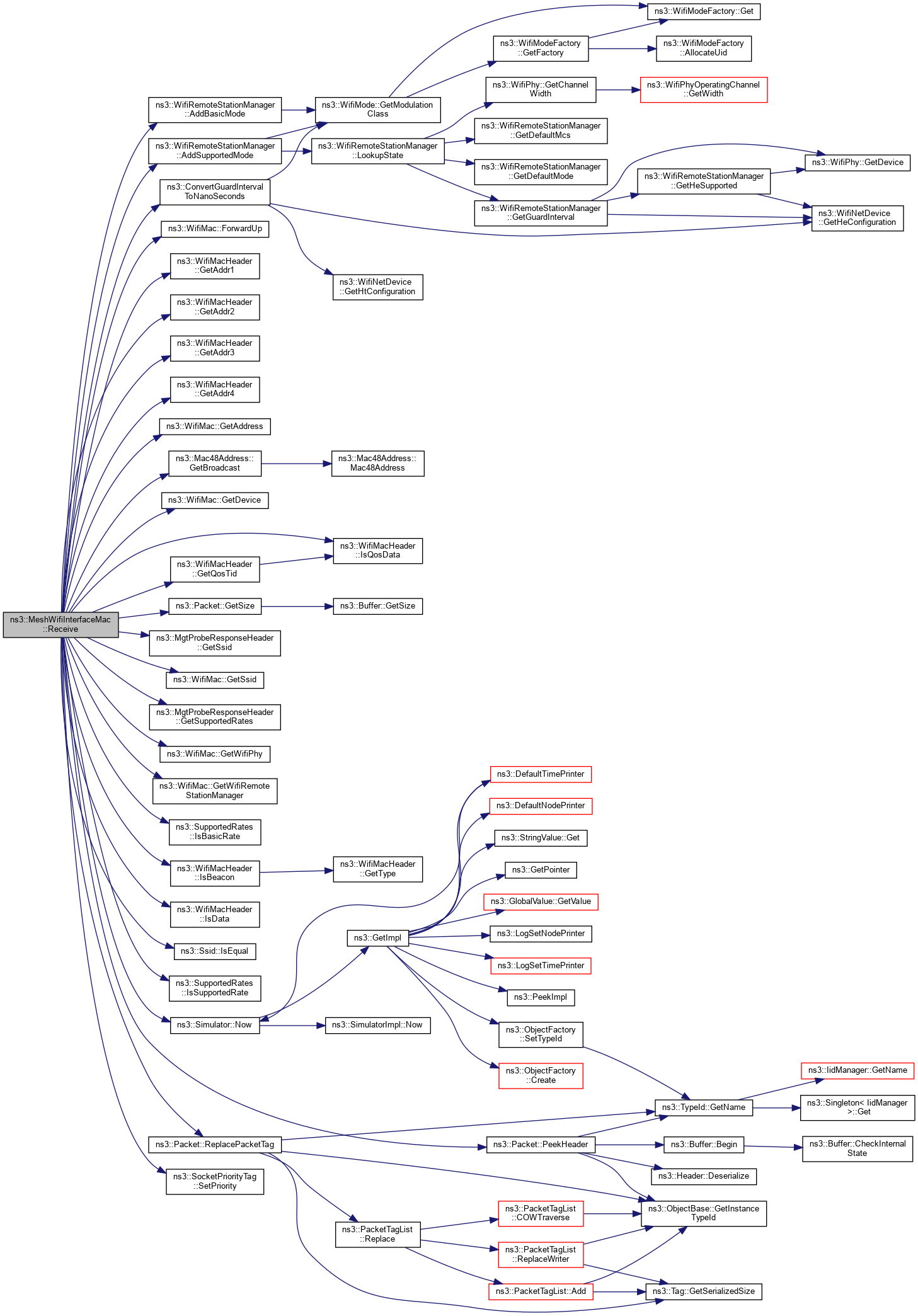

void	Receive (Ptr< WifiMacQueueItem > mpdu)
	Frame receive handler. More...

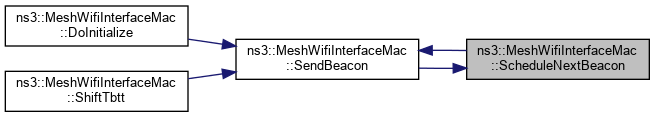

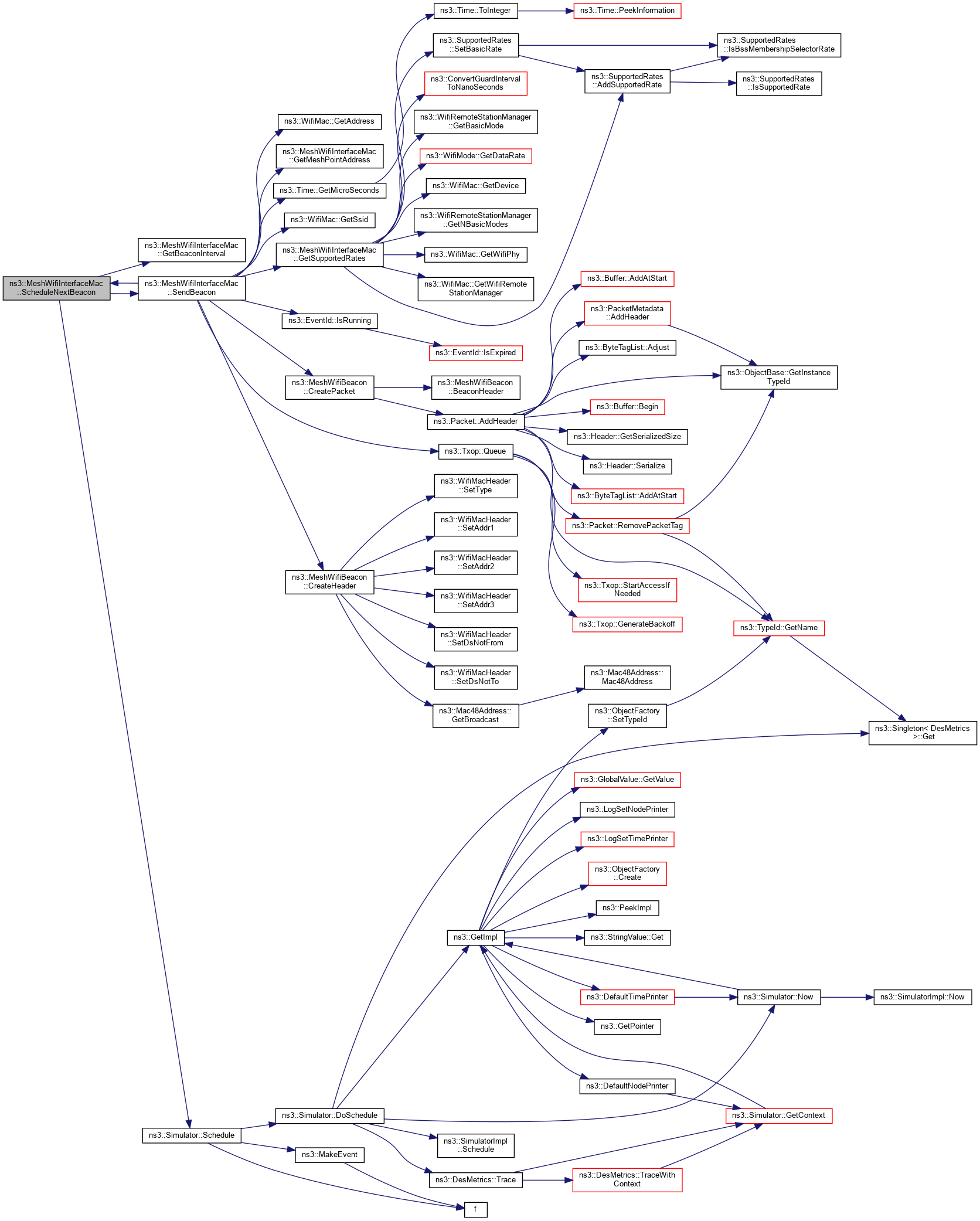

void	ScheduleNextBeacon ()
	Schedule next beacon. More...

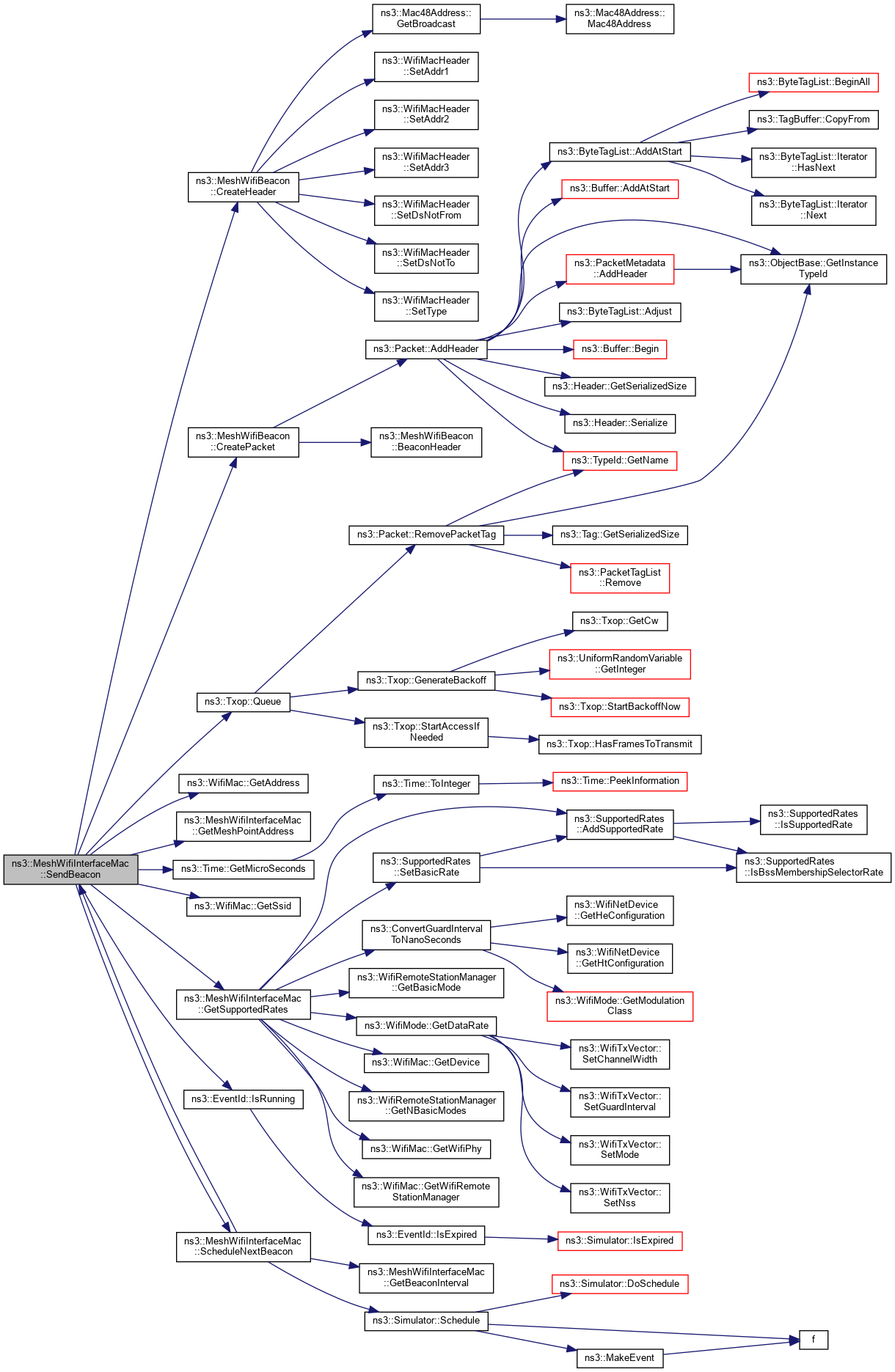

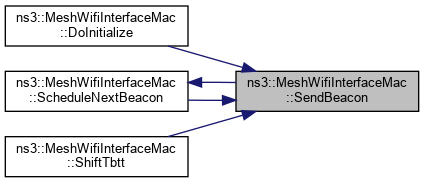

void	SendBeacon ()
	Send beacon. More...

Private Attributes
EventId	m_beaconSendEvent
	"Timer" for the next beacon More...

Ptr< UniformRandomVariable >	m_coefficient
	Add randomness to beacon generation. More...

Callback< uint32_t, Mac48Address, Ptr< MeshWifiInterfaceMac > >	m_linkMetricCallback
	linkMetricCallback More...

Mac48Address	m_mpAddress
	Mesh point address. More...

PluginList	m_plugins
	List of all installed plugins. More...

WifiStandard	m_standard
	Current standard: needed to configure metric. More...

Statistics	m_stats
	statistics More...

Mesh timing intervals
whether beaconing is enabled
bool	m_beaconEnable
	Beaconing interval. More...

Time	m_beaconInterval
	Beaconing interval. More...

Time	m_randomStart
	Maximum delay before first beacon. More...

Time	m_tbtt
	Time for the next frame. More...

Additional Inherited Members
Public Types inherited from ns3::WifiMac
typedef Callback< void, Ptr< const Packet >, Mac48Address, Mac48Address >	ForwardUpCallback
	This type defines the callback of a higher layer that a WifiMac(-derived) object invokes to pass a packet up the stack. More...

Protected Member Functions inherited from ns3::WifiMac
virtual void	DeaggregateAmsduAndForward (Ptr< WifiMacQueueItem > mpdu)
	This method can be called to de-aggregate an A-MSDU and forward the constituent packets up the stack. More...

void	DoDispose () override
	Destructor implementation. More...

void	DoInitialize () override
	Initialize() implementation. More...

void	ForwardUp (Ptr< const Packet > packet, Mac48Address from, Mac48Address to)
	Forward the packet up to the device. More...

Ptr< QosTxop >	GetBEQueue (void) const
	Accessor for the AC_BE channel access function. More...

Ptr< QosTxop >	GetBKQueue (void) const
	Accessor for the AC_BK channel access function. More...

bool	GetShortSlotTimeSupported (void) const

Ptr< QosTxop >	GetVIQueue (void) const
	Accessor for the AC_VI channel access function. More...

Ptr< QosTxop >	GetVOQueue (void) const
	Accessor for the AC_VO channel access function. More...

void	SetQosSupported (bool enable)
	Enable or disable QoS support for the device. More...

void	SetShortSlotTimeSupported (bool enable)
	Enable or disable short slot time feature. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::WifiMac
Ptr< ChannelAccessManager >	m_channelAccessManager
	channel access manager More...

Ptr< FrameExchangeManager >	m_feManager
	Frame Exchange Manager. More...

Callback< void >	m_linkDown
	Callback when a link is down. More...

Callback< void >	m_linkUp
	Callback when a link is up. More...

Ptr< MacRxMiddle >	m_rxMiddle
	RX middle (defragmentation etc.) More...

Ptr< MacTxMiddle >	m_txMiddle
	TX middle (aggregation etc.) More...

Ptr< Txop >	m_txop
	TXOP used for transmission of frames to non-QoS peers. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Basic MAC of mesh point Wi-Fi interface.

Its function is extendable through plugins mechanism.

Now only three output queues are used:

beacons (PIFS and no backoff),
background traffic,
management and priority traffic.

Config Paths

ns3::MeshWifiInterfaceMac is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WifiNetDevice/Mac/$ns3::MeshWifiInterfaceMac"

Attributes

BeaconInterval: Beacon Interval
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +5e+08ns
- Flags: construct write read
RandomStart: Window when beacon generating starts (uniform random) in seconds
- Set with class: ns3::TimeValue
- Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
- Initial value: +5e+08ns
- Flags: construct write read
BeaconGeneration: Enable/Disable Beaconing.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read

Attributes defined in parent class ns3::WifiMac

Ssid: The ssid we want to belong to.
- Set with class: SsidValue
- Underlying type: Ssid
- Initial value: default
- Flags: construct write read
QosSupported: This Boolean attribute is set to enable 802.11e/WMM-style QoS support at this STA.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct read
CtsToSelfSupported: Use CTS to Self when using a rate that is not in the basic rate set.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write
ShortSlotTimeSupported: Whether or not short slot time is supported (only used by ERP APs or STAs).
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
Txop: The Txop object.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::Txop>
- Flags: read
VO_Txop: Queue that manages packets belonging to AC_VO access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
VI_Txop: Queue that manages packets belonging to AC_VI access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BE_Txop: Queue that manages packets belonging to AC_BE access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
BK_Txop: Queue that manages packets belonging to AC_BK access class.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::QosTxop>
- Flags: read
VO_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VO access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VI_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_VI access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BE_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BE access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
BK_MaxAmsduSize: Maximum length in bytes of an A-MSDU for AC_BK access class (capped to 7935 for HT PPDUs and 11398 for VHT/HE PPDUs). Value 0 means A-MSDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:11398
- Initial value: 0
- Flags: construct write read
VO_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VO access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 0
- Flags: construct write read
VI_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_VI access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 65535
- Flags: construct write read
BE_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BE access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 65535
- Flags: construct write read
BK_MaxAmpduSize: Maximum length in bytes of an A-MPDU for AC_BK access class (capped to 65535 for HT PPDUs, 1048575 for VHT PPDUs, and 6500631 for HE PPDUs). Value 0 means A-MPDU aggregation is disabled for that AC.
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:6500631
- Initial value: 0
- Flags: construct write read
VO_BlockAckThreshold: If number of packets in VO queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VI_BlockAckThreshold: If number of packets in VI queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BE_BlockAckThreshold: If number of packets in BE queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
BK_BlockAckThreshold: If number of packets in BK queue reaches this value, block ack mechanism is used. If this value is 0, block ack is never used.When A-MPDU is enabled, block ack mechanism is used regardless of this value.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:64
- Initial value: 0
- Flags: construct write
VO_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VO. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
VI_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_VI. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BE_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BE. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write
BK_BlockAckInactivityTimeout: Represents max time (blocks of 1024 microseconds) allowed for block ackinactivity for AC_BK. If this value isn't equal to 0 a timer start after that ablock ack setup is completed and will be reset every time that a block ackframe is received. If this value is 0, block ack inactivity timeout won't be used.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::WifiMac

MacTx: A packet has been received from higher layers and is being processed in preparation for queueing for transmission.
Callback signature: ns3::Packet::TracedCallback
MacTxDrop: A packet has been dropped in the MAC layer before being queued for transmission. This trace source is fired, e.g., when an AP's MAC receives from the upper layer a packet destined to a station that is not associated with the AP or a STA's MAC receives a packet from the upper layer while it is not associated with any AP.
Callback signature: ns3::Packet::TracedCallback
MacPromiscRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRx: A packet has been received by this device, has been passed up from the physical layer and is being forwarded up the local protocol stack. This is a non-promiscuous trace.
Callback signature: ns3::Packet::TracedCallback
MacRxDrop: A packet has been dropped in the MAC layer after it has been passed up from the physical layer.
Callback signature: ns3::Packet::TracedCallback
TxOkHeader: The header of successfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
TxErrHeader: The header of unsuccessfully transmitted packet.
Callback signature: ns3::WifiMacHeader::TracedCallback
AckedMpdu: An MPDU that was successfully acknowledged, via either a Normal Ack or a Block Ack.
Callback signature: ns3::WifiMacQueueItem::TracedCallback
NAckedMpdu: An MPDU that was negatively acknowledged via a Block Ack.
Callback signature: ns3::WifiMacQueueItem::TracedCallback
DroppedMpdu: An MPDU that was dropped for the given reason (see WifiMacDropReason).
Callback signature: ns3::WifiMac::DroppedMpduCallback
MpduResponseTimeout: An MPDU whose response was not received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason) and the TXVECTOR used to transmit the MPDU. This trace source is fired when a CTS is missing after an RTS or a Normal Ack is missing after an MPDU or after a DL MU PPDU acknowledged in SU format.
Callback signature: ns3::WifiMac::MpduResponseTimeoutCallback
PsduResponseTimeout: A PSDU whose response was not received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason) and the TXVECTOR used to transmit the PSDU. This trace source is fired when a BlockAck is missing after an A-MPDU, a BlockAckReq (possibly in the context of the acknowledgment of a DL MU PPDU in SU format) or a TB PPDU (in the latter case the missing BlockAck is a Multi-STA BlockAck).
Callback signature: ns3::WifiMac::PsduResponseTimeoutCallback
PsduMapResponseTimeout: A PSDU map for which not all the responses were received before the timeout, along with an identifier of the type of timeout (see WifiTxTimer::Reason), the set of MAC addresses of the stations that did not respond and the total number of stations that had to respond. This trace source is fired when not all the addressed stations responded to an MU-BAR Trigger frame (either sent as a SU frame or aggregated to PSDUs in the DL MU PPDU), a Basic Trigger Frame or a BSRP Trigger Frame.
Callback signature: ns3::WifiMac::PsduMapResponseTimeoutCallback

Size of this type is 712 bytes (on a 64-bit architecture).

Definition at line 50 of file mesh-wifi-interface-mac.h.

Member Typedef Documentation

◆ PluginList

typedef std::vector<Ptr<MeshWifiInterfaceMacPlugin> > ns3::MeshWifiInterfaceMac::PluginList

private

PluginList typedef.

Definition at line 243 of file mesh-wifi-interface-mac.h.

Constructor & Destructor Documentation

◆ MeshWifiInterfaceMac()

ns3::MeshWifiInterfaceMac::MeshWifiInterfaceMac ( )

C-tor.

Definition at line 77 of file mesh-wifi-interface-mac.cc.

References m_coefficient, ns3::MESH, NS_LOG_FUNCTION, and ns3::WifiMac::SetTypeOfStation().

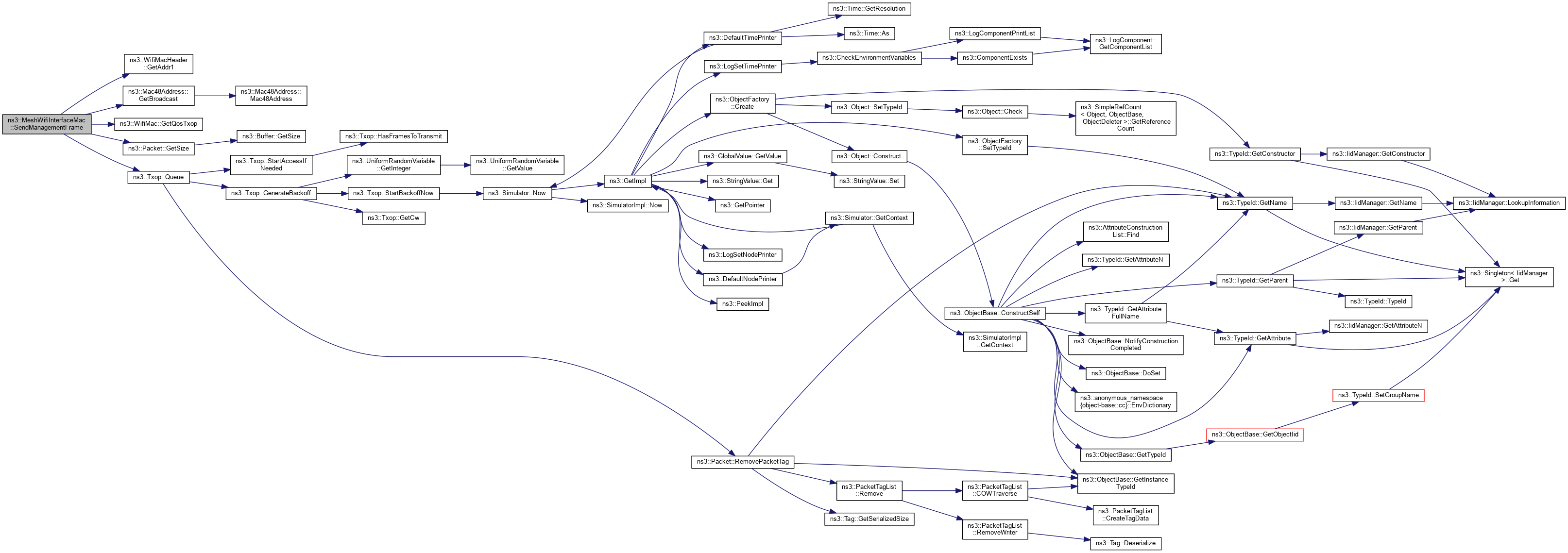

Here is the call graph for this function:

◆ ~MeshWifiInterfaceMac()

ns3::MeshWifiInterfaceMac::~MeshWifiInterfaceMac ( )

virtual

D-tor.

Definition at line 86 of file mesh-wifi-interface-mac.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::MeshWifiInterfaceMac::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 156 of file mesh-wifi-interface-mac.cc.

References m_coefficient, m_plugins, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

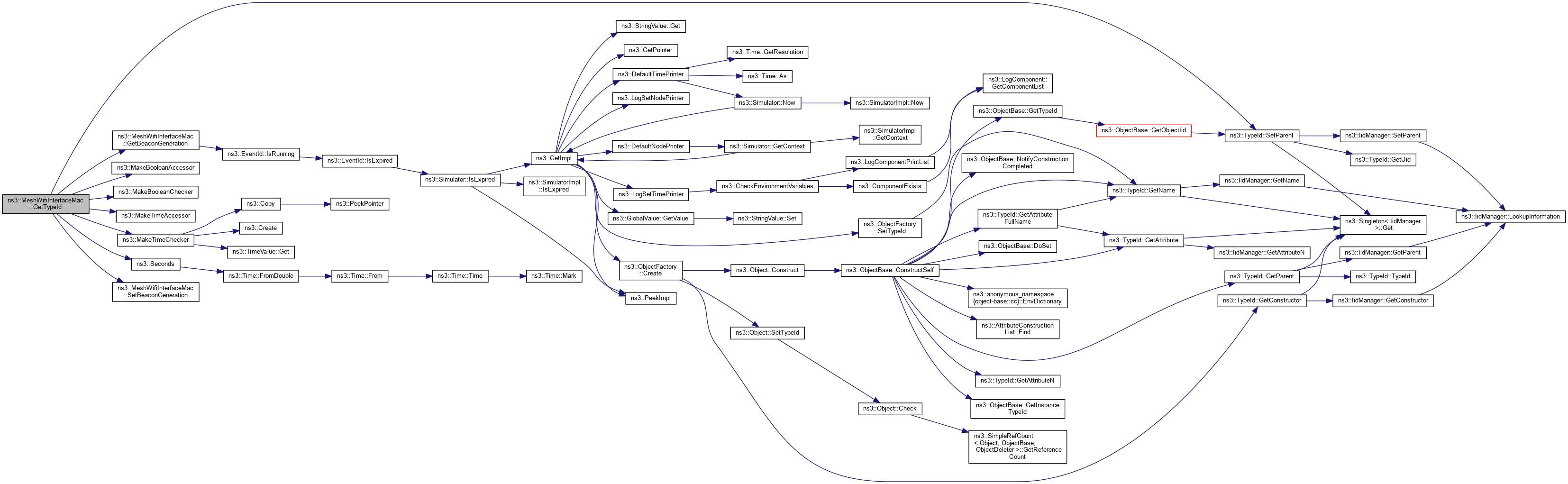

Here is the call graph for this function:

◆ CanForwardPacketsTo()

bool ns3::MeshWifiInterfaceMac::CanForwardPacketsTo ( Mac48Address to ) const

virtual

Return true if packets can be forwarded to the given destination, false otherwise.

Parameters

to	the address to which the packet should be sent

Returns: whether packets can be forwarded to the given destination

Implements ns3::WifiMac.

Definition at line 94 of file mesh-wifi-interface-mac.cc.

◆ CheckSupportedRates()

bool ns3::MeshWifiInterfaceMac::CheckSupportedRates ( SupportedRates rates ) const

Check supported rates.

Parameters

rates

Returns: true if rates are supported

Definition at line 328 of file mesh-wifi-interface-mac.cc.

References ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiRemoteStationManager::GetBasicMode(), ns3::WifiMode::GetDataRate(), ns3::WifiMac::GetDevice(), ns3::WifiRemoteStationManager::GetNBasicModes(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), and ns3::SupportedRates::IsSupportedRate().

Here is the call graph for this function:

◆ ConfigureContentionWindow()

void ns3::MeshWifiInterfaceMac::ConfigureContentionWindow	(	uint32_t	cwMin,
		uint32_t	cwMax
	)

virtual

Parameters

cwMin	the minimum contention window size
cwMax	the maximum contention window size

This method is called to set the minimum and the maximum contention window size.

Reimplemented from ns3::WifiMac.

Definition at line 556 of file mesh-wifi-interface-mac.cc.

References ns3::WifiMac::ConfigureContentionWindow(), ns3::WifiMac::m_channelAccessManager, ns3::WifiMac::m_txMiddle, ns3::WifiMac::m_txop, ns3::Txop::SetAifsn(), ns3::Txop::SetChannelAccessManager(), ns3::Txop::SetMaxCw(), ns3::Txop::SetMinCw(), ns3::Txop::SetTxMiddle(), and ns3::Txop::SetWifiMac().

Here is the call graph for this function:

◆ ConfigureStandard()

void ns3::MeshWifiInterfaceMac::ConfigureStandard ( enum WifiStandard standard )

virtual

Finish configuration based on the WifiStandard being provided.

Parameters

standard the WifiStandard being configured

Reimplemented from ns3::WifiMac.

Definition at line 548 of file mesh-wifi-interface-mac.cc.

References ns3::WifiMac::ConfigureStandard(), ns3::WifiMac::GetQosSupported(), m_standard, and NS_ABORT_IF.

Here is the call graph for this function:

◆ DoDispose()

void ns3::MeshWifiInterfaceMac::DoDispose ( void )

privatevirtual

Real d-tor.

Reimplemented from ns3::Object.

Definition at line 127 of file mesh-wifi-interface-mac.cc.

References ns3::EventId::Cancel(), ns3::WifiMac::DoDispose(), m_beaconSendEvent, m_plugins, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DoInitialize()

void ns3::MeshWifiInterfaceMac::DoInitialize ( void )

privatevirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 136 of file mesh-wifi-interface-mac.cc.

References ns3::EventId::Cancel(), ns3::Time::GetSeconds(), ns3::UniformRandomVariable::GetValue(), ns3::EventId::IsRunning(), m_beaconEnable, m_beaconSendEvent, m_coefficient, m_randomStart, m_tbtt, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), ns3::Seconds(), SendBeacon(), and ns3::ObjectBase::SetAttribute().

Here is the call graph for this function:

◆ Enqueue() [1/2]

void ns3::MeshWifiInterfaceMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC.

Implements ns3::WifiMac.

Definition at line 105 of file mesh-wifi-interface-mac.cc.

References ForwardDown(), ns3::WifiMac::GetAddress(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ Enqueue() [2/2]

void ns3::MeshWifiInterfaceMac::Enqueue	(	Ptr< Packet >	packet,
		Mac48Address	to,
		Mac48Address	from
	)

virtual

Parameters

packet	the packet to send.
to	the address to which the packet should be sent.
from	the address from which the packet should be sent.

The packet should be enqueued in a TX queue, and should be dequeued as soon as the DCF function determines that access it granted to this MAC. The extra parameter "from" allows this device to operate in a bridged mode, forwarding received frames without altering the source address.

Reimplemented from ns3::WifiMac.

Definition at line 99 of file mesh-wifi-interface-mac.cc.

References ForwardDown(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ForwardDown()

void ns3::MeshWifiInterfaceMac::ForwardDown	(	Ptr< Packet >	packet,
		Mac48Address	from,
		Mac48Address	to
	)

private

Send frame.

Frame is supposed to be tagged by routing information.

Parameters

packet	the packet to forward
from	the from address
to	the to address

Definition at line 214 of file mesh-wifi-interface-mac.cc.

Referenced by Enqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBeaconGeneration()

bool ns3::MeshWifiInterfaceMac::GetBeaconGeneration ( ) const

private

Get current beaconing status.

Returns: true if beacon active

Definition at line 368 of file mesh-wifi-interface-mac.cc.

References ns3::EventId::IsRunning(), and m_beaconSendEvent.

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetBeaconInterval()

Time ns3::MeshWifiInterfaceMac::GetBeaconInterval ( ) const

Returns: interval between two beacons

Definition at line 357 of file mesh-wifi-interface-mac.cc.

References m_beaconInterval.

Referenced by Report(), and ScheduleNextBeacon().

Here is the caller graph for this function:

◆ GetFrequencyChannel()

uint16_t ns3::MeshWifiInterfaceMac::GetFrequencyChannel ( ) const

Current channel Id.

Returns: the frequency channel

Definition at line 183 of file mesh-wifi-interface-mac.cc.

References ns3::WifiPhy::GetChannelNumber(), ns3::WifiMac::GetWifiPhy(), NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by Report().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetLinkMetric()

uint32_t ns3::MeshWifiInterfaceMac::GetLinkMetric ( Mac48Address peerAddress )

Get the link metric.

Parameters

peerAddress the peer address

Returns: The metric

Definition at line 487 of file mesh-wifi-interface-mac.cc.

References m_linkMetricCallback.

◆ GetMeshPointAddress()

Mac48Address ns3::MeshWifiInterfaceMac::GetMeshPointAddress ( ) const

Get the mesh point address.

Returns: The mesh point address

Definition at line 507 of file mesh-wifi-interface-mac.cc.

References m_mpAddress.

Referenced by SendBeacon().

Here is the caller graph for this function:

◆ GetSupportedRates()

SupportedRates ns3::MeshWifiInterfaceMac::GetSupportedRates ( ) const

Returns: list of supported bitrates

Definition at line 308 of file mesh-wifi-interface-mac.cc.

References ns3::SupportedRates::AddSupportedRate(), ns3::ConvertGuardIntervalToNanoSeconds(), ns3::WifiRemoteStationManager::GetBasicMode(), ns3::WifiMode::GetDataRate(), ns3::WifiMac::GetDevice(), ns3::WifiRemoteStationManager::GetNBasicModes(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), and ns3::SupportedRates::SetBasicRate().

Referenced by SendBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTbtt()

Time ns3::MeshWifiInterfaceMac::GetTbtt ( ) const

Next beacon frame time.

Returns: TBTT time

This is supposed to be used by any entity managing beacon collision avoidance (e.g. Peer management protocol in 802.11s)

Definition at line 373 of file mesh-wifi-interface-mac.cc.

References m_tbtt.

Referenced by ShiftTbtt().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MeshWifiInterfaceMac::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 46 of file mesh-wifi-interface-mac.cc.

References GetBeaconGeneration(), m_beaconInterval, m_randomStart, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::Seconds(), SetBeaconGeneration(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ InstallPlugin()

void ns3::MeshWifiInterfaceMac::InstallPlugin ( Ptr< MeshWifiInterfaceMacPlugin > plugin )

Install plugin.

Parameters

plugin

Todo:: return unique ID to allow user to unregister plugins

Definition at line 172 of file mesh-wifi-interface-mac.cc.

References m_plugins, NS_LOG_FUNCTION, and ns3::MeshWifiInterfaceMacPlugin::SetParent().

Here is the call graph for this function:

◆ Receive()

void ns3::MeshWifiInterfaceMac::Receive ( Ptr< WifiMacQueueItem > mpdu )

privatevirtual

Frame receive handler.

Parameters

mpdu	the received MPDU

Reimplemented from ns3::WifiMac.

Definition at line 416 of file mesh-wifi-interface-mac.cc.

Here is the call graph for this function:

◆ Report()

void ns3::MeshWifiInterfaceMac::Report ( std::ostream & os ) const

Report statistics.

Parameters

os	the output stream

Definition at line 532 of file mesh-wifi-interface-mac.cc.

References ns3::WifiMac::GetAddress(), GetBeaconInterval(), GetFrequencyChannel(), ns3::Time::GetSeconds(), m_stats, and ns3::MeshWifiInterfaceMac::Statistics::Print().

Here is the call graph for this function:

◆ ResetStats()

void ns3::MeshWifiInterfaceMac::ResetStats ( )

Reset statistics function.

Definition at line 542 of file mesh-wifi-interface-mac.cc.

References m_stats.

◆ ScheduleNextBeacon()

void ns3::MeshWifiInterfaceMac::ScheduleNextBeacon ( )

private

Schedule next beacon.

Definition at line 390 of file mesh-wifi-interface-mac.cc.

References GetBeaconInterval(), m_beaconSendEvent, m_tbtt, ns3::Simulator::Schedule(), and SendBeacon().

Referenced by SendBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendBeacon()

void ns3::MeshWifiInterfaceMac::SendBeacon ( )

private

Send beacon.

Definition at line 396 of file mesh-wifi-interface-mac.cc.

References ns3::MeshWifiBeacon::CreateHeader(), ns3::MeshWifiBeacon::CreatePacket(), ns3::WifiMac::GetAddress(), GetMeshPointAddress(), ns3::Time::GetMicroSeconds(), ns3::WifiMac::GetSsid(), GetSupportedRates(), ns3::EventId::IsRunning(), m_beaconInterval, m_beaconSendEvent, m_plugins, ns3::WifiMac::m_txop, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Txop::Queue(), and ScheduleNextBeacon().

Referenced by DoInitialize(), ScheduleNextBeacon(), and ShiftTbtt().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendManagementFrame()

void ns3::MeshWifiInterfaceMac::SendManagementFrame	(	Ptr< Packet >	frame,
		const WifiMacHeader &	hdr
	)

To be used by plugins sending management frames.

Parameters

frame	the management frame
hdr	the wifi MAC header

Definition at line 272 of file mesh-wifi-interface-mac.cc.

References ns3::AC_BK, ns3::AC_VO, ns3::WifiMacHeader::GetAddr1(), ns3::Mac48Address::GetBroadcast(), ns3::WifiMac::GetQosTxop(), ns3::Packet::GetSize(), m_plugins, m_stats, NS_FATAL_ERROR, ns3::Txop::Queue(), ns3::MeshWifiInterfaceMac::Statistics::sentBytes, and ns3::MeshWifiInterfaceMac::Statistics::sentFrames.

Here is the call graph for this function:

◆ SetBeaconGeneration()

void ns3::MeshWifiInterfaceMac::SetBeaconGeneration ( bool enable )

Enable/disable beacons.

Parameters

enable enable / disable flag

Definition at line 362 of file mesh-wifi-interface-mac.cc.

References m_beaconEnable, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

◆ SetBeaconInterval()

void ns3::MeshWifiInterfaceMac::SetBeaconInterval ( Time interval )

Set interval between two successive beacons.

Parameters

interval beacon interval

Definition at line 351 of file mesh-wifi-interface-mac.cc.

References m_beaconInterval, and NS_LOG_FUNCTION.

◆ SetLinkMetricCallback()

void ns3::MeshWifiInterfaceMac::SetLinkMetricCallback ( Callback< uint32_t, Mac48Address, Ptr< MeshWifiInterfaceMac > > cb )

Set the link metric callback.

Parameters

cb	the callback

Definition at line 497 of file mesh-wifi-interface-mac.cc.

References m_linkMetricCallback.

◆ SetLinkUpCallback()

void ns3::MeshWifiInterfaceMac::SetLinkUpCallback ( Callback< void > linkUp )

virtual

Parameters

linkUp the callback to invoke when the link becomes up.

Reimplemented from ns3::WifiMac.

Definition at line 116 of file mesh-wifi-interface-mac.cc.

References NS_LOG_FUNCTION, and ns3::WifiMac::SetLinkUpCallback().

Here is the call graph for this function:

◆ SetMeshPointAddress()

void ns3::MeshWifiInterfaceMac::SetMeshPointAddress ( Mac48Address addr )

Set the mesh point address.

Parameters

addr	the mesh point address

Definition at line 502 of file mesh-wifi-interface-mac.cc.

References m_mpAddress.

◆ SetRandomStartDelay()

void ns3::MeshWifiInterfaceMac::SetRandomStartDelay ( Time interval )

Set maximum initial random delay before first beacon.

Parameters

interval maximum random interval

Definition at line 345 of file mesh-wifi-interface-mac.cc.

References m_randomStart, and NS_LOG_FUNCTION.

◆ ShiftTbtt()

void ns3::MeshWifiInterfaceMac::ShiftTbtt ( Time shift )

Shift TBTT.

Parameters

shift This is supposed to be used by any entity managing beacon collision avoidance (e.g. Peer management protocol in 802.11s)

Attention: User of ShiftTbtt () must take care to not shift it to the past.

Definition at line 378 of file mesh-wifi-interface-mac.cc.

References ns3::Simulator::Cancel(), GetTbtt(), m_beaconSendEvent, m_tbtt, ns3::Simulator::Now(), NS_ASSERT, ns3::Simulator::Schedule(), and SendBeacon().

Here is the call graph for this function:

◆ SupportsSendFrom()

bool ns3::MeshWifiInterfaceMac::SupportsSendFrom ( void ) const

virtual

Returns: if this MAC supports sending from arbitrary address.

The interface may or may not support sending from arbitrary address. This function returns true if sending from arbitrary address is supported, false otherwise.

Reimplemented from ns3::WifiMac.

Definition at line 111 of file mesh-wifi-interface-mac.cc.

◆ SwitchFrequencyChannel()

void ns3::MeshWifiInterfaceMac::SwitchFrequencyChannel ( uint16_t new_id )

Switch frequency channel.

Parameters

new_id

Todo:: Correct channel switching is:

Interface down, e.g. to stop packets from layer 3
Wait before all output queues will be empty
Switch PHY channel
Interface up

Now we use dirty channel switch – just change frequency

Definition at line 191 of file mesh-wifi-interface-mac.cc.

References ns3::WifiPhy::GetPhyBand(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::m_channelAccessManager, NS_ASSERT, NS_LOG_FUNCTION, ns3::Seconds(), and ns3::WifiPhy::SetOperatingChannel().

Here is the call graph for this function:

Member Data Documentation

◆ m_beaconEnable

bool ns3::MeshWifiInterfaceMac::m_beaconEnable

private

Beaconing interval.

Definition at line 250 of file mesh-wifi-interface-mac.h.

Referenced by DoInitialize(), and SetBeaconGeneration().

◆ m_beaconInterval

Time ns3::MeshWifiInterfaceMac::m_beaconInterval

private

Beaconing interval.

Definition at line 252 of file mesh-wifi-interface-mac.h.

Referenced by GetBeaconInterval(), GetTypeId(), SendBeacon(), and SetBeaconInterval().

◆ m_beaconSendEvent

EventId ns3::MeshWifiInterfaceMac::m_beaconSendEvent

private

"Timer" for the next beacon

Definition at line 263 of file mesh-wifi-interface-mac.h.

Referenced by DoDispose(), DoInitialize(), GetBeaconGeneration(), ScheduleNextBeacon(), SendBeacon(), and ShiftTbtt().

◆ m_coefficient

Ptr<UniformRandomVariable> ns3::MeshWifiInterfaceMac::m_coefficient

private

Add randomness to beacon generation.

Definition at line 290 of file mesh-wifi-interface-mac.h.

Referenced by MeshWifiInterfaceMac(), AssignStreams(), and DoInitialize().

◆ m_linkMetricCallback

Callback<uint32_t, Mac48Address, Ptr<MeshWifiInterfaceMac> > ns3::MeshWifiInterfaceMac::m_linkMetricCallback

private

linkMetricCallback

Definition at line 266 of file mesh-wifi-interface-mac.h.

Referenced by GetLinkMetric(), and SetLinkMetricCallback().

◆ m_mpAddress

Mac48Address ns3::MeshWifiInterfaceMac::m_mpAddress

private

Mesh point address.

Definition at line 260 of file mesh-wifi-interface-mac.h.

Referenced by GetMeshPointAddress(), and SetMeshPointAddress().

◆ m_plugins

PluginList ns3::MeshWifiInterfaceMac::m_plugins

private

List of all installed plugins.

Definition at line 265 of file mesh-wifi-interface-mac.h.

Referenced by AssignStreams(), DoDispose(), ForwardDown(), InstallPlugin(), Receive(), SendBeacon(), and SendManagementFrame().

◆ m_randomStart

Time ns3::MeshWifiInterfaceMac::m_randomStart

private

Maximum delay before first beacon.

Definition at line 254 of file mesh-wifi-interface-mac.h.

Referenced by DoInitialize(), GetTypeId(), and SetRandomStartDelay().

◆ m_standard

WifiStandard ns3::MeshWifiInterfaceMac::m_standard

private

Current standard: needed to configure metric.

Definition at line 287 of file mesh-wifi-interface-mac.h.

Referenced by ConfigureStandard().

◆ m_stats

Statistics ns3::MeshWifiInterfaceMac::m_stats

private

statistics

Definition at line 284 of file mesh-wifi-interface-mac.h.

Referenced by ForwardDown(), Receive(), Report(), ResetStats(), and SendManagementFrame().

◆ m_tbtt

Time ns3::MeshWifiInterfaceMac::m_tbtt

private

Time for the next frame.

Definition at line 256 of file mesh-wifi-interface-mac.h.

Referenced by DoInitialize(), GetTbtt(), ScheduleNextBeacon(), and ShiftTbtt().

The documentation for this class was generated from the following files:

src/mesh/model/mesh-wifi-interface-mac.h
src/mesh/model/mesh-wifi-interface-mac.cc

Classes

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

Attributes defined in parent class ns3::WifiMac

TraceSources defined in parent class ns3::WifiMac

Member Typedef Documentation

◆ PluginList

Constructor & Destructor Documentation

◆ MeshWifiInterfaceMac()

◆ ~MeshWifiInterfaceMac()

Member Function Documentation

◆ AssignStreams()

◆ CanForwardPacketsTo()

◆ CheckSupportedRates()

◆ ConfigureContentionWindow()

◆ ConfigureStandard()

◆ DoDispose()

◆ DoInitialize()

◆ Enqueue() [1/2]

◆ Enqueue() [2/2]

◆ ForwardDown()

◆ GetBeaconGeneration()

◆ GetBeaconInterval()

◆ GetFrequencyChannel()

◆ GetLinkMetric()

◆ GetMeshPointAddress()

◆ GetSupportedRates()

◆ GetTbtt()

◆ GetTypeId()

◆ InstallPlugin()

◆ Receive()

◆ Report()

◆ ResetStats()

◆ ScheduleNextBeacon()

◆ SendBeacon()

◆ SendManagementFrame()

◆ SetBeaconGeneration()

◆ SetBeaconInterval()

◆ SetLinkMetricCallback()

◆ SetLinkUpCallback()

◆ SetMeshPointAddress()

◆ SetRandomStartDelay()

◆ ShiftTbtt()

◆ SupportsSendFrom()

◆ SwitchFrequencyChannel()

Member Data Documentation

◆ m_beaconEnable

◆ m_beaconInterval

◆ m_beaconSendEvent

◆ m_coefficient

◆ m_linkMetricCallback

◆ m_mpAddress

◆ m_plugins

◆ m_randomStart

◆ m_standard

◆ m_stats

◆ m_tbtt
