QKDNetSim implements Key Management System(KMS) as an application that listens on TCP port 80. More...

#include "qkd-key-manager-system-application.h"

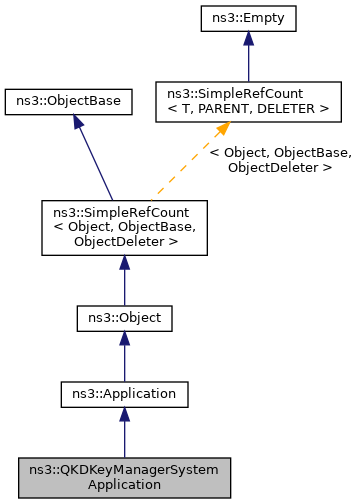

Inheritance diagram for ns3::QKDKeyManagerSystemApplication:

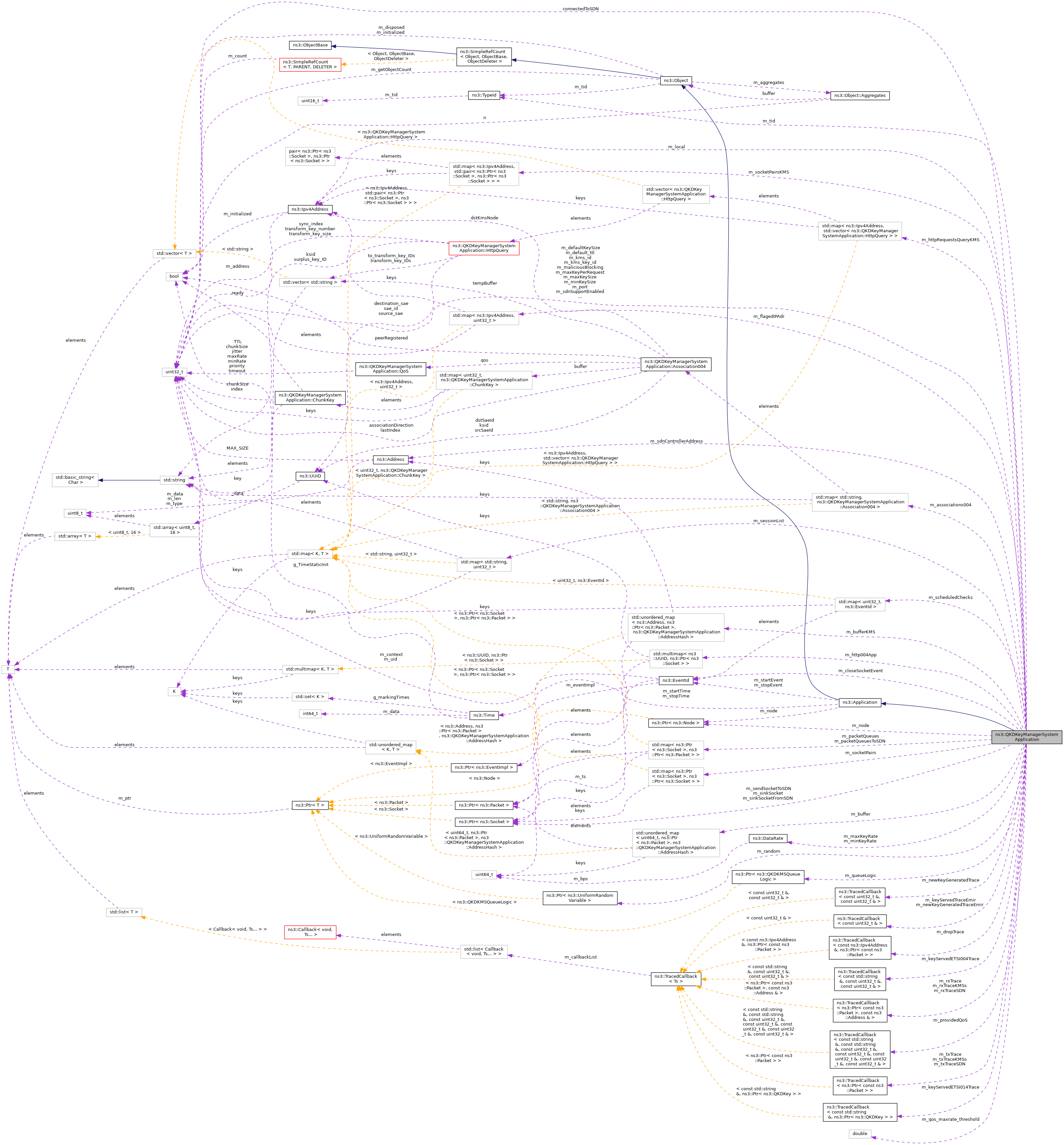

Collaboration diagram for ns3::QKDKeyManagerSystemApplication:

Classes
struct	AddressHash
	Hashing for the Address class. More...

struct	Association004

struct	ChunkKey

struct	HttpQuery

struct	QoS

Public Types
enum	RequestType { EMPTY = -1 , ETSI_QKD_014_GET_STATUS = 0 , ETSI_QKD_014_GET_KEY = 1 , ETSI_QKD_014_GET_KEY_WITH_KEY_IDS = 2 , ETSI_QKD_004_OPEN_CONNECT = 3 , ETSI_QKD_004_GET_KEY = 4 , ETSI_QKD_004_CLOSE = 5 , NEW_APP = 6 , REGISTER = 7 , FILL = 8 , STORE_KEY = 9 , TRANSFORM_KEYS = 10 , ETSI_QKD_004_KMS_CLOSE = 11 , RELAY_KEYS = 12 }
	Request types. More...

Public Types inherited from ns3::Application
typedef void(*	DelayAddressCallback) (const Time &delay, const Address &from)
	Common callback signature for packet delay and address.

typedef void(*	StateTransitionCallback) (const std::string &oldState, const std::string &newState)
	Common signature used by callbacks to application's state transition trace source.

Public Member Functions
	QKDKeyManagerSystemApplication ()
	QKDKeyManagerSystemApplication constructor.

	~QKDKeyManagerSystemApplication () override
	QKDKeyManagerSystemApplication destructor.

void	CreateQBuffer (uint32_t dstId, Ptr< QBuffer > bufferConf)
	Create Q buffer shared with remote key manager node.

void	EstablishKMLinkSockets (Ipv4Address remoteKmAddress)
	Create sink socket to listen requests exchanged between KMSs.

Ipv4Address	GetAddress ()
	Get local address.

std::string	GetAddressString (Ipv4Address address)
	Get address as string.

Ptr< QCenController >	GetCenController ()

Ptr< QKDControl >	GetController ()
	Get QKDN controller object.

std::string	GetId ()
	Get key menager ID.

uint32_t	GetMaxKeyPerRequest ()
	Get maximum number of keys per request(ETSI QKD 014)

Ptr< Node >	GetNode ()
	Get node.

uint32_t	GetPort () const
	Get local port.

Ptr< QBuffer >	GetQBuffer (uint32_t remoteKmNodeId, std::string type="ns3::QBuffer")
	Get q-buffer established with remote key manager.

std::vector< Ptr< QBuffer > >	GetQBuffersVector ()
	Get all QBuffers created on the KMS.

Ptr< Socket >	GetSocket () const
	Get sink socket.

uint32_t	GetTotalRx () const
	Get the total amount of bytes received.

void	RegisterQKDModule (uint32_t dstId, std::string moduleId)
	Registers a QKD module in key manager.

void	SetAddress (Ipv4Address address)
	Set local address.

void	SetCenController (Ptr< QCenController > controller)

void	SetController (Ptr< QKDControl > controller)
	Assign QKDN controller.

void	SetId (std::string id)
	Set key manager ID.

void	SetId (UUID id)
	Set key manager ID.

void	SetNode (Ptr< Node > n)
	Set node.

void	SetPeerKmAddress (uint32_t dstKmNodeId, Ipv4Address dstKmAddress)
	Set peer KM node address.

void	SetPort (uint32_t port)
	Set local port.

void	SetSocket (std::string type, Ptr< Socket > socket)
	Set sink socket.

void	UpdateLinkState (uint32_t dstKmNodeId)
	Check the QKD link state to given destination.

Public Member Functions inherited from ns3::Application
	Application ()

	~Application () override

virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this Application object.

Ptr< Node >	GetNode () const

void	SetNode (Ptr< Node > node)

void	SetStartTime (Time start)
	Specify application start time.

void	SetStopTime (Time stop)
	Specify application stop time.

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

void	UnidirectionalAggregateObject (Ptr< Object > other)
	Aggregate an Object to another Object.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value, bool permissive=false) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions

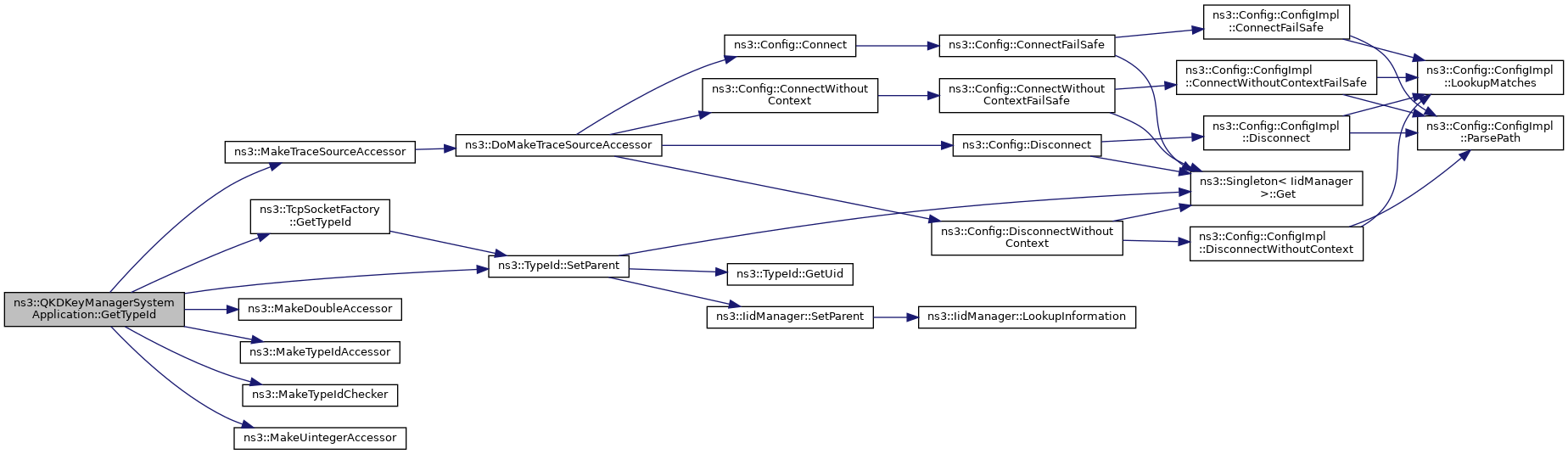

static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Application
static TypeId	GetTypeId ()
	Get the type ID.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Protected Member Functions

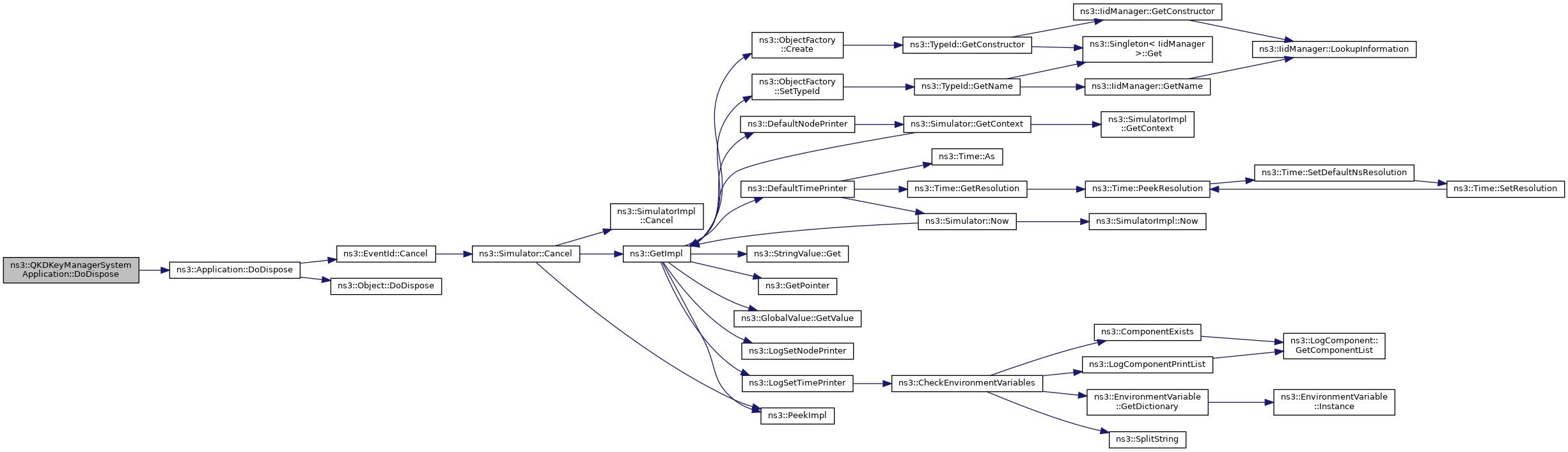

void	DoDispose () override
	Destructor implementation.

Protected Member Functions inherited from ns3::Application
void	DoInitialize () override
	Initialize() implementation.

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Private Member Functions
void	AddKeyToAssociationDedicatedStore (std::string ksid, Ptr< QKDKey > key)
	Add key to dedicated key store corresponding to association identified with KSID.

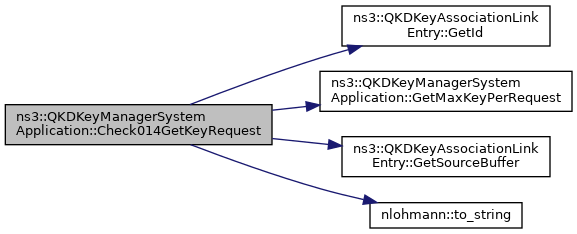

nlohmann::json	Check014GetKeyRequest (uint32_t number, uint32_t size, Ptr< SBuffer > buffer)
	Validate request and probe ability to fullfil valid request.

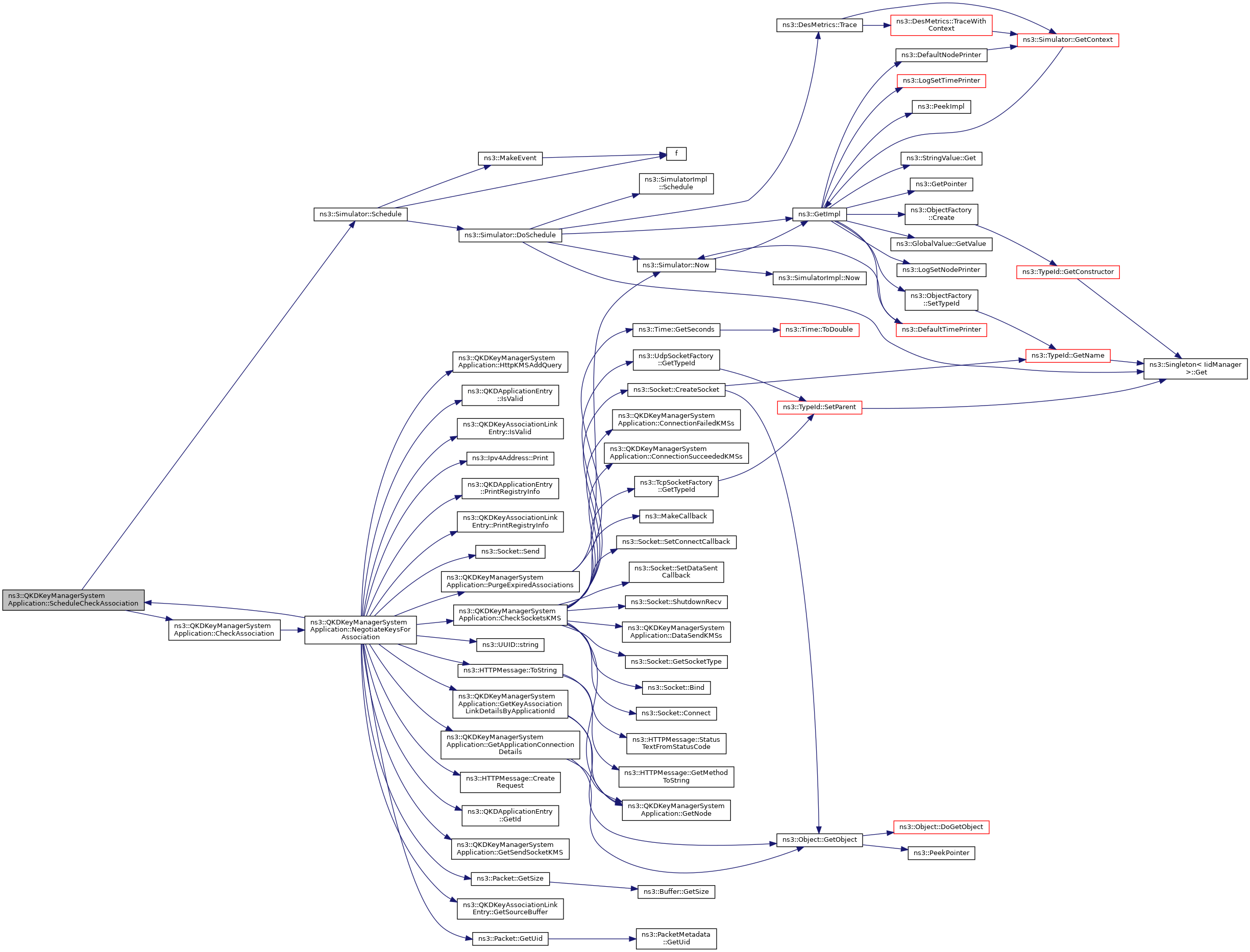

void	CheckEtsi004Association (std::string ksid)
	Check the state of a single assocation.

void	CheckSocketsKMS (Ipv4Address dstSaeId)
	Prepare send socket to communicate with peer KMS Application.

void	ConnectionFailed (Ptr< Socket > socket)

void	ConnectionFailedKMSs (Ptr< Socket > socket)

void	ConnectionSucceeded (Ptr< Socket > socket)
	@toDo:following functions

void	ConnectionSucceededKMSs (Ptr< Socket > socket)

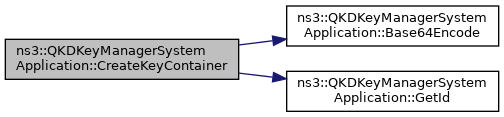

nlohmann::json	CreateKeyContainer (std::vector< Ptr< QKDKey > > keys)
	Create key container data structure described in ETSI014 document.

std::string	CreateKeyStreamSession (std::string srcSaeId, std::string dstSaeId, QKDKeyManagerSystemApplication::QoS inQos, std::string ksid)
	Create a new assocation.

Ptr< SBuffer >	CreateRelaySBuffer (uint32_t srcNodeId, uint32_t dstNodeId, std::string description)
	Help function to create relay SBuffers.

void	DataSend (Ptr< Socket >, uint32_t)

void	DataSendKMSs (Ptr< Socket >, uint32_t)

QKDKeyManagerSystemApplication::RequestType	FetchRequestType (std::string s)
	Get request type.

void	Fill (uint32_t dstKmNodeId, std::string direction, uint32_t amount)
	Fill s-buffer.

std::string	GenerateRandomString (const int len, const uint32_t seed=0)
	Generate random string with given length.

std::string	GenerateUUID ()
	Generate UUID.

Ipv4Address	GetDestinationKmsAddress (Ptr< Socket > socket)

Ipv4Address	GetPeerKmAddress (uint32_t dstKmNodeId)

HttpQuery	GetProxyQuery (std::string reqId)
	Get saved query.

Ptr< SBuffer >	GetSBuffer (uint32_t dstKmNodeId, std::string type)

Ptr< Socket >	GetSendSocketKMS (Ipv4Address kmsDstAddress)
	Obtain send socket.

Ptr< Socket >	GetSocketFromHttp004AppQuery (std::string saeId)

void	HandleAccept (Ptr< Socket > s, const Address &from)
	Handle an incoming connection.

void	HandleAcceptKMSs (Ptr< Socket > s, const Address &from)
	Handle an incoming connection.

void	HandlePeerClose (Ptr< Socket > socket)
	Handle an connection close.

void	HandlePeerCloseKMSs (Ptr< Socket > socket)
	Handle an connection close.

void	HandlePeerError (Ptr< Socket > socket)
	Handle an connection error.

void	HandlePeerErrorKMSs (Ptr< Socket > socket)
	Handle an connection error.

void	HandleRead (Ptr< Socket > socket)
	Handle a packet received by the KMS application.

void	HandleReadKMSs (Ptr< Socket > socket)
	Handle a packet received by the KMS from KMS.

void	Http004AppQuery (std::string saeId, Ptr< Socket > socket)

void	Http004AppQueryComplete (std::string saeId)

void	HttpKMSAddQuery (Ipv4Address dstKms, HttpQuery request)
	remember HTTP request made to peer KMS

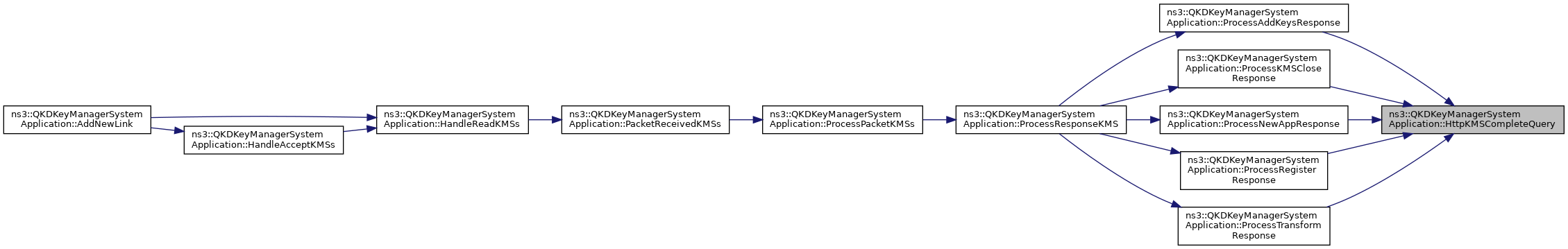

void	HttpKMSCompleteQuery (Ipv4Address dstKms)
	remove mapped HTTP response from query

void	HttpProxyRequestAdd (HttpQuery query)
	Save query.

RequestType	HttpQueryMethod (Ipv4Address dstKms)
	obtain method_type to map the HTTP response

void	NewAppRequest (std::string ksid)
	Make NEW_APP request to peer KMS.

void	PacketReceived (const Ptr< Packet > &p, const Address &from, Ptr< Socket > socket)
	Assemble byte stream to extract HTTPMessage.

void	PacketReceivedKMSs (const Ptr< Packet > &p, const Address &from, Ptr< Socket > socket)
	Assemble byte stream to extract HTTPMessage.

std::string	PacketToString (Ptr< Packet > packet)
	Convert packet to string.

void	PrepareSinkSocket ()

void	ProcessCloseRequest (std::string ksid, HTTPMessage header, Ptr< Socket > socket)

void	ProcessFillRequest (HTTPMessage headerIn, std::string resource, Ptr< Socket > socket)

void	ProcessFillResponse (HTTPMessage headerIn, Ipv4Address from)

void	ProcessGetKey004Request (std::string ksid, HTTPMessage header, Ptr< Socket > socket)

void	ProcessKMSCloseRequest (HTTPMessage header, Ptr< Socket > socket, std::string ksid)
	process close request from peer KMS

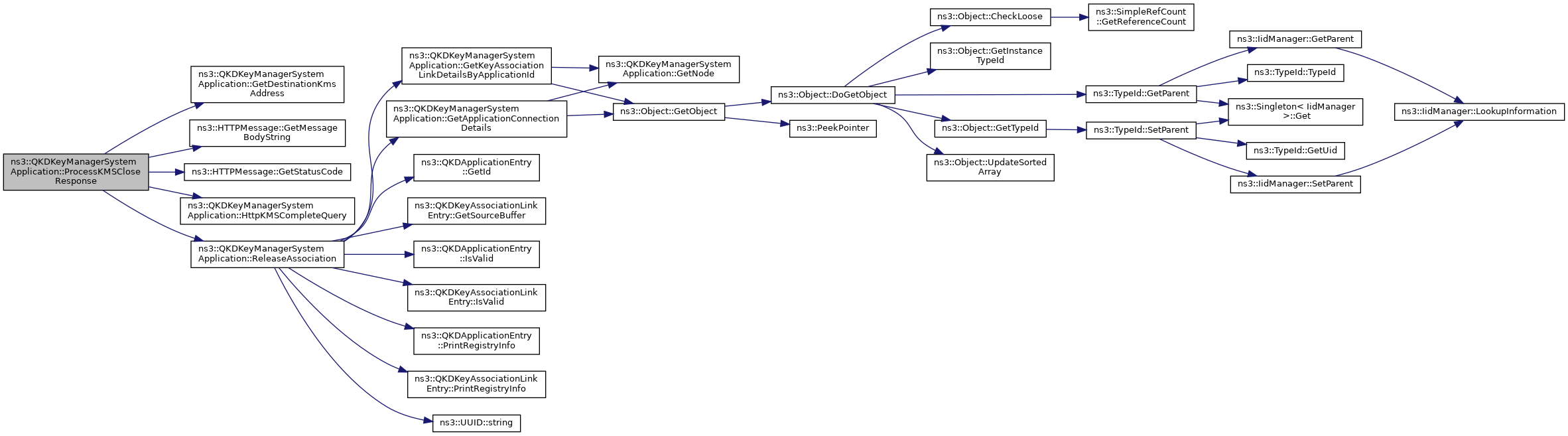

void	ProcessKMSCloseResponse (HTTPMessage header, Ptr< Socket > socket)
	process close response from peer KMS

void	ProcessNewAppRequest (HTTPMessage header, Ptr< Socket > socket)

void	ProcessNewAppResponse (HTTPMessage header, Ptr< Socket > socket)

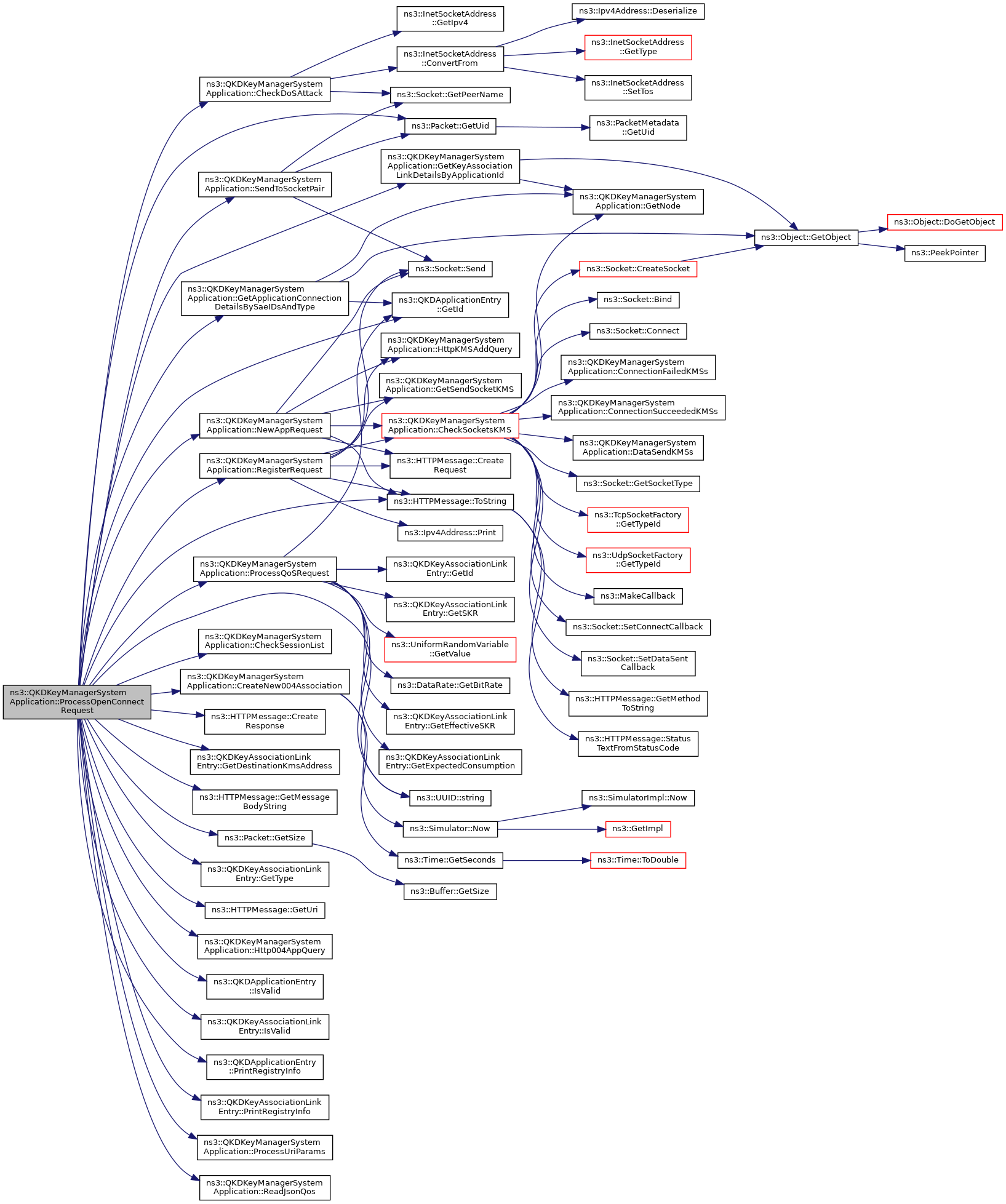

void	ProcessOpenConnectRequest (HTTPMessage header, Ptr< Socket > socket)

void	ProcessPacketKMSs (HTTPMessage header, Ptr< Packet > packet, Ptr< Socket > socket)
	QKD key manager system application process the request peer KMS, and complete certain actions to respond on received request.

void	ProcessPPRequest (HTTPMessage header, Ptr< Packet > packet, Ptr< Socket > socket)

void	ProcessRegisterRequest (HTTPMessage header, std::string ksid, Ptr< Socket > socket)

void	ProcessRegisterResponse (HTTPMessage header, Ptr< Socket > socket)

void	ProcessRelayRequest (HTTPMessage headerIn, Ptr< Socket > socket)
	Process key relay request.

void	ProcessRelayResponse (HTTPMessage headerIn)
	Process key relay response.

void	ProcessRequest (HTTPMessage header, Ptr< Packet > packet, Ptr< Socket > socket)
	QKD key manager system application process the request from QKDApp, and complete certain actions to respond on received request.

void	ProcessRequestKMS (HTTPMessage header, Ptr< Socket > socket)

void	ProcessResponseKMS (HTTPMessage header, Ptr< Packet > packet, Ptr< Socket > socket)

void	ProcessSKeyCreateRequest (HTTPMessage header, Ptr< Socket > socket)
	process transform request

void	ProcessSKeyCreateResponse (HTTPMessage header, Ptr< Socket > socket)
	process transform response

void	ReadJsonQos (QKDKeyManagerSystemApplication::QoS &inQos, nlohmann::json jOpenConnectRequest)
	Read the parameters from the JSON OPEN_CONNECT structure!

std::vector< std::string >	ReadUri (std::string s)
	Read parameters from URI.

void	RegisterRequest (std::string ksid)

void	Relay (uint32_t dstKmNodeId, uint32_t amount)
	Start key relay function.

void	ReleaseAssociation (std::string ksid, std::string surplusKeyId, uint32_t syncIndex)
	release key stream association

void	RemoveProxyQuery (std::string reqId)
	Remove proxy query when processed.

void	SBufferClientCheck (uint32_t dstKmNodeId)
	check s-buffer levels

void	ScheduleCheckEtsi004Association (Time t, std::string action, std::string ksid)
	schedule next event in an attempt to fill association buffer

void	ScheduleReleaseAssociation (Time t, std::string action, std::string ksid, std::string surplusKeyId, uint32_t syncIndex)

void	SendToSocketPair (Ptr< Socket > socket, Ptr< Packet > packet)
	Send packet to the pair socket.

void	SendToSocketPairKMS (Ptr< Socket > socket, Ptr< Packet > packet)
	Send packet to the pair socket.

void	StartApplication () override
	Start KMS Application.

void	StartSBufferClients (uint32_t dstKmNodeId)
	Start s-buffers control – monitoring.

void	StopApplication () override
	Stop KMS Application.

Private Attributes
std::map< std::string, Association004 >	m_associations004

std::unordered_map< Address, Ptr< Packet >, AddressHash >	m_buffer
	Buffer for received packets(TCP segmentation)

std::unordered_map< Address, Ptr< Packet >, AddressHash >	m_bufferKMS
	Buffer for received packets(TCP segmentation)

Ptr< QCenController >	m_cen_controller
	Asigned Q centralized controler for routing!

EventId	m_closeSocketEvent

Ptr< QKDControl >	m_controller
	Asigned QKDN controller.

Ptr< QKDEncryptor >	m_encryptor

std::multimap< std::string, Ptr< Socket > >	m_http004App

std::unordered_map< std::string, HttpQuery >	m_httpProxyRequests

std::map< Ipv4Address, std::vector< HttpQuery > >	m_httpRequestsQueryKMS

TracedCallback< const uint32_t &, const uint32_t &, const uint32_t & >	m_keyConsumedLink

TracedCallback< const uint32_t &, const uint32_t &, const uint32_t &, const uint32_t & >	m_keyConsumedRelay

std::map< uint32_t, Ptr< SBuffer > >	m_keys_dec
	LOCAL S-buffers for the inbound point-to-poit usage.

std::map< uint32_t, Ptr< SBuffer > >	m_keys_enc
	LOCAL S-buffers for the outbound point-to-point usage.

TracedCallback< const std::string &, const std::string &, const uint32_t & >	m_keyServedTrace

TracedCallback< const uint32_t &, const uint32_t &, const uint32_t & >	m_keyWasteRelay

std::string	m_km_id

uint32_t	m_kms_id

uint32_t	m_kms_key_id

std::map< uint32_t, uint32_t >	m_link_states
	Notified link states!

Ipv4Address	m_local
	Local address to bind to.

uint32_t	m_maxKeyPerRequest

uint32_t	m_maxKeySize

uint32_t	m_maxSBufferSizeInBits

uint32_t	m_minKeySize

uint32_t	m_minSBufferSizeInBits

Ptr< Node >	m_node

std::map< Ptr< Socket >, Ptr< Packet > >	m_packetQueues
	Buffering unsend messages due to connection problems.

std::map< uint32_t, Ipv4Address >	m_peerAddressTable
	IP address of peer KM nodes.

uint32_t	m_port
	Local port to bind to.

std::map< uint32_t, Ptr< QBuffer > >	m_qbuffers
	Q-buffers for every QKD connection.

std::vector< Ptr< QBuffer > >	m_qbuffersVector
	The list of QBuffers is necessary for plotting.

TracedCallback< const std::string &, const std::string &, const uint32_t & >	m_qkdKeyGeneratedTrace

std::map< std::string, uint32_t >	m_qkdmodules
	QKD modules and KM node ID they connect to.

Ptr< QKDKMSQueueLogic >	m_queueLogic
	KMS Queue Logic for ETSI 004 QoS handling.

TracedCallback< Ptr< const Packet >, const Address & >	m_rxTrace
	Traced Callback: received packets, source address.

TracedCallback< Ptr< const Packet >, const Address & >	m_rxTraceKMSs

std::map< std::string, EventId >	m_scheduledChecks

Ptr< Socket >	m_sinkSocket

std::map< Ipv4Address, std::pair< Ptr< Socket >, Ptr< Socket > > >	m_socketPairsKMS
	we do not know which KMS is going to initialize new TCP connection to peer KMS.

uint32_t	m_thrSBufferSizeInBits

TypeId	m_tid

uint32_t	m_totalRx
	Total bytes received.

uint32_t	m_totalRxKMSs
	Total bytes received between KMSs.

TracedCallback< Ptr< const Packet > >	m_txTrace

TracedCallback< Ptr< const Packet > >	m_txTraceKMSs

Static Private Attributes
static uint32_t	nKMS
	number of created KMSs - static value

Additional Inherited Members
Protected Attributes inherited from ns3::Application
Ptr< Node >	m_node
	The node that this application is installed on.

EventId	m_startEvent
	The event that will fire at m_startTime to start the application.

Time	m_startTime
	The simulation time that the application will start.

EventId	m_stopEvent
	The event that will fire at m_stopTime to end the application.

Time	m_stopTime
	The simulation time that the application will end.

Related Symbols inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

QKDNetSim implements Key Management System(KMS) as an application that listens on TCP port 80.

The KMS can be installed on any node but the QKD post-processing application expects the existence of a local KMS application on the same nodes where the post-processing application is implemented. The local KMS is contacted to add the keys to the QKD buffer and is contacted during the operation of the QKD application to retrieve the keys from the QKD buffer as described in the following section. Communication between KMS systems installed on different nodes is under construction and will be based on the ETSI QKD 004 standard. The KMS application tracks REST-full design serving status and key retrieval requests from QKD applications. The KMS follows HTTP 1.1 specification including Request-URI for mapping of request-response values. More details available at https://www.w3.org/Protocols/rfc2616/rfc2616-sec5.html

Config Paths

ns3::QKDKeyManagerSystemApplication is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/ApplicationList/[i]/$ns3::QKDKeyManagerSystemApplication"

Attributes

BufferList: The list of Qbuffers needed for plotting QKDGraphs.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::QKDGraph>
- Flags: read
- Support level: SUPPORTED
LocalAddress: The ipv4 address of the application
- Set with class: ns3::Ipv4AddressValue
- Underlying type: Ipv4Address
- Initial value: 102.102.102.102
- Flags: constructwriteread
- Support level: SUPPORTED
MaximalKeySize: The maximal size of key QKDApp can request
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10240
- Flags: constructwriteread
- Support level: SUPPORTED
MaximalKeysPerRequest: The maximal number of keys per request(ESTI QKD 014)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 20
- Flags: constructwriteread
- Support level: SUPPORTED
MinimalKeySize: The minimal size of key QKDApp can request
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 32
- Flags: constructwriteread
- Support level: SUPPORTED
Protocol: The type of protocol to use.
- Set with class: ns3::TypeIdValue
- Underlying type: TypeId
- Initial value: ns3::TcpSocketFactory
- Flags: constructwriteread
- Support level: SUPPORTED

Attributes defined in parent class ns3::Application

StartTime: Time at which the application will start
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: constructwriteread
- Support level: SUPPORTED
StopTime: Time at which the application will stop
- Set with class: ns3::TimeValue
- Underlying type: Time -9.22337e+18ns:+9.22337e+18ns
- Initial value: +0ns
- Flags: constructwriteread
- Support level: SUPPORTED

TraceSources

KeyConsumedLink: The trece to monitor p2p key usage
- Callback signature: ns3::QKDKeyManagerSystemApplication::KeyConsumedLink
- Support level: SUPPORTED
KeyServed: The trece to monitor key usage
- Callback signature: ns3::QKDKeyManagerSystemApplication::KeyServed
- Support level: SUPPORTED
QKDKeyGenerated: The trace to monitor key material received from QL
- Callback signature: ns3::QKDKeyManagerSystemApplication::QKDKeyGenerated
- Support level: SUPPORTED
RelayConsumption: The trace to monitor key material consumed for key relay
- Callback signature: ns3::QKDKeyManagerSystemApplication::RelayConsumption
- Support level: SUPPORTED
Rx: A packet from the APP has been received
- Callback signature: ns3::QKDKeyManagerSystemApplication::Rx
- Support level: SUPPORTED
RxKMSs: A packet from the APP has been received
- Callback signature: ns3::QKDKeyManagerSystemApplication::RxKMSs
- Support level: SUPPORTED
Tx: A new packet is created and is sent to the APP
- Callback signature: ns3::QKDKeyManagerSystemApplication::Tx
- Support level: SUPPORTED
TxKMSs: A new packet is created and is sent to the APP
- Callback signature: ns3::QKDKeyManagerSystemApplication::TxKMSs
- Support level: SUPPORTED
WasteRelay: The trace to monitor failed relays
- Callback signature: ns3::QKDKeyManagerSystemApplication::WasteRelay
- Support level: SUPPORTED

Group: Applications

Size of this type is 1272 bytes (on a 64-bit architecture).

Definition at line 82 of file qkd-key-manager-system-application.h.

Member Enumeration Documentation

◆ RequestType

enum ns3::QKDKeyManagerSystemApplication::RequestType

Request types.

Enumerator
EMPTY
ETSI_QKD_014_GET_STATUS	Integer equivalent = 0.
ETSI_QKD_014_GET_KEY	Integer equivalent = 1.
ETSI_QKD_014_GET_KEY_WITH_KEY_IDS	Integer equivalent = 2.
ETSI_QKD_004_OPEN_CONNECT
ETSI_QKD_004_GET_KEY
ETSI_QKD_004_CLOSE
NEW_APP
REGISTER
FILL
STORE_KEY
TRANSFORM_KEYS
ETSI_QKD_004_KMS_CLOSE
RELAY_KEYS

Definition at line 89 of file qkd-key-manager-system-application.h.

Constructor & Destructor Documentation

◆ QKDKeyManagerSystemApplication()

ns3::QKDKeyManagerSystemApplication::QKDKeyManagerSystemApplication ( )

QKDKeyManagerSystemApplication constructor.

Definition at line 100 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_encryptor, m_kms_key_id, m_queueLogic, m_totalRx, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ~QKDKeyManagerSystemApplication()

ns3::QKDKeyManagerSystemApplication::~QKDKeyManagerSystemApplication ( )

override

QKDKeyManagerSystemApplication destructor.

Definition at line 110 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddKeyToAssociationDedicatedStore()

void ns3::QKDKeyManagerSystemApplication::AddKeyToAssociationDedicatedStore	(	std::string	ksid,
		Ptr< QKDKey >	key
	)

private

Add key to dedicated key store corresponding to association identified with KSID.

Parameters

ksid	Unique identifier of the association
key	The QKD key being added to the store

◆ Check014GetKeyRequest()

nlohmann::json ns3::QKDKeyManagerSystemApplication::Check014GetKeyRequest	(	uint32_t	number,
		uint32_t	size,
		Ptr< SBuffer >	buffer
	)

private

Validate request and probe ability to fullfil valid request.

Parameters

number	number of requested keys
size	requested keys size
buffer	associated buffer

Returns: json error structure

Funtion returns an empty json if the request is valid and can be fullfiled.

Definition at line 3568 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

◆ CheckEtsi004Association()

void ns3::QKDKeyManagerSystemApplication::CheckEtsi004Association ( std::string ksid )

private

Check the state of a single assocation.

Parameters

ksid	Unique identifier of the association

@toDo The amount of key material to be assigned to the association must be determined by the QoS parameters.

Definition at line 3668 of file qkd-key-manager-system-application.cc.

References NS_LOG_DEBUG, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Referenced by ScheduleCheckEtsi004Association().

Here is the caller graph for this function:

◆ CheckSocketsKMS()

void ns3::QKDKeyManagerSystemApplication::CheckSocketsKMS ( Ipv4Address dstSaeId )

private

Prepare send socket to communicate with peer KMS Application.

Parameters

uint32_t destination SAE ID

Definition at line 864 of file qkd-key-manager-system-application.cc.

References CheckSocketsKMS(), ConnectionFailedKMSs(), ConnectionSucceededKMSs(), ns3::Create(), ns3::Socket::CreateSocket(), DataSendKMSs(), EstablishKMLinkSockets(), GetNode(), ns3::TcpSocketFactory::GetTypeId(), ns3::UdpSocketFactory::GetTypeId(), m_socketPairsKMS, ns3::MakeCallback(), ns3::Socket::NS3_SOCK_SEQPACKET, ns3::Socket::NS3_SOCK_STREAM, and NS_LOG_FUNCTION.

Referenced by CheckSocketsKMS(), Fill(), HandleAcceptKMSs(), and Relay().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ConnectionFailed()

void ns3::QKDKeyManagerSystemApplication::ConnectionFailed ( Ptr< Socket > socket )

private

Definition at line 777 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

◆ ConnectionFailedKMSs()

void ns3::QKDKeyManagerSystemApplication::ConnectionFailedKMSs ( Ptr< Socket > socket )

private

Definition at line 784 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

Referenced by CheckSocketsKMS().

Here is the caller graph for this function:

◆ ConnectionSucceeded()

void ns3::QKDKeyManagerSystemApplication::ConnectionSucceeded ( Ptr< Socket > socket )

private

@toDo:following functions

Definition at line 752 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_packetQueues, m_txTrace, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ConnectionSucceededKMSs()

void ns3::QKDKeyManagerSystemApplication::ConnectionSucceededKMSs ( Ptr< Socket > socket )

private

Definition at line 770 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

Referenced by CheckSocketsKMS().

Here is the caller graph for this function:

◆ CreateKeyContainer()

nlohmann::json ns3::QKDKeyManagerSystemApplication::CreateKeyContainer ( std::vector< Ptr< QKDKey > > keys )

private

Create key container data structure described in ETSI014 document.

Parameters

keys	vector of pointers on the QKD key

Returns: json data structure for key container

Definition at line 3628 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

◆ CreateKeyStreamSession()

std::string ns3::QKDKeyManagerSystemApplication::CreateKeyStreamSession	(	std::string	srcSaeId,
		std::string	dstSaeId,
		QKDKeyManagerSystemApplication::QoS	inQos,
		std::string	ksid
	)

private

Create a new assocation.

Parameters

srcSaeId	source secure application entity
dstSaeId	destination secure application entity
inQos	Quality of Service
ksid	Unique identifier of the association

Returns: string Unique identifier of the association

Input ksid can be empty if it is not predefined. In that case new ksid is generated for this new association and return from the function.

Definition at line 3751 of file qkd-key-manager-system-application.cc.

References ns3::QKDKeyManagerSystemApplication::QoS::chunkSize, ns3::QKDGraphManager::CreateGraphForBuffer(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ CreateQBuffer()

void ns3::QKDKeyManagerSystemApplication::CreateQBuffer	(	uint32_t	dstId,
		Ptr< QBuffer >	bufferConf
	)

Create Q buffer shared with remote key manager node.

Parameters

dstId	remote key manager node ID
bufferConf	QKD buffer configuration

Definition at line 215 of file qkd-key-manager-system-application.cc.

References ns3::Create(), GetId(), GetNode(), m_keys_dec, m_keys_enc, m_link_states, m_qbuffers, m_qbuffersVector, NS_LOG_FUNCTION, and StartSBufferClients().

Here is the call graph for this function:

◆ CreateRelaySBuffer()

Ptr< SBuffer > ns3::QKDKeyManagerSystemApplication::CreateRelaySBuffer	(	uint32_t	srcNodeId,
		uint32_t	dstNodeId,
		std::string	description
	)

private

Help function to create relay SBuffers.

Parameters

srcNodeId	source KM node ID
dstNodeId	peer KM node ID
descrition	buffer description used for QKDGraph

It is called to create new SBuffers for relay on demand.

Definition at line 2008 of file qkd-key-manager-system-application.cc.

References ns3::QKDGraphManager::CreateGraphForBuffer(), and NS_LOG_FUNCTION.

Referenced by ProcessRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DataSend()

void ns3::QKDKeyManagerSystemApplication::DataSend	(	Ptr< Socket >	s,
		uint32_t	par
	)

private

Definition at line 791 of file qkd-key-manager-system-application.cc.

References ns3::Create(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ DataSendKMSs()

void ns3::QKDKeyManagerSystemApplication::DataSendKMSs	(	Ptr< Socket >	s,
		uint32_t	par
	)

private

Definition at line 797 of file qkd-key-manager-system-application.cc.

References ns3::Create(), and NS_LOG_FUNCTION.

Referenced by CheckSocketsKMS().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoDispose()

void ns3::QKDKeyManagerSystemApplication::DoDispose ( )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Application.

Definition at line 691 of file qkd-key-manager-system-application.cc.

References ns3::Create(), ns3::Application::DoDispose(), m_sinkSocket, m_socketPairsKMS, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ EstablishKMLinkSockets()

void ns3::QKDKeyManagerSystemApplication::EstablishKMLinkSockets ( Ipv4Address remoteKmAddress )

Create sink socket to listen requests exchanged between KMSs.

Parameters

remoteKmAddress Ipv4 address of remote key manager

Definition at line 3536 of file qkd-key-manager-system-application.cc.

References ns3::MakeCallback(), ns3::MakeNullCallback(), and NS_LOG_FUNCTION.

Referenced by CheckSocketsKMS().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ FetchRequestType()

QKDKeyManagerSystemApplication::RequestType ns3::QKDKeyManagerSystemApplication::FetchRequestType ( std::string s )

private

Get request type.

Parameters

s	string from HTTP URI

Returns: request type

Definition at line 3467 of file qkd-key-manager-system-application.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by ProcessRequest().

Here is the caller graph for this function:

◆ Fill()

void ns3::QKDKeyManagerSystemApplication::Fill	(	uint32_t	dstKmNodeId,
		std::string	direction,
		uint32_t	amount
	)

private

Fill s-buffer.

Parameters

dstKmNodeId	remote KM node ID
direction	s-buffer type
amount	key amount

Definition at line 511 of file qkd-key-manager-system-application.cc.

References CheckSocketsKMS(), ns3::Create(), ns3::HTTPMessage::CreateRequest(), FILL, GetAddressString(), ns3::Node::GetId(), GetNode(), GetPeerKmAddress(), GetQBuffer(), GetSBuffer(), GetSendSocketKMS(), HttpKMSAddQuery(), ns3::QKDKey::INIT, m_associations004, ns3::QKDKeyManagerSystemApplication::HttpQuery::method_type, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::HTTPMessage::ToString(), and UpdateLinkState().

Referenced by SBufferClientCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GenerateRandomString()

std::string ns3::QKDKeyManagerSystemApplication::GenerateRandomString	(	const int	len,
		const uint32_t	seed = `0`
	)

private

Generate random string with given length.

Parameters

len	string length

Returns: string random string

Definition at line 3815 of file qkd-key-manager-system-application.cc.

◆ GenerateUUID()

std::string ns3::QKDKeyManagerSystemApplication::GenerateUUID ( )

private

Generate UUID.

Returns: string UUID

   KMS 004 Association operations, monitoring

Definition at line 3657 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION, and ns3::UUID::string().

Referenced by Relay().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAddress()

Ipv4Address ns3::QKDKeyManagerSystemApplication::GetAddress ( )

inline

Get local address.

Returns: return local address

Definition at line 203 of file qkd-key-manager-system-application.h.

References m_local.

Referenced by ProcessRequest().

Here is the caller graph for this function:

◆ GetAddressString()

std::string ns3::QKDKeyManagerSystemApplication::GetAddressString ( Ipv4Address address )

Get address as string.

Parameters

address address

Returns: string address

Definition at line 124 of file qkd-key-manager-system-application.cc.

References ns3::Create(), and NS_LOG_FUNCTION.

Referenced by Fill(), ProcessRequest(), and Relay().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCenController()

Ptr< QCenController > ns3::QKDKeyManagerSystemApplication::GetCenController ( )

Definition at line 148 of file qkd-key-manager-system-application.cc.

References m_cen_controller, and NS_LOG_FUNCTION.

Referenced by UpdateLinkState().

Here is the caller graph for this function:

◆ GetController()

Ptr< QKDControl > ns3::QKDKeyManagerSystemApplication::GetController ( )

Get QKDN controller object.

Returns: QKDN controller

Definition at line 187 of file qkd-key-manager-system-application.cc.

References m_controller, and NS_LOG_FUNCTION.

Referenced by ProcessRequest(), Relay(), SBufferClientCheck(), and SetController().

Here is the caller graph for this function:

◆ GetDestinationKmsAddress()

Ipv4Address ns3::QKDKeyManagerSystemApplication::GetDestinationKmsAddress ( Ptr< Socket > socket )

private

Definition at line 3444 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

◆ GetId()

std::string ns3::QKDKeyManagerSystemApplication::GetId ( )

inline

Get key menager ID.

Returns: string key manager ID

Definition at line 187 of file qkd-key-manager-system-application.h.

References m_km_id.

Referenced by CreateQBuffer(), Relay(), StartSBufferClients(), and UpdateLinkState().

Here is the caller graph for this function:

◆ GetMaxKeyPerRequest()

uint32_t ns3::QKDKeyManagerSystemApplication::GetMaxKeyPerRequest ( )

Get maximum number of keys per request(ETSI QKD 014)

Returns: uint32_t maximum number of keys per request

Definition at line 3462 of file qkd-key-manager-system-application.cc.

Referenced by ProcessRequest().

Here is the caller graph for this function:

◆ GetNode()

Ptr< Node > ns3::QKDKeyManagerSystemApplication::GetNode ( )

inline

Get node.

Returns: pointer to node

Definition at line 163 of file qkd-key-manager-system-application.h.

References m_node.

Referenced by CheckSocketsKMS(), CreateQBuffer(), Fill(), PrepareSinkSocket(), ProcessRequest(), Relay(), SetController(), StartSBufferClients(), and UpdateLinkState().

Here is the caller graph for this function:

◆ GetPeerKmAddress()

Ipv4Address ns3::QKDKeyManagerSystemApplication::GetPeerKmAddress ( uint32_t dstKmNodeId )

private

Definition at line 201 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_peerAddressTable, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Referenced by Fill(), and Relay().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPort()

uint32_t ns3::QKDKeyManagerSystemApplication::GetPort ( ) const

inline

Get local port.

Returns: return local port

Definition at line 226 of file qkd-key-manager-system-application.h.

References m_port.

Referenced by HandleAcceptKMSs().

Here is the caller graph for this function:

◆ GetProxyQuery()

QKDKeyManagerSystemApplication::HttpQuery ns3::QKDKeyManagerSystemApplication::GetProxyQuery ( std::string reqId )

private

Get saved query.

Parameters

reqId request identifier

Returns: HttpQuery query

Definition at line 3414 of file qkd-key-manager-system-application.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ GetQBuffer()

Ptr< QBuffer > ns3::QKDKeyManagerSystemApplication::GetQBuffer	(	uint32_t	remoteKmNodeId,
		std::string	type = `"ns3::QBuffer"`
	)

Get q-buffer established with remote key manager.

Parameters

remoteKmNodeId remote key manager node ID

Returns: Ptr on q-buffer

Definition at line 653 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_qbuffers, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by Fill(), SBufferClientCheck(), StartSBufferClients(), and UpdateLinkState().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetQBuffersVector()

std::vector< Ptr< QBuffer > > ns3::QKDKeyManagerSystemApplication::GetQBuffersVector ( )

inline

Get all QBuffers created on the KMS.

Function used for plotting QKD Graphs

Definition at line 297 of file qkd-key-manager-system-application.h.

References m_qbuffersVector.

◆ GetSBuffer()

Ptr< SBuffer > ns3::QKDKeyManagerSystemApplication::GetSBuffer	(	uint32_t	dstKmNodeId,
		std::string	type
	)

private

Definition at line 625 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_keys_dec, m_keys_enc, and NS_LOG_FUNCTION.

Referenced by Fill(), ProcessRequest(), SBufferClientCheck(), and UpdateLinkState().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSendSocketKMS()

Ptr< Socket > ns3::QKDKeyManagerSystemApplication::GetSendSocketKMS ( Ipv4Address kmsDstAddress )

private

Obtain send socket.

Parameters

kmsDstAddress Address of the destination KMS

Returns: Socket send socket

Definition at line 926 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_socketPairsKMS, NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by Fill(), and Relay().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSocket()

Ptr< Socket > ns3::QKDKeyManagerSystemApplication::GetSocket ( ) const

Get sink socket.

Returns: pointer to the sink socket

SOCKET functions

Definition at line 677 of file qkd-key-manager-system-application.cc.

References m_sinkSocket, and NS_LOG_FUNCTION.

◆ GetSocketFromHttp004AppQuery()

Ptr< Socket > ns3::QKDKeyManagerSystemApplication::GetSocketFromHttp004AppQuery ( std::string saeId )

private

Definition at line 3390 of file qkd-key-manager-system-application.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ GetTotalRx()

uint32_t ns3::QKDKeyManagerSystemApplication::GetTotalRx ( ) const

Get the total amount of bytes received.

Returns: the total bytes received in this sink app

Definition at line 117 of file qkd-key-manager-system-application.cc.

References m_totalRx, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::QKDKeyManagerSystemApplication::GetTypeId ( )

static

Get the type ID.

Returns: the object TypeId

Definition at line 35 of file qkd-key-manager-system-application.cc.

References ns3::Create(), ns3::TcpSocketFactory::GetTypeId(), m_keyConsumedLink, m_keyConsumedRelay, m_keyServedTrace, m_keyWasteRelay, m_local, m_maxKeyPerRequest, m_maxKeySize, m_minKeySize, m_qbuffersVector, m_qkdKeyGeneratedTrace, m_rxTrace, m_rxTraceKMSs, m_tid, m_txTrace, m_txTraceKMSs, ns3::MakeIpv4AddressAccessor(), ns3::MakeIpv4AddressChecker(), ns3::MakeObjectVectorAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeTypeIdAccessor(), ns3::MakeTypeIdChecker(), ns3::MakeUintegerAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HandleAccept()

void ns3::QKDKeyManagerSystemApplication::HandleAccept	(	Ptr< Socket >	s,
		const Address &	from
	)

private

Handle an incoming connection.

Parameters

s	the incoming connection socket
from	the address the connection is from

Definition at line 714 of file qkd-key-manager-system-application.cc.

References ns3::InetSocketAddress::ConvertFrom(), HandleRead(), ns3::MakeCallback(), and NS_LOG_FUNCTION.

Referenced by PrepareSinkSocket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleAcceptKMSs()

void ns3::QKDKeyManagerSystemApplication::HandleAcceptKMSs	(	Ptr< Socket >	s,
		const Address &	from
	)

private

Handle an incoming connection.

Parameters

s	the incoming connection socket
from	the address the connection is from

Definition at line 721 of file qkd-key-manager-system-application.cc.

References CheckSocketsKMS(), ns3::InetSocketAddress::ConvertFrom(), ns3::Create(), ns3::InetSocketAddress::GetIpv4(), GetPort(), HandleReadKMSs(), m_socketPairsKMS, ns3::MakeCallback(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ HandlePeerClose()

void ns3::QKDKeyManagerSystemApplication::HandlePeerClose ( Ptr< Socket > socket )

private

Handle an connection close.

Parameters

socket the connected socket

Definition at line 803 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSinkSocket().

Here is the caller graph for this function:

◆ HandlePeerCloseKMSs()

void ns3::QKDKeyManagerSystemApplication::HandlePeerCloseKMSs ( Ptr< Socket > socket )

private

Handle an connection close.

Parameters

socket the connected socket

Definition at line 809 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

◆ HandlePeerError()

void ns3::QKDKeyManagerSystemApplication::HandlePeerError ( Ptr< Socket > socket )

private

Handle an connection error.

Parameters

socket the connected socket

Definition at line 815 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

Referenced by PrepareSinkSocket().

Here is the caller graph for this function:

◆ HandlePeerErrorKMSs()

void ns3::QKDKeyManagerSystemApplication::HandlePeerErrorKMSs ( Ptr< Socket > socket )

private

Handle an connection error.

Parameters

socket the connected socket

Definition at line 821 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

◆ HandleRead()

void ns3::QKDKeyManagerSystemApplication::HandleRead ( Ptr< Socket > socket )

private

Handle a packet received by the KMS application.

Parameters

socket the receiving socket

Definition at line 952 of file qkd-key-manager-system-application.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::InetSocketAddress::GetPort(), ns3::InetSocketAddress::IsMatchingType(), m_rxTrace, m_totalRx, ns3::Simulator::Now(), NS_LOG_FUNCTION, and PacketReceived().

Referenced by HandleAccept(), and PrepareSinkSocket().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ HandleReadKMSs()

void ns3::QKDKeyManagerSystemApplication::HandleReadKMSs ( Ptr< Socket > socket )

private

Handle a packet received by the KMS from KMS.

Parameters

socket the receiving socket

Definition at line 986 of file qkd-key-manager-system-application.cc.

References ns3::InetSocketAddress::ConvertFrom(), ns3::InetSocketAddress::GetIpv4(), ns3::InetSocketAddress::GetPort(), ns3::InetSocketAddress::IsMatchingType(), m_rxTraceKMSs, m_totalRx, m_totalRxKMSs, ns3::Simulator::Now(), NS_LOG_FUNCTION, and PacketReceivedKMSs().

Referenced by HandleAcceptKMSs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Http004AppQuery()

void ns3::QKDKeyManagerSystemApplication::Http004AppQuery	(	std::string	saeId,
		Ptr< Socket >	socket
	)

private

Definition at line 3367 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

◆ Http004AppQueryComplete()

void ns3::QKDKeyManagerSystemApplication::Http004AppQueryComplete ( std::string saeId )

private

Definition at line 3374 of file qkd-key-manager-system-application.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ HttpKMSAddQuery()

void ns3::QKDKeyManagerSystemApplication::HttpKMSAddQuery	(	Ipv4Address	dstKms,
		HttpQuery	request
	)

private

remember HTTP request made to peer KMS

Parameters

dstKms	destination kms IP address
request	request parameters

   HTTP handling

Definition at line 3325 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

Referenced by Fill().

Here is the caller graph for this function:

◆ HttpKMSCompleteQuery()

void ns3::QKDKeyManagerSystemApplication::HttpKMSCompleteQuery ( Ipv4Address dstKms )

private

remove mapped HTTP response from query

Parameters

dstKms destination kms IP address

Definition at line 3336 of file qkd-key-manager-system-application.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ HttpProxyRequestAdd()

void ns3::QKDKeyManagerSystemApplication::HttpProxyRequestAdd ( HttpQuery query )

private

Save query.

Parameters

query http query

Definition at line 3407 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION, and ns3::QKDKeyManagerSystemApplication::HttpQuery::req_id.

Referenced by Relay().

Here is the caller graph for this function:

◆ HttpQueryMethod()

QKDKeyManagerSystemApplication::RequestType ns3::QKDKeyManagerSystemApplication::HttpQueryMethod ( Ipv4Address dstKms )

private

obtain method_type to map the HTTP response

Parameters

dstKms destination KMS IP address

Returns: RequestType method function

Definition at line 3354 of file qkd-key-manager-system-application.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ NewAppRequest()

void ns3::QKDKeyManagerSystemApplication::NewAppRequest ( std::string ksid )

private

Make NEW_APP request to peer KMS.

Parameters

ksid	Unique identifier of the association

Definition at line 2398 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateRequest(), ns3::QKDKeyManagerSystemApplication::HttpQuery::destination_sae, ns3::QKDKeyManagerSystemApplication::HttpQuery::ksid, ns3::QKDKeyManagerSystemApplication::HttpQuery::method_type, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QKDKeyManagerSystemApplication::HttpQuery::source_sae, and ns3::HTTPMessage::ToString().

Here is the call graph for this function:

◆ PacketReceived()

void ns3::QKDKeyManagerSystemApplication::PacketReceived	(	const Ptr< Packet > &	p,
		const Address &	from,
		Ptr< Socket >	socket
	)

private

Assemble byte stream to extract HTTPMessage.

Parameters

p	received packet
from	from address

The method assembles a received byte stream and extracts HTTPMessage instances from the stream to export in a trace source.

Definition at line 1020 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_buffer, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ProcessRequest().

Referenced by HandleRead().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PacketReceivedKMSs()

void ns3::QKDKeyManagerSystemApplication::PacketReceivedKMSs	(	const Ptr< Packet > &	p,
		const Address &	from,
		Ptr< Socket >	socket
	)

private

Assemble byte stream to extract HTTPMessage.

Parameters

p	received packet
from	from address

The method assembles a received byte stream and extracts HTTPMessage instances from the stream to export in a trace source.

Definition at line 1065 of file qkd-key-manager-system-application.cc.

References ns3::Create(), ns3::HTTPMessage::GetContentLength(), m_bufferKMS, NS_LOG_DEBUG, NS_LOG_FUNCTION, ProcessPacketKMSs(), and ns3::HTTPMessage::ToString().

Referenced by HandleReadKMSs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PacketToString()

std::string ns3::QKDKeyManagerSystemApplication::PacketToString ( Ptr< Packet > packet )

private

Convert packet to string.

Parameters

packet the packet

Returns: string packet

◆ PrepareSinkSocket()

void ns3::QKDKeyManagerSystemApplication::PrepareSinkSocket ( )

private

Definition at line 1126 of file qkd-key-manager-system-application.cc.

References ns3::Socket::Bind(), ns3::Create(), ns3::Socket::CreateSocket(), ns3::Ipv4Address::GetAny(), GetNode(), HandleAccept(), HandlePeerClose(), HandlePeerError(), HandleRead(), ns3::Socket::Listen(), m_port, m_sinkSocket, m_tid, ns3::MakeCallback(), ns3::MakeNullCallback(), NS_LOG_FUNCTION, ns3::Socket::SetAcceptCallback(), ns3::Socket::SetCloseCallbacks(), and ns3::Socket::SetRecvCallback().

Referenced by StartApplication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessCloseRequest()

void ns3::QKDKeyManagerSystemApplication::ProcessCloseRequest	(	std::string	ksid,
		HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

Definition at line 1956 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateRequest(), ns3::QKDKeyManagerSystemApplication::HttpQuery::ksid, ns3::QKDKeyManagerSystemApplication::HttpQuery::method_type, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QKDKeyManagerSystemApplication::HttpQuery::surplus_key_ID, ns3::QKDKeyManagerSystemApplication::HttpQuery::sync_index, and ns3::HTTPMessage::ToString().

Here is the call graph for this function:

◆ ProcessFillRequest()

void ns3::QKDKeyManagerSystemApplication::ProcessFillRequest	(	HTTPMessage	headerIn,
		std::string	resource,
		Ptr< Socket >	socket
	)

private

Definition at line 2697 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateResponse(), ns3::HTTPMessage::GetMessageBodyString(), NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ProcessFillResponse()

void ns3::QKDKeyManagerSystemApplication::ProcessFillResponse	(	HTTPMessage	headerIn,
		Ipv4Address	from
	)

private

Definition at line 2817 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::GetMessageBodyString(), ns3::HTTPMessage::GetRequestUri(), ns3::HTTPMessage::GetStatus(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ProcessGetKey004Request()

void ns3::QKDKeyManagerSystemApplication::ProcessGetKey004Request	(	std::string	ksid,
		HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

Definition at line 1865 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateResponse(), ns3::HTTPMessage::GetUri(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::HTTPMessage::ToString().

Here is the call graph for this function:

◆ ProcessKMSCloseRequest()

void ns3::QKDKeyManagerSystemApplication::ProcessKMSCloseRequest	(	HTTPMessage	header,
		Ptr< Socket >	socket,
		std::string	ksid
	)

private

process close request from peer KMS

Parameters

header	receiving http header
socket	receiving socket
ksid	unique key stream identifier

When QKDApp initiate etsi004 close request, its local KMS should release quantum keys currently assign to the key stream association. To do so, KMS should sync with peer KMS. This function perform necessery processing on the peer KMS to do sync.

Definition at line 3073 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateResponse(), ns3::HTTPMessage::GetMessageBodyString(), ns3::HTTPMessage::GetUri(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::HTTPMessage::ToString().

Here is the call graph for this function:

◆ ProcessKMSCloseResponse()

void ns3::QKDKeyManagerSystemApplication::ProcessKMSCloseResponse	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

process close response from peer KMS

Parameters

header	receiving http header
socket	receiving socket

Definition at line 3241 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::GetMessageBodyString(), ns3::HTTPMessage::GetRequestUri(), ns3::HTTPMessage::GetStatus(), NS_FATAL_ERROR, NS_LOG_DEBUG, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ProcessNewAppRequest()

void ns3::QKDKeyManagerSystemApplication::ProcessNewAppRequest	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

Definition at line 2448 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateResponse(), ns3::HTTPMessage::GetMessageBodyString(), ns3::HTTPMessage::GetUri(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_ERROR, NS_LOG_FUNCTION, and ns3::HTTPMessage::ToString().

Here is the call graph for this function:

◆ ProcessNewAppResponse()

void ns3::QKDKeyManagerSystemApplication::ProcessNewAppResponse	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

Definition at line 2512 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateResponse(), ns3::HTTPMessage::GetRequestUri(), ns3::HTTPMessage::GetStatus(), ns3::HTTPMessage::GetUri(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::HTTPMessage::ToString().

Here is the call graph for this function:

◆ ProcessOpenConnectRequest()

void ns3::QKDKeyManagerSystemApplication::ProcessOpenConnectRequest	(	HTTPMessage	headerIn,
		Ptr< Socket >	socket
	)

private

   ETSI004 APP-KMS functions

@toDo First some sort of CAC is neccessary. Do we have enough resources to allow this association? Second, even if it seems that we do not have resources, if the request has high priority can we gather enough key material that is reserved for different associations that have lower priority. Or allow association, and from now on do not fill low priority association and generated key use to fill this high priority association.

For now, in the point-to-point link scenario, the open_connect request is always accepted!

Definition at line 1770 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateResponse(), ns3::QKDLocationRegisterEntry::GetHop(), ns3::HTTPMessage::GetMessageBodyString(), NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ProcessPacketKMSs()

void ns3::QKDKeyManagerSystemApplication::ProcessPacketKMSs	(	HTTPMessage	header,
		Ptr< Packet >	packet,
		Ptr< Socket >	socket
	)

private

QKD key manager system application process the request peer KMS, and complete certain actions to respond on received request.

Parameters

header	received HTTP header
packet	received packet
socket	the receiving socket

Data structure of key managment respond is described in ETSI004 document.

Definition at line 1678 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::GetUri(), and NS_LOG_FUNCTION.

Referenced by PacketReceivedKMSs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessPPRequest()

void ns3::QKDKeyManagerSystemApplication::ProcessPPRequest	(	HTTPMessage	header,
		Ptr< Packet >	packet,
		Ptr< Socket >	socket
	)

private

◆ ProcessRegisterRequest()

void ns3::QKDKeyManagerSystemApplication::ProcessRegisterRequest	(	HTTPMessage	header,
		std::string	ksid,
		Ptr< Socket >	socket
	)

private

Definition at line 2613 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateResponse(), ns3::HTTPMessage::GetUri(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::HTTPMessage::ToString().

Here is the call graph for this function:

◆ ProcessRegisterResponse()

void ns3::QKDKeyManagerSystemApplication::ProcessRegisterResponse	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

Definition at line 2655 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::GetRequestUri(), ns3::HTTPMessage::GetStatus(), NS_FATAL_ERROR, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ProcessRelayRequest()

void ns3::QKDKeyManagerSystemApplication::ProcessRelayRequest	(	HTTPMessage	headerIn,
		Ptr< Socket >	socket
	)

private

Process key relay request.

Parameters

header	http request
socket	receiving socket

   KMS-KMS functions

Definition at line 2058 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateRequest(), ns3::HTTPMessage::CreateResponse(), ns3::HTTPMessage::GetMessageBodyString(), ns3::QKDLocationRegisterEntry::GetNextHop(), ns3::HTTPMessage::GetUri(), ns3::QKDKeyManagerSystemApplication::HttpQuery::method_type, NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::QKDKeyManagerSystemApplication::HttpQuery::peerNodeId, ns3::QKDKeyManagerSystemApplication::HttpQuery::prev_hop_id, ns3::QKDKeyManagerSystemApplication::HttpQuery::req_id, ns3::QKDKeyManagerSystemApplication::HttpQuery::request_uri, and ns3::HTTPMessage::ToString().

Here is the call graph for this function:

◆ ProcessRelayResponse()

void ns3::QKDKeyManagerSystemApplication::ProcessRelayResponse ( HTTPMessage headerIn )

private

Process key relay response.

Parameters

headerIn http response

Definition at line 2321 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateResponse(), ns3::HTTPMessage::GetMessageBodyString(), ns3::HTTPMessage::GetRequestUri(), ns3::HTTPMessage::GetStatus(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::QKDKeyManagerSystemApplication::HttpQuery::prev_hop_id.

Here is the call graph for this function:

◆ ProcessRequest()

void ns3::QKDKeyManagerSystemApplication::ProcessRequest	(	HTTPMessage	headerIn,
		Ptr< Packet >	packet,
		Ptr< Socket >	socket
	)

private

QKD key manager system application process the request from QKDApp, and complete certain actions to respond on received request.

Parameters

header	received HTTP header
packet	received packet
socket	the receiving socket

Data structure of key managment respond is described in ETSI014 document.

   Southbound interface functions(ETSI 014 & ETSI 004)

Todo:: id1124 What if remote App ID is not known? Respond with an error.

Currently we will go with the following idea:

KM with a higher Node ID is selected as a master.
Master and slave reformats keys to a default size for THIS connection!
Master and slave KM store keys. Keys are marked as READY. Key IDs are: for master: HASH-SHA1(QKD-key ID | QKD module ID | matching QKD module ID | chunk number) for slave: HASH-SHA1(QKD-key ID | matching QKD module ID | QKD module ID | chunk number)

The verfication procedure is not implemented. It should be similar to a Q3P STORE subprotocol.

In my opinion, KM should not transform the QKD-key in different block sizes, but rather choose one, most appropriate. In fact, when provisioning keys, KM would have to rendezvous with peer KM anyway, so the question is really about key transformation operation and memory organization in key storage.

@toDo How to choose this default key size?

Definition at line 1217 of file qkd-key-manager-system-application.cc.

References ns3::Create(), CreateRelaySBuffer(), ns3::HTTPMessage::CreateResponse(), EMPTY, ETSI_QKD_014_GET_STATUS, FetchRequestType(), GetAddress(), GetAddressString(), GetController(), ns3::Node::GetId(), GetMaxKeyPerRequest(), GetNode(), GetSBuffer(), m_keys_dec, m_keys_enc, m_maxKeySize, m_minKeySize, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::HTTPMessage::Ok, ReadUri(), SBufferClientCheck(), and SendToSocketPair().

Referenced by PacketReceived().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessRequestKMS()

void ns3::QKDKeyManagerSystemApplication::ProcessRequestKMS	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

Definition at line 1689 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::GetUri(), NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ProcessResponseKMS()

void ns3::QKDKeyManagerSystemApplication::ProcessResponseKMS	(	HTTPMessage	header,
		Ptr< Packet >	packet,
		Ptr< Socket >	socket
	)

private

Definition at line 1733 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::GetRequestUri(), NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ProcessSKeyCreateRequest()

void ns3::QKDKeyManagerSystemApplication::ProcessSKeyCreateRequest	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

process transform request

Parameters

header	receiving http header
socket	receiving socket

Definition at line 2923 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateResponse(), ns3::QKDLocationRegisterEntry::GetDestinationKmsAddress(), ns3::HTTPMessage::GetMessageBodyString(), ns3::HTTPMessage::GetUri(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::HTTPMessage::ToString().

Here is the call graph for this function:

◆ ProcessSKeyCreateResponse()

void ns3::QKDKeyManagerSystemApplication::ProcessSKeyCreateResponse	(	HTTPMessage	header,
		Ptr< Socket >	socket
	)

private

process transform response

Parameters

header	receiving http header
socket	receiving socket

Definition at line 3033 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::GetMessageBodyString(), ns3::HTTPMessage::GetRequestUri(), ns3::HTTPMessage::GetStatus(), NS_ASSERT, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ReadJsonQos()

void ns3::QKDKeyManagerSystemApplication::ReadJsonQos	(	QKDKeyManagerSystemApplication::QoS &	inQos,
		nlohmann::json	jOpenConnectRequest
	)

private

Read the parameters from the JSON OPEN_CONNECT structure!

Parameters

&dstSaeId	destination secure application entity
&srcSaeId	source secure application entity
&inQos	requested QoS
&ksid	Unique identifier of the association
jOpenConncetRequest	JSON structure of the OPEN_CONNECT call

Definition at line 3714 of file qkd-key-manager-system-application.cc.

References ns3::QKDKeyManagerSystemApplication::QoS::chunkSize, and NS_ASSERT.

◆ ReadUri()

std::vector< std::string > ns3::QKDKeyManagerSystemApplication::ReadUri ( std::string s )

private

Read parameters from URI.

Parameters

s	string URI

Returns: vector of uri parameters

Definition at line 3729 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION.

Referenced by ProcessRequest().

Here is the caller graph for this function:

◆ RegisterQKDModule()

void ns3::QKDKeyManagerSystemApplication::RegisterQKDModule	(	uint32_t	dstId,
		std::string	moduleId
	)

Registers a QKD module in key manager.

Parameters

dstId	remote key manager node ID
moduleId	local QKD module ID

Definition at line 643 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_qkdmodules, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ RegisterRequest()

void ns3::QKDKeyManagerSystemApplication::RegisterRequest ( std::string ksid )

private

Definition at line 2577 of file qkd-key-manager-system-application.cc.

References ns3::HTTPMessage::CreateRequest(), ns3::QKDKeyManagerSystemApplication::HttpQuery::ksid, ns3::QKDKeyManagerSystemApplication::HttpQuery::method_type, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::HTTPMessage::ToString().

Here is the call graph for this function:

◆ Relay()

void ns3::QKDKeyManagerSystemApplication::Relay	(	uint32_t	dstKmNodeId,
		uint32_t	amount
	)

private

Start key relay function.

Parameters

dstKmNodeId	destination KM node
amount	amount of key material

Chain of responsibility pattern. HTTP chain of proxies!

Definition at line 409 of file qkd-key-manager-system-application.cc.

References CheckSocketsKMS(), ns3::Create(), ns3::HTTPMessage::CreateRequest(), GenerateUUID(), GetAddressString(), GetController(), GetId(), ns3::Node::GetId(), GetNode(), GetPeerKmAddress(), GetSendSocketKMS(), HttpProxyRequestAdd(), ns3::QKDKey::INIT, m_keyConsumedRelay, m_keys_enc, NS_ASSERT, NS_LOG_FUNCTION, RELAY_KEYS, ns3::QKDKeyManagerSystemApplication::HttpQuery::req_id, SBufferClientCheck(), and ns3::HTTPMessage::ToString().

Referenced by SBufferClientCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ReleaseAssociation()

void ns3::QKDKeyManagerSystemApplication::ReleaseAssociation	(	std::string	ksid,
		std::string	surplusKeyId,
		uint32_t	syncIndex
	)

private

release key stream association

Parameters

ksid	unique key stream identifier
surplusKeyId	unique key identifier for surplus key material in dedicated association buffer
syncIndex	unique key index in dedicated association buffer for synchronisation

Definition at line 3165 of file qkd-key-manager-system-application.cc.

References NS_ASSERT, NS_FATAL_ERROR, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ScheduleReleaseAssociation().

Here is the caller graph for this function:

◆ RemoveProxyQuery()

void ns3::QKDKeyManagerSystemApplication::RemoveProxyQuery ( std::string reqId )

private

Remove proxy query when processed.

Parameters

reqId request identifier

Definition at line 3429 of file qkd-key-manager-system-application.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

◆ SBufferClientCheck()

void ns3::QKDKeyManagerSystemApplication::SBufferClientCheck ( uint32_t dstKmNodeId )

private

check s-buffer levels

Parameters

dstKmNodeId remote KM node ID

Definition at line 300 of file qkd-key-manager-system-application.cc.

References ns3::Create(), Fill(), GetController(), GetQBuffer(), GetSBuffer(), ns3::SBuffer::LOCAL_SBUFFER, m_keys_dec, m_keys_enc, NS_ASSERT, NS_LOG_FUNCTION, Relay(), ns3::SBuffer::RELAY_SBUFFER, and UpdateLinkState().

Referenced by ProcessRequest(), Relay(), and StartSBufferClients().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ScheduleCheckEtsi004Association()

void ns3::QKDKeyManagerSystemApplication::ScheduleCheckEtsi004Association	(	Time	t,
		std::string	action,
		std::string	ksid
	)

private

schedule next event in an attempt to fill association buffer

Parameters

t	time shift
action	name of the action
ksid	unique identifier of the association

Returns: uint32_t schedule event ID

Definition at line 1170 of file qkd-key-manager-system-application.cc.

References CheckEtsi004Association(), ns3::Create(), m_scheduledChecks, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Here is the call graph for this function:

◆ ScheduleReleaseAssociation()

void ns3::QKDKeyManagerSystemApplication::ScheduleReleaseAssociation	(	Time	t,
		std::string	action,
		std::string	ksid,
		std::string	surplusKeyId,
		uint32_t	syncIndex
	)

private

Definition at line 1189 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_scheduledChecks, NS_FATAL_ERROR, NS_LOG_FUNCTION, ReleaseAssociation(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

◆ SendToSocketPair()

void ns3::QKDKeyManagerSystemApplication::SendToSocketPair	(	Ptr< Socket >	socket,
		Ptr< Packet >	packet
	)

private

Send packet to the pair socket.

Parameters

socket	receiving socket
packet	packet to send

Definition at line 827 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_packetQueues, m_txTrace, and NS_LOG_FUNCTION.

Referenced by ProcessRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SendToSocketPairKMS()

void ns3::QKDKeyManagerSystemApplication::SendToSocketPairKMS	(	Ptr< Socket >	socket,
		Ptr< Packet >	packet
	)

private

Send packet to the pair socket.

Parameters

socket	receiving socket
packet	packet to send

Definition at line 848 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_socketPairsKMS, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetAddress()

void ns3::QKDKeyManagerSystemApplication::SetAddress ( Ipv4Address address )

inline

Set local address.

Parameters

Ipv4Address address

Definition at line 195 of file qkd-key-manager-system-application.h.

References m_local.

◆ SetCenController()

void ns3::QKDKeyManagerSystemApplication::SetCenController ( Ptr< QCenController > controller )

Definition at line 141 of file qkd-key-manager-system-application.cc.

References m_cen_controller, and NS_LOG_FUNCTION.

◆ SetController()

void ns3::QKDKeyManagerSystemApplication::SetController ( Ptr< QKDControl > controller )

Assign QKDN controller.

Parameters

controller pointer on QKDN controller

Definition at line 133 of file qkd-key-manager-system-application.cc.

References GetController(), GetNode(), m_controller, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetId() [1/2]

void ns3::QKDKeyManagerSystemApplication::SetId ( std::string id )

inline

Set key manager ID.

Parameters

id string ID

Definition at line 179 of file qkd-key-manager-system-application.h.

References m_km_id.

◆ SetId() [2/2]

void ns3::QKDKeyManagerSystemApplication::SetId ( UUID id )

inline

Set key manager ID.

Parameters

id UUID ID

Definition at line 171 of file qkd-key-manager-system-application.h.

References m_km_id.

Referenced by ns3::QKDAppHelper::InstallKeyManager(), and ns3::QKDAppHelper::InstallKeyManager().

Here is the caller graph for this function:

◆ SetNode()

void ns3::QKDKeyManagerSystemApplication::SetNode ( Ptr< Node > n )

inline

Set node.

Parameters

n	node to be set

Definition at line 155 of file qkd-key-manager-system-application.h.

References m_node.

◆ SetPeerKmAddress()

void ns3::QKDKeyManagerSystemApplication::SetPeerKmAddress	(	uint32_t	dstKmNodeId,
		Ipv4Address	dstKmAddress
	)

Set peer KM node address.

Parameters

dstKmNodeId	peer KM node ID
dstKmAddress	peer KM address

It is called from qkd-control to register peer KM address.

Definition at line 194 of file qkd-key-manager-system-application.cc.

References ns3::Create(), m_peerAddressTable, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ SetPort()

void ns3::QKDKeyManagerSystemApplication::SetPort ( uint32_t port )

inline

Set local port.

Parameters

uint32_t port

Definition at line 218 of file qkd-key-manager-system-application.h.

References m_port, and port.

◆ SetSocket()

void ns3::QKDKeyManagerSystemApplication::SetSocket	(	std::string	type,
		Ptr< Socket >	socket
	)

Set sink socket.

Parameters

type	socket type
socket	pointer to socket to be set

Definition at line 684 of file qkd-key-manager-system-application.cc.

References m_sinkSocket, and NS_LOG_FUNCTION.

◆ StartApplication()

void ns3::QKDKeyManagerSystemApplication::StartApplication ( )

overrideprivatevirtual

Start KMS Application.

   APPLICATION functions

Reimplemented from ns3::Application.

Definition at line 1119 of file qkd-key-manager-system-application.cc.

References NS_LOG_FUNCTION, and PrepareSinkSocket().

Here is the call graph for this function:

◆ StartSBufferClients()

void ns3::QKDKeyManagerSystemApplication::StartSBufferClients ( uint32_t dstKmNodeId )

private

Start s-buffers control – monitoring.

Parameters

dstKmNodeId remote KM node ID

Definition at line 265 of file qkd-key-manager-system-application.cc.

References ns3::Create(), GetId(), GetNode(), GetQBuffer(), ns3::SBuffer::LOCAL_SBUFFER, m_keys_dec, m_keys_enc, NS_LOG_FUNCTION, and SBufferClientCheck().

Referenced by CreateQBuffer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StopApplication()

void ns3::QKDKeyManagerSystemApplication::StopApplication ( )

overrideprivatevirtual

Stop KMS Application.

Reimplemented from ns3::Application.

Definition at line 1159 of file qkd-key-manager-system-application.cc.

References ns3::Socket::Close(), m_sinkSocket, ns3::MakeNullCallback(), NS_LOG_FUNCTION, and ns3::Socket::SetRecvCallback().

Here is the call graph for this function:

◆ UpdateLinkState()

void ns3::QKDKeyManagerSystemApplication::UpdateLinkState ( uint32_t dstKmNodeId )

Check the QKD link state to given destination.

Parameters

dstKmNodeId The destination KM node identifier.

Note: Is used for centralized routing, to enable re-routing.

Definition at line 155 of file qkd-key-manager-system-application.cc.

References ns3::Create(), GetCenController(), GetId(), ns3::Node::GetId(), GetNode(), GetQBuffer(), GetSBuffer(), m_link_states, ns3::Simulator::Now(), NS_ASSERT, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by Fill(), and SBufferClientCheck().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_associations004

std::map<std::string, Association004> ns3::QKDKeyManagerSystemApplication::m_associations004

private

Definition at line 668 of file qkd-key-manager-system-application.h.

Referenced by Fill().

◆ m_buffer

std::unordered_map<Address, Ptr<Packet>, AddressHash> ns3::QKDKeyManagerSystemApplication::m_buffer

private

Buffer for received packets(TCP segmentation)

Definition at line 727 of file qkd-key-manager-system-application.h.

Referenced by PacketReceived().

◆ m_bufferKMS

std::unordered_map<Address, Ptr<Packet>, AddressHash> ns3::QKDKeyManagerSystemApplication::m_bufferKMS

private

Buffer for received packets(TCP segmentation)

Definition at line 728 of file qkd-key-manager-system-application.h.

Referenced by PacketReceivedKMSs().

◆ m_cen_controller

Ptr<QCenController> ns3::QKDKeyManagerSystemApplication::m_cen_controller

private

Asigned Q centralized controler for routing!

Definition at line 684 of file qkd-key-manager-system-application.h.

Referenced by GetCenController(), and SetCenController().

◆ m_closeSocketEvent

EventId ns3::QKDKeyManagerSystemApplication::m_closeSocketEvent

private

Definition at line 702 of file qkd-key-manager-system-application.h.

◆ m_controller

Ptr<QKDControl> ns3::QKDKeyManagerSystemApplication::m_controller

private

Asigned QKDN controller.

Definition at line 686 of file qkd-key-manager-system-application.h.

Referenced by GetController(), and SetController().

◆ m_encryptor

Ptr<QKDEncryptor> ns3::QKDKeyManagerSystemApplication::m_encryptor

private

Definition at line 937 of file qkd-key-manager-system-application.h.

Referenced by QKDKeyManagerSystemApplication().

◆ m_http004App

std::multimap<std::string, Ptr<Socket> > ns3::QKDKeyManagerSystemApplication::m_http004App

private

Definition at line 761 of file qkd-key-manager-system-application.h.

◆ m_httpProxyRequests

std::unordered_map<std::string, HttpQuery> ns3::QKDKeyManagerSystemApplication::m_httpProxyRequests

private

Definition at line 760 of file qkd-key-manager-system-application.h.

◆ m_httpRequestsQueryKMS

std::map<Ipv4Address, std::vector<HttpQuery> > ns3::QKDKeyManagerSystemApplication::m_httpRequestsQueryKMS

private

HTTP handling

Each application can open only one connection with its local KMS(current socket). Each KMS can have only one connection with arbitrary KMS(current socket).

Definition at line 758 of file qkd-key-manager-system-application.h.
