Introspection did not find any typical Config paths. More...

#include "qkd-encryptor.h"

Inheritance diagram for ns3::QKDEncryptor:

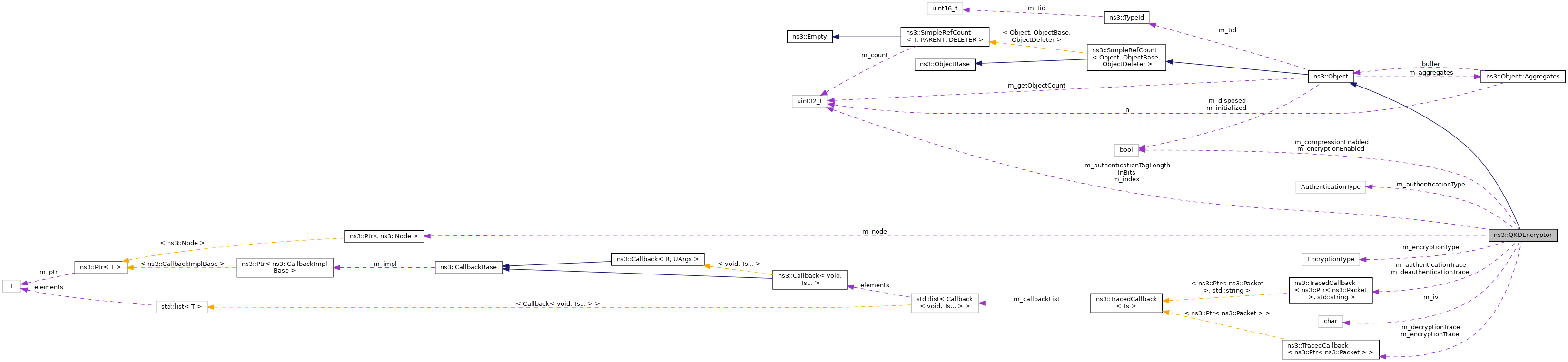

Collaboration diagram for ns3::QKDEncryptor:

Public Types
enum	AuthenticationType { UNAUTHENTICATED , QKDCRYPTO_AUTH_VMAC , QKDCRYPTO_AUTH_MD5 , QKDCRYPTO_AUTH_SHA1 }
	Authentication type. More...

enum	EncryptionType { UNENCRYPTED , QKDCRYPTO_OTP , QKDCRYPTO_AES }
	Encryption type. More...

Public Member Functions
	QKDEncryptor ()

	QKDEncryptor (EncryptionType type1, AuthenticationType type2)
	Constructor.

	QKDEncryptor (EncryptionType type1, AuthenticationType type2, uint32_t authTagLength)
	Constructor.

	QKDEncryptor (uint32_t authTagLength)
	Constructor.

	~QKDEncryptor () override
	Destructor.

std::string	AESDecrypt (const std::string &key, const std::string &data)
	AES decryption.

std::string	AESEncrypt (const std::string &key, const std::string &data)
	AES encryption.

std::string	Authenticate (std::string &, std::string key="0")
	Help parent function used for calling child authentication functions.

std::string	Base64Decode (std::string input)
	Base64 decoder.

std::string	Base64Encode (std::string input)
	Base64 encoder.

void	ChangeSettings (EncryptionType type1, AuthenticationType type2, uint32_t authTagLength)
	Constructor.

bool	CheckAuthentication (std::string payload, std::string authTag, std::string key="0")
	Check Authentication on packet payload for authenticated packet.

std::string	COTP (const std::string &key, const std::string &input)
	One-Time Pad cipher where output is alfabet/number symbols.

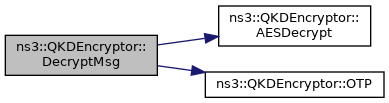

std::string	DecryptMsg (std::string input, std::string key)
	Perform decryption of ciphertext.

std::string	EncryptMsg (std::string input, std::string key)
	Perform encryption of plaintext.

uint32_t	GetIndex () const
	Get internal index identifier in qkd encryptor container.

Ptr< Node >	GetNode () const
	Get details about the node on which qkd encryptor is installed.

std::string	HexDecode (const std::string &data)
	Help function used to decode string to HEX string.

std::string	HexEncode (const std::string &data)
	Help function used to encode string to HEX string.

std::string	MD5 (std::string &inputString)
	MD5 Authentication function.

std::string	OTP (const std::string &key, const std::string &data)
	One-time cipher.

void	SetIndex (uint32_t index)
	Set internal index identifier in qkd encryptor container.

void	SetNode (Ptr< Node > node)
	Set node on which qkd encryptor is installed.

std::string	SHA1 (std::string &inputString)
	SHA1 Authentication function.

std::string	VMAC (std::string &key, std::string &inputString)
	Authentication function in Wegman-Carter fashion.

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor.

	~Object () override
	Destructor.

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together.

void	Dispose ()
	Dispose of this Object.

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one.

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object.

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object.

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object.

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId.

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object.

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one.

bool	IsInitialized () const
	Check if the object has been initialized.

void	UnidirectionalAggregateObject (Ptr< Object > other)
	Aggregate an Object to another Object.

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor.

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor.

uint32_t	GetReferenceCount () const
	Get the reference count of the object.

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment operator.

void	Ref () const
	Increment the reference count.

void	Unref () const
	Decrement the reference count.

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor.

void	GetAttribute (std::string name, AttributeValue &value, bool permissive=false) const
	Get the value of an attribute, raising fatal errors if unsuccessful.

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors.

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful.

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors.

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context.

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context.

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context.

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context.

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the TypeId.

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type.

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID.

Private Attributes
uint32_t	m_authenticationTagLengthInBits
	length of the authentication tag in bits(32 by default)

TracedCallback< Ptr< Packet >, std::string >	m_authenticationTrace
	trace callback for authentication

AuthenticationType	m_authenticationType

bool	m_compressionEnabled
	should compression algorithms be used?

TracedCallback< Ptr< Packet >, std::string >	m_deauthenticationTrace
	trace callback for authentication check

TracedCallback< Ptr< Packet > >	m_decryptionTrace
	trace callback for decryption

bool	m_encryptionEnabled
	real encryption used?

TracedCallback< Ptr< Packet > >	m_encryptionTrace
	trace callback for encryption

EncryptionType	m_encryptionType

uint32_t	m_index
	index in the qkd encryptor container

unsigned char	m_iv [CryptoPP::AES::BLOCKSIZE]

Ptr< Node >	m_node
	pointer to node on which encryptor is installed

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object.

virtual void	DoDispose ()
	Destructor implementation.

virtual void	DoInitialize ()
	Initialize() implementation.

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated.

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes.

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed.

Related Symbols inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly.

Detailed Description

Introspection did not find any typical Config paths.

Attributes

CompressionEnabled: Indicates whether a compression of packets is enabled.
- Set with class: ns3::BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: constructwriteread
- Support level: SUPPORTED
EncryptionEnabled: Indicates whether a real encryption of packets is enabled.
- Set with class: ns3::BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: constructwriteread
- Support level: SUPPORTED

TraceSources

PacketAuthenticated: The change trance for currenly authenticated packet
- Callback signature: ns3::QKDEncryptor::PacketAuthenticated
- Support level: SUPPORTED
PacketDeAuthenticated: The change trance for currenly deauthenticated packet
- Callback signature: ns3::QKDEncryptor::PacketDeAuthenticated
- Support level: SUPPORTED
PacketDecrypted: The change trance for currenly decrypted packet
- Callback signature: ns3::QKDEncryptor::PacketDecrypted
- Support level: SUPPORTED
PacketEncrypted: The change trance for currenly ecrypted packet
- Callback signature: ns3::QKDEncryptor::PacketEncrypted
- Support level: SUPPORTED

Size of this type is 200 bytes (on a 64-bit architecture).

Definition at line 77 of file qkd-encryptor.h.

Member Enumeration Documentation

◆ AuthenticationType

enum ns3::QKDEncryptor::AuthenticationType

Authentication type.

Enumerator
UNAUTHENTICATED
QKDCRYPTO_AUTH_VMAC
QKDCRYPTO_AUTH_MD5
QKDCRYPTO_AUTH_SHA1

Definition at line 93 of file qkd-encryptor.h.

◆ EncryptionType

enum ns3::QKDEncryptor::EncryptionType

Encryption type.

Enumerator
UNENCRYPTED
QKDCRYPTO_OTP
QKDCRYPTO_AES

Definition at line 84 of file qkd-encryptor.h.

Constructor & Destructor Documentation

◆ QKDEncryptor() [1/4]

ns3::QKDEncryptor::QKDEncryptor ( )

Definition at line 74 of file qkd-encryptor.cc.

References NS_LOG_FUNCTION.

◆ QKDEncryptor() [2/4]

ns3::QKDEncryptor::QKDEncryptor ( uint32_t authTagLength )

Constructor.

Definition at line 79 of file qkd-encryptor.cc.

References ns3::Create(), m_authenticationTagLengthInBits, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ QKDEncryptor() [3/4]

ns3::QKDEncryptor::QKDEncryptor	(	EncryptionType	type1,
		AuthenticationType	type2
	)

Constructor.

Definition at line 85 of file qkd-encryptor.cc.

References ChangeSettings(), ns3::Create(), m_iv, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ QKDEncryptor() [4/4]

ns3::QKDEncryptor::QKDEncryptor	(	EncryptionType	type1,
		AuthenticationType	type2,
		uint32_t	authTagLength
	)

Constructor.

Definition at line 94 of file qkd-encryptor.cc.

References ChangeSettings(), ns3::Create(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ ~QKDEncryptor()

ns3::QKDEncryptor::~QKDEncryptor ( )

override

Destructor.

Definition at line 119 of file qkd-encryptor.cc.

Member Function Documentation

◆ AESDecrypt()

std::string ns3::QKDEncryptor::AESDecrypt	(	const std::string &	key,
		const std::string &	data
	)

AES decryption.

Parameters

std::string	data
Ptr<QKDKey>	key

Returns: std::string

Definition at line 326 of file qkd-encryptor.cc.

References ns3::Create(), data, m_iv, and NS_LOG_FUNCTION.

Referenced by DecryptMsg().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AESEncrypt()

std::string ns3::QKDEncryptor::AESEncrypt	(	const std::string &	key,
		const std::string &	data
	)

AES encryption.

Parameters

std::string	data
Ptr<QKDKey>	key

Returns: std::string

Definition at line 306 of file qkd-encryptor.cc.

References ns3::Create(), data, m_iv, and NS_LOG_FUNCTION.

Referenced by EncryptMsg().

Here is the call graph for this function:

Here is the caller graph for this function:

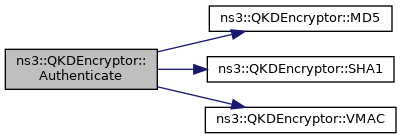

◆ Authenticate()

std::string ns3::QKDEncryptor::Authenticate	(	std::string &	inputString,
		std::string	key = `"0"`
	)

Help parent function used for calling child authentication functions.

Parameters

std::string	data
Ptr<QKDKey>	key
uint8_t	authentic

Returns: std::string

Definition at line 187 of file qkd-encryptor.cc.

References ns3::Create(), m_authenticationType, MD5(), NS_LOG_FUNCTION, QKDCRYPTO_AUTH_MD5, QKDCRYPTO_AUTH_SHA1, QKDCRYPTO_AUTH_VMAC, SHA1(), UNAUTHENTICATED, and VMAC().

Referenced by CheckAuthentication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Base64Decode()

std::string ns3::QKDEncryptor::Base64Decode ( std::string input )

Base64 decoder.

Parameters

input input data

Returns: string decoded input

Definition at line 235 of file qkd-encryptor.cc.

References ns3::Create().

Here is the call graph for this function:

◆ Base64Encode()

std::string ns3::QKDEncryptor::Base64Encode ( std::string input )

Base64 encoder.

Parameters

input input data

Returns: string base64 encoded input

Definition at line 223 of file qkd-encryptor.cc.

References ns3::Create().

Here is the call graph for this function:

◆ ChangeSettings()

void ns3::QKDEncryptor::ChangeSettings	(	EncryptionType	type1,
		AuthenticationType	type2,
		uint32_t	authTagLength
	)

Constructor.

Definition at line 104 of file qkd-encryptor.cc.

References ns3::Create(), m_authenticationTagLengthInBits, m_authenticationType, m_encryptionType, and NS_FATAL_ERROR.

Referenced by QKDEncryptor(), and QKDEncryptor().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckAuthentication()

bool ns3::QKDEncryptor::CheckAuthentication	(	std::string	payload,
		std::string	authTag,
		std::string	key = `"0"`
	)

Check Authentication on packet payload for authenticated packet.

Parameters

payload	payload data
key	key for authentication

Returns: bool authentication check result

Definition at line 209 of file qkd-encryptor.cc.

References Authenticate(), ns3::Create(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ COTP()

std::string ns3::QKDEncryptor::COTP	(	const std::string &	key,
		const std::string &	input
	)

One-Time Pad cipher where output is alfabet/number symbols.

Parameters

key	symmetric key
input	input message

Returns: string encrypted/decrypted message

Solution adapted from: https://stackoverflow.com/questions/12671510/xor-on-two-hexadeicmal-values-stored-as-string-in-c

Definition at line 278 of file qkd-encryptor.cc.

References ns3::Create(), NS_ASSERT, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::value().

Here is the call graph for this function:

◆ DecryptMsg()

std::string ns3::QKDEncryptor::DecryptMsg	(	std::string	input,
		std::string	key
	)

Perform decryption of ciphertext.

Parameters

input	ciphertext
key	encryption key

Returns: string plaintext

Definition at line 166 of file qkd-encryptor.cc.

References AESDecrypt(), ns3::Create(), m_encryptionType, NS_LOG_FUNCTION, OTP(), QKDCRYPTO_AES, QKDCRYPTO_OTP, and UNENCRYPTED.

Here is the call graph for this function:

◆ EncryptMsg()

std::string ns3::QKDEncryptor::EncryptMsg	(	std::string	input,
		std::string	key
	)

Perform encryption of plaintext.

Parameters

input	plaintext
key	encryption key

Returns: string ciphertext

Definition at line 145 of file qkd-encryptor.cc.

References AESEncrypt(), ns3::Create(), m_encryptionType, NS_LOG_FUNCTION, OTP(), QKDCRYPTO_AES, QKDCRYPTO_OTP, and UNENCRYPTED.

Here is the call graph for this function:

◆ GetIndex()

uint32_t ns3::QKDEncryptor::GetIndex ( ) const

Get internal index identifier in qkd encryptor container.

@featureTask

Returns: uint32_t index

Definition at line 139 of file qkd-encryptor.cc.

References m_index.

◆ GetNode()

Ptr< Node > ns3::QKDEncryptor::GetNode ( ) const

Get details about the node on which qkd encryptor is installed.

Returns: Ptr<Node> node

Definition at line 129 of file qkd-encryptor.cc.

References m_node.

◆ GetTypeId()

TypeId ns3::QKDEncryptor::GetTypeId ( )

static

Get the TypeId.

Returns: The TypeId for this class

Definition at line 40 of file qkd-encryptor.cc.

References m_authenticationTrace, m_compressionEnabled, m_deauthenticationTrace, m_decryptionTrace, m_encryptionEnabled, m_encryptionTrace, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ HexDecode()

std::string ns3::QKDEncryptor::HexDecode ( const std::string & data )

Help function used to decode string to HEX string.

Parameters

std::string data

Returns: std::string

Definition at line 359 of file qkd-encryptor.cc.

References ns3::Create(), data, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ HexEncode()

std::string ns3::QKDEncryptor::HexEncode ( const std::string & data )

Help function used to encode string to HEX string.

Parameters

std::string data

Returns: std::string

Definition at line 346 of file qkd-encryptor.cc.

References ns3::Create(), data, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ MD5()

std::string ns3::QKDEncryptor::MD5 ( std::string & inputString )

MD5 Authentication function.

Parameters

std::string data

Returns: std::string

Definition at line 404 of file qkd-encryptor.cc.

References ns3::Create(), m_authenticationTagLengthInBits, and NS_LOG_FUNCTION.

Referenced by Authenticate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ OTP()

std::string ns3::QKDEncryptor::OTP	(	const std::string &	key,
		const std::string &	data
	)

One-time cipher.

Parameters

key	key for encryption
data	message to encrypt/decrypt

Returns: string encypted/decrypted message

Definition at line 247 of file qkd-encryptor.cc.

References ns3::Create(), NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by DecryptMsg(), and EncryptMsg().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetIndex()

void ns3::QKDEncryptor::SetIndex ( uint32_t index )

Set internal index identifier in qkd encryptor container.

@featureTask

Parameters

uint32_t index

Definition at line 135 of file qkd-encryptor.cc.

References m_index.

◆ SetNode()

void ns3::QKDEncryptor::SetNode ( Ptr< Node > node )

Set node on which qkd encryptor is installed.

Parameters

Ptr<Node> node

Definition at line 125 of file qkd-encryptor.cc.

References m_node.

◆ SHA1()

std::string ns3::QKDEncryptor::SHA1 ( std::string & inputString )

SHA1 Authentication function.

Parameters

std::string data

Returns: std::string

Definition at line 425 of file qkd-encryptor.cc.

References ns3::Create(), m_authenticationTagLengthInBits, and NS_LOG_FUNCTION.

Referenced by Authenticate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ VMAC()

std::string ns3::QKDEncryptor::VMAC	(	std::string &	key,
		std::string &	inputString
	)

Authentication function in Wegman-Carter fashion.

Parameters

std::string	data
std::string	data
uint32_t	length of auth tag

Returns: std::string

Definition at line 372 of file qkd-encryptor.cc.

References ns3::Create(), m_iv, and NS_LOG_FUNCTION.

Referenced by Authenticate().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_authenticationTagLengthInBits

uint32_t ns3::QKDEncryptor::m_authenticationTagLengthInBits

private

length of the authentication tag in bits(32 by default)

Definition at line 282 of file qkd-encryptor.h.

Referenced by QKDEncryptor(), ChangeSettings(), MD5(), and SHA1().

◆ m_authenticationTrace

TracedCallback<Ptr<Packet>, std::string > ns3::QKDEncryptor::m_authenticationTrace

private

trace callback for authentication

Definition at line 290 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_authenticationType

AuthenticationType ns3::QKDEncryptor::m_authenticationType

private

Definition at line 285 of file qkd-encryptor.h.

Referenced by Authenticate(), and ChangeSettings().

◆ m_compressionEnabled

bool ns3::QKDEncryptor::m_compressionEnabled

private

should compression algorithms be used?

Definition at line 281 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_deauthenticationTrace

TracedCallback<Ptr<Packet>, std::string > ns3::QKDEncryptor::m_deauthenticationTrace

private

trace callback for authentication check

Definition at line 291 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_decryptionTrace

TracedCallback<Ptr<Packet> > ns3::QKDEncryptor::m_decryptionTrace

private

trace callback for decryption

Definition at line 288 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_encryptionEnabled

bool ns3::QKDEncryptor::m_encryptionEnabled

private

real encryption used?

Definition at line 280 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_encryptionTrace

TracedCallback<Ptr<Packet> > ns3::QKDEncryptor::m_encryptionTrace

private

trace callback for encryption

Definition at line 287 of file qkd-encryptor.h.

Referenced by GetTypeId().

◆ m_encryptionType

EncryptionType ns3::QKDEncryptor::m_encryptionType

private

Definition at line 284 of file qkd-encryptor.h.

Referenced by ChangeSettings(), DecryptMsg(), and EncryptMsg().

◆ m_index

uint32_t ns3::QKDEncryptor::m_index

private

index in the qkd encryptor container

Definition at line 278 of file qkd-encryptor.h.

Referenced by GetIndex(), and SetIndex().

◆ m_iv

unsigned char ns3::QKDEncryptor::m_iv[CryptoPP::AES::BLOCKSIZE]

private

Definition at line 275 of file qkd-encryptor.h.

Referenced by QKDEncryptor(), AESDecrypt(), AESEncrypt(), and VMAC().

◆ m_node

Ptr<Node> ns3::QKDEncryptor::m_node

private

pointer to node on which encryptor is installed

Definition at line 277 of file qkd-encryptor.h.

Referenced by GetNode(), and SetNode().

The documentation for this class was generated from the following files:

src/qkd/model/qkd-encryptor.h
src/qkd/model/qkd-encryptor.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

TraceSources

Member Enumeration Documentation

◆ AuthenticationType

◆ EncryptionType

Constructor & Destructor Documentation

◆ QKDEncryptor() [1/4]

◆ QKDEncryptor() [2/4]

◆ QKDEncryptor() [3/4]

◆ QKDEncryptor() [4/4]

◆ ~QKDEncryptor()

Member Function Documentation

◆ AESDecrypt()

◆ AESEncrypt()

◆ Authenticate()

◆ Base64Decode()

◆ Base64Encode()

◆ ChangeSettings()

◆ CheckAuthentication()

◆ COTP()

◆ DecryptMsg()

◆ EncryptMsg()

◆ GetIndex()

◆ GetNode()

◆ GetTypeId()

◆ HexDecode()

◆ HexEncode()

◆ MD5()

◆ OTP()

◆ SetIndex()

◆ SetNode()

◆ SHA1()

◆ VMAC()

Member Data Documentation

◆ m_authenticationTagLengthInBits

◆ m_authenticationTrace

◆ m_authenticationType

◆ m_compressionEnabled

◆ m_deauthenticationTrace

◆ m_decryptionTrace

◆ m_encryptionEnabled

◆ m_encryptionTrace

◆ m_encryptionType

◆ m_index

◆ m_iv

◆ m_node
