The basic class to represent both HTTP requests and responses. More...

#include "http.h"

Collaboration diagram for ns3::HTTPMessage:

Public Types
enum	HttpMethod { NONE , DELETE , GET , HEAD , PATCH , POST , PUT }

enum	HttpStatus { Continue = 100 , SwitchingProtocol = 101 , Processing = 102 , EarlyHints = 103 , Ok = 200 , Created = 201 , Accepted = 202 , NonAuthoritativeInformation = 203 , NoContent = 204 , ResetContent = 205 , PartialContent = 206 , MultiStatus = 207 , AlreadyReported = 208 , ImUsed = 226 , MultipleChoice = 300 , MovedPermanently = 301 , Found = 302 , SeeOther = 303 , NotModified = 304 , UseProxy = 305 , TemporaryRedirect = 307 , PermanentRedirect = 308 , BadRequest = 400 , Unauthorized = 401 , PaymentRequired = 402 , Forbidden = 403 , NotFound = 404 , MethodNotAllowed = 405 , NotAcceptable = 406 , ProxyAuthenticationRequired = 407 , RequestTimeout = 408 , Conflict = 409 , Gone = 410 , LengthRequired = 411 , PreconditionFailed = 412 , PayloadTooLarge = 413 , UriTooLong = 414 , UnsupportedMediaType = 415 , RangeNotSatisfiable = 416 , ExpectationFailed = 417 , ImaTeapot = 418 , MisdirectedRequest = 421 , UnprocessableEntity = 422 , Locked = 423 , FailedDependency = 424 , TooEarly = 425 , UpgradeRequired = 426 , PreconditionRequired = 428 , TooManyRequests = 429 , RequestHeaderFieldsTooLarge = 431 , UnavailableForLegalReasons = 451 , InternalServerError = 500 , NotImplemented = 501 , BadGateway = 502 , ServiceUnavailable = 503 , GatewayTimeout = 504 , HttpVersionNotSupported = 505 , VariantAlsoNegotiates = 506 , InsufficientStorage = 507 , LoopDetected = 508 , NotExtended = 510 , NetworkAuthenticationRequired = 511 }

Public Member Functions
void	CreateRequest (const std::string &url, const std::string &method)

void	CreateRequest (const std::string &url, const std::string &method, const std::string &body)

void	CreateRequest (const std::string &url, const std::string &method, const std::vector< uint8_t > &body)

void	CreateResponse (const HttpStatus status)

void	CreateResponse (const HttpStatus status, const std::string &body)

void	CreateResponse (const HttpStatus status, const std::string &body, const std::unordered_map< std::string, std::string > &headers)

void	CreateResponse (const HttpStatus status, const std::vector< uint8_t > &body)

void	CreateResponse (const HttpStatus status, const std::vector< uint8_t > &body, const std::unordered_map< std::string, std::string > &headers)

size_t	GetContentLength () const
	Return the size of the binary body vector.

std::string	GetHeader (const std::string &name) const
	Get the string value of a single header from the message.

uint32_t	GetHeadersSize ()

std::vector< uint8_t > &	GetMessageBody ()
	Get the body vector for this message.

std::string	GetMessageBodyString ()

HTTPMessage::HttpMethod	GetMethod () const

std::string	GetMethodToString () const

std::string	GetPath () const
	Grab the current associated path of this message.

std::string	GetRequestUri () const

uint32_t	GetSize ()

HTTPMessage::HttpStatus	GetStatus () const
	To be returned with a status code in a response is a status text describing the status code by text rather than by a code.

uint16_t	GetStatusCode () const
	Get the status code for this message.

std::string	GetStatusMessage () const
	Get the current status message for this message.

std::string	GetUri () const
	Grab the uri.

std::string	GetVersion () const
	Get the current HTTP version for this message.

size_t	HeaderCount ()
	Return the amount of headers in the message.

bool	IsFragmented () const

void	SetFragmented (bool value)

HTTPMessage &	SetHeader (const std::string &name, const std::string &value)
	Set a header in the map to the value provided.

HTTPMessage &	SetHeaders (const std::unordered_map< std::string, std::string > &headers)
	Set a number of headers based on a generic map of keys and values.

void	SetMessageBody (const std::string &body)
	Set the body of this message to a string value.

void	SetMessageBody (const std::vector< uint8_t > &body)
	Set the body of this message to an unsigned 8-bit binary value.

void	SetMethod (const std::string &m)
	Set the associated message method for this message.

void	SetPath (const std::string &url)
	Set the path of this message, which will be used if it is a request.

void	SetStatusCode (uint16_t code)
	Set the status code of this HTTP message.

void	SetStatusMessage (const std::string &message)
	Set the status message of this HTTP message.

void	SetVersion (const std::string &version)
	Set the version of this HTTP message to the string specified.

std::string	StatusTextFromStatusCode (const uint16_t statusCode)
	To be returned with a status code in a response is a status text describing the status code by text rather than by a code.

std::string	ToString ()
	Takes the headers added to the message along with the body and outputs it to a `std::string` for use in client/server HTTP messages.

Private Attributes
std::vector< uint8_t >	m_body
	A vector of unsigned 8-bit integers used to store message bodies.

uint32_t	m_contentLength = 0

std::string	m_domain

bool	m_fragmented = false
	Whether the payload size is less then content-length.

std::unordered_map< std::string, std::string >	m_headers
	An `unordered_map` of headers using a `std::string` for both the key and the value.

uint32_t	m_headersLength = 0

HTTPMessage::HttpMethod	m_method = HTTPMessage::HttpMethod::NONE
	The HTTP method for this message.

std::string	m_path = ""
	The path for the resource specified in the message.

std::string	m_request_uri

std::string	m_scheme

uint16_t	m_statusCode = 0
	A status code for this message.

std::string	m_statusMessage = ""
	A status message to be associated with the status code for this message.

std::string	m_uri

std::string	m_version = HTTPVersion11
	The version used for this HTTP message as a string.

Detailed Description

The basic class to represent both HTTP requests and responses.

Contains a method for grabbing the message as a string formatted for sending through a server or other means.

Allows for setting a message body that is represented by a vector of 8-bit unsigned integers. This is to allow binary data to be sent through the message. But, you also can use the included methods to send plain strings.

This class returns as many methods as possible with a reference to the current object, to try and allow for chaining methods.

Note: for convenience, the header for Content-Length is automatically included as it is grabbed from the m_body member. Though, it is only included if the body member isn't empty.

Definition at line 76 of file http.h.

Member Enumeration Documentation

◆ HttpMethod

enum ns3::HTTPMessage::HttpMethod

Enumerator
NONE
DELETE	Http Method Delete.
GET	Http Method GET.
HEAD	Http Method Head.
PATCH	Http Method Patch.
POST	Http Method Post.
PUT	Http Method Put.

Definition at line 80 of file http.h.

◆ HttpStatus

enum ns3::HTTPMessage::HttpStatus

Enumerator
Continue
SwitchingProtocol
Processing
EarlyHints
Ok
Created
Accepted
NonAuthoritativeInformation
NoContent
ResetContent
PartialContent
MultiStatus
AlreadyReported
ImUsed
MultipleChoice
MovedPermanently
Found
SeeOther
NotModified
UseProxy
TemporaryRedirect
PermanentRedirect
BadRequest
Unauthorized
PaymentRequired
Forbidden
NotFound
MethodNotAllowed
NotAcceptable
ProxyAuthenticationRequired
RequestTimeout
Conflict
Gone
LengthRequired
PreconditionFailed
PayloadTooLarge
UriTooLong
UnsupportedMediaType
RangeNotSatisfiable
ExpectationFailed
ImaTeapot
MisdirectedRequest
UnprocessableEntity
Locked
FailedDependency
TooEarly
UpgradeRequired
PreconditionRequired
TooManyRequests
RequestHeaderFieldsTooLarge
UnavailableForLegalReasons
InternalServerError
NotImplemented
BadGateway
ServiceUnavailable
GatewayTimeout
HttpVersionNotSupported
VariantAlsoNegotiates
InsufficientStorage
LoopDetected
NotExtended
NetworkAuthenticationRequired

Definition at line 90 of file http.h.

Member Function Documentation

◆ CreateRequest() [1/3]

void ns3::HTTPMessage::CreateRequest	(	const std::string &	url,
		const std::string &	method
	)

inline

Definition at line 735 of file http.h.

References ns3::Create(), and CreateRequest().

Referenced by ns3::QKDApp004::Close(), CreateRequest(), CreateRequest(), ns3::QKDApp004::EstablishQueues(), ns3::QKDKeyManagerSystemApplication::Fill(), ns3::QKDApp004::GetKeyFromKMS(), ns3::QKDApp014::GetKeysFromKMS(), ns3::QKDApp014::GetKeyWithKeyIDs(), ns3::QKDApp014::GetStatusFromKMS(), ns3::QKDKeyManagerSystemApplication::NewAppRequest(), ns3::QKDApp004::OpenConnect(), ns3::QKDKeyManagerSystemApplication::ProcessCloseRequest(), ns3::QKDKeyManagerSystemApplication::ProcessRelayRequest(), ns3::QKDKeyManagerSystemApplication::RegisterRequest(), ns3::QKDKeyManagerSystemApplication::Relay(), ns3::QKDApp014::SendKeyIds(), and ns3::QKDApp004::SendKsid().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateRequest() [2/3]

void ns3::HTTPMessage::CreateRequest	(	const std::string &	url,
		const std::string &	method,
		const std::string &	body
	)

inline

Definition at line 747 of file http.h.

References ns3::Create(), and CreateRequest().

Here is the call graph for this function:

◆ CreateRequest() [3/3]

void ns3::HTTPMessage::CreateRequest	(	const std::string &	url,
		const std::string &	method,
		const std::vector< uint8_t > &	body
	)

inline

Definition at line 760 of file http.h.

References ns3::Create(), m_domain, SetHeader(), SetMessageBody(), SetMethod(), and SetPath().

Here is the call graph for this function:

◆ CreateResponse() [1/5]

void ns3::HTTPMessage::CreateResponse ( const HttpStatus status )

inline

Definition at line 781 of file http.h.

References CreateResponse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateResponse() [2/5]

void ns3::HTTPMessage::CreateResponse	(	const HttpStatus	status,
		const std::string &	body
	)

inline

Definition at line 790 of file http.h.

References ns3::Create(), and CreateResponse().

Here is the call graph for this function:

◆ CreateResponse() [3/5]

void ns3::HTTPMessage::CreateResponse	(	const HttpStatus	status,
		const std::string &	body,
		const std::unordered_map< std::string, std::string > &	headers
	)

inline

Definition at line 817 of file http.h.

References ns3::Create(), CreateResponse(), and SetHeaders().

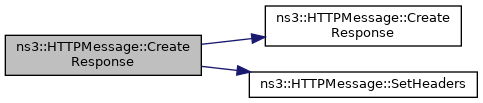

Here is the call graph for this function:

◆ CreateResponse() [4/5]

void ns3::HTTPMessage::CreateResponse	(	const HttpStatus	status,
		const std::vector< uint8_t > &	body
	)

inline

Definition at line 800 of file http.h.

References ns3::Create(), SetHeader(), SetMessageBody(), SetMethod(), and SetStatusCode().

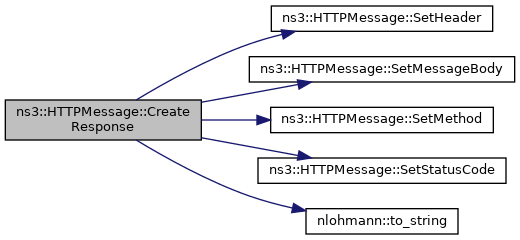

Here is the call graph for this function:

◆ CreateResponse() [5/5]

void ns3::HTTPMessage::CreateResponse	(	const HttpStatus	status,
		const std::vector< uint8_t > &	body,
		const std::unordered_map< std::string, std::string > &	headers
	)

inline

Definition at line 829 of file http.h.

References ns3::Create(), CreateResponse(), and SetHeaders().

Here is the call graph for this function:

◆ GetContentLength()

size_t ns3::HTTPMessage::GetContentLength ( ) const

inline

Return the size of the binary body vector.

Definition at line 722 of file http.h.

References m_contentLength.

Referenced by GetSize(), ns3::QKDKeyManagerSystemApplication::PacketReceivedKMSs(), and ns3::HTTPMessageParser::Parse().

Here is the caller graph for this function:

◆ GetHeader()

std::string ns3::HTTPMessage::GetHeader ( const std::string & name ) const

inline

Get the string value of a single header from the message.

Will return an empty string if the header does not exist.

Definition at line 448 of file http.h.

References m_headers.

◆ GetHeadersSize()

uint32_t ns3::HTTPMessage::GetHeadersSize ( )

inline

Definition at line 680 of file http.h.

References m_headersLength, and ToString().

Referenced by GetSize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMessageBody()

std::vector< uint8_t > & ns3::HTTPMessage::GetMessageBody ( )

inline

Get the body vector for this message.

Definition at line 708 of file http.h.

References m_body.

Referenced by ns3::HTTPMessageParser::Parse().

Here is the caller graph for this function:

◆ GetMessageBodyString()

std::string ns3::HTTPMessage::GetMessageBodyString ( )

inline

Definition at line 713 of file http.h.

References m_body.

Here is the caller graph for this function:

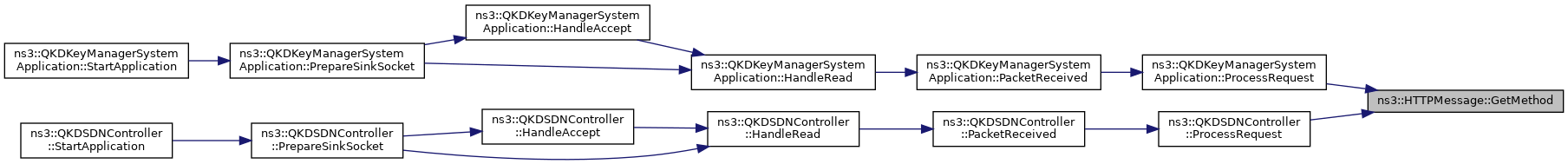

◆ GetMethod()

HTTPMessage::HttpMethod ns3::HTTPMessage::GetMethod ( ) const

inline

Definition at line 481 of file http.h.

References m_method.

◆ GetMethodToString()

std::string ns3::HTTPMessage::GetMethodToString ( ) const

inline

Definition at line 486 of file http.h.

References DELETE, GET, HEAD, m_method, NONE, PATCH, POST, and PUT.

Referenced by ToString().

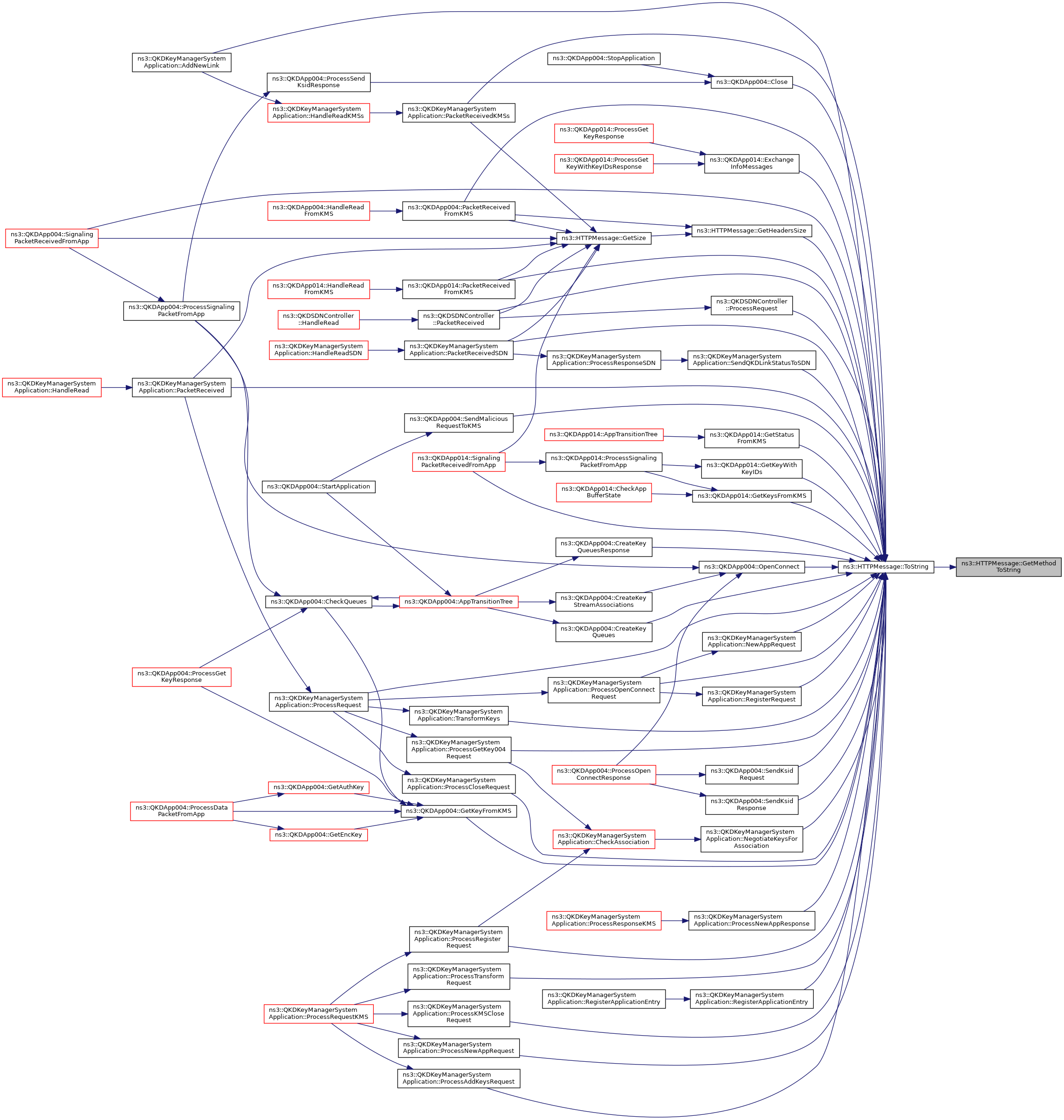

Here is the caller graph for this function:

◆ GetPath()

std::string ns3::HTTPMessage::GetPath ( ) const

inline

Grab the current associated path of this message.

Definition at line 572 of file http.h.

References m_path.

◆ GetRequestUri()

std::string ns3::HTTPMessage::GetRequestUri ( ) const

inline

Returns: The request uri value

Definition at line 430 of file http.h.

References m_request_uri.

Referenced by ns3::QKDApp004::ProcessCloseResponse(), ns3::QKDKeyManagerSystemApplication::ProcessFillResponse(), ns3::QKDApp004::ProcessGetKeyResponse(), ns3::QKDKeyManagerSystemApplication::ProcessKMSCloseResponse(), ns3::QKDKeyManagerSystemApplication::ProcessNewAppResponse(), ns3::QKDApp004::ProcessOpenConnectResponse(), ns3::QKDKeyManagerSystemApplication::ProcessRegisterResponse(), ns3::QKDKeyManagerSystemApplication::ProcessRelayResponse(), ns3::QKDApp004::ProcessResponseFromKMS(), ns3::QKDApp014::ProcessResponseFromKMS(), ns3::QKDKeyManagerSystemApplication::ProcessResponseKMS(), ns3::QKDApp004::ProcessSignalingPacketFromApp(), and ns3::QKDKeyManagerSystemApplication::ProcessSKeyCreateResponse().

Here is the caller graph for this function:

◆ GetSize()

uint32_t ns3::HTTPMessage::GetSize ( )

inline

Definition at line 685 of file http.h.

References GetContentLength(), and GetHeadersSize().

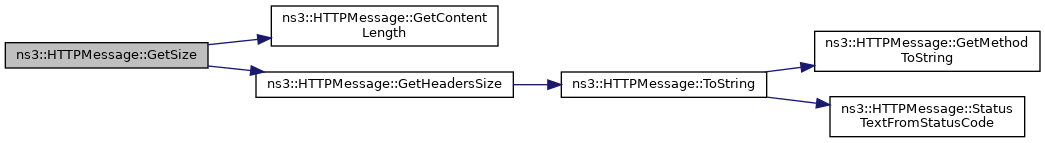

Here is the call graph for this function:

◆ GetStatus()

HTTPMessage::HttpStatus ns3::HTTPMessage::GetStatus ( ) const

inline

To be returned with a status code in a response is a status text describing the status code by text rather than by a code.

This method takes in one of those codes and tries to return a text for it.

Definition at line 168 of file http.h.

References Accepted, BadGateway, BadRequest, Conflict, Continue, Created, ExpectationFailed, Forbidden, Found, GatewayTimeout, Gone, HttpVersionNotSupported, ImaTeapot, InsufficientStorage, InternalServerError, LengthRequired, m_statusCode, MethodNotAllowed, MisdirectedRequest, MovedPermanently, MultipleChoice, NetworkAuthenticationRequired, NoContent, NonAuthoritativeInformation, NotAcceptable, NotExtended, NotFound, NotImplemented, NotModified, Ok, PartialContent, PayloadTooLarge, PaymentRequired, PermanentRedirect, PreconditionFailed, PreconditionRequired, ProxyAuthenticationRequired, RangeNotSatisfiable, RequestHeaderFieldsTooLarge, RequestTimeout, ResetContent, SeeOther, ServiceUnavailable, SwitchingProtocol, TemporaryRedirect, TooEarly, TooManyRequests, Unauthorized, UnavailableForLegalReasons, UnsupportedMediaType, UpgradeRequired, UriTooLong, and VariantAlsoNegotiates.

Referenced by ns3::QKDApp004::EstablishQueues(), ns3::QKDApp004::ProcessCloseResponse(), ns3::QKDKeyManagerSystemApplication::ProcessFillResponse(), ns3::QKDApp004::ProcessGetKeyResponse(), ns3::QKDKeyManagerSystemApplication::ProcessKMSCloseResponse(), ns3::QKDKeyManagerSystemApplication::ProcessNewAppResponse(), ns3::QKDApp004::ProcessOpenConnectResponse(), ns3::QKDKeyManagerSystemApplication::ProcessRegisterResponse(), ns3::QKDKeyManagerSystemApplication::ProcessRelayResponse(), ns3::QKDApp014::ProcessResponseFromKMS(), ns3::QKDApp014::ProcessSignalingPacketFromApp(), ns3::QKDApp004::ProcessSignalingPacketFromApp(), ns3::QKDKeyManagerSystemApplication::ProcessSKeyCreateResponse(), and ns3::QKDApp004::SendKsid().

Here is the caller graph for this function:

◆ GetStatusCode()

uint16_t ns3::HTTPMessage::GetStatusCode ( ) const

inline

Get the status code for this message.

Definition at line 604 of file http.h.

References m_statusCode.

Referenced by ns3::HTTPMessageParser::Parse().

Here is the caller graph for this function:

◆ GetStatusMessage()

std::string ns3::HTTPMessage::GetStatusMessage ( ) const

inline

Get the current status message for this message.

Returns an autogenerated status if one isn't specified.

Definition at line 622 of file http.h.

References m_statusMessage.

◆ GetUri()

std::string ns3::HTTPMessage::GetUri ( ) const

inline

Grab the uri.

Definition at line 518 of file http.h.

References m_uri.

Here is the caller graph for this function:

◆ GetVersion()

std::string ns3::HTTPMessage::GetVersion ( ) const

inline

Get the current HTTP version for this message.

Definition at line 588 of file http.h.

References m_version.

◆ HeaderCount()

size_t ns3::HTTPMessage::HeaderCount ( )

inline

Return the amount of headers in the message.

Definition at line 730 of file http.h.

References m_headers.

◆ IsFragmented()

bool ns3::HTTPMessage::IsFragmented ( ) const

inline

Definition at line 846 of file http.h.

References m_fragmented.

◆ SetFragmented()

void ns3::HTTPMessage::SetFragmented ( bool value )

inline

Definition at line 841 of file http.h.

References m_fragmented, and ns3::value().

Referenced by ns3::HTTPMessageParser::Parse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetHeader()

HTTPMessage & ns3::HTTPMessage::SetHeader	(	const std::string &	name,
		const std::string &	value
	)

inline

Set a header in the map to the value provided.

Definition at line 409 of file http.h.

References m_contentLength, m_domain, m_headers, m_request_uri, m_uri, and ns3::value().

Referenced by ns3::QKDApp004::Close(), CreateRequest(), CreateResponse(), ns3::QKDApp004::EstablishQueues(), ns3::QKDApp004::GetKeyFromKMS(), ns3::QKDApp014::GetKeysFromKMS(), ns3::QKDApp014::GetKeyWithKeyIDs(), ns3::QKDApp014::GetStatusFromKMS(), ns3::QKDApp004::OpenConnect(), ns3::HTTPMessageParser::Parse(), ns3::QKDApp014::SendKeyIds(), and ns3::QKDApp004::SendKsid().

Here is the call graph for this function:

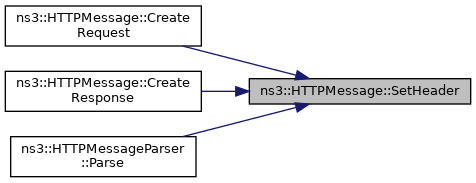

Here is the caller graph for this function:

◆ SetHeaders()

HTTPMessage & ns3::HTTPMessage::SetHeaders ( const std::unordered_map< std::string, std::string > & headers )

inline

Set a number of headers based on a generic map of keys and values.

Definition at line 437 of file http.h.

References m_headers.

Referenced by CreateResponse(), and CreateResponse().

Here is the caller graph for this function:

◆ SetMessageBody() [1/2]

void ns3::HTTPMessage::SetMessageBody ( const std::string & body )

inline

Set the body of this message to a string value.

Definition at line 692 of file http.h.

References ns3::Create(), and SetMessageBody().

Referenced by CreateRequest(), CreateResponse(), and SetMessageBody().

Here is the call graph for this function:

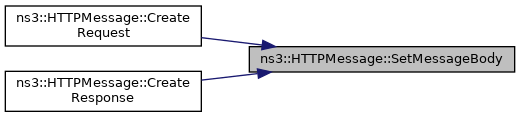

Here is the caller graph for this function:

◆ SetMessageBody() [2/2]

void ns3::HTTPMessage::SetMessageBody ( const std::vector< uint8_t > & body )

inline

Set the body of this message to an unsigned 8-bit binary value.

Definition at line 700 of file http.h.

References ns3::Create(), and m_body.

Here is the call graph for this function:

◆ SetMethod()

void ns3::HTTPMessage::SetMethod ( const std::string & m )

inline

Set the associated message method for this message.

Use NONE to switch this into a response.

Definition at line 463 of file http.h.

References DELETE, GET, HEAD, m_method, PATCH, POST, and PUT.

Referenced by CreateRequest(), CreateResponse(), and ns3::HTTPMessageParser::Parse().

Here is the caller graph for this function:

◆ SetPath()

void ns3::HTTPMessage::SetPath ( const std::string & url )

inline

Set the path of this message, which will be used if it is a request.

Definition at line 526 of file http.h.

References ns3::Create(), m_domain, m_path, m_scheme, and m_uri.

Referenced by CreateRequest(), and ns3::HTTPMessageParser::Parse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetStatusCode()

void ns3::HTTPMessage::SetStatusCode ( uint16_t code )

inline

Set the status code of this HTTP message.

Definition at line 596 of file http.h.

References ns3::Create(), and m_statusCode.

Referenced by CreateResponse(), and ns3::HTTPMessageParser::Parse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetStatusMessage()

void ns3::HTTPMessage::SetStatusMessage ( const std::string & message )

inline

Set the status message of this HTTP message.

Definition at line 612 of file http.h.

References m_statusMessage.

Referenced by ns3::HTTPMessageParser::Parse().

Here is the caller graph for this function:

◆ SetVersion()

void ns3::HTTPMessage::SetVersion ( const std::string & version )

inline

Set the version of this HTTP message to the string specified.

Definition at line 580 of file http.h.

References m_version.

Referenced by ns3::HTTPMessageParser::Parse().

Here is the caller graph for this function:

◆ StatusTextFromStatusCode()

std::string ns3::HTTPMessage::StatusTextFromStatusCode ( const uint16_t statusCode )

inline

To be returned with a status code in a response is a status text describing the status code by text rather than by a code.

This method takes in one of those codes and tries to return a text for it.

Definition at line 290 of file http.h.

References ns3::Create().

Referenced by ToString().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ToString()

std::string ns3::HTTPMessage::ToString ( )

inline

Takes the headers added to the message along with the body and outputs it to a std::string for use in client/server HTTP messages.

Definition at line 632 of file http.h.

References ns3::CarriageReturn, ns3::Create(), GetMethodToString(), ns3::HTTPVersion11, m_body, m_contentLength, m_headers, m_headersLength, m_method, m_path, m_statusCode, m_statusMessage, NONE, and StatusTextFromStatusCode().

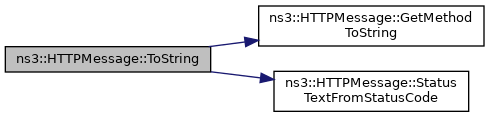

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_body

std::vector<uint8_t> ns3::HTTPMessage::m_body

private

A vector of unsigned 8-bit integers used to store message bodies.

Definition at line 901 of file http.h.

Referenced by GetMessageBody(), GetMessageBodyString(), SetMessageBody(), and ToString().

◆ m_contentLength

uint32_t ns3::HTTPMessage::m_contentLength = 0

private

Definition at line 908 of file http.h.

Referenced by GetContentLength(), SetHeader(), and ToString().

◆ m_domain

std::string ns3::HTTPMessage::m_domain

private

Definition at line 881 of file http.h.

Referenced by CreateRequest(), SetHeader(), and SetPath().

◆ m_fragmented

bool ns3::HTTPMessage::m_fragmented = false

private

Whether the payload size is less then content-length.

Definition at line 906 of file http.h.

Referenced by IsFragmented(), and SetFragmented().

◆ m_headers

std::unordered_map<std::string, std::string> ns3::HTTPMessage::m_headers

private

An unordered_map of headers using a std::string for both the key and the value.

Definition at line 896 of file http.h.

Referenced by GetHeader(), HeaderCount(), SetHeader(), SetHeaders(), and ToString().

◆ m_headersLength

uint32_t ns3::HTTPMessage::m_headersLength = 0

private

Definition at line 909 of file http.h.

Referenced by GetHeadersSize(), and ToString().

◆ m_method

HTTPMessage::HttpMethod ns3::HTTPMessage::m_method = HTTPMessage::HttpMethod::NONE

private

The HTTP method for this message.

Defaults to NONE denoting a response.

Definition at line 857 of file http.h.

Referenced by GetMethod(), GetMethodToString(), SetMethod(), and ToString().

◆ m_path

std::string ns3::HTTPMessage::m_path = ""

private

The path for the resource specified in the message.

Only used for a request.

Defaults to blank.

Definition at line 878 of file http.h.

Referenced by GetPath(), SetPath(), and ToString().

◆ m_request_uri

std::string ns3::HTTPMessage::m_request_uri

private

Definition at line 883 of file http.h.

Referenced by GetRequestUri(), and SetHeader().

◆ m_scheme

std::string ns3::HTTPMessage::m_scheme

private

Definition at line 880 of file http.h.

Referenced by SetPath().

◆ m_statusCode

uint16_t ns3::HTTPMessage::m_statusCode = 0

private

A status code for this message.

This is ignored if this is a request, as requests have no notion of statuses.

Definition at line 864 of file http.h.

Referenced by GetStatus(), GetStatusCode(), SetStatusCode(), and ToString().

◆ m_statusMessage

std::string ns3::HTTPMessage::m_statusMessage = ""

private

A status message to be associated with the status code for this message.

Keep blank to use an automatically generated status message.

Definition at line 871 of file http.h.

Referenced by GetStatusMessage(), SetStatusMessage(), and ToString().

◆ m_uri

std::string ns3::HTTPMessage::m_uri

private

Definition at line 882 of file http.h.

Referenced by GetUri(), SetHeader(), and SetPath().

◆ m_version

std::string ns3::HTTPMessage::m_version = HTTPVersion11

private

The version used for this HTTP message as a string.

Defaults to "HTTP/1.1"

Definition at line 890 of file http.h.

Referenced by GetVersion(), and SetVersion().

The documentation for this class was generated from the following file:

src/applications/model/http.h

Public Types

Public Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ HttpMethod

◆ HttpStatus

Member Function Documentation

◆ CreateRequest() [1/3]

◆ CreateRequest() [2/3]

◆ CreateRequest() [3/3]

◆ CreateResponse() [1/5]

◆ CreateResponse() [2/5]

◆ CreateResponse() [3/5]

◆ CreateResponse() [4/5]

◆ CreateResponse() [5/5]

◆ GetContentLength()

◆ GetHeader()

◆ GetHeadersSize()

◆ GetMessageBody()

◆ GetMessageBodyString()

◆ GetMethod()

◆ GetMethodToString()

◆ GetPath()

◆ GetRequestUri()

◆ GetSize()

◆ GetStatus()

◆ GetStatusCode()

◆ GetStatusMessage()

◆ GetUri()

◆ GetVersion()

◆ HeaderCount()

◆ IsFragmented()

◆ SetFragmented()

◆ SetHeader()

◆ SetHeaders()

◆ SetMessageBody() [1/2]

◆ SetMessageBody() [2/2]

◆ SetMethod()

◆ SetPath()

◆ SetStatusCode()

◆ SetStatusMessage()

◆ SetVersion()

◆ StatusTextFromStatusCode()

◆ ToString()

Member Data Documentation

◆ m_body

◆ m_contentLength

◆ m_domain

◆ m_fragmented

◆ m_headers

◆ m_headersLength

◆ m_method

◆ m_path

◆ m_request_uri

◆ m_scheme

◆ m_statusCode

◆ m_statusMessage

◆ m_uri

◆ m_version
