ns3::dsr::DsrFsHeader Class Reference

Dsr fixed size header Format. More...

#include "dsr-fs-header.h"

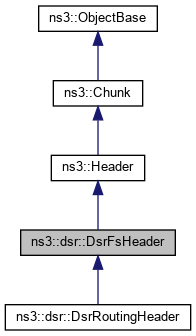

+ Inheritance diagram for ns3::dsr::DsrFsHeader:

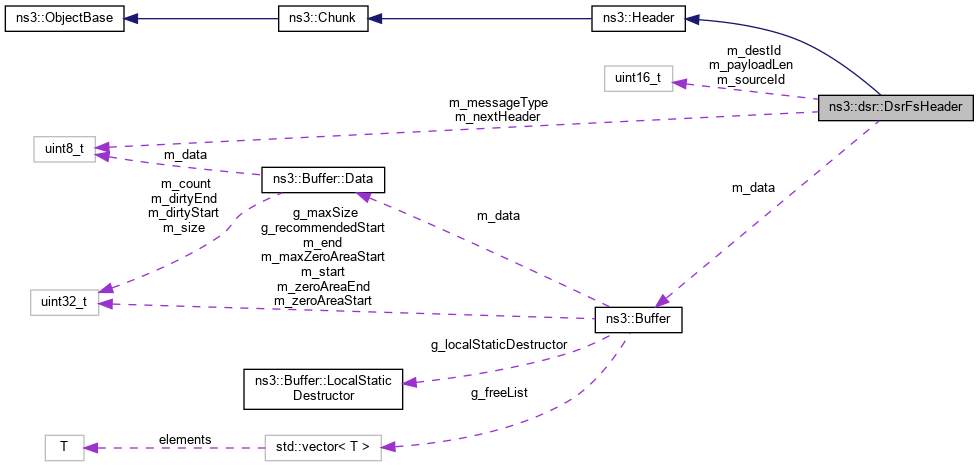

+ Collaboration diagram for ns3::dsr::DsrFsHeader:

Public Member Functions

 DsrFsHeader ()
 Constructor. More...

virtual ~DsrFsHeader ()
 Destructor. More...

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

uint16_t GetDestId () const
 brief Get the dest ID of the header. More...

virtual TypeId GetInstanceTypeId () const
 Get the instance type ID. More...

uint8_t GetMessageType () const
 brief Get the message type of the header. More...

uint8_t GetNextHeader () const
 Get the next header. More...

uint16_t GetPayloadLength () const
 Get the payload length of the header. More...

virtual uint32_t GetSerializedSize () const
 Get the serialized size of the packet. More...

uint16_t GetSourceId () const
 brief Get the source ID of the header. More...

virtual void Print (std::ostream &os) const
 Print some information about the packet. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetDestId (uint16_t destId)
 brief Set the dest ID of the header. More...

void SetMessageType (uint8_t messageType)
 brief Set the message type of the header. More...

void SetNextHeader (uint8_t protocol)
 Set the "Next header" field. More...

void SetPayloadLength (uint16_t length)
 brief Set the payload length of the header. More...

void SetSourceId (uint16_t sourceId)
 brief Set the source ID of the header. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

Buffer m_data
 The data of the extension. More...

uint16_t m_destId
 The destination node id. More...

uint8_t m_messageType
 The type of the message. More...

uint8_t m_nextHeader
 The "next header" field. More...

uint16_t m_payloadLen
 The "payload length" field. More...

uint16_t m_sourceId
 The source node id. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Dsr fixed size header Format.

Introspection did not find any typical Config paths.

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Next Header |F|     Reservd    |       Payload Length       |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Options                           |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

The modified version of Dsr fixed size header Format

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Next Header |F|  Message Type  |       Payload Length       |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |             Source Id           |            Dest Id         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Options                           |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 79 of file dsr-fs-header.h.

Constructor & Destructor Documentation

ns3::dsr::DsrFsHeader::DsrFsHeader ( )

Constructor.

Definition at line 60 of file dsr-fs-header.cc.

ns3::dsr::DsrFsHeader::~DsrFsHeader ( )
virtual

Destructor.

Definition at line 70 of file dsr-fs-header.cc.

Member Function Documentation

uint32_t ns3::dsr::DsrFsHeader::Deserialize ( Buffer::Iterator  start)
virtual
uint16_t ns3::dsr::DsrFsHeader::GetDestId ( ) const

brief Get the dest ID of the header.

Returns
dest ID the dest ID of the header

Definition at line 119 of file dsr-fs-header.cc.

References m_destId.

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), Print(), ns3::dsr::DsrRoutingHeader::Print(), ns3::dsr::DsrRouting::PromiscReceive(), and ns3::dsr::DsrRoutingHeader::Serialize().

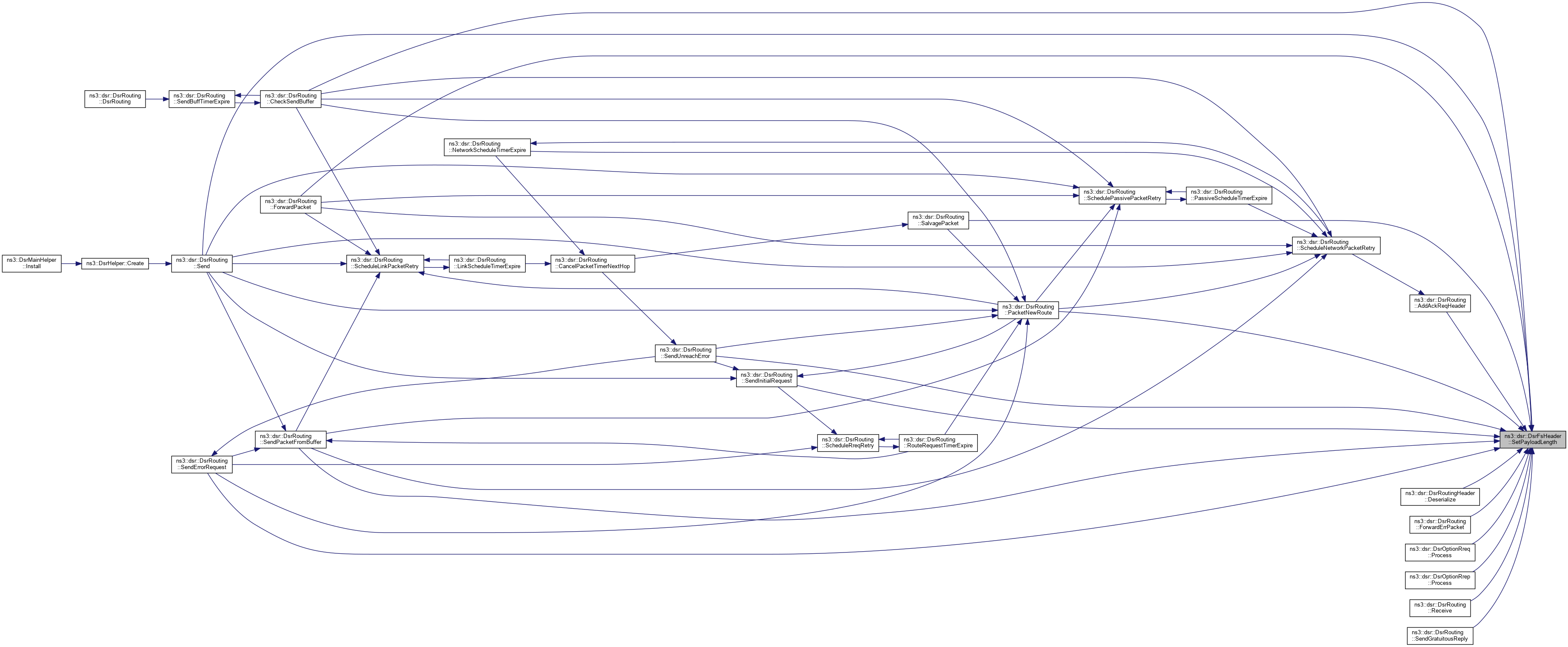

+ Here is the caller graph for this function:

TypeId ns3::dsr::DsrFsHeader::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Implements ns3::ObjectBase.

Reimplemented in ns3::dsr::DsrRoutingHeader.

Definition at line 55 of file dsr-fs-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

uint8_t ns3::dsr::DsrFsHeader::GetMessageType ( ) const

brief Get the message type of the header.

Returns
message type the message type of the header

Definition at line 89 of file dsr-fs-header.cc.

References m_messageType.

Referenced by Print(), ns3::dsr::DsrRoutingHeader::Print(), ns3::dsr::DsrRouting::PromiscReceive(), and ns3::dsr::DsrRoutingHeader::Serialize().

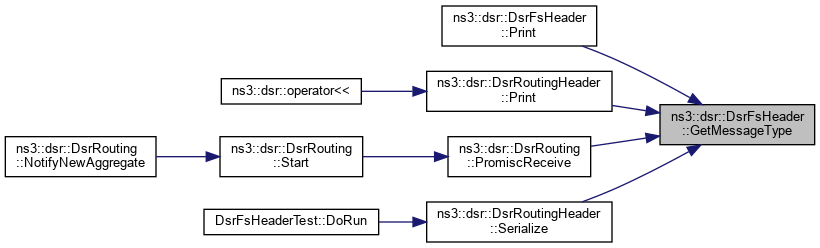

+ Here is the caller graph for this function:

uint8_t ns3::dsr::DsrFsHeader::GetNextHeader ( ) const

Get the next header.

Returns
the next header number

Definition at line 79 of file dsr-fs-header.cc.

References m_nextHeader.

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), Print(), ns3::dsr::DsrRoutingHeader::Print(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::dsr::DsrRouting::Receive(), and ns3::dsr::DsrRoutingHeader::Serialize().

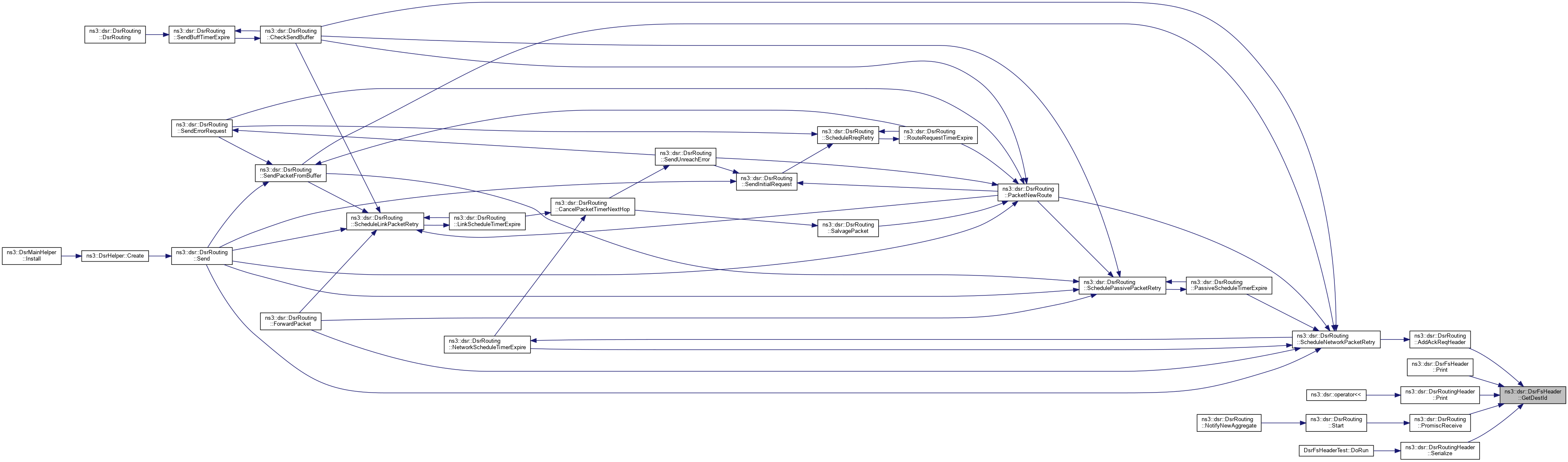

+ Here is the caller graph for this function:

uint16_t ns3::dsr::DsrFsHeader::GetPayloadLength ( ) const

Get the payload length of the header.

Returns
the payload length of the header

Definition at line 99 of file dsr-fs-header.cc.

References m_payloadLen.

Referenced by Deserialize(), ns3::dsr::DsrRoutingHeader::Deserialize(), Print(), ns3::dsr::DsrRoutingHeader::Print(), and ns3::dsr::DsrRoutingHeader::Serialize().

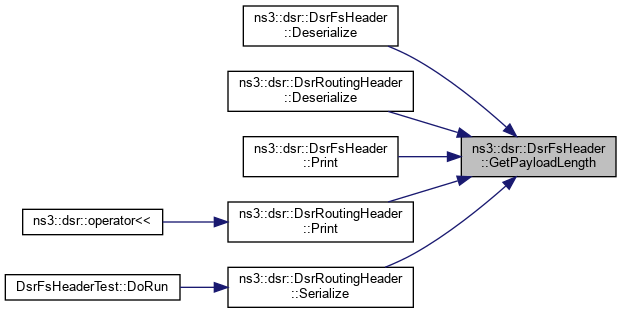

+ Here is the caller graph for this function:

uint32_t ns3::dsr::DsrFsHeader::GetSerializedSize ( void  ) const
virtual

Get the serialized size of the packet.

Returns
size

Implements ns3::Header.

Reimplemented in ns3::dsr::DsrRoutingHeader.

Definition at line 132 of file dsr-fs-header.cc.

Referenced by Deserialize().

+ Here is the caller graph for this function:

uint16_t ns3::dsr::DsrFsHeader::GetSourceId ( ) const

brief Get the source ID of the header.

Returns
source ID the source ID of the header

Definition at line 109 of file dsr-fs-header.cc.

References m_sourceId.

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), Print(), ns3::dsr::DsrRoutingHeader::Print(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::dsr::DsrRouting::Receive(), and ns3::dsr::DsrRoutingHeader::Serialize().

+ Here is the caller graph for this function:

TypeId ns3::dsr::DsrFsHeader::GetTypeId ( void  )
static

Get the type identificator.

Returns
type identificator

Definition at line 45 of file dsr-fs-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::dsr::DsrFsHeader::Print ( std::ostream &  os) const
virtual

Print some information about the packet.

Parameters
osoutput stream
Returns
info about this packet

Implements ns3::Header.

Reimplemented in ns3::dsr::DsrRoutingHeader.

Definition at line 124 of file dsr-fs-header.cc.

References GetDestId(), GetMessageType(), GetNextHeader(), GetPayloadLength(), and GetSourceId().

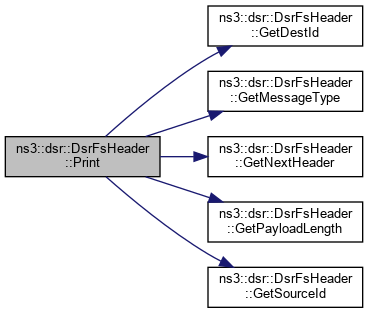

+ Here is the call graph for this function:

void ns3::dsr::DsrFsHeader::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startBuffer iterator

Implements ns3::Header.

Reimplemented in ns3::dsr::DsrRoutingHeader.

Definition at line 137 of file dsr-fs-header.cc.

References ns3::Buffer::GetSize(), m_data, m_destId, m_messageType, m_nextHeader, m_payloadLen, m_sourceId, ns3::Buffer::PeekData(), visualizer.core::start(), ns3::Buffer::Iterator::Write(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

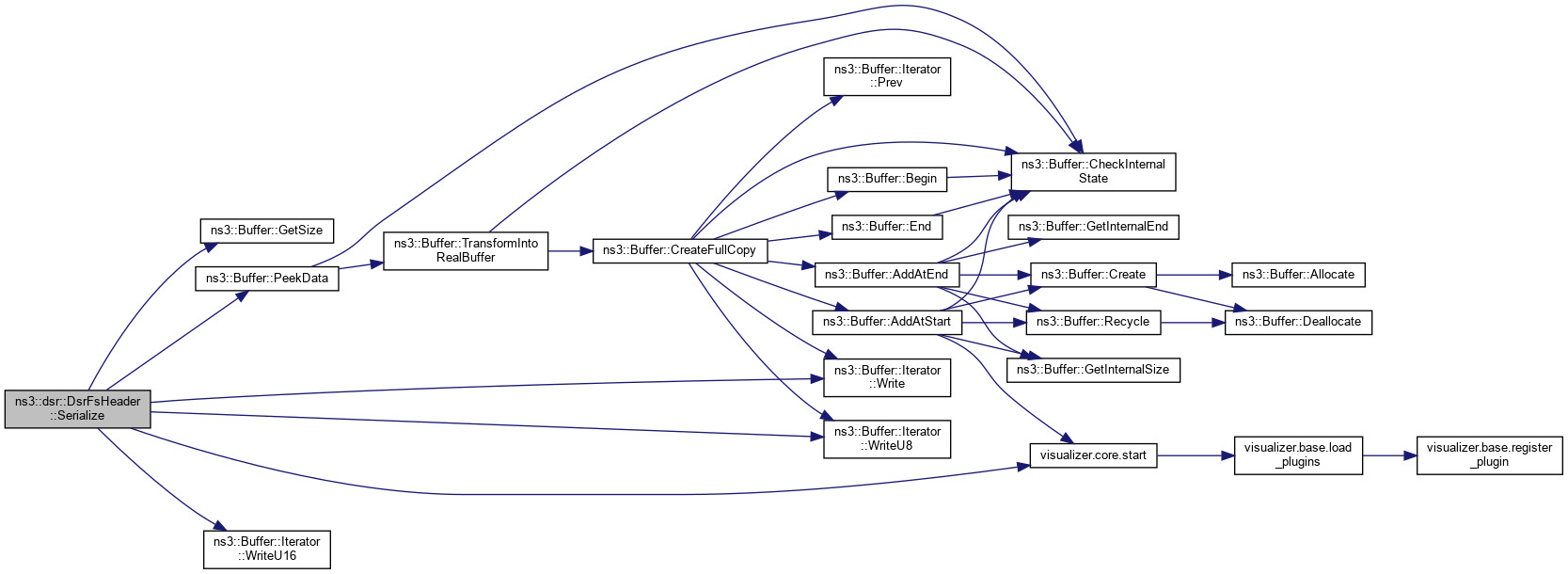

+ Here is the call graph for this function:

Member Data Documentation

Buffer ns3::dsr::DsrFsHeader::m_data
private

The data of the extension.

Definition at line 197 of file dsr-fs-header.h.

Referenced by Deserialize(), and Serialize().

uint16_t ns3::dsr::DsrFsHeader::m_destId
private

The destination node id.

Definition at line 193 of file dsr-fs-header.h.

Referenced by Deserialize(), GetDestId(), Serialize(), and SetDestId().

uint8_t ns3::dsr::DsrFsHeader::m_messageType
private

The type of the message.

Definition at line 181 of file dsr-fs-header.h.

Referenced by Deserialize(), GetMessageType(), Serialize(), and SetMessageType().

uint8_t ns3::dsr::DsrFsHeader::m_nextHeader
private

The "next header" field.

Definition at line 177 of file dsr-fs-header.h.

Referenced by Deserialize(), GetNextHeader(), Serialize(), and SetNextHeader().

uint16_t ns3::dsr::DsrFsHeader::m_payloadLen
private

The "payload length" field.

Definition at line 185 of file dsr-fs-header.h.

Referenced by Deserialize(), GetPayloadLength(), Serialize(), and SetPayloadLength().

uint16_t ns3::dsr::DsrFsHeader::m_sourceId
private

The source node id.

Definition at line 189 of file dsr-fs-header.h.

Referenced by Deserialize(), GetSourceId(), Serialize(), and SetSourceId().


The documentation for this class was generated from the following files:
