VhtFrameExchangeManager handles the frame exchange sequences for VHT stations. More...

#include "vht-frame-exchange-manager.h"

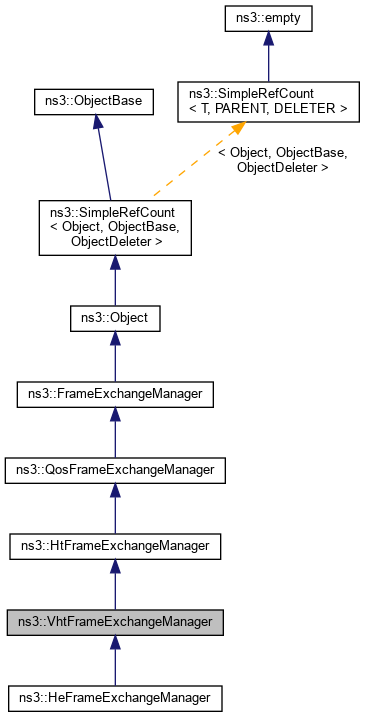

Inheritance diagram for ns3::VhtFrameExchangeManager:

Collaboration diagram for ns3::VhtFrameExchangeManager:

Public Member Functions
	VhtFrameExchangeManager ()

virtual	~VhtFrameExchangeManager ()

Public Member Functions inherited from ns3::HtFrameExchangeManager
	HtFrameExchangeManager ()

virtual	~HtFrameExchangeManager ()

void	CalculateAcknowledgmentTime (WifiAcknowledgment *acknowledgment) const override
	Calculate the time required to acknowledge a frame according to the given acknowledgment method. More...

void	CreateBlockAckAgreement (const MgtAddBaResponseHeader *respHdr, Mac48Address originator, uint16_t startingSeq)

void	DestroyBlockAckAgreement (Mac48Address originator, uint8_t tid)
	Destroy a Block Ack agreement. More...

bool	GetBaAgreementEstablished (Mac48Address originator, uint8_t tid) const
	Return true if a Block Ack agreement has been established with the given originator for the given TID. More...

BlockAckType	GetBlockAckType (Mac48Address originator, uint8_t tid) const
	Get the type of BlockAck frames sent to the given originator. More...

Ptr< MpduAggregator >	GetMpduAggregator (void) const
	Returns the aggregator used to construct A-MPDU subframes. More...

Ptr< MsduAggregator >	GetMsduAggregator (void) const
	Returns the aggregator used to construct A-MSDU subframes. More...

virtual uint16_t	GetSupportedBaBufferSize (void) const
	Get the maximum supported buffer size for a Block Ack agreement. More...

virtual bool	IsWithinAmpduSizeLimit (uint32_t ampduSize, Mac48Address receiver, uint8_t tid, WifiModulationClass modulation) const
	Check whether an A-MPDU of the given size meets the constraint on the maximum size for A-MPDUs sent to the given receiver, belonging to the given TID and transmitted using the given modulation class. More...

bool	IsWithinLimitsIfAddMpdu (Ptr< const WifiMacQueueItem > mpdu, const WifiTxParameters &txParams, Time ppduDurationLimit) const override
	Check if the PSDU obtained by aggregating the given MPDU to the PSDU specified by the given TX parameters meets the constraints on the maximum A-MPDU size and its transmission time does not exceed the given PPDU duration limit (if different than Time::Min()). More...

virtual bool	IsWithinLimitsIfAggregateMsdu (Ptr< const WifiMacQueueItem > msdu, const WifiTxParameters &txParams, Time ppduDurationLimit) const
	Check if the PSDU obtained by aggregating the given MSDU to the PSDU specified by the given TX parameters meets the constraints on the maximum A-MSDU size and its transmission time does not exceed the given PPDU duration limit (if different than Time::Min()). More...

void	SendAddBaResponse (const MgtAddBaRequestHeader *reqHdr, Mac48Address originator)
	This method can be called to accept a received ADDBA Request. More...

void	SendDelbaFrame (Mac48Address addr, uint8_t tid, bool byOriginator)
	Sends DELBA frame to cancel a block ack agreement with STA addressed by addr for TID tid. More...

void	SetWifiMac (const Ptr< WifiMac > mac) override
	Set the MAC layer to use. More...

bool	StartFrameExchange (Ptr< QosTxop > edca, Time availableTime, bool initialFrame) override
	Start a frame exchange (including protection frames and acknowledgment frames as needed) that fits within the given availableTime (if different than Time::Min()). More...

virtual bool	TryAggregateMsdu (Ptr< const WifiMacQueueItem > msdu, WifiTxParameters &txParams, Time availableTime) const
	Check if aggregating an MSDU to the current MPDU (as specified by the given TX parameters) does not violate the size and time constraints, while taking into account the possibly updated protection and acknowledgment methods. More...

Public Member Functions inherited from ns3::QosFrameExchangeManager
	QosFrameExchangeManager ()

virtual	~QosFrameExchangeManager ()

virtual bool	IsWithinSizeAndTimeLimits (uint32_t ppduPayloadSize, Mac48Address receiver, const WifiTxParameters &txParams, Time ppduDurationLimit) const
	Check whether the transmission time of the frame being built (as described by the given TX parameters) does not exceed the given PPDU duration limit if the size of the PSDU addressed to the given receiver becomes ppduPayloadSize. More...

bool	StartTransmission (Ptr< Txop > edca) override
	Request the FrameExchangeManager to start a frame exchange sequence. More...

bool	TryAddMpdu (Ptr< const WifiMacQueueItem > mpdu, WifiTxParameters &txParams, Time availableTime) const
	Recompute the protection and acknowledgment methods to use if the given MPDU is added to the frame being built (as described by the given TX parameters) and check whether the duration of the frame exchange sequence (including protection and acknowledgment) does not exceed the given available time. More...

Public Member Functions inherited from ns3::FrameExchangeManager
	FrameExchangeManager ()

virtual	~FrameExchangeManager ()

virtual void	CalculateProtectionTime (WifiProtection *protection) const
	Calculate the time required to protect a frame according to the given protection method. More...

Ptr< WifiAckManager >	GetAckManager (void) const
	Get the Acknowledgment Manager used by this node. More...

Ptr< WifiProtectionManager >	GetProtectionManager (void) const
	Get the Protection Manager used by this node. More...

const WifiTxTimer &	GetWifiTxTimer (void) const
	Get a const reference to the WifiTxTimer object. More...

bool	IsPromisc (void) const
	Check if the device is operating in promiscuous mode. More...

virtual void	NotifyInternalCollision (Ptr< Txop > txop)
	Notify that an internal collision has occurred for the given Txop. More...

void	NotifyOffNow (void)
	This method is typically invoked by the PhyListener to notify the MAC layer that the device has been put into off mode. More...

void	NotifySleepNow (void)
	This method is typically invoked by the PhyListener to notify the MAC layer that the device has been put into sleep mode. More...

virtual void	NotifySwitchingStartNow (Time duration)

void	Receive (Ptr< WifiPsdu > psdu, RxSignalInfo rxSignalInfo, WifiTxVector txVector, std::vector< bool > perMpduStatus)
	This method is intended to be called by the PHY layer every time an MPDU is received and also when the reception of an A-MPDU is completed. More...

virtual void	ResetPhy (void)
	Remove WifiPhy associated with this FrameExchangeManager. More...

void	SetAckedMpduCallback (AckedMpdu callback)
	Set the callback to invoke when an MPDU is successfully acked. More...

virtual void	SetAckManager (Ptr< WifiAckManager > ackManager)
	Set the Acknowledgment Manager to use. More...

virtual void	SetAddress (Mac48Address address)
	Set the MAC address. More...

virtual void	SetBssid (Mac48Address bssid)
	Set the Basic Service Set Identification. More...

virtual void	SetChannelAccessManager (const Ptr< ChannelAccessManager > channelAccessManager)
	Set the channel access manager to use. More...

virtual void	SetDroppedMpduCallback (DroppedMpdu callback)
	Set the callback to invoke when an MPDU is dropped. More...

virtual void	SetMacRxMiddle (const Ptr< MacRxMiddle > rxMiddle)
	Set the MAC RX Middle to use. More...

virtual void	SetMacTxMiddle (const Ptr< MacTxMiddle > txMiddle)
	Set the MAC TX Middle to use. More...

void	SetPromisc (void)
	Enable promiscuous mode. More...

virtual void	SetProtectionManager (Ptr< WifiProtectionManager > protectionManager)
	Set the Protection Manager to use. More...

virtual void	SetWifiPhy (const Ptr< WifiPhy > phy)
	Set the PHY layer to use. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

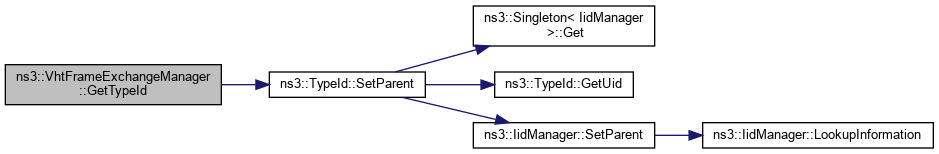

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::HtFrameExchangeManager
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::QosFrameExchangeManager
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::FrameExchangeManager
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions

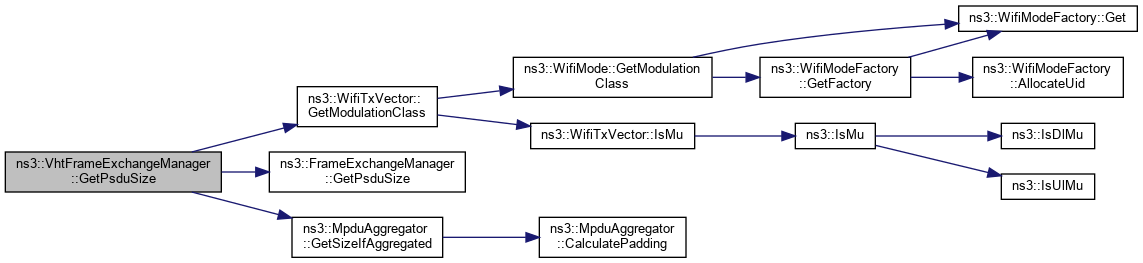

uint32_t	GetPsduSize (Ptr< const WifiMacQueueItem > mpdu, const WifiTxVector &txVector) const override
	Get the size in bytes of the given MPDU, which is to be transmitted with the given TXVECTOR. More...

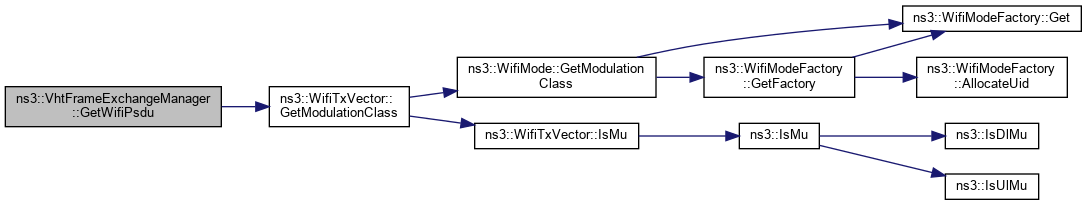

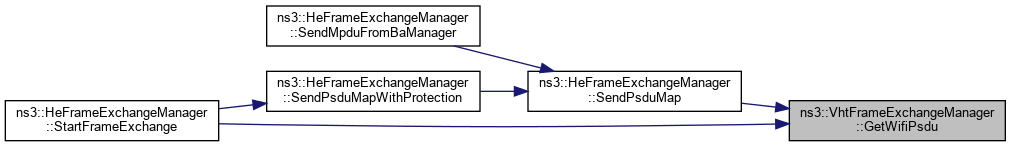

Ptr< WifiPsdu >	GetWifiPsdu (Ptr< WifiMacQueueItem > mpdu, const WifiTxVector &txVector) const override
	Get a PSDU containing the given MPDU. More...

Protected Member Functions inherited from ns3::HtFrameExchangeManager
virtual void	BlockAckTimeout (Ptr< WifiPsdu > psdu, const WifiTxVector &txVector)
	Called when the BlockAck timeout expires. More...

void	CtsTimeout (Ptr< WifiMacQueueItem > rts, const WifiTxVector &txVector) override
	Called when the CTS timeout expires. More...

void	DequeuePsdu (Ptr< const WifiPsdu > psdu)
	Dequeue the MPDUs of the given PSDU from the queue in which they are stored. More...

void	DoDispose () override
	Destructor implementation. More...

void	EndReceiveAmpdu (Ptr< const WifiPsdu > psdu, const RxSignalInfo &rxSignalInfo, const WifiTxVector &txVector, const std::vector< bool > &perMpduStatus) override
	This method is called when the reception of an A-MPDU including multiple MPDUs is completed. More...

void	ForwardMpduDown (Ptr< WifiMacQueueItem > mpdu, WifiTxVector &txVector) override
	Forward an MPDU down to the PHY layer. More...

virtual void	ForwardPsduDown (Ptr< const WifiPsdu > psdu, WifiTxVector &txVector)
	Forward a PSDU down to the PHY layer. More...

Ptr< BlockAckManager >	GetBaManager (uint8_t tid) const
	Get the Block Ack Manager handling the given TID. More...

virtual Time	GetPsduDurationId (Time txDuration, const WifiTxParameters &txParams) const
	Compute how to set the Duration/ID field of PSDUs that do not include fragments. More...

virtual void	MissedBlockAck (Ptr< WifiPsdu > psdu, const WifiTxVector &txVector, bool &resetCw)
	Take necessary actions when a BlockAck is missed, such as scheduling a BlockAckReq frame or the retransmission of the unacknowledged frames. More...

virtual bool	NeedSetupBlockAck (Mac48Address recipient, uint8_t tid)
	A Block Ack agreement needs to be established with the given recipient for the given TID if it does not already exist (or exists and is in state RESET) and: More...

void	NotifyPacketDiscarded (Ptr< const WifiMacQueueItem > mpdu) override
	Pass the given MPDU, discarded because of the max retry limit was reached, to the MPDU dropped callback. More...

void	NotifyReceivedNormalAck (Ptr< WifiMacQueueItem > mpdu) override
	Notify other components that an MPDU was acknowledged. More...

virtual void	NotifyTxToEdca (Ptr< const WifiPsdu > psdu) const
	Notify the transmission of the given PSDU to the EDCAF associated with the AC the PSDU belongs to. More...

void	ReceiveMpdu (Ptr< WifiMacQueueItem > mpdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, bool inAmpdu) override
	This method handles the reception of an MPDU (possibly included in an A-MPDU) More...

void	ReleaseSequenceNumber (Ptr< WifiMacQueueItem > mpdu) const override
	Make the sequence number of the given MPDU available again if the MPDU has never been transmitted. More...

void	RetransmitMpduAfterMissedAck (Ptr< WifiMacQueueItem > mpdu) const override
	Retransmit an MPDU that was not acknowledged. More...

void	SendAddBaRequest (Mac48Address recipient, uint8_t tid, uint16_t startingSeq, uint16_t timeout, bool immediateBAck)
	Sends an ADDBA Request to establish a block ack agreement with STA addressed by recipient for TID tid. More...

void	SendBlockAck (const RecipientBlockAckAgreement &agreement, Time durationId, WifiTxVector &blockAckTxVector, double rxSnr)
	Create a BlockAck frame with header equal to blockAck and start its transmission. More...

virtual bool	SendDataFrame (Ptr< const WifiMacQueueItem > peekedItem, Time availableTime, bool initialFrame)
	Given a non-broadcast QoS data frame, prepare the PSDU to transmit by attempting A-MSDU and A-MPDU aggregation (if enabled), while making sure that the frame exchange (possibly including protection and acknowledgment) is completed within the given available time. More...

virtual bool	SendMpduFromBaManager (Ptr< QosTxop > edca, Time availableTime, bool initialFrame)
	If the Block Ack Manager associated with the given EDCA has a BlockAckReq frame to transmit (the duration of which plus the response fits within the given available time, if the latter is not Time::Min() and this is not the initial frame of a TXOP), transmit the frame and return true. More...

void	SendPsduWithProtection (Ptr< WifiPsdu > psdu, WifiTxParameters &txParams)
	Send a PSDU (A-MPDU or BlockAckReq frame) requesting a BlockAck frame or a BlockAckReq frame followed by a BlockAck frame for the acknowledgment. More...

void	TransmissionSucceeded (void) override
	Take necessary actions upon a transmission success. More...

Protected Member Functions inherited from ns3::QosFrameExchangeManager
void	DoDispose () override
	Destructor implementation. More...

void	ForwardMpduDown (Ptr< WifiMacQueueItem > mpdu, WifiTxVector &txVector) override
	Forward an MPDU down to the PHY layer. More...

Time	GetCtsToSelfDurationId (const WifiTxVector &ctsTxVector, Time txDuration, Time response) const override
	Compute how to set the Duration/ID field of a CTS-to-self frame to send to protect a frame transmitted with the given TX vector. More...

Time	GetFrameDurationId (const WifiMacHeader &header, uint32_t size, const WifiTxParameters &txParams, Ptr< Packet > fragmentedPacket) const override
	Compute how to set the Duration/ID field of a frame being transmitted with the given TX parameters. More...

Time	GetRtsDurationId (const WifiTxVector &rtsTxVector, Time txDuration, Time response) const override
	Compute how to set the Duration/ID field of an RTS frame to send to protect a frame transmitted with the given TX vector. More...

void	PifsRecovery (void)
	Perform a PIFS recovery as a response to transmission failure within a TXOP. More...

void	PreProcessFrame (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) override
	Perform actions that are possibly needed when receiving any frame, independently of whether the frame is addressed to this station (e.g., setting the NAV or the TXOP holder). More...

void	ReceiveMpdu (Ptr< WifiMacQueueItem > mpdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, bool inAmpdu) override
	This method handles the reception of an MPDU (possibly included in an A-MPDU) More...

virtual bool	SendCfEndIfNeeded (void)
	Send a CF-End frame to indicate the completion of the TXOP, provided that the remaining duration is long enough to transmit this frame. More...

virtual void	SetTxopHolder (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	Set the TXOP holder, if needed, based on the received frame. More...

virtual bool	StartTransmission (Ptr< QosTxop > edca, Time txopDuration)
	Request the FrameExchangeManager to start a frame exchange sequence. More...

void	TransmissionFailed (void) override
	Take necessary actions upon a transmission failure. More...

void	TransmissionSucceeded (void) override
	Take necessary actions upon a transmission success. More...

Protected Member Functions inherited from ns3::FrameExchangeManager
virtual void	DequeueMpdu (Ptr< const WifiMacQueueItem > mpdu)
	Dequeue the given MPDU from the queue in which it is stored. More...

void	DoCtsTimeout (Ptr< WifiPsdu > psdu)
	Take required actions when the CTS timer fired after sending an RTS to protect the given PSDU expires. More...

void	DoSendCtsAfterRts (const WifiMacHeader &rtsHdr, WifiTxVector &ctsTxVector, double rtsSnr)
	Send CTS after receiving RTS. More...

Ptr< WifiMacQueueItem >	GetFirstFragmentIfNeeded (Ptr< WifiMacQueueItem > mpdu)
	Fragment the given MPDU if needed. More...

Ptr< WifiMacQueueItem >	GetNextFragment (void)
	Get the next fragment of the current MSDU. More...

virtual Time	GetTxDuration (uint32_t ppduPayloadSize, Mac48Address receiver, const WifiTxParameters &txParams) const
	Get the updated TX duration of the frame associated with the given TX parameters if the size of the PSDU addressed to the given receiver becomes ppduPayloadSize. More...

virtual void	NavResetTimeout (void)
	Reset the NAV upon expiration of the NAV reset timer. More...

virtual void	NormalAckTimeout (Ptr< WifiMacQueueItem > mpdu, const WifiTxVector &txVector)
	Called when the Ack timeout expires. More...

virtual void	ReceivedNormalAck (Ptr< WifiMacQueueItem > mpdu, const WifiTxVector &txVector, const WifiTxVector &ackTxVector, const RxSignalInfo &rxInfo, double snr)
	Perform the actions needed when a Normal Ack is received. More...

void	SendCtsAfterRts (const WifiMacHeader &rtsHdr, WifiMode rtsTxMode, double rtsSnr)
	Send CTS after receiving RTS. More...

void	SendCtsToSelf (const WifiTxParameters &txParams)
	Send CTS for a CTS-to-self mechanism. More...

void	SendMpduWithProtection (Ptr< WifiMacQueueItem > mpdu, WifiTxParameters &txParams)
	Send an MPDU with the given TX parameters (with the specified protection). More...

void	SendNormalAck (const WifiMacHeader &hdr, const WifiTxVector &dataTxVector, double dataSnr)
	Send Normal Ack. More...

void	SendRts (const WifiTxParameters &txParams)
	Send RTS to begin RTS-CTS-Data-Ack transaction. More...

virtual void	UpdateNav (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	Update the NAV, if needed, based on the Duration/ID of the given psdu. More...

void	UpdateTxDuration (Mac48Address receiver, WifiTxParameters &txParams) const
	Update the TX duration field of the given TX parameters after that the PSDU addressed to the given receiver has changed. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Additional Inherited Members
Public Types inherited from ns3::FrameExchangeManager
typedef Callback< void, Ptr< const WifiMacQueueItem > >	AckedMpdu
	typedef for a callback to invoke when an MPDU is successfully acknowledged. More...

typedef Callback< void, WifiMacDropReason, Ptr< const WifiMacQueueItem > >	DroppedMpdu
	typedef for a callback to invoke when an MPDU is dropped. More...

Protected Types inherited from ns3::HtFrameExchangeManager
typedef std::pair< Mac48Address, uint8_t >	AgreementKey
	agreement key typedef (MAC address and TID) More...

Protected Attributes inherited from ns3::HtFrameExchangeManager
std::map< AgreementKey, RecipientBlockAckAgreement >	m_agreements
	agreements More...

Ptr< MpduAggregator >	m_mpduAggregator
	A-MPDU aggregator. More...

Ptr< MsduAggregator >	m_msduAggregator
	A-MSDU aggregator. More...

Protected Attributes inherited from ns3::QosFrameExchangeManager
Ptr< QosTxop >	m_edca
	the EDCAF that gained channel access More...

bool	m_setQosQueueSize
	whether to set the Queue Size subfield of the QoS Control field of QoS data frames More...

Mac48Address	m_txopHolder
	MAC address of the TXOP holder. More...

Protected Attributes inherited from ns3::FrameExchangeManager
AckedMpdu	m_ackedMpduCallback
	the acknowledged MPDU callback More...

Mac48Address	m_bssid
	BSSID address (Mac48Address) More...

Ptr< ChannelAccessManager >	m_channelAccessManager
	the channel access manager More...

Ptr< Txop >	m_dcf
	the DCF/EDCAF that gained channel access More...

DroppedMpdu	m_droppedMpduCallback
	the dropped MPDU callback More...

Ptr< WifiMac >	m_mac
	the MAC layer on this station More...

Time	m_navEnd
	NAV expiration time. More...

EventId	m_navResetEvent
	the event to reset the NAV after an RTS More...

Ptr< WifiPhy >	m_phy
	the PHY layer on this station More...

bool	m_promisc
	Flag if the device is operating in promiscuous mode. More...

Ptr< MacRxMiddle >	m_rxMiddle
	the MAC RX Middle on this station More...

Mac48Address	m_self
	the MAC address of this device More...

Ptr< MacTxMiddle >	m_txMiddle
	the MAC TX Middle on this station More...

WifiTxTimer	m_txTimer
	the timer set upon frame transmission More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

VhtFrameExchangeManager handles the frame exchange sequences for VHT stations.

Introspection did not find any typical Config paths.

No Attributes are defined for this type.

Attributes defined in parent class ns3::QosFrameExchangeManager

PifsRecovery: Perform a PIFS recovery as a response to transmission failure within a TXOP
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: true
- Flags: construct write read
SetQueueSize: Whether to set the Queue Size subfield of the QoS Control field of QoS data frames sent by non-AP stations
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read
