ns3::TraceFadingLossModel Class Reference

fading loss model based on precalculated fading traces More...

#include "trace-fading-loss-model.h"

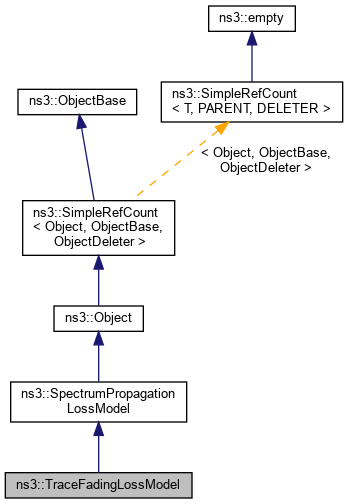

+ Inheritance diagram for ns3::TraceFadingLossModel:

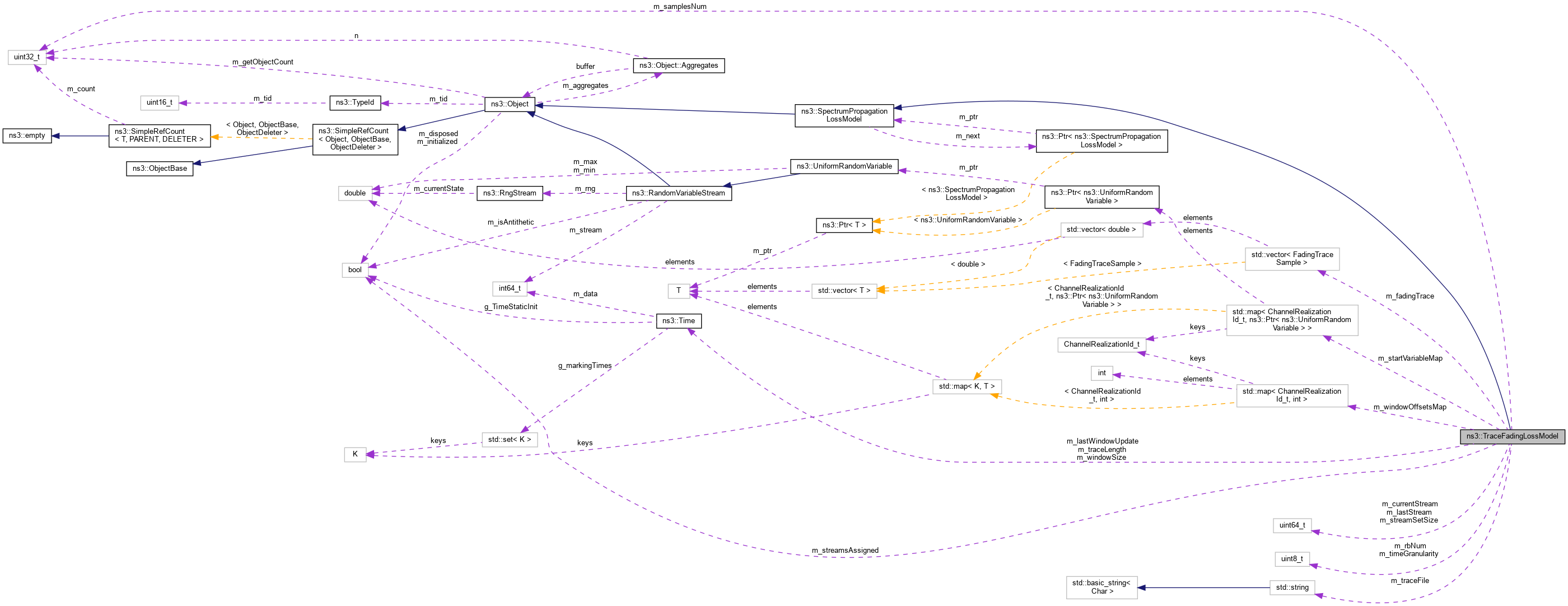

+ Collaboration diagram for ns3::TraceFadingLossModel:

Public Types

typedef std::pair< Ptr< const MobilityModel >, Ptr< const MobilityModel > > ChannelRealizationId_t
 The couple of mobility node that form a fading channel realization. More...


Public Member Functions

 TraceFadingLossModel ()

virtual ~TraceFadingLossModel ()

int64_t AssignStreams (int64_t stream)
 Assign a fixed random variable stream number to the random variables used by this model. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

- Public Member Functions inherited from ns3::SpectrumPropagationLossModel
 SpectrumPropagationLossModel ()

virtual ~SpectrumPropagationLossModel ()

Ptr< SpectrumValueCalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const
 This method is to be called to calculate. More...

void SetNext (Ptr< SpectrumPropagationLossModel > next)
 Used to chain various instances of SpectrumPropagationLossModel. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::SpectrumPropagationLossModel
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Types

typedef std::vector< FadingTraceSampleFadingTrace
 Vector collecting the time fading traces in the frequency domain (per RB) More...

typedef std::vector< double > FadingTraceSample
 Vector with fading samples in time domain (for a fixed RB) More...


Private Member Functions

Ptr< SpectrumValueDoCalcRxPowerSpectralDensity (Ptr< const SpectrumValue > txPsd, Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const

double GetValue (int subChannel, double speed)
 Get the value for a particular sub channel and a given speed. More...

void LoadTrace ()
 Load trace function. More...

void SetTraceFileName (std::string fileName)
 Set the trace file name. More...

void SetTraceLength (Time t)
 Set the trace time. More...


Private Attributes

uint64_t m_currentStream
 the current stream More...

FadingTrace m_fadingTrace
 fading trace More...

uint64_t m_lastStream
 the last stream More...

Time m_lastWindowUpdate
 time of last window update More...

uint8_t m_rbNum
 RB number. More...

uint32_t m_samplesNum
 number of samples More...

std::map< ChannelRealizationId_t, Ptr< UniformRandomVariable > > m_startVariableMap
 start variable map More...

bool m_streamsAssigned
 is streams assigned? More...

uint64_t m_streamSetSize
 stream set size More...

uint8_t m_timeGranularity
 time granularity More...

std::string m_traceFile
 the trace file name More...

Time m_traceLength
 the trace time More...

std::map< ChannelRealizationId_t, int > m_windowOffsetsMap
 windows offsets map More...

Time m_windowSize
 window size More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::SpectrumPropagationLossModel
virtual void DoDispose ()
 Destructor implementation. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

fading loss model based on precalculated fading traces

Introspection did not find any typical Config paths.


Attributes

  • TraceFilename: Name of file to load a trace from.
    • Set with class: StringValue
    • Underlying type:
    • Initial value:
    • Flags: construct write
  • TraceLength: The total length of the fading trace (default value 10 s.)
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +1e+10ns
    • Flags: construct write
  • SamplesNum: The number of samples the trace is made of (default 10000)
    • Set with class: ns3::UintegerValue
    • Underlying type: uint32_t 0:4294967295
    • Initial value: 10000
    • Flags: construct write read
  • WindowSize: The size of the window for the fading trace (default value 0.5 s.)
    • Set with class: ns3::TimeValue
    • Underlying type: Time +9.22337e+18ns:+9.22337e+18ns
    • Initial value: +5e+08ns
    • Flags: construct write read
  • RbNum: The number of RB the trace is made of (default 100)
    • Set with class: ns3::UintegerValue
    • Underlying type: uint8_t 0:255
    • Initial value: 100
    • Flags: construct write read
  • RngStreamSetSize: The number of RNG streams reserved for the fading model. The maximum number of streams that are needed for an LTE FDD scenario is 2 * numUEs * numeNBs.
    • Set with class: ns3::UintegerValue
    • Underlying type: uint64_t 0:18446744073709551615
    • Initial value: 200000
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 272 bytes (on a 64-bit architecture).

Definition at line 44 of file trace-fading-loss-model.h.

Member Typedef Documentation

◆ ChannelRealizationId_t

The couple of mobility node that form a fading channel realization.

Definition at line 61 of file trace-fading-loss-model.h.

◆ FadingTrace

Vector collecting the time fading traces in the frequency domain (per RB)

Definition at line 122 of file trace-fading-loss-model.h.

◆ FadingTraceSample

typedef std::vector<double> ns3::TraceFadingLossModel::FadingTraceSample
private

Vector with fading samples in time domain (for a fixed RB)

Definition at line 118 of file trace-fading-loss-model.h.

Constructor & Destructor Documentation

◆ TraceFadingLossModel()

ns3::TraceFadingLossModel::TraceFadingLossModel ( )

Definition at line 41 of file trace-fading-loss-model.cc.

References NS_LOG_FUNCTION, and ns3::SpectrumPropagationLossModel::SetNext().

+ Here is the call graph for this function:

◆ ~TraceFadingLossModel()

ns3::TraceFadingLossModel::~TraceFadingLossModel ( )
virtual

Definition at line 49 of file trace-fading-loss-model.cc.

References m_fadingTrace, m_startVariableMap, and m_windowOffsetsMap.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::TraceFadingLossModel::AssignStreams ( int64_t  stream)

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters
streamfirst stream index to use
Returns
the number of stream indices assigned by this model

Definition at line 237 of file trace-fading-loss-model.cc.

References m_currentStream, m_lastStream, m_startVariableMap, m_streamsAssigned, m_streamSetSize, NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

◆ DoCalcRxPowerSpectralDensity()

Ptr< SpectrumValue > ns3::TraceFadingLossModel::DoCalcRxPowerSpectralDensity ( Ptr< const SpectrumValue txPsd,
Ptr< const MobilityModel a,
Ptr< const MobilityModel b
) const
privatevirtual
Parameters
txPsdset of values vs frequency representing the transmission power. See SpectrumChannel for details.
asender mobility
breceiver mobility
Returns
set of values vs frequency representing the received power in the same units used for the txPsd parameter.

Implements ns3::SpectrumPropagationLossModel.

Definition at line 151 of file trace-fading-loss-model.cc.

References ns3::Time::GetMilliSeconds(), ns3::Time::GetSeconds(), ns3::UniformRandomVariable::GetValue(), m_currentStream, m_fadingTrace, m_lastStream, m_lastWindowUpdate, m_samplesNum, m_startVariableMap, m_streamsAssigned, m_timeGranularity, m_traceLength, m_windowOffsetsMap, m_windowSize, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, ns3::ObjectBase::SetAttribute(), ns3::RandomVariableStream::SetStream(), ns3::SpectrumValue::ValuesBegin(), and ns3::SpectrumValue::ValuesEnd().

+ Here is the call graph for this function:

◆ DoInitialize()

void ns3::TraceFadingLossModel::DoInitialize ( void  )
virtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 113 of file trace-fading-loss-model.cc.

References LoadTrace().

+ Here is the call graph for this function:

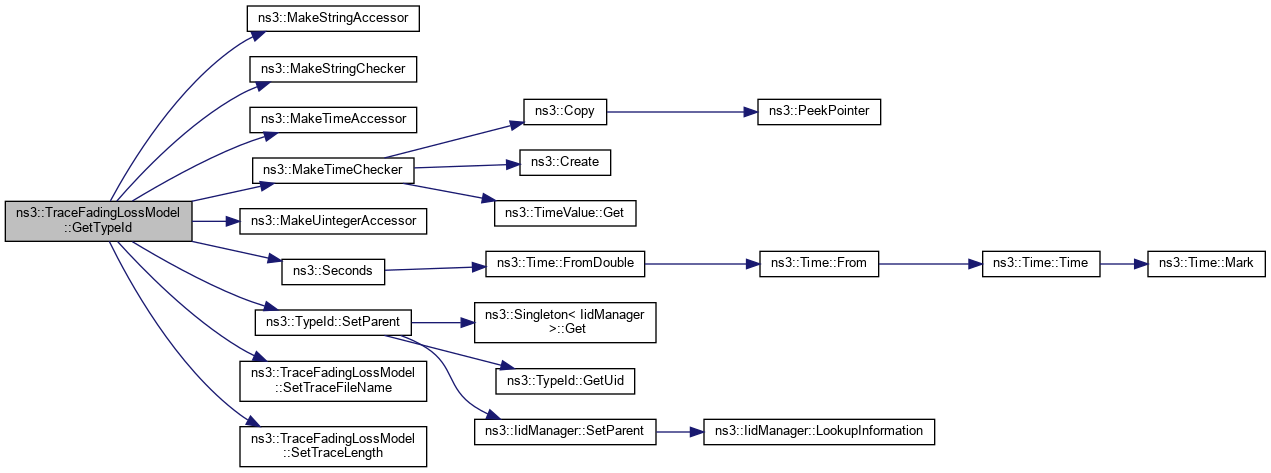

◆ GetTypeId()

TypeId ns3::TraceFadingLossModel::GetTypeId ( void  )
static

◆ GetValue()

double ns3::TraceFadingLossModel::GetValue ( int  subChannel,
double  speed
)
private

Get the value for a particular sub channel and a given speed.

Parameters
subChannelthe sub channel for which a value is requested
speedthe relative speed of the two devices
Returns
the loss for a particular sub channel

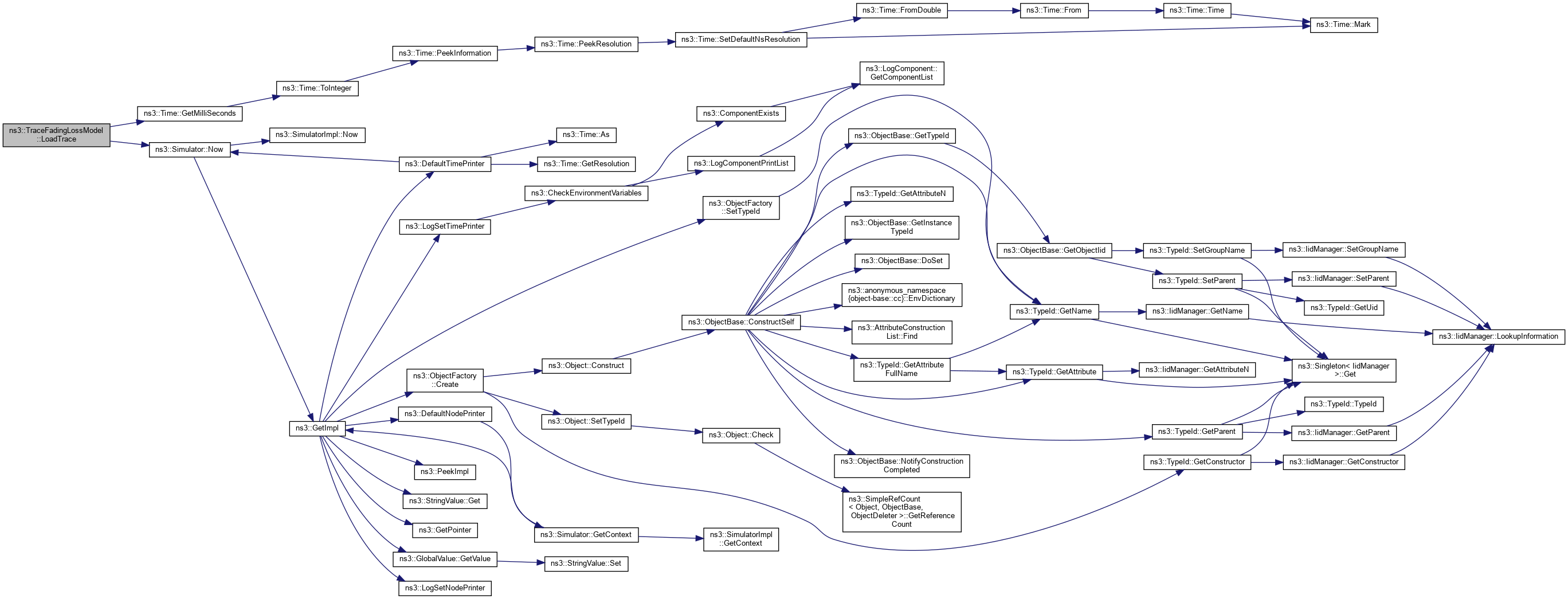

◆ LoadTrace()

void ns3::TraceFadingLossModel::LoadTrace ( )
private

Load trace function.

Definition at line 120 of file trace-fading-loss-model.cc.

References ns3::Time::GetMilliSeconds(), m_fadingTrace, m_lastWindowUpdate, m_rbNum, m_samplesNum, m_timeGranularity, m_traceFile, m_traceLength, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_INFO.

Referenced by DoInitialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetTraceFileName()

void ns3::TraceFadingLossModel::SetTraceFileName ( std::string  fileName)
private

Set the trace file name.

Parameters
fileNamethe trace file

Definition at line 99 of file trace-fading-loss-model.cc.

References m_traceFile, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

◆ SetTraceLength()

void ns3::TraceFadingLossModel::SetTraceLength ( Time  t)
private

Set the trace time.

Parameters
tthe trace time

Definition at line 107 of file trace-fading-loss-model.cc.

References m_traceLength.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_currentStream

uint64_t ns3::TraceFadingLossModel::m_currentStream
mutableprivate

the current stream

Definition at line 137 of file trace-fading-loss-model.h.

Referenced by AssignStreams(), and DoCalcRxPowerSpectralDensity().

◆ m_fadingTrace

FadingTrace ns3::TraceFadingLossModel::m_fadingTrace
private

fading trace

Definition at line 128 of file trace-fading-loss-model.h.

Referenced by ~TraceFadingLossModel(), DoCalcRxPowerSpectralDensity(), and LoadTrace().

◆ m_lastStream

uint64_t ns3::TraceFadingLossModel::m_lastStream
mutableprivate

the last stream

Definition at line 138 of file trace-fading-loss-model.h.

Referenced by AssignStreams(), and DoCalcRxPowerSpectralDensity().

◆ m_lastWindowUpdate

Time ns3::TraceFadingLossModel::m_lastWindowUpdate
mutableprivate

time of last window update

Definition at line 135 of file trace-fading-loss-model.h.

Referenced by DoCalcRxPowerSpectralDensity(), and LoadTrace().

◆ m_rbNum

uint8_t ns3::TraceFadingLossModel::m_rbNum
private

RB number.

Definition at line 134 of file trace-fading-loss-model.h.

Referenced by GetTypeId(), and LoadTrace().

◆ m_samplesNum

uint32_t ns3::TraceFadingLossModel::m_samplesNum
private

number of samples

Definition at line 132 of file trace-fading-loss-model.h.

Referenced by DoCalcRxPowerSpectralDensity(), GetTypeId(), and LoadTrace().

◆ m_startVariableMap

std::map<ChannelRealizationId_t, Ptr<UniformRandomVariable> > ns3::TraceFadingLossModel::m_startVariableMap
mutableprivate

start variable map

Definition at line 113 of file trace-fading-loss-model.h.

Referenced by ~TraceFadingLossModel(), AssignStreams(), and DoCalcRxPowerSpectralDensity().

◆ m_streamsAssigned

bool ns3::TraceFadingLossModel::m_streamsAssigned
mutableprivate

is streams assigned?

Definition at line 140 of file trace-fading-loss-model.h.

Referenced by AssignStreams(), and DoCalcRxPowerSpectralDensity().

◆ m_streamSetSize

uint64_t ns3::TraceFadingLossModel::m_streamSetSize
private

stream set size

Definition at line 139 of file trace-fading-loss-model.h.

Referenced by AssignStreams(), and GetTypeId().

◆ m_timeGranularity

uint8_t ns3::TraceFadingLossModel::m_timeGranularity
private

time granularity

Definition at line 136 of file trace-fading-loss-model.h.

Referenced by DoCalcRxPowerSpectralDensity(), and LoadTrace().

◆ m_traceFile

std::string ns3::TraceFadingLossModel::m_traceFile
private

the trace file name

Definition at line 126 of file trace-fading-loss-model.h.

Referenced by LoadTrace(), and SetTraceFileName().

◆ m_traceLength

Time ns3::TraceFadingLossModel::m_traceLength
private

the trace time

Definition at line 131 of file trace-fading-loss-model.h.

Referenced by DoCalcRxPowerSpectralDensity(), LoadTrace(), and SetTraceLength().

◆ m_windowOffsetsMap

std::map<ChannelRealizationId_t, int > ns3::TraceFadingLossModel::m_windowOffsetsMap
mutableprivate

windows offsets map

Definition at line 111 of file trace-fading-loss-model.h.

Referenced by ~TraceFadingLossModel(), and DoCalcRxPowerSpectralDensity().

◆ m_windowSize

Time ns3::TraceFadingLossModel::m_windowSize
private

window size

Definition at line 133 of file trace-fading-loss-model.h.

Referenced by DoCalcRxPowerSpectralDensity(), and GetTypeId().


The documentation for this class was generated from the following files:
