ns3::ParabolicAntennaModel Class Reference

Antenna model based on a parabolic approximation of the main lobe radiation pattern. More...

#include "parabolic-antenna-model.h"

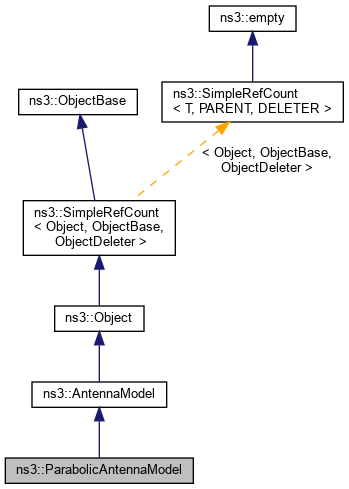

+ Inheritance diagram for ns3::ParabolicAntennaModel:
+ Collaboration diagram for ns3::ParabolicAntennaModel:

Public Member Functions

double GetBeamwidth () const
 Get the Beam width. More...

virtual double GetGainDb (Angles a)
 this method is expected to be re-implemented by each antenna model More...

double GetOrientation () const
 Get the antenna orientation. More...

void SetBeamwidth (double beamwidthDegrees)
 Set the Beam width. More...

void SetOrientation (double orientationDegrees)
 Set the antenna orientation. More...

- Public Member Functions inherited from ns3::AntennaModel
 AntennaModel ()

virtual ~AntennaModel ()

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::AntennaModel
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

double m_beamwidthRadians
 Beam width in radians. More...

double m_maxAttenuation
 Max attenuation. More...

double m_orientationRadians
 Antenna orientation in radians. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Antenna model based on a parabolic approximation of the main lobe radiation pattern.

Introspection did not find any typical Config paths.

This class implements the parabolic model as described in some 3GPP document, e.g., R4-092042

A similar model appears in:

George Calcev and Matt Dillon, "Antenna Tilt Control in CDMA Networks" in Proc. of the 2nd Annual International Wireless Internet Conference (WICON), 2006

though the latter addresses also the elevation plane, which the present model doesn't.


Attributes

  • Beamwidth: The 3dB beamwidth (degrees)
    • Set with class: ns3::DoubleValue
    • Underlying type: double 0:180
    • Initial value: 60
    • Flags: construct write read
  • Orientation: The angle (degrees) that expresses the orientation of the antenna on the x-y plane relative to the x axis
    • Set with class: ns3::DoubleValue
    • Underlying type: double -360:360
    • Initial value: 0
    • Flags: construct write read
  • MaxAttenuation: The maximum attenuation (dB) of the antenna radiation pattern.
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 20
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 46 of file parabolic-antenna-model.h.

Member Function Documentation

◆ GetBeamwidth()

double ns3::ParabolicAntennaModel::GetBeamwidth ( ) const

Get the Beam width.

Returns
beam width in degrees

Definition at line 73 of file parabolic-antenna-model.cc.

References m_beamwidthRadians, and ns3::RadiansToDegrees().

Referenced by GetTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetGainDb()

double ns3::ParabolicAntennaModel::GetGainDb ( Angles  a)
virtual

this method is expected to be re-implemented by each antenna model

Parameters
athe spherical angles at which the radiation pattern should be evaluated
Returns
the power gain in dBi of the antenna radiation pattern at the specified angles; dBi means dB with respect to the gain of an isotropic radiator. Since a power gain is used, the efficiency of the antenna is expected to be included in the gain value.

Implements ns3::AntennaModel.

Definition at line 92 of file parabolic-antenna-model.cc.

References ns3::Angles::GetAzimuth(), m_beamwidthRadians, m_maxAttenuation, m_orientationRadians, min, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

+ Here is the call graph for this function:

◆ GetOrientation()

double ns3::ParabolicAntennaModel::GetOrientation ( void  ) const

Get the antenna orientation.

Returns
antenna orientation in degrees

Definition at line 86 of file parabolic-antenna-model.cc.

References m_orientationRadians, and ns3::RadiansToDegrees().

Referenced by GetTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::ParabolicAntennaModel::GetTypeId ( void  )
static

Get the type ID.

Returns
The object TypeId.

Definition at line 38 of file parabolic-antenna-model.cc.

References GetBeamwidth(), GetOrientation(), m_maxAttenuation, ns3::MakeDoubleAccessor(), SetBeamwidth(), SetOrientation(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ SetBeamwidth()

void ns3::ParabolicAntennaModel::SetBeamwidth ( double  beamwidthDegrees)

Set the Beam width.

Parameters
beamwidthDegreesBeam width in degrees

Definition at line 66 of file parabolic-antenna-model.cc.

References ns3::DegreesToRadians(), m_beamwidthRadians, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ SetOrientation()

void ns3::ParabolicAntennaModel::SetOrientation ( double  orientationDegrees)

Set the antenna orientation.

Parameters
orientationDegreesantenna orientation in degrees

Definition at line 79 of file parabolic-antenna-model.cc.

References ns3::DegreesToRadians(), m_orientationRadians, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_beamwidthRadians

double ns3::ParabolicAntennaModel::m_beamwidthRadians
private

Beam width in radians.

Definition at line 84 of file parabolic-antenna-model.h.

Referenced by GetBeamwidth(), GetGainDb(), and SetBeamwidth().

◆ m_maxAttenuation

double ns3::ParabolicAntennaModel::m_maxAttenuation
private

Max attenuation.

Definition at line 86 of file parabolic-antenna-model.h.

Referenced by GetGainDb(), and GetTypeId().

◆ m_orientationRadians

double ns3::ParabolicAntennaModel::m_orientationRadians
private

Antenna orientation in radians.

Definition at line 85 of file parabolic-antenna-model.h.

Referenced by GetGainDb(), GetOrientation(), and SetOrientation().
