ns3::MgtProbeRequestHeader Class Reference

Implement the header for management frames of type probe request. More...

#include "mgt-headers.h"

+ Inheritance diagram for ns3::MgtProbeRequestHeader:
+ Collaboration diagram for ns3::MgtProbeRequestHeader:

Public Member Functions

 ~MgtProbeRequestHeader ()

uint32_t Deserialize (Buffer::Iterator start)

ExtendedCapabilities GetExtendedCapabilities (void) const
 Return the extended capabilities. More...

HeCapabilities GetHeCapabilities (void) const
 Return the HE capabilities. More...

HtCapabilities GetHtCapabilities (void) const
 Return the HT capabilities. More...

TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint32_t GetSerializedSize (void) const

Ssid GetSsid (void) const
 Return the Service Set Identifier (SSID). More...

SupportedRates GetSupportedRates (void) const
 Return the supported rates. More...

VhtCapabilities GetVhtCapabilities (void) const
 Return the VHT capabilities. More...

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetExtendedCapabilities (ExtendedCapabilities extendedcapabilities)
 Set the extended capabilities. More...

void SetHeCapabilities (HeCapabilities hecapabilities)
 Set the HE capabilities. More...

void SetHtCapabilities (HtCapabilities htcapabilities)
 Set the HT capabilities. More...

void SetSsid (Ssid ssid)
 Set the Service Set Identifier (SSID). More...

void SetSupportedRates (SupportedRates rates)
 Set the supported rates. More...

void SetVhtCapabilities (VhtCapabilities vhtcapabilities)
 Set the VHT capabilities. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

ExtendedCapabilities m_extendedCapability
 extended capabilities More...

HeCapabilities m_heCapability
 HE capabilities. More...

HtCapabilities m_htCapability
 HT capabilities. More...

SupportedRates m_rates
 List of supported rates. More...

Ssid m_ssid
 Service Set ID (SSID) More...

VhtCapabilities m_vhtCapability
 VHT capabilities. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Implement the header for management frames of type probe request.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 600 bytes (on a 64-bit architecture).

Definition at line 508 of file mgt-headers.h.

Constructor & Destructor Documentation

ns3::MgtProbeRequestHeader::~MgtProbeRequestHeader ( )

Definition at line 35 of file mgt-headers.cc.

Member Function Documentation

uint32_t ns3::MgtProbeRequestHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 173 of file mgt-headers.cc.

References ns3::WifiInformationElement::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), m_extendedCapability, m_heCapability, m_htCapability, m_rates, m_ssid, m_vhtCapability, NS_OBJECT_ENSURE_REGISTERED, and visualizer.core::start().

+ Here is the call graph for this function:

ExtendedCapabilities ns3::MgtProbeRequestHeader::GetExtendedCapabilities ( void  ) const

Return the extended capabilities.

Returns
the extended capabilities

Definition at line 70 of file mgt-headers.cc.

References m_extendedCapability.

HeCapabilities ns3::MgtProbeRequestHeader::GetHeCapabilities ( void  ) const

Return the HE capabilities.

Returns
HE capabilities

Definition at line 106 of file mgt-headers.cc.

References m_heCapability.

HtCapabilities ns3::MgtProbeRequestHeader::GetHtCapabilities ( void  ) const

Return the HT capabilities.

Returns
HT capabilities

Definition at line 82 of file mgt-headers.cc.

References m_htCapability.

TypeId ns3::MgtProbeRequestHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 143 of file mgt-headers.cc.

References GetTypeId().

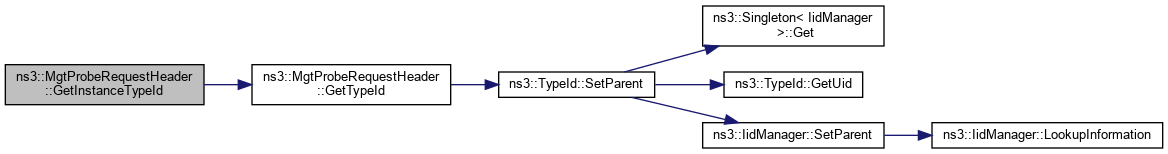

+ Here is the call graph for this function:

uint32_t ns3::MgtProbeRequestHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 118 of file mgt-headers.cc.

References ns3::SupportedRates::extended, ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::ExtendedCapabilities::GetSerializedSize(), ns3::HeCapabilities::GetSerializedSize(), ns3::VhtCapabilities::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), ns3::HtCapabilities::GetSerializedSize(), m_extendedCapability, m_heCapability, m_htCapability, m_rates, m_ssid, and m_vhtCapability.

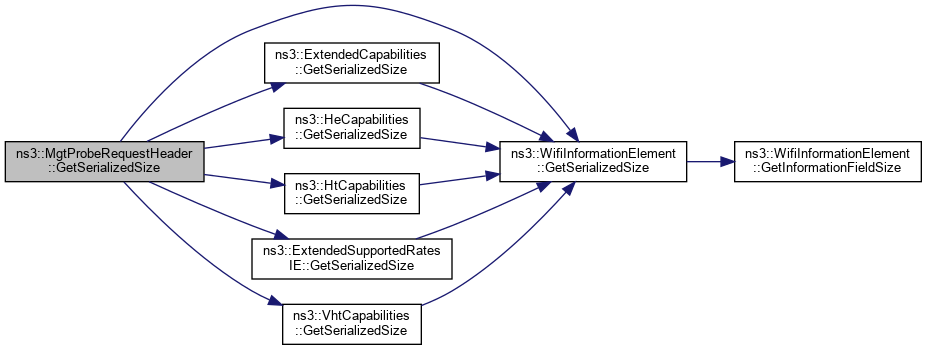

+ Here is the call graph for this function:

Ssid ns3::MgtProbeRequestHeader::GetSsid ( void  ) const

Return the Service Set Identifier (SSID).

Returns
SSID

Definition at line 46 of file mgt-headers.cc.

References m_ssid.

SupportedRates ns3::MgtProbeRequestHeader::GetSupportedRates ( void  ) const

Return the supported rates.

Returns
the supported rates

Definition at line 112 of file mgt-headers.cc.

References m_rates.

TypeId ns3::MgtProbeRequestHeader::GetTypeId ( void  )
static

Register this type.

Returns
The TypeId.

Definition at line 132 of file mgt-headers.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId(), and ns3::MgtProbeResponseHeader::GetInstanceTypeId().

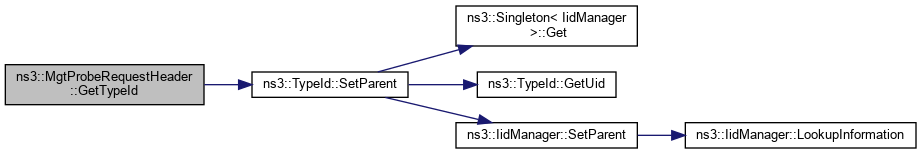

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

VhtCapabilities ns3::MgtProbeRequestHeader::GetVhtCapabilities ( void  ) const

Return the VHT capabilities.

Returns
VHT capabilities

Definition at line 94 of file mgt-headers.cc.

References m_vhtCapability.

void ns3::MgtProbeRequestHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 149 of file mgt-headers.cc.

References m_extendedCapability, m_heCapability, m_htCapability, m_rates, m_ssid, and m_vhtCapability.

void ns3::MgtProbeRequestHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 160 of file mgt-headers.cc.

References ns3::SupportedRates::extended, m_extendedCapability, m_heCapability, m_htCapability, m_rates, m_ssid, m_vhtCapability, ns3::ExtendedSupportedRatesIE::Serialize(), ns3::ExtendedCapabilities::Serialize(), ns3::HeCapabilities::Serialize(), ns3::VhtCapabilities::Serialize(), ns3::WifiInformationElement::Serialize(), ns3::HtCapabilities::Serialize(), and visualizer.core::start().

+ Here is the call graph for this function:

void ns3::MgtProbeRequestHeader::SetExtendedCapabilities ( ExtendedCapabilities  extendedcapabilities)

Set the extended capabilities.

Parameters
extendedcapabilitiesthe extended capabilities

Definition at line 64 of file mgt-headers.cc.

References m_extendedCapability.

void ns3::MgtProbeRequestHeader::SetHeCapabilities ( HeCapabilities  hecapabilities)

Set the HE capabilities.

Parameters
hecapabilitiesHE capabilities

Definition at line 100 of file mgt-headers.cc.

References m_heCapability.

void ns3::MgtProbeRequestHeader::SetHtCapabilities ( HtCapabilities  htcapabilities)

Set the HT capabilities.

Parameters
htcapabilitiesHT capabilities

Definition at line 76 of file mgt-headers.cc.

References m_htCapability.

void ns3::MgtProbeRequestHeader::SetSsid ( Ssid  ssid)

Set the Service Set Identifier (SSID).

Parameters
ssidSSID

Definition at line 40 of file mgt-headers.cc.

References m_ssid, and third::ssid.

Referenced by ns3::StaWifiMac::SendProbeRequest().

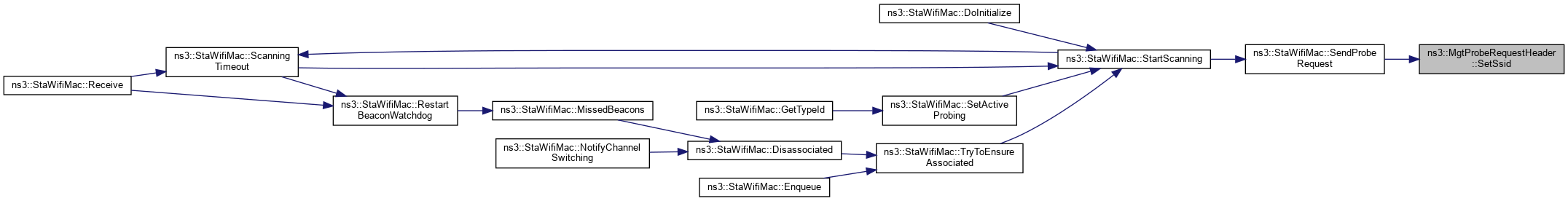

+ Here is the caller graph for this function:

void ns3::MgtProbeRequestHeader::SetSupportedRates ( SupportedRates  rates)

Set the supported rates.

Parameters
ratesthe supported rates

Definition at line 58 of file mgt-headers.cc.

References m_rates.

void ns3::MgtProbeRequestHeader::SetVhtCapabilities ( VhtCapabilities  vhtcapabilities)

Set the VHT capabilities.

Parameters
vhtcapabilitiesVHT capabilities

Definition at line 88 of file mgt-headers.cc.

References m_vhtCapability.

Member Data Documentation


The documentation for this class was generated from the following files:
