ns3::IsotropicAntennaModel Class Reference

Isotropic antenna model. More...

#include "isotropic-antenna-model.h"

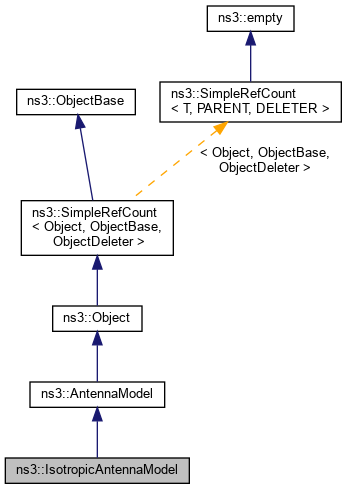

+ Inheritance diagram for ns3::IsotropicAntennaModel:

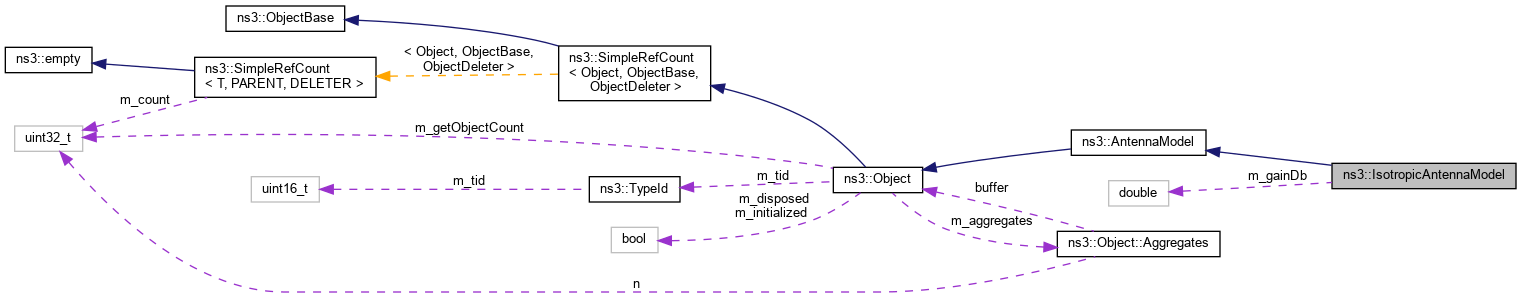

+ Collaboration diagram for ns3::IsotropicAntennaModel:

Public Member Functions

 IsotropicAntennaModel ()

virtual double GetGainDb (Angles a)
 this method is expected to be re-implemented by each antenna model More...

- Public Member Functions inherited from ns3::AntennaModel
 AntennaModel ()

virtual ~AntennaModel ()

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::AntennaModel
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Attributes

double m_gainDb
 gain of the antenna in dB, in all directions More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Isotropic antenna model.

Introspection did not find any typical Config paths.

This is the simplest antenna model. The gain of this antenna is the same in all directions.


Attributes

  • Gain: The gain of the antenna in dB
    • Set with class: ns3::DoubleValue
    • Underlying type: double -1.79769e+308:1.79769e+308
    • Initial value: 0
    • Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 40 bytes (on a 64-bit architecture).

Definition at line 37 of file isotropic-antenna-model.h.

Constructor & Destructor Documentation

◆ IsotropicAntennaModel()

ns3::IsotropicAntennaModel::IsotropicAntennaModel ( )

Definition at line 53 of file isotropic-antenna-model.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetGainDb()

double ns3::IsotropicAntennaModel::GetGainDb ( Angles  a)
virtual

this method is expected to be re-implemented by each antenna model

Parameters
athe spherical angles at which the radiation pattern should be evaluated
Returns
the power gain in dBi of the antenna radiation pattern at the specified angles; dBi means dB with respect to the gain of an isotropic radiator. Since a power gain is used, the efficiency of the antenna is expected to be included in the gain value.

Implements ns3::AntennaModel.

Definition at line 59 of file isotropic-antenna-model.cc.

References m_gainDb, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::IsotropicAntennaModel::GetTypeId ( void  )
static

Get the type ID.

Returns
The object TypeId.

Definition at line 38 of file isotropic-antenna-model.cc.

References m_gainDb, ns3::MakeDoubleAccessor(), and ns3::TypeId::SetParent().

Referenced by ns3::LteHelper::LteHelper().

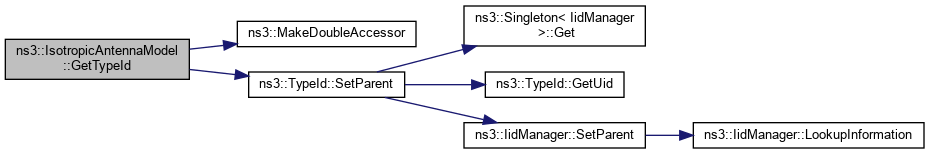

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

Member Data Documentation

◆ m_gainDb

double ns3::IsotropicAntennaModel::m_gainDb
protected

gain of the antenna in dB, in all directions

Definition at line 58 of file isotropic-antenna-model.h.

Referenced by GetGainDb(), and GetTypeId().


The documentation for this class was generated from the following files:
