ns3::Ipv6ExtensionDemux Class Reference

Demultiplexes IPv6 extensions. More...

#include "ipv6-extension-demux.h"

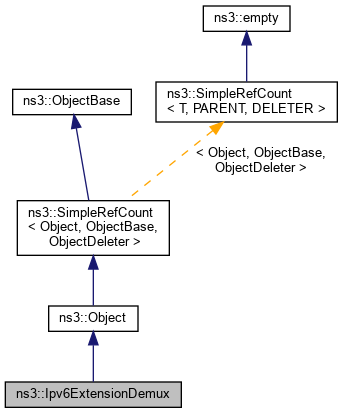

+ Inheritance diagram for ns3::Ipv6ExtensionDemux:
+ Collaboration diagram for ns3::Ipv6ExtensionDemux:

Public Member Functions

 Ipv6ExtensionDemux ()
 Constructor. More...

virtual ~Ipv6ExtensionDemux ()
 Destructor. More...

Ptr< Ipv6ExtensionGetExtension (uint8_t extensionNumber)
 Get the extension corresponding to extensionNumber. More...

void Insert (Ptr< Ipv6Extension > extension)
 Insert a new IPv6 Extension. More...

void Remove (Ptr< Ipv6Extension > extension)
 Remove an extension from this demux. More...

void SetNode (Ptr< Node > node)
 Set the node. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 The interface ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Protected Member Functions

virtual void DoDispose ()
 Dispose object. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Types

typedef std::list< Ptr< Ipv6Extension > > Ipv6ExtensionList_t
 Container of the IPv6 Extensions. More...


Private Attributes

Ipv6ExtensionList_t m_extensions
 List of IPv6 Extensions supported. More...

Ptr< Nodem_node
 The node. More...


Additional Inherited Members

Detailed Description

Demultiplexes IPv6 extensions.

Introspection did not find any typical Config paths.


Attributes

No TraceSources are defined for this type.
Size of this type is 64 bytes (on a 64-bit architecture).

Definition at line 39 of file ipv6-extension-demux.h.

Member Typedef Documentation

◆ Ipv6ExtensionList_t

Container of the IPv6 Extensions.

Definition at line 94 of file ipv6-extension-demux.h.

Constructor & Destructor Documentation

◆ Ipv6ExtensionDemux()

ns3::Ipv6ExtensionDemux::Ipv6ExtensionDemux ( )

Constructor.

Definition at line 46 of file ipv6-extension-demux.cc.

◆ ~Ipv6ExtensionDemux()

ns3::Ipv6ExtensionDemux::~Ipv6ExtensionDemux ( )
virtual

Destructor.

Definition at line 50 of file ipv6-extension-demux.cc.

Member Function Documentation

◆ DoDispose()

void ns3::Ipv6ExtensionDemux::DoDispose ( void  )
protectedvirtual

Dispose object.

Reimplemented from ns3::Object.

Definition at line 54 of file ipv6-extension-demux.cc.

References ns3::Object::DoDispose(), m_extensions, and m_node.

+ Here is the call graph for this function:

◆ GetExtension()

Ptr< Ipv6Extension > ns3::Ipv6ExtensionDemux::GetExtension ( uint8_t  extensionNumber)

Get the extension corresponding to extensionNumber.

Parameters
extensionNumberextension number of the extension to retrieve
Returns
a matching IPv6 extension

Definition at line 76 of file ipv6-extension-demux.cc.

References m_extensions.

◆ GetTypeId()

TypeId ns3::Ipv6ExtensionDemux::GetTypeId ( void  )
static

The interface ID.

Returns
type ID

Definition at line 33 of file ipv6-extension-demux.cc.

References m_extensions, ns3::MakeObjectVectorAccessor(), and ns3::TypeId::SetParent().

+ Here is the call graph for this function:

◆ Insert()

void ns3::Ipv6ExtensionDemux::Insert ( Ptr< Ipv6Extension extension)

Insert a new IPv6 Extension.

Parameters
extensionthe extension to insert

Definition at line 71 of file ipv6-extension-demux.cc.

References m_extensions.

◆ Remove()

void ns3::Ipv6ExtensionDemux::Remove ( Ptr< Ipv6Extension extension)

Remove an extension from this demux.

Parameters
extensionpointer on the extension to remove

Definition at line 88 of file ipv6-extension-demux.cc.

References m_extensions.

◆ SetNode()

void ns3::Ipv6ExtensionDemux::SetNode ( Ptr< Node node)

Set the node.

Parameters
nodethe node to set

Definition at line 66 of file ipv6-extension-demux.cc.

References m_node.

Member Data Documentation

◆ m_extensions

Ipv6ExtensionList_t ns3::Ipv6ExtensionDemux::m_extensions
private

List of IPv6 Extensions supported.

Definition at line 99 of file ipv6-extension-demux.h.

Referenced by DoDispose(), GetExtension(), GetTypeId(), Insert(), and Remove().

◆ m_node

Ptr<Node> ns3::Ipv6ExtensionDemux::m_node
private

The node.

Definition at line 104 of file ipv6-extension-demux.h.

Referenced by DoDispose(), and SetNode().


The documentation for this class was generated from the following files:
