ns3::IpL4Protocol Class Referenceabstract

L4 Protocol abstract base class. More...

#include "ip-l4-protocol.h"

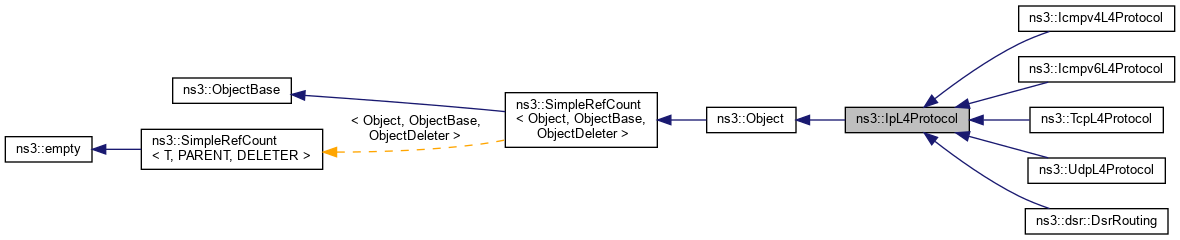

+ Inheritance diagram for ns3::IpL4Protocol:
+ Collaboration diagram for ns3::IpL4Protocol:

Public Types

typedef Callback< void, Ptr< Packet >, Ipv4Address, Ipv4Address, uint8_t, Ptr< Ipv4Route > > DownTargetCallback
 callback to send packets over IPv4 More...

typedef Callback< void, Ptr< Packet >, Ipv6Address, Ipv6Address, uint8_t, Ptr< Ipv6Route > > DownTargetCallback6
 callback to send packets over IPv6 More...

enum  RxStatus { RX_OK , RX_CSUM_FAILED , RX_ENDPOINT_CLOSED , RX_ENDPOINT_UNREACH }
 Rx status codes. More...


Public Member Functions

virtual ~IpL4Protocol ()

virtual DownTargetCallback GetDownTarget (void) const =0
 This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case) More...

virtual DownTargetCallback6 GetDownTarget6 (void) const =0
 This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case) More...

virtual int GetProtocolNumber (void) const =0
 Returns the protocol number of this protocol. More...

virtual enum RxStatus Receive (Ptr< Packet > p, Ipv4Header const &header, Ptr< Ipv4Interface > incomingInterface)=0
 Called from lower-level layers to send the packet up in the stack. More...

virtual enum RxStatus Receive (Ptr< Packet > p, Ipv6Header const &header, Ptr< Ipv6Interface > incomingInterface)=0
 Called from lower-level layers to send the packet up in the stack. More...

virtual void ReceiveIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv4Address payloadSource, Ipv4Address payloadDestination, const uint8_t payload[8])
 Called from lower-level layers to send the ICMP packet up in the stack. More...

virtual void ReceiveIcmp (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv6Address payloadSource, Ipv6Address payloadDestination, const uint8_t payload[8])
 Called from lower-level layers to send the ICMPv6 packet up in the stack. More...

virtual void SetDownTarget (DownTargetCallback cb)=0
 This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case) More...

virtual void SetDownTarget6 (DownTargetCallback6 cb)=0
 This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case) More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

template<>
Ptr< ObjectGetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< ObjectGetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= ([[maybe_unused]] const SimpleRefCount &o)
 Assignment operator. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

L4 Protocol abstract base class.

Introspection did not find any typical Config paths.

This is an abstract base class for layer four protocols which use IP as the network layer.


Attributes

  • ProtocolNumber: The IP protocol number.

No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 50 of file ip-l4-protocol.h.

Member Typedef Documentation

◆ DownTargetCallback

callback to send packets over IPv4

Definition at line 143 of file ip-l4-protocol.h.

◆ DownTargetCallback6

callback to send packets over IPv6

Definition at line 147 of file ip-l4-protocol.h.

Member Enumeration Documentation

◆ RxStatus

Rx status codes.

Enumerator
RX_OK
RX_CSUM_FAILED
RX_ENDPOINT_CLOSED
RX_ENDPOINT_UNREACH

Definition at line 56 of file ip-l4-protocol.h.

Constructor & Destructor Documentation

◆ ~IpL4Protocol()

ns3::IpL4Protocol::~IpL4Protocol ( )
virtual

Definition at line 49 of file ip-l4-protocol.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetDownTarget()

virtual DownTargetCallback ns3::IpL4Protocol::GetDownTarget ( void  ) const
pure virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case)

Returns
current Callback for the L4 protocol

Implemented in ns3::UdpL4Protocol, ns3::TcpL4Protocol, ns3::Icmpv6L4Protocol, ns3::Icmpv4L4Protocol, and ns3::dsr::DsrRouting.

◆ GetDownTarget6()

virtual DownTargetCallback6 ns3::IpL4Protocol::GetDownTarget6 ( void  ) const
pure virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case)

Returns
current Callback for the L4 protocol

Implemented in ns3::UdpL4Protocol, ns3::TcpL4Protocol, ns3::Icmpv6L4Protocol, ns3::Icmpv4L4Protocol, and ns3::dsr::DsrRouting.

◆ GetProtocolNumber()

virtual int ns3::IpL4Protocol::GetProtocolNumber ( void  ) const
pure virtual

Returns the protocol number of this protocol.

Returns
the protocol number.

Implemented in ns3::UdpL4Protocol, ns3::TcpL4Protocol, ns3::Icmpv4L4Protocol, ns3::dsr::DsrRouting, and ns3::Icmpv6L4Protocol.

Referenced by GetTypeId(), ns3::Ipv4L3Protocol::Insert(), ns3::Ipv6L3Protocol::Insert(), ns3::Ipv4L3Protocol::Remove(), and ns3::Ipv6L3Protocol::Remove().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::IpL4Protocol::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 35 of file ip-l4-protocol.cc.

References ns3::TypeId::ATTR_GET, GetProtocolNumber(), ns3::MakeIntegerAccessor(), and ns3::TypeId::SetParent().

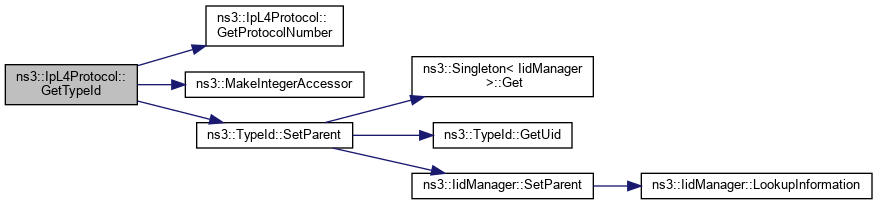

+ Here is the call graph for this function:

◆ Receive() [1/2]

virtual enum RxStatus ns3::IpL4Protocol::Receive ( Ptr< Packet p,
Ipv4Header const &  header,
Ptr< Ipv4Interface incomingInterface
)
pure virtual

Called from lower-level layers to send the packet up in the stack.

Parameters
ppacket to forward up
headerIPv4 Header information
incomingInterfacethe Ipv4Interface on which the packet arrived
Returns
Rx status code

Implemented in ns3::TcpL4Protocol, ns3::UdpL4Protocol, ns3::Icmpv6L4Protocol, ns3::Icmpv4L4Protocol, and ns3::dsr::DsrRouting.

Referenced by ns3::Ipv4L3Protocol::LocalDeliver(), and ns3::Ipv6L3Protocol::LocalDeliver().

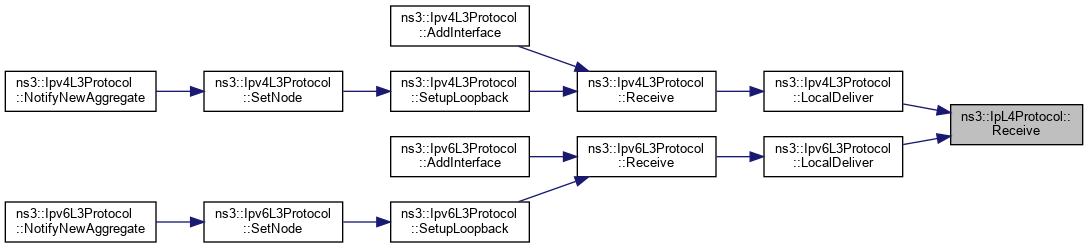

+ Here is the caller graph for this function:

◆ Receive() [2/2]

virtual enum RxStatus ns3::IpL4Protocol::Receive ( Ptr< Packet p,
Ipv6Header const &  header,
Ptr< Ipv6Interface incomingInterface
)
pure virtual

Called from lower-level layers to send the packet up in the stack.

Parameters
ppacket to forward up
headerIPv6 Header information
incomingInterfacethe Ipv6Interface on which the packet arrived
Returns
Rx status code

Implemented in ns3::TcpL4Protocol, ns3::UdpL4Protocol, ns3::Icmpv6L4Protocol, ns3::Icmpv4L4Protocol, and ns3::dsr::DsrRouting.

◆ ReceiveIcmp() [1/2]

void ns3::IpL4Protocol::ReceiveIcmp ( Ipv4Address  icmpSource,
uint8_t  icmpTtl,
uint8_t  icmpType,
uint8_t  icmpCode,
uint32_t  icmpInfo,
Ipv4Address  payloadSource,
Ipv4Address  payloadDestination,
const uint8_t  payload[8]
)
virtual

Called from lower-level layers to send the ICMP packet up in the stack.

Parameters
icmpSourcethe source address of the icmp message
icmpTtlthe ttl of the icmp message
icmpTypethe 'type' field of the icmp message
icmpCodethe 'code' field of the icmp message
icmpInfoextra information dependent on the icmp message generated by Icmpv4L4Protocol
payloadSourcethe source address of the packet which triggered the icmp message
payloadDestinationthe destination address of the packet which triggered the icmp message.
payloadthe first 8 bytes of the packet payload which triggered the icmp message.

Reimplemented in ns3::UdpL4Protocol, and ns3::TcpL4Protocol.

Definition at line 55 of file ip-l4-protocol.cc.

References NS_LOG_FUNCTION.

Referenced by ns3::Icmpv6L4Protocol::Forward().

+ Here is the caller graph for this function:

◆ ReceiveIcmp() [2/2]

void ns3::IpL4Protocol::ReceiveIcmp ( Ipv6Address  icmpSource,
uint8_t  icmpTtl,
uint8_t  icmpType,
uint8_t  icmpCode,
uint32_t  icmpInfo,
Ipv6Address  payloadSource,
Ipv6Address  payloadDestination,
const uint8_t  payload[8]
)
virtual

Called from lower-level layers to send the ICMPv6 packet up in the stack.

Parameters
icmpSourcethe source address of the icmp message
icmpTtlthe ttl of the icmp message
icmpTypethe 'type' field of the icmp message
icmpCodethe 'code' field of the icmp message
icmpInfoextra information dependent on the icmp message generated by Icmpv6L4Protocol
payloadSourcethe source address of the packet which triggered the icmp message
payloadDestinationthe destination address of the packet which triggered the icmp message.
payloadthe first 8 bytes of the packet payload which triggered the icmp message.

Reimplemented in ns3::UdpL4Protocol, and ns3::TcpL4Protocol.

Definition at line 63 of file ip-l4-protocol.cc.

References NS_LOG_FUNCTION.

◆ SetDownTarget()

virtual void ns3::IpL4Protocol::SetDownTarget ( DownTargetCallback  cb)
pure virtual

This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case)

Parameters
cbcurrent Callback for the L4 protocol

Implemented in ns3::UdpL4Protocol, ns3::TcpL4Protocol, ns3::Icmpv6L4Protocol, ns3::Icmpv4L4Protocol, and ns3::dsr::DsrRouting.

◆ SetDownTarget6()

virtual void ns3::IpL4Protocol::SetDownTarget6 ( DownTargetCallback6  cb)
pure virtual

This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case)

Parameters
cbcurrent Callback for the L4 protocol

Implemented in ns3::UdpL4Protocol, ns3::TcpL4Protocol, ns3::Icmpv6L4Protocol, ns3::Icmpv4L4Protocol, and ns3::dsr::DsrRouting.


The documentation for this class was generated from the following files:
