Declaration of classes ns3::Time and ns3::TimeWithUnit, and the TimeValue implementation classes. More...
#include "assert.h"#include "attribute.h"#include "attribute-helper.h"#include "event-id.h"#include "int64x64.h"#include <stdint.h>#include <limits>#include <cmath>#include <ostream>#include <set>

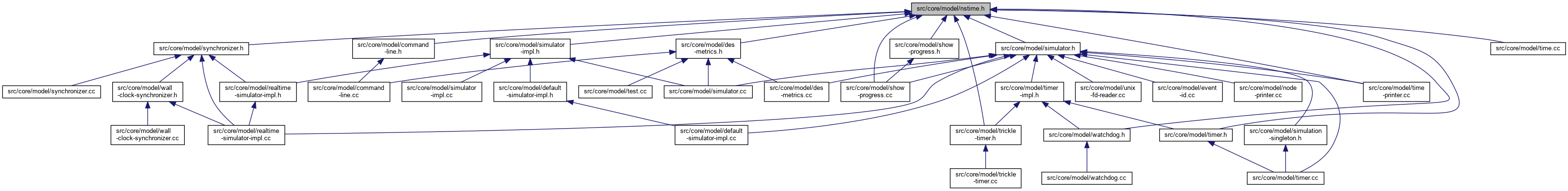

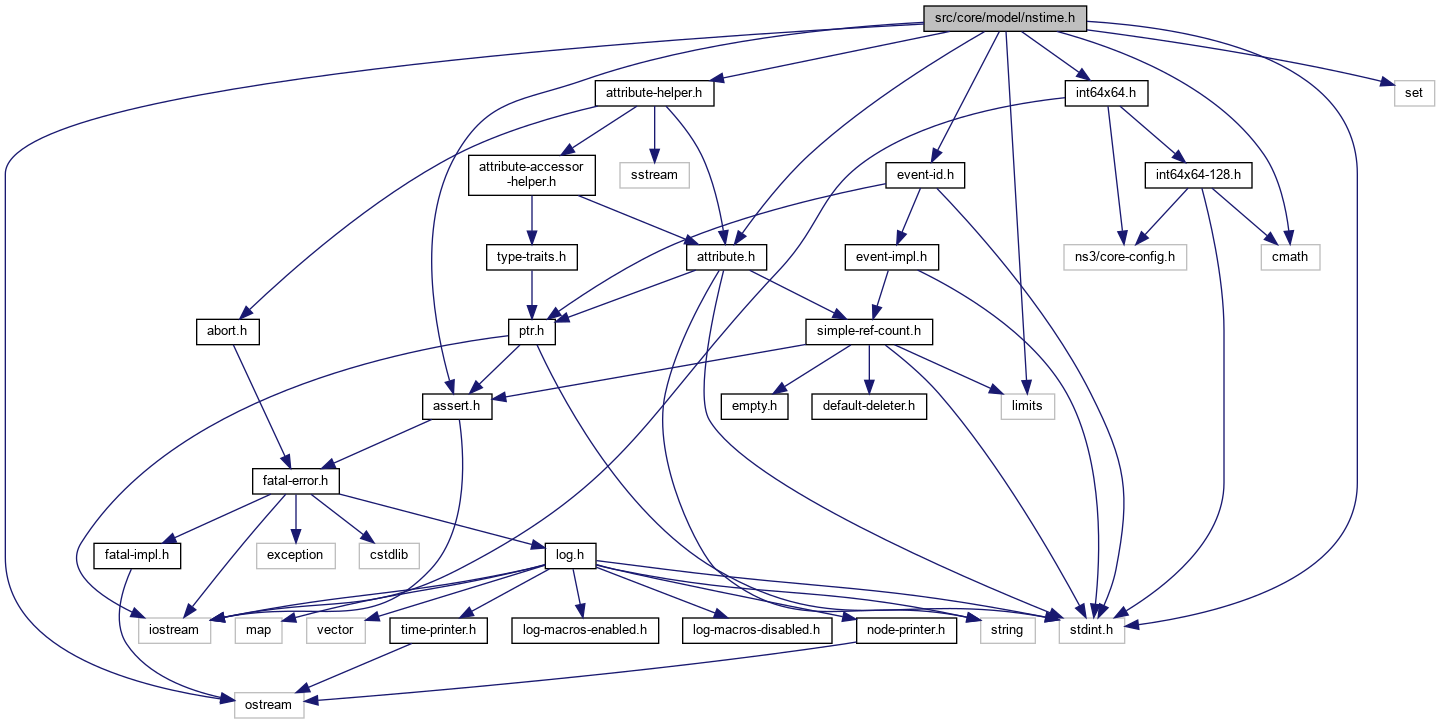

Include dependency graph for nstime.h: This graph shows which files directly or indirectly include this file:Go to the source code of this file.
Classes | |
| struct | ns3::Time::Information |
| How to convert between other units and the current unit. More... | |
| struct | ns3::Time::Resolution |
| Current time unit, and conversion info. More... | |
| class | ns3::Time |
| Simulation virtual time values and global simulation resolution. More... | |
| class | ns3::TimeValue |
| AttributeValue implementation for Time. More... | |
| class | ns3::TimeWithUnit |
| A Time with attached unit, to facilitate output in that unit. More... | |
Namespaces | |
| ns3 | |
| Every class exported by the ns3 library is enclosed in the ns3 namespace. | |
| ns3::TracedValueCallback | |
| TracedValue Callback function types. | |
Typedefs | |
| typedef void(* | ns3::TracedValueCallback::Time) (Time oldValue, Time newValue) |
| TracedValue callback signature for Time. More... | |
Functions | |
| Time | ns3::Abs (const Time &time) |
| Absolute value for Time. More... | |
| int64_t | ns3::Div (const Time &lhs, const Time &rhs) |
| Integer quotient from dividing two Times. More... | |
| template<typename T1 > | |
| Ptr< const AttributeAccessor > | ns3::MakeTimeAccessor (T1 a1) |
| Create an AttributeAccessor for a class data member, or a lone class get functor or set method. More... | |
| template<typename T1 , typename T2 > | |
| Ptr< const AttributeAccessor > | ns3::MakeTimeAccessor (T1 a1, T2 a2) |
| Create an AttributeAccessor using a pair of get functor and set methods from a class. More... | |
| Ptr< const AttributeChecker > | ns3::MakeTimeChecker (const Time min) |
| Helper to make a Time checker with a lower bound. More... | |
| Ptr< const AttributeChecker > | ns3::MakeTimeChecker (const Time min, const Time max) |
| Helper to make a Time checker with bounded range. More... | |
| Ptr< const AttributeChecker > | ns3::MakeTimeChecker (void) |
| Helper to make an unbounded Time checker. More... | |
| Time | ns3::Max (const Time &timeA, const Time &timeB) |
| Maximum of two Times. More... | |
| Time | ns3::Min (const Time &timeA, const Time &timeB) |
| Minimum of two Times. More... | |
| bool | ns3::operator!= (const Time &lhs, const Time &rhs) |
| Inequality operator for Time. More... | |
| Time | ns3::operator* (const int64x64_t &lhs, const Time &rhs) |
| Scale a Time by a numeric value. More... | |
| Time | ns3::operator* (const Time &lhs, const int64x64_t &rhs) |
| Scale a Time by a numeric value. More... | |
| template<class T > | |
| std::enable_if< std::is_integral< T >::value, Time >::type | ns3::operator* (const Time &lhs, T rhs) |
| Scale a Time by an integer value. More... | |
| template<class T > | |
| std::enable_if< std::is_floating_point< T >::value, Time >::type | ns3::operator* (const Time &lhs, T rhs) |
| template<class T > | |
| std::enable_if< std::is_arithmetic< T >::value, Time >::type | ns3::operator* (T lhs, const Time &rhs) |
| Scale a Time by a numeric value. More... | |
| Time | ns3::operator+ (const Time &lhs, const Time &rhs) |
| Addition operator for Time. More... | |
| Time & | ns3::operator+= (Time &lhs, const Time &rhs) |
| Compound addition assignment for Time. More... | |
| Time | ns3::operator- (const Time &lhs, const Time &rhs) |
| Subtraction operator for Time. More... | |
| Time & | ns3::operator-= (Time &lhs, const Time &rhs) |
| Compound subtraction assignment for Time. More... | |
| Time | ns3::operator/ (const Time &lhs, const int64x64_t &rhs) |
| Scale a Time by a numeric value. More... | |
| int64x64_t | ns3::operator/ (const Time &lhs, const Time &rhs) |
| Exact division, returning a dimensionless fixed point number. More... | |
| template<class T > | |
| std::enable_if< std::is_integral< T >::value, Time >::type | ns3::operator/ (const Time &lhs, T rhs) |
| Divide a Time by an integer value. More... | |
| template<class T > | |
| std::enable_if< std::is_floating_point< T >::value, Time >::type | ns3::operator/ (const Time &lhs, T rhs) |
| bool | ns3::operator< (const Time &lhs, const Time &rhs) |
| Less than operator for Time. More... | |
| bool | ns3::operator< (const Time &time, const EventId &event) |
| Compare a Time to an EventId. More... | |
| std::ostream & | ns3::operator<< (std::ostream &os, const Time &time) |
| Time output streamer. More... | |
| bool | ns3::operator<= (const Time &lhs, const Time &rhs) |
| Less than or equal operator for Time. More... | |
| bool | ns3::operator== (const Time &lhs, const Time &rhs) |
| Equality operator for Time. More... | |
| bool | ns3::operator> (const Time &lhs, const Time &rhs) |
| Greater than operator for Time. More... | |
| bool | ns3::operator>= (const Time &lhs, const Time &rhs) |
| Greater than or equal operator for Time. More... | |
| std::istream & | ns3::operator>> (std::istream &is, Time &time) |
| Time input streamer. More... | |
| Time | ns3::operator% (const Time &lhs, const Time &rhs) |
| Remainder (modulus) from the quotient of two Times. More... | |
| Time | ns3::Rem (const Time &lhs, const Time &rhs) |
| Remainder (modulus) from the quotient of two Times. More... | |
| Time | ns3::Days (double value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::Days (int64x64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::FemtoSeconds (int64x64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::FemtoSeconds (uint64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::Hours (double value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::Hours (int64x64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::MicroSeconds (int64x64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::MicroSeconds (uint64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::MilliSeconds (int64x64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::MilliSeconds (uint64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::Minutes (double value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::Minutes (int64x64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::NanoSeconds (int64x64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::NanoSeconds (uint64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::PicoSeconds (int64x64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::PicoSeconds (uint64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::Seconds (double value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::Seconds (int64x64_t value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::Years (double value) |
| Construct a Time in the indicated unit. More... | |
| Time | ns3::Years (int64x64_t value) |
| Construct a Time in the indicated unit. More... | |
Declaration of classes ns3::Time and ns3::TimeWithUnit, and the TimeValue implementation classes.
Definition in file nstime.h.
