ns3::olsr::PacketHeader Class Reference

The basic layout of any packet in OLSR is as follows (omitting IP and UDP headers): More...

#include "olsr-header.h"

+ Inheritance diagram for ns3::olsr::PacketHeader:
+ Collaboration diagram for ns3::olsr::PacketHeader:

Public Member Functions

 PacketHeader ()

virtual ~PacketHeader ()

virtual uint32_t Deserialize (Buffer::Iterator start)

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint16_t GetPacketLength () const
 Get the packet total length. More...

uint16_t GetPacketSequenceNumber () const
 Get the packet sequence number. More...

virtual uint32_t GetSerializedSize (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetPacketLength (uint16_t length)
 Set the packet total length. More...

void SetPacketSequenceNumber (uint16_t seqnum)
 Set the packet sequence number. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint16_t m_packetLength
 The packet length. More...

uint16_t m_packetSequenceNumber
 The packet sequence number. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

The basic layout of any packet in OLSR is as follows (omitting IP and UDP headers):

Introspection did not find any typical Config paths.

  0                   1                   2                   3
  0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |         Packet Length         |    Packet Sequence Number     |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Message Type |     Vtime     |         Message Size          |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                      Originator Address                       |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Time To Live |   Hop Count   |    Message Sequence Number    |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                                                               |
 :                            MESSAGE                            :
 |                                                               |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Message Type |     Vtime     |         Message Size          |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                      Originator Address                       |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Time To Live |   Hop Count   |    Message Sequence Number    |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                                                               |
 :                            MESSAGE                            :
 |                                                               |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 :                                                               :
          (etc.)

This header only holds the common part of a message group, i.e., the first 4 bytes.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 75 of file olsr-header.h.

Constructor & Destructor Documentation

◆ PacketHeader()

ns3::olsr::PacketHeader::PacketHeader ( )

Definition at line 105 of file olsr-header.cc.

◆ ~PacketHeader()

ns3::olsr::PacketHeader::~PacketHeader ( )
virtual

Definition at line 109 of file olsr-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::olsr::PacketHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 150 of file olsr-header.cc.

References GetSerializedSize(), m_packetLength, m_packetSequenceNumber, ns3::Buffer::Iterator::ReadNtohU16(), and visualizer.core::start().

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::olsr::PacketHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 124 of file olsr-header.cc.

References GetTypeId().

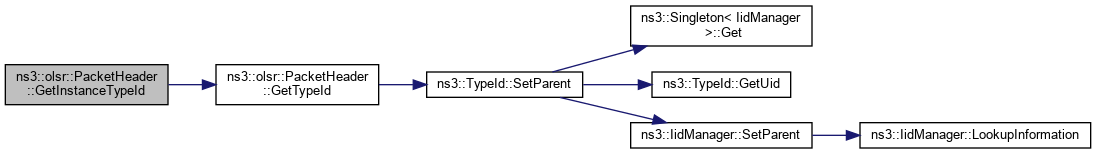

+ Here is the call graph for this function:

◆ GetPacketLength()

uint16_t ns3::olsr::PacketHeader::GetPacketLength ( ) const
inline

Get the packet total length.

Returns
The packet length.

Definition at line 94 of file olsr-header.h.

References m_packetLength.

Referenced by ns3::olsr::RoutingProtocol::RecvOlsr().

+ Here is the caller graph for this function:

◆ GetPacketSequenceNumber()

uint16_t ns3::olsr::PacketHeader::GetPacketSequenceNumber ( ) const
inline

Get the packet sequence number.

Returns
The packet sequence number.

Definition at line 112 of file olsr-header.h.

References m_packetSequenceNumber.

◆ GetSerializedSize()

uint32_t ns3::olsr::PacketHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 130 of file olsr-header.cc.

References OLSR_PKT_HEADER_SIZE.

Referenced by Deserialize(), ns3::olsr::RoutingProtocol::RecvOlsr(), and ns3::olsr::RoutingProtocol::SendPacket().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::olsr::PacketHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
The object TypeId.

Definition at line 114 of file olsr-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

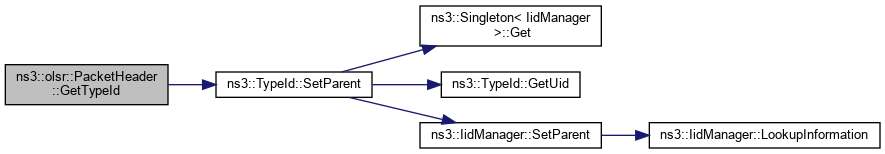

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::olsr::PacketHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 136 of file olsr-header.cc.

References m_packetLength, and m_packetSequenceNumber.

Referenced by ns3::olsr::operator<<().

+ Here is the caller graph for this function:

◆ Serialize()

void ns3::olsr::PacketHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 142 of file olsr-header.cc.

References m_packetLength, m_packetSequenceNumber, visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtonU16().

+ Here is the call graph for this function:

◆ SetPacketLength()

void ns3::olsr::PacketHeader::SetPacketLength ( uint16_t  length)
inline

Set the packet total length.

Parameters
lengthThe packet length.

Definition at line 85 of file olsr-header.h.

References m_packetLength.

Referenced by ns3::olsr::RoutingProtocol::SendPacket().

+ Here is the caller graph for this function:

◆ SetPacketSequenceNumber()

void ns3::olsr::PacketHeader::SetPacketSequenceNumber ( uint16_t  seqnum)
inline

Set the packet sequence number.

Parameters
seqnumThe packet sequence number.

Definition at line 103 of file olsr-header.h.

References m_packetSequenceNumber.

Referenced by ns3::olsr::RoutingProtocol::SendPacket().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_packetLength

uint16_t ns3::olsr::PacketHeader::m_packetLength
private

The packet length.

Definition at line 118 of file olsr-header.h.

Referenced by Deserialize(), GetPacketLength(), Print(), Serialize(), and SetPacketLength().

◆ m_packetSequenceNumber

uint16_t ns3::olsr::PacketHeader::m_packetSequenceNumber
private

The packet sequence number.

Definition at line 119 of file olsr-header.h.

Referenced by Deserialize(), GetPacketSequenceNumber(), Print(), Serialize(), and SetPacketSequenceNumber().
