ns3::VectorTlvValue Class Reference

this class is used to implement a vector of values in one tlv value field More...

#include "wimax-tlv.h"

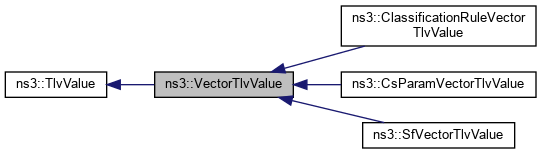

Inheritance diagram for ns3::VectorTlvValue:

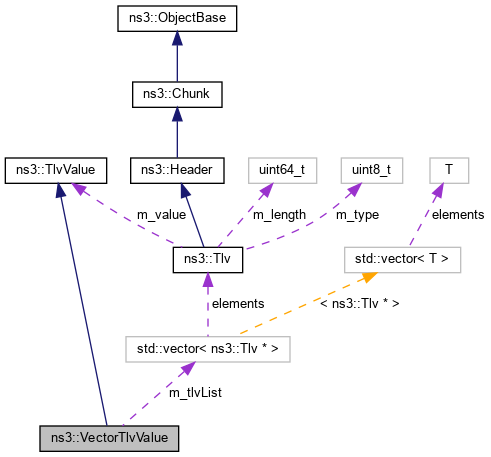

Collaboration diagram for ns3::VectorTlvValue:

Public Types
typedef std::vector< Tlv * >::const_iterator	Iterator
	TLV vector iterator typedef. More...

Public Member Functions
	VectorTlvValue (void)
	~VectorTlvValue (void)
void	Add (const Tlv &val)
	Add a TLV. More...
Iterator	Begin () const
	Begin iterator. More...
virtual VectorTlvValue *	Copy (void) const =0
	Copy. More...
virtual uint32_t	Deserialize (Buffer::Iterator start, uint64_t valueLength)=0
	Deserialize from a buffer. More...
Iterator	End () const
	End iterator. More...
virtual uint32_t	GetSerializedSize (void) const
	Get serialized size in bytes. More...
virtual void	Serialize (Buffer::Iterator start) const
	Serialize to a buffer. More...
Public Member Functions inherited from ns3::TlvValue
virtual	~TlvValue ()

Private Attributes
std::vector< Tlv * > *	m_tlvList
	tlv list More...

Detailed Description

this class is used to implement a vector of values in one tlv value field

Definition at line 289 of file wimax-tlv.h.

Member Typedef Documentation

Iterator

typedef std::vector<Tlv*>::const_iterator ns3::VectorTlvValue::Iterator

TLV vector iterator typedef.

Definition at line 293 of file wimax-tlv.h.

Constructor & Destructor Documentation

VectorTlvValue()

ns3::VectorTlvValue::VectorTlvValue

(

void

)

Definition at line 235 of file wimax-tlv.cc.

References m_tlvList.

~VectorTlvValue()

ns3::VectorTlvValue::~VectorTlvValue

(

void

)

Definition at line 240 of file wimax-tlv.cc.

References m_tlvList.

Member Function Documentation

Add()

void ns3::VectorTlvValue::Add

(

const Tlv &

val

)

Add a TLV.

Parameters

val	the TLV value

Definition at line 284 of file wimax-tlv.cc.

References ns3::Tlv::Copy(), and m_tlvList.

Referenced by ns3::SfVectorTlvValue::Copy(), ns3::CsParamVectorTlvValue::Copy(), ns3::ClassificationRuleVectorTlvValue::Copy(), ns3::SfVectorTlvValue::Deserialize(), ns3::CsParamVectorTlvValue::Deserialize(), ns3::ClassificationRuleVectorTlvValue::Deserialize(), Ns3WimaxCsParamTlvTestCase::DoRun(), ns3::CsParameters::ToTlv(), ns3::IpcsClassifierRecord::ToTlv(), and ns3::ServiceFlow::ToTlv().

Here is the call graph for this function:

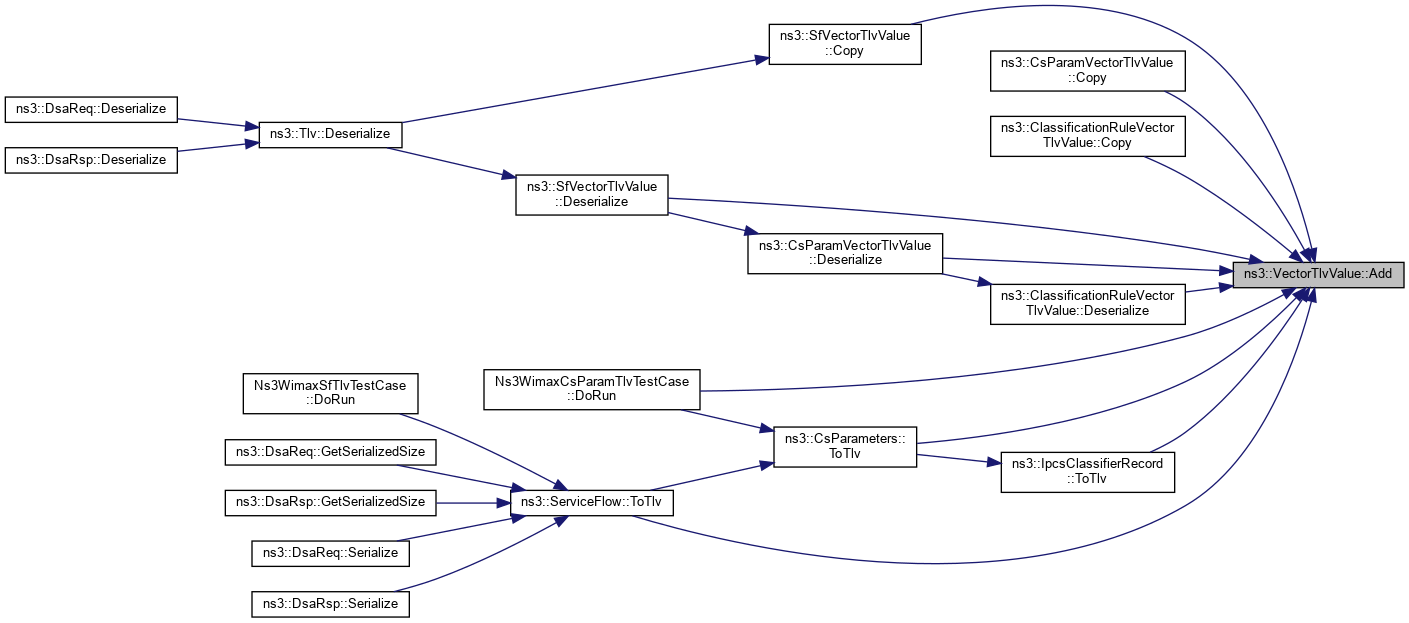

Here is the caller graph for this function:

Begin()

VectorTlvValue::Iterator ns3::VectorTlvValue::Begin

(

void

)

const

Begin iterator.

Returns

the beginning element

Definition at line 272 of file wimax-tlv.cc.

References m_tlvList.

Referenced by ns3::CsParameters::CsParameters(), ns3::IpcsClassifierRecord::IpcsClassifierRecord(), ns3::ServiceFlow::ServiceFlow(), ns3::SfVectorTlvValue::Copy(), ns3::CsParamVectorTlvValue::Copy(), ns3::ClassificationRuleVectorTlvValue::Copy(), and Ns3WimaxCsParamTlvTestCase::DoRun().

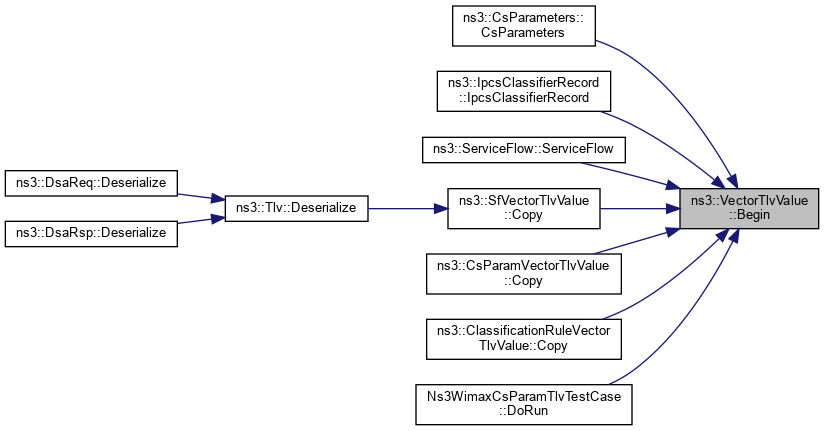

Here is the caller graph for this function:

Copy()

virtual VectorTlvValue* ns3::VectorTlvValue::Copy ( void  ) const

pure virtual

Copy.

Returns

the vector TLV value

Implements ns3::TlvValue.

Implemented in ns3::ClassificationRuleVectorTlvValue, ns3::CsParamVectorTlvValue, and ns3::SfVectorTlvValue.

Deserialize()

virtual uint32_t ns3::VectorTlvValue::Deserialize ( Buffer::Iterator  start, uint64_t  valueLen  )

pure virtual

Deserialize from a buffer.

Parameters

start	the iterator
valueLen	the maximum length of the value

Returns

the

Implements ns3::TlvValue.

Implemented in ns3::ClassificationRuleVectorTlvValue, ns3::CsParamVectorTlvValue, and ns3::SfVectorTlvValue.

End()

VectorTlvValue::Iterator ns3::VectorTlvValue::End

(

void

)

const

End iterator.

Returns

the ending element

Definition at line 278 of file wimax-tlv.cc.

References m_tlvList.

Referenced by ns3::CsParameters::CsParameters(), ns3::IpcsClassifierRecord::IpcsClassifierRecord(), ns3::ServiceFlow::ServiceFlow(), ns3::SfVectorTlvValue::Copy(), ns3::CsParamVectorTlvValue::Copy(), ns3::ClassificationRuleVectorTlvValue::Copy(), and Ns3WimaxCsParamTlvTestCase::DoRun().

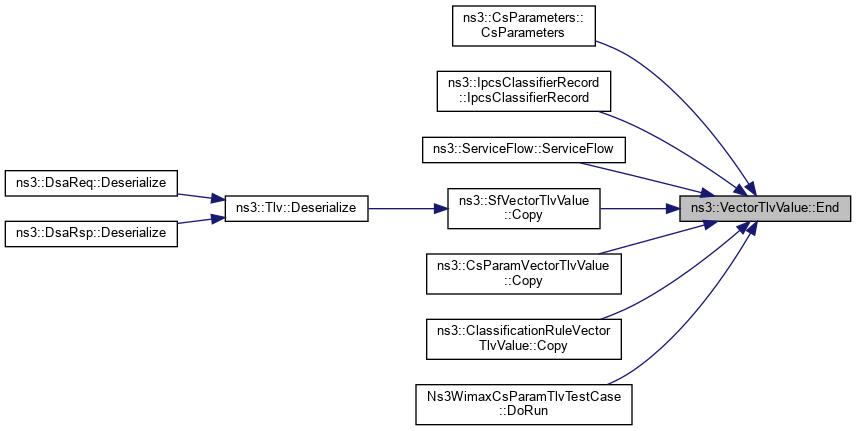

Here is the caller graph for this function:

GetSerializedSize()

uint32_t ns3::VectorTlvValue::GetSerializedSize ( void  ) const

virtual

Get serialized size in bytes.

Returns

the serialized size

Implements ns3::TlvValue.

Definition at line 251 of file wimax-tlv.cc.

References m_tlvList.

Referenced by ns3::CsParamVectorTlvValue::Deserialize(), Ns3WimaxCsParamTlvTestCase::DoRun(), ns3::CsParameters::ToTlv(), ns3::IpcsClassifierRecord::ToTlv(), and ns3::ServiceFlow::ToTlv().

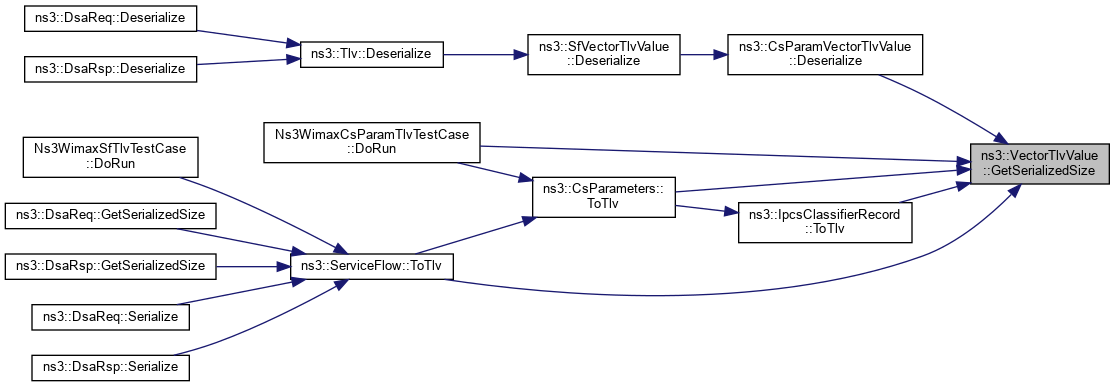

Here is the caller graph for this function:

Serialize()

void ns3::VectorTlvValue::Serialize ( Buffer::Iterator  start ) const

virtual

Serialize to a buffer.

Parameters

start

the iterator

Implements ns3::TlvValue.

Definition at line 262 of file wimax-tlv.cc.

References m_tlvList, and ns3::Buffer::Iterator::Next().

Here is the call graph for this function:

Member Data Documentation

m_tlvList

std::vector<Tlv*>* ns3::VectorTlvValue::m_tlvList

private

tlv list

Definition at line 320 of file wimax-tlv.h.

Referenced by VectorTlvValue(), ~VectorTlvValue(), Add(), Begin(), End(), GetSerializedSize(), and Serialize().

---

The documentation for this class was generated from the following files:

• src/wimax/model/wimax-tlv.h
• src/wimax/model/wimax-tlv.cc
