ns3::SeqTsHeader Class Reference

Packet header to carry sequence number and timestamp. More...

#include "seq-ts-header.h"

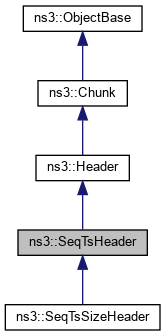

+ Inheritance diagram for ns3::SeqTsHeader:

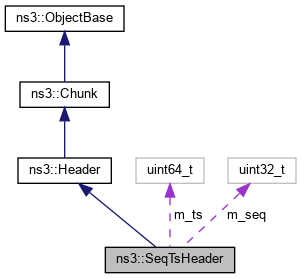

+ Collaboration diagram for ns3::SeqTsHeader:

Public Member Functions

 SeqTsHeader ()

virtual uint32_t Deserialize (Buffer::Iterator start)

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint32_t GetSeq (void) const

virtual uint32_t GetSerializedSize (void) const

Time GetTs (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetSeq (uint32_t seq)

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint32_t m_seq
 Sequence number. More...

uint64_t m_ts
 Timestamp. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

Packet header to carry sequence number and timestamp.

Introspection did not find any typical Config paths.

The header is used as a payload in applications (typically UDP) to convey a 32 bit sequence number followed by a 64 bit timestamp (12 bytes total).

The timestamp is not set explicitly but automatically set to the simulation time upon creation.

If you need space for an application data unit size field (e.g. for stream-based protocols like TCP), use ns3::SeqTsSizeHeader.

See also
ns3::SeqTsSizeHeader


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 44 of file seq-ts-header.h.

Constructor & Destructor Documentation

◆ SeqTsHeader()

ns3::SeqTsHeader::SeqTsHeader ( )

Definition at line 33 of file seq-ts-header.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::SeqTsHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Reimplemented in ns3::SeqTsSizeHeader.

Definition at line 97 of file seq-ts-header.cc.

References GetSerializedSize(), m_seq, m_ts, NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadNtohU64(), and visualizer.core::start().

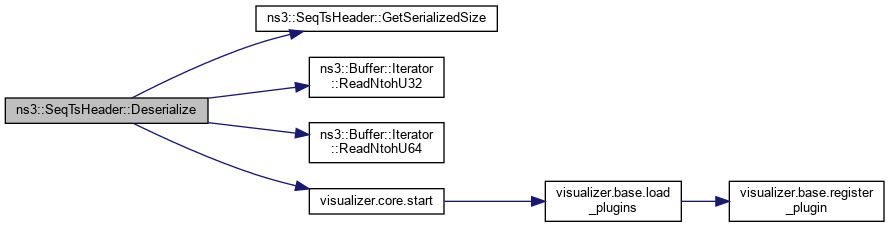

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::SeqTsHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Reimplemented in ns3::SeqTsSizeHeader.

Definition at line 71 of file seq-ts-header.cc.

References GetTypeId().

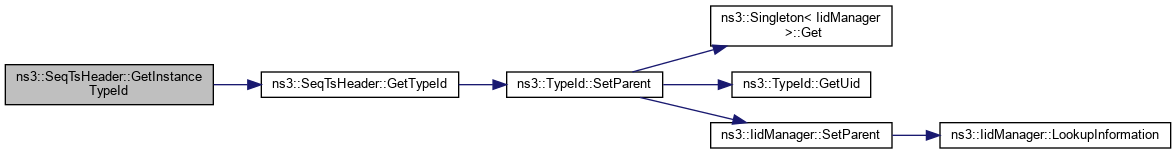

+ Here is the call graph for this function:

◆ GetSeq()

uint32_t ns3::SeqTsHeader::GetSeq ( void  ) const
Returns
the sequence number

Definition at line 47 of file seq-ts-header.cc.

References m_seq, and NS_LOG_FUNCTION.

Referenced by ns3::UdpServer::HandleRead(), WaveNetDeviceExample::Receive(), BulkSendSeqTsSizeTestCase::ReceiveRx(), and BulkSendSeqTsSizeTestCase::SendTx().

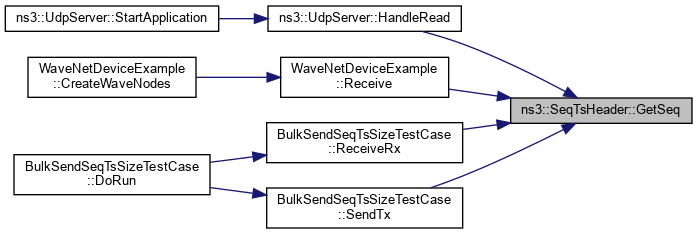

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::SeqTsHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Reimplemented in ns3::SeqTsSizeHeader.

Definition at line 82 of file seq-ts-header.cc.

References NS_LOG_FUNCTION.

Referenced by Deserialize(), and ns3::SeqTsSizeHeader::GetSerializedSize().

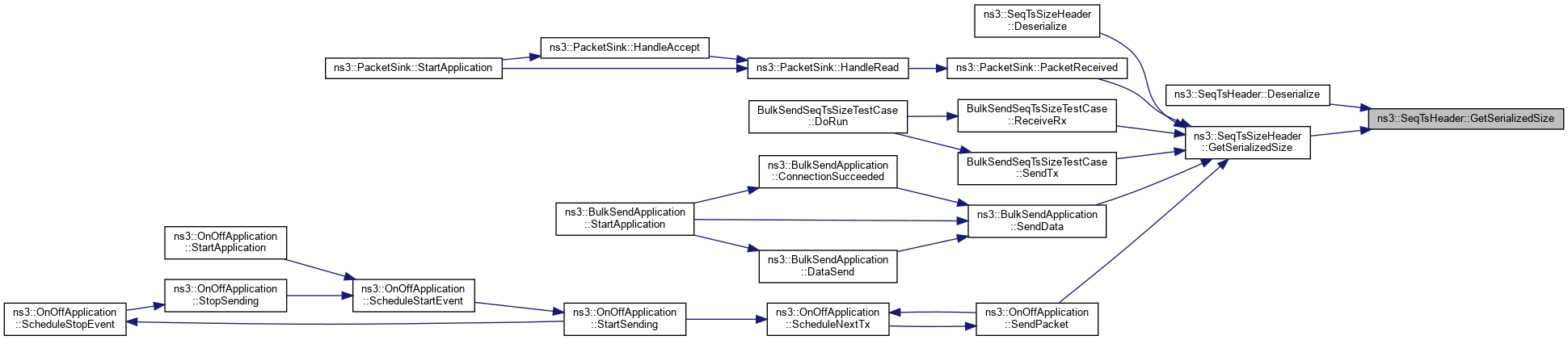

+ Here is the caller graph for this function:

◆ GetTs()

Time ns3::SeqTsHeader::GetTs ( void  ) const
Returns
the time stamp

Definition at line 54 of file seq-ts-header.cc.

References m_ts, and NS_LOG_FUNCTION.

Referenced by ns3::UdpServer::HandleRead(), WaveNetDeviceExample::Receive(), BulkSendSeqTsSizeTestCase::ReceiveRx(), and BulkSendSeqTsSizeTestCase::SendTx().

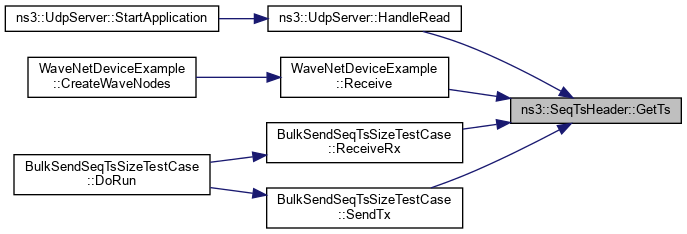

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::SeqTsHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 61 of file seq-ts-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::SeqTsHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Reimplemented in ns3::SeqTsSizeHeader.

Definition at line 76 of file seq-ts-header.cc.

References m_seq, m_ts, NS_LOG_FUNCTION, and ns3::Time::S.

Referenced by ns3::SeqTsSizeHeader::Print().

+ Here is the caller graph for this function:

◆ Serialize()

void ns3::SeqTsHeader::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Reimplemented in ns3::SeqTsSizeHeader.

Definition at line 89 of file seq-ts-header.cc.

References m_seq, m_ts, NS_LOG_FUNCTION, visualizer.core::start(), ns3::Buffer::Iterator::WriteHtonU32(), and ns3::Buffer::Iterator::WriteHtonU64().

Referenced by ns3::SeqTsSizeHeader::Serialize().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

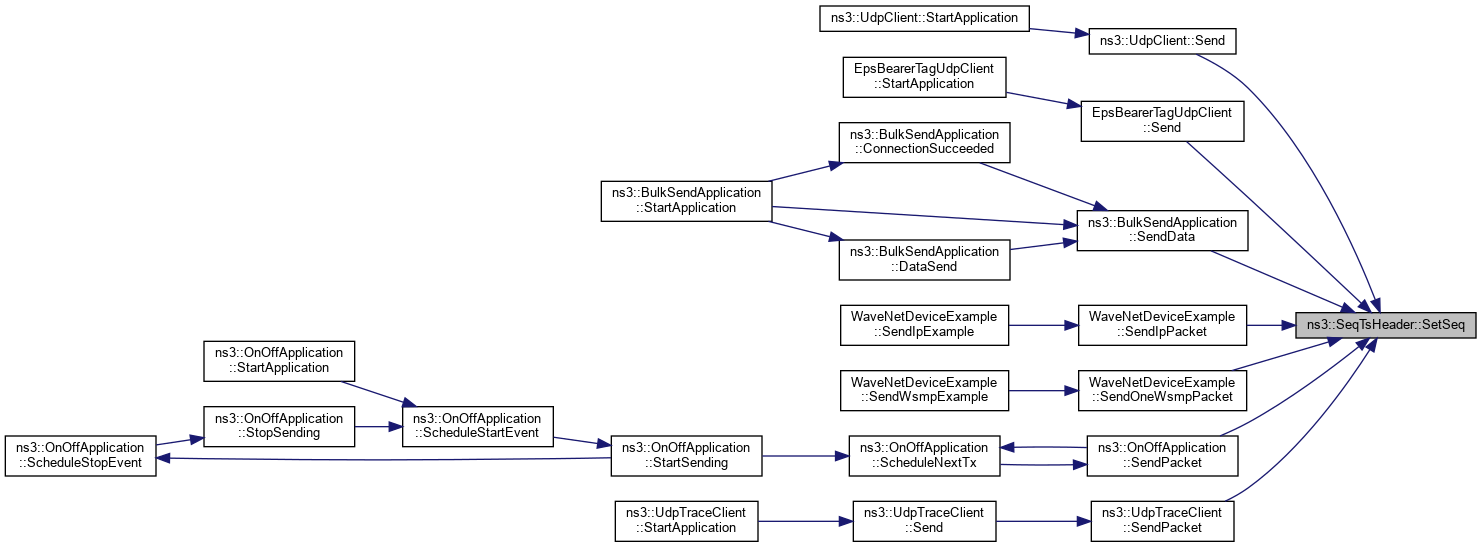

◆ SetSeq()

void ns3::SeqTsHeader::SetSeq ( uint32_t  seq)

Member Data Documentation

◆ m_seq

uint32_t ns3::SeqTsHeader::m_seq
private

Sequence number.

Definition at line 75 of file seq-ts-header.h.

Referenced by Deserialize(), GetSeq(), Print(), Serialize(), and SetSeq().

◆ m_ts

uint64_t ns3::SeqTsHeader::m_ts
private

Timestamp.

Definition at line 76 of file seq-ts-header.h.

Referenced by Deserialize(), GetTs(), Print(), and Serialize().
