ns3::QKDLinkHelper Class Reference

Build a set of QKDNetDevice objects such as QKD buffers QKD encryptors and QKD graphs. More...

#include "qkd-link-helper.h"

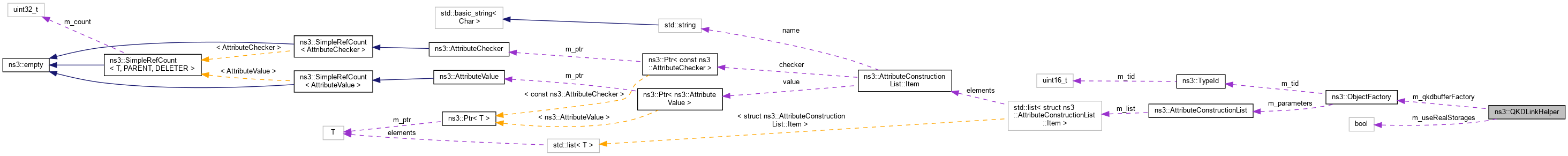

Collaboration diagram for ns3::QKDLinkHelper:

Public Member Functions
	QKDLinkHelper ()
	Constructor. More...
virtual	~QKDLinkHelper ()
	Destructor. More...
void	AddGraph (Ptr< Node > src, Ptr< Node > dst)
	Add a graph. More...
void	AddGraph (Ptr< Node > src, Ptr< Node > dst, std::string graphName)
	Add a graph. More...
void	AddGraph (Ptr< Node > src, Ptr< Node > dst, std::string graphName, std::string graphType)
	Add a graph. More...
std::string	CreateQKDLink (Ptr< QKDControl > control, Ptr< Node > alice, Ptr< Node > bob, Ptr< Node > aliceKMS, Ptr< Node > bobKMS, uint32_t Mmin, uint32_t Mthr, uint32_t Mmax, uint32_t Mcurrent)
	Create a QKD link. More...
QKDControlContainer	InstallQKDControl (NodeContainer &n)
	Install the QKD controll on nodes within a given container. More...
Ptr< QKDControl >	InstallQKDControl (Ptr< Node > node)
	Install the QKD control on a node. More...
QKDEncryptorContainer	InstallQKDEncryptor (NodeContainer &n)
	Install QKD encryptor on nodes within a given container. More...
Ptr< QKDEncryptor >	InstallQKDEncryptor (Ptr< Node > node)
	Install QKD encryptor on a node. More...
void	PrintGraphs ()
	Print graphs. More...

Static Public Member Functions
static void	CreateAndAggregateObjectFromTypeId (Ptr< Node > node, const std::string typeId)
	Create an object from its TypeId and aggregates it to the node. More...

Public Attributes
bool	m_useRealStorages
	Wheater to use real key file storage (still in development). More...

Private Attributes
ObjectFactory	m_qkdbufferFactory
	Device Factory. More...

Detailed Description

Build a set of QKDNetDevice objects such as QKD buffers QKD encryptors and QKD graphs.

Definition at line 55 of file qkd-link-helper.h.

Constructor & Destructor Documentation

QKDLinkHelper()

ns3::QKDLinkHelper::QKDLinkHelper

(

)

Constructor.

Create a QKDLinkHelper to make life easier when creating point to point networks.

Definition at line 41 of file qkd-link-helper.cc.

References m_qkdbufferFactory, m_useRealStorages, and ns3::ObjectFactory::SetTypeId().

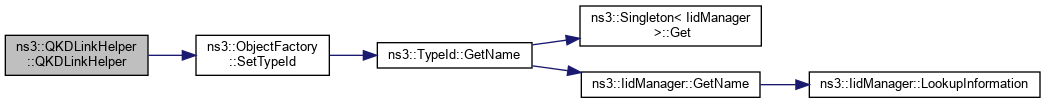

Here is the call graph for this function:

~QKDLinkHelper()

virtual ns3::QKDLinkHelper::~QKDLinkHelper ( )

inlinevirtual

Destructor.

Definition at line 70 of file qkd-link-helper.h.

Member Function Documentation

AddGraph() [1/3]

void ns3::QKDLinkHelper::AddGraph	(	Ptr< Node >	src,
		Ptr< Node >	dst
	)

Add a graph.

ADD QKDGraph.

Parameters

src	The source node.
dst	The destination node.
Ptr<Node>	src
Ptr<Node>	dst

Definition at line 53 of file qkd-link-helper.cc.

Referenced by AddGraph().

Here is the caller graph for this function:

AddGraph() [2/3]

void ns3::QKDLinkHelper::AddGraph	(	Ptr< Node >	src,
		Ptr< Node >	dst,
		std::string	graphName
	)

Add a graph.

ADD QKDGraph.

Parameters

src	The source node.
dst	The destination node.
graphName	The graph name.
Ptr<Node>	src
Ptr<Node>	dst
std::string	graphName

Definition at line 67 of file qkd-link-helper.cc.

References AddGraph().

Here is the call graph for this function:

AddGraph() [3/3]

void ns3::QKDLinkHelper::AddGraph	(	Ptr< Node >	src,
		Ptr< Node >	dst,
		std::string	graphName,
		std::string	graphType
	)

Add a graph.

ADD QKDGraph.

Parameters

src	The source node.
dst	The destination node.
graphName	The graph name.
graphType	The graph type.
Ptr<QKDControl>	QKDControl
Ptr<Node>	src
Ptr<Node>	dst
std::string	graphName
std::string	graphType

Definition at line 83 of file qkd-link-helper.cc.

References ns3::QKDGraphManager::AddQKDBuffer(), ns3::QKDGraphManager::getInstance(), ns3::Object::GetObject(), NS_ASSERT, and NS_LOG_FUNCTION.

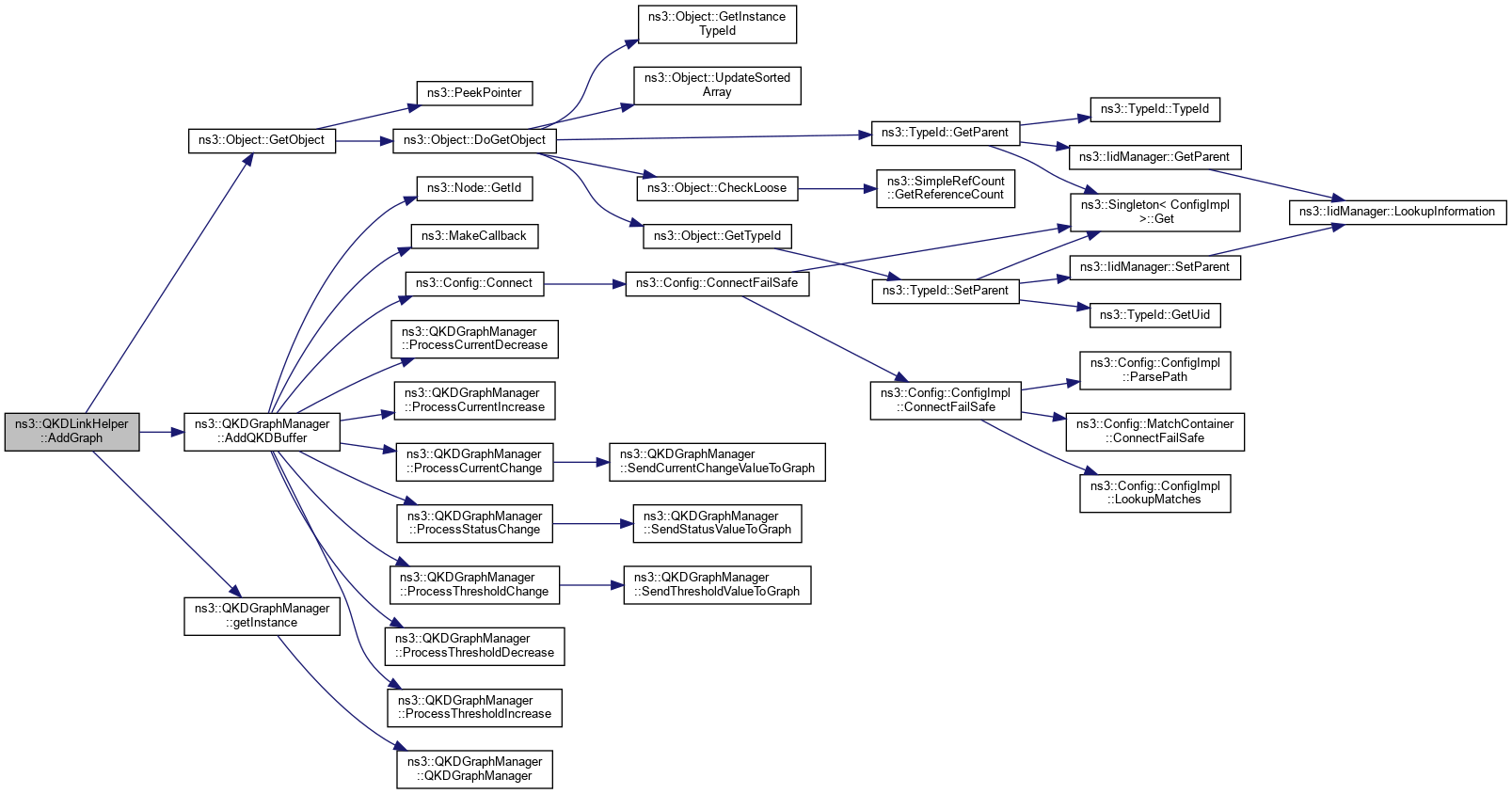

Here is the call graph for this function:

CreateAndAggregateObjectFromTypeId()

void ns3::QKDLinkHelper::CreateAndAggregateObjectFromTypeId ( Ptr< Node >  node, const std::string  typeId  )

static

Create an object from its TypeId and aggregates it to the node.

Help function used to aggregate protocols to the node such as virtual-tcp, virtual-udp, virtual-ipv4-l3.

Parameters

node	The node.
The	object TypeId.
Ptr<Node>	node
const	std::string typeID

Definition at line 185 of file qkd-link-helper.cc.

References ns3::Object::AggregateObject(), ns3::ObjectFactory::Create(), and ns3::ObjectFactory::SetTypeId().

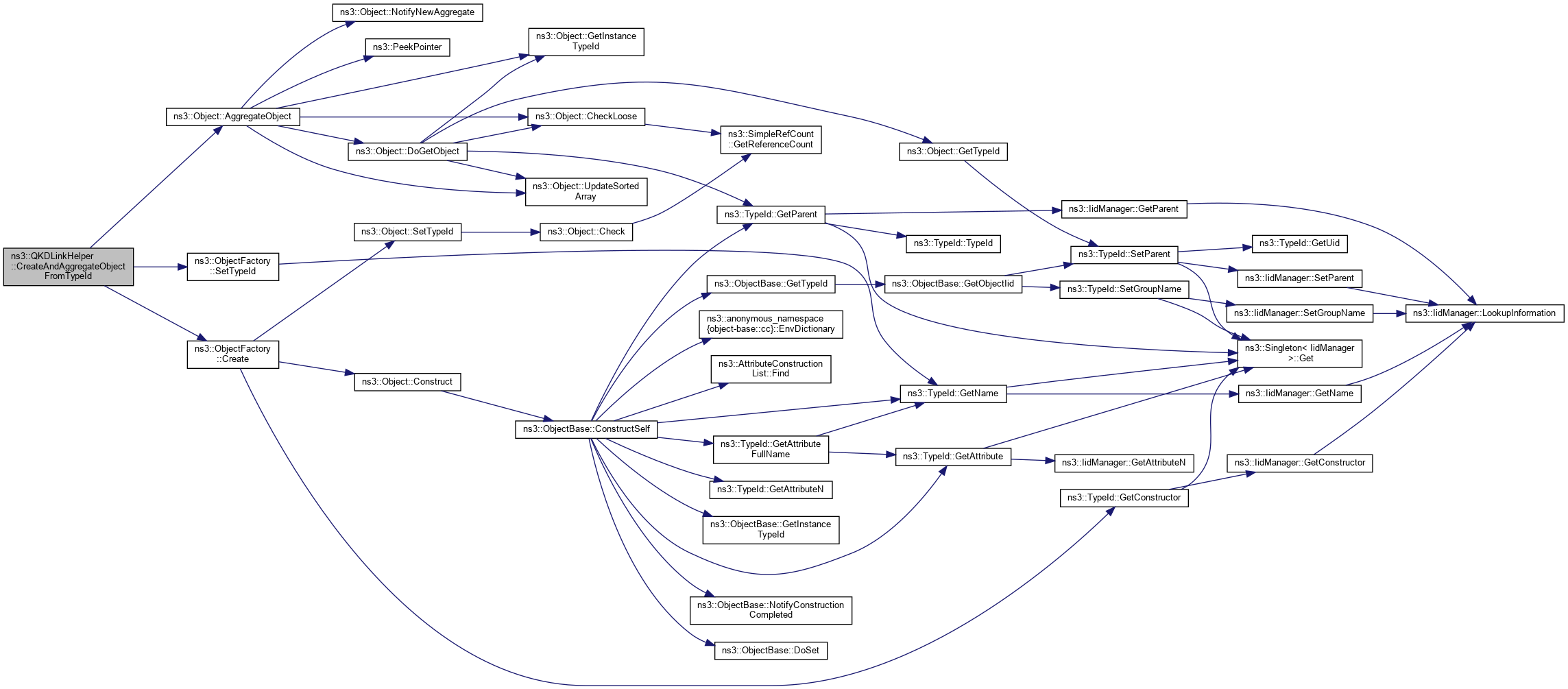

Here is the call graph for this function:

CreateQKDLink()

std::string ns3::QKDLinkHelper::CreateQKDLink	(	Ptr< QKDControl >	centralControler,
		Ptr< Node >	alice,
		Ptr< Node >	bob,
		Ptr< Node >	aliceKMS,
		Ptr< Node >	bobKMS,
		uint32_t	Mmin,
		uint32_t	Mthr,
		uint32_t	Mmax,
		uint32_t	Mcurrent
	)

Create a QKD link.

Create and setup QKD link between two nodes.

Parameters

control	The QKD control.
alice	The source node.
bob	The destination node.
aliceKMS	The source KMS node.
bobKMS	The destination KMS node.
Mmin	The lower threshold value.
Mthr	The threshold value,
Mmax	The maximum capacity.
Mcurrent	The current amount of key material in bits.

It notifies LKMS (Local QKD Manager about the connection).

QKDControl passed as parameter is the central control entity which is not currently used.

Parameters

Ptr<QKDControl>	QKDControl
Ptr<Node>	alice
Ptr<Node>	alice
uint32_t	Mmin
uint32_t	Mthr
uint32_t	Mmmax
uint32_t	Mcurrent

Definition at line 209 of file qkd-link-helper.cc.

References ns3::Node::GetId(), ns3::Object::GetObject(), InstallQKDControl(), ns3::QKDControl::QKDLink::keyAssociationId, m_useRealStorages, and NS_LOG_FUNCTION.

Here is the call graph for this function:

InstallQKDControl() [1/2]

QKDControlContainer ns3::QKDLinkHelper::InstallQKDControl

(

NodeContainer &

n

)

Install the QKD controll on nodes within a given container.

Install QKDControl on the node.

Parameters

n	The node container.

Returns

The container of the installed QKD controls.

Parameters

NodeContainer&

n

Definition at line 138 of file qkd-link-helper.cc.

References ns3::QKDControlContainer::Add(), ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), and InstallQKDControl().

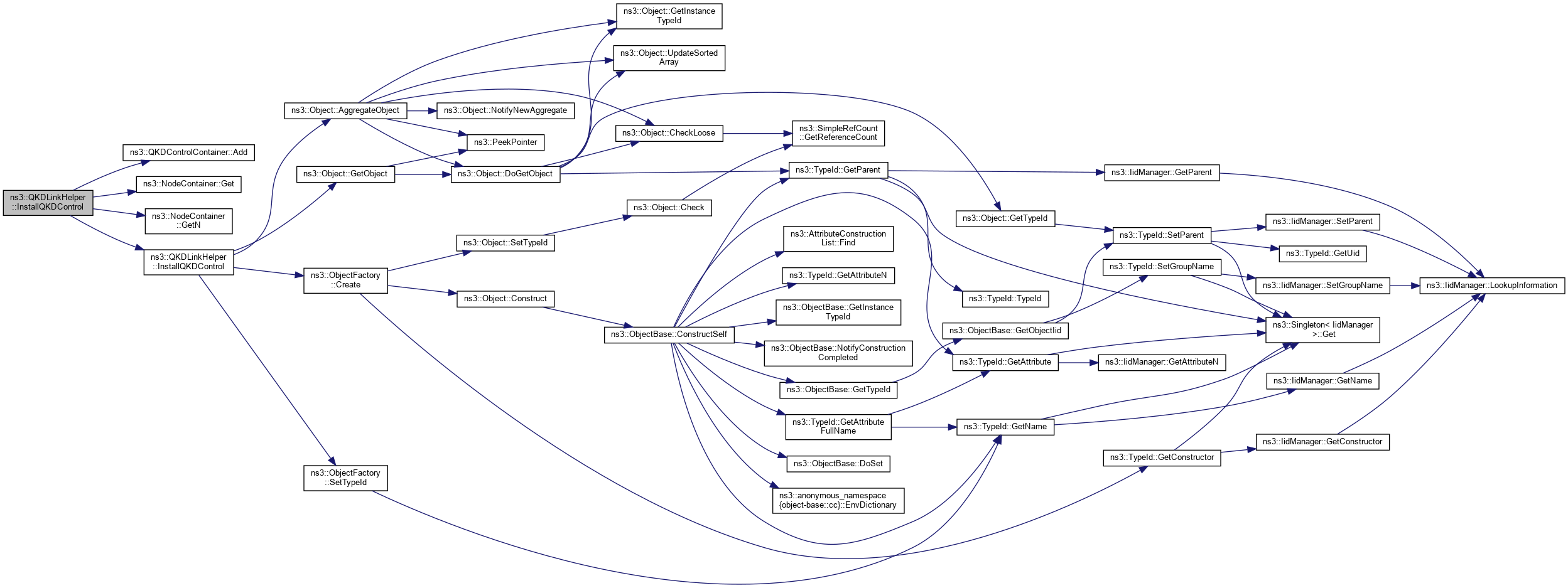

Here is the call graph for this function:

InstallQKDControl() [2/2]

Ptr< QKDControl > ns3::QKDLinkHelper::InstallQKDControl

(

Ptr< Node >

n

)

Install the QKD control on a node.

Install QKDControl on the node.

Parameters

node	The node.
NodeContainer&	n

Definition at line 120 of file qkd-link-helper.cc.

References ns3::Object::AggregateObject(), ns3::ObjectFactory::Create(), ns3::Object::GetObject(), and ns3::ObjectFactory::SetTypeId().

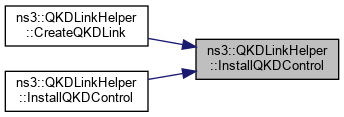

Referenced by CreateQKDLink(), and InstallQKDControl().

Here is the call graph for this function:

Here is the caller graph for this function:

InstallQKDEncryptor() [1/2]

QKDEncryptorContainer ns3::QKDLinkHelper::InstallQKDEncryptor

(

NodeContainer &

n

)

Install QKD encryptor on nodes within a given container.

Install QKDEncryptor on the node.

Parameters

n	The node container.

Returns

The container of the installed QKD encryptors.

Parameters

NodeContainer&

n

Definition at line 168 of file qkd-link-helper.cc.

References ns3::QKDEncryptorContainer::Add(), ns3::NodeContainer::Get(), ns3::NodeContainer::GetN(), and InstallQKDEncryptor().

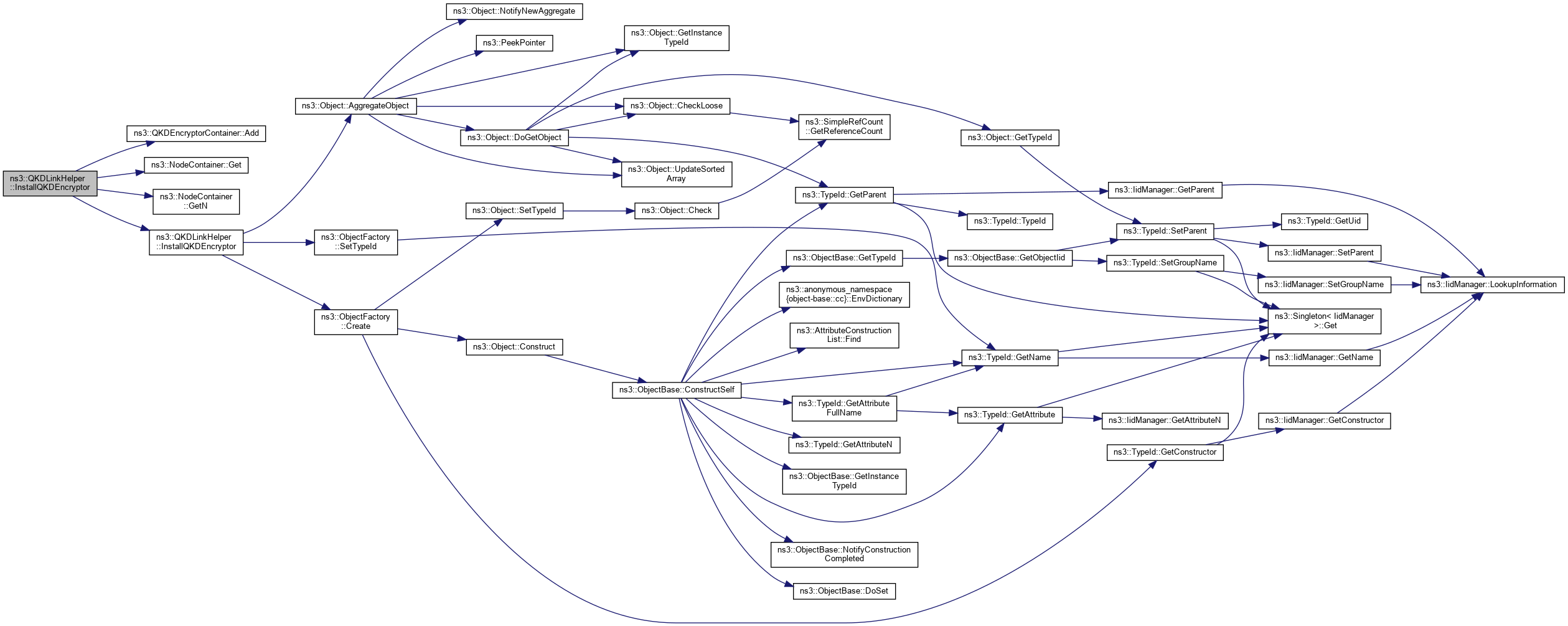

Here is the call graph for this function:

InstallQKDEncryptor() [2/2]

Ptr< QKDEncryptor > ns3::QKDLinkHelper::InstallQKDEncryptor

(

Ptr< Node >

n

)

Install QKD encryptor on a node.

Install QKDEncryptor on the node.

Parameters

node

The node.

Returns

The QKD encryptor.

Parameters

NodeContainer&

n

Definition at line 154 of file qkd-link-helper.cc.

References ns3::Object::AggregateObject(), ns3::ObjectFactory::Create(), and ns3::ObjectFactory::SetTypeId().

Referenced by InstallQKDEncryptor().

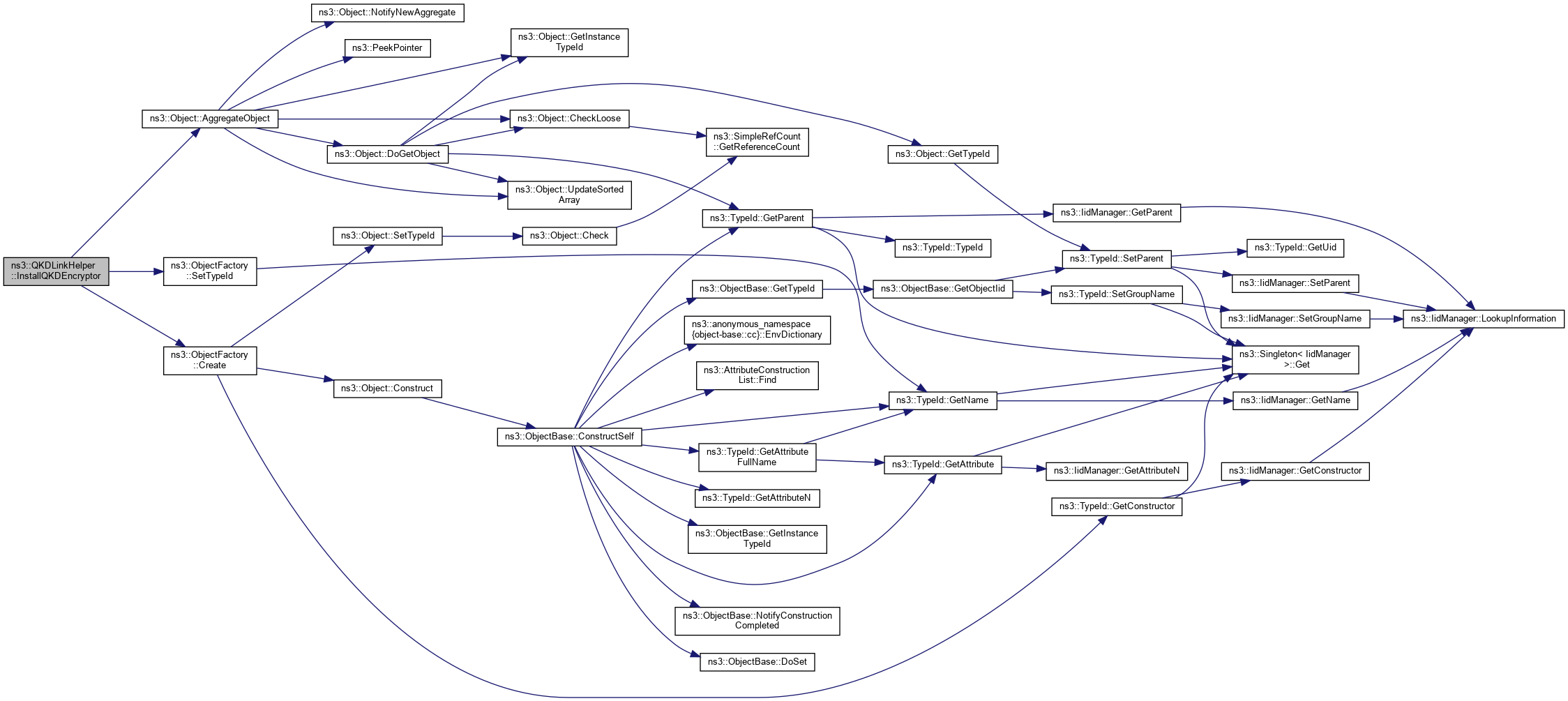

Here is the call graph for this function:

Here is the caller graph for this function:

PrintGraphs()

void ns3::QKDLinkHelper::PrintGraphs

(

)

Print graphs.

Print QKDGraphs.

Definition at line 109 of file qkd-link-helper.cc.

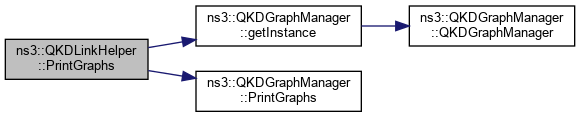

References ns3::QKDGraphManager::getInstance(), and ns3::QKDGraphManager::PrintGraphs().

Here is the call graph for this function:

Member Data Documentation

m_qkdbufferFactory

ObjectFactory ns3::QKDLinkHelper::m_qkdbufferFactory

private

Device Factory.

Definition at line 163 of file qkd-link-helper.h.

Referenced by QKDLinkHelper().

m_useRealStorages

bool ns3::QKDLinkHelper::m_useRealStorages

Wheater to use real key file storage (still in development).

Definition at line 152 of file qkd-link-helper.h.

Referenced by QKDLinkHelper(), and CreateQKDLink().

---

The documentation for this class was generated from the following files:

• src/qkd/helper/qkd-link-helper.h
• src/qkd/helper/qkd-link-helper.cc
