ns3::Icmpv4DestinationUnreachable Class Reference

ICMP Destination Unreachable header. More...

#include "icmpv4.h"

+ Inheritance diagram for ns3::Icmpv4DestinationUnreachable:

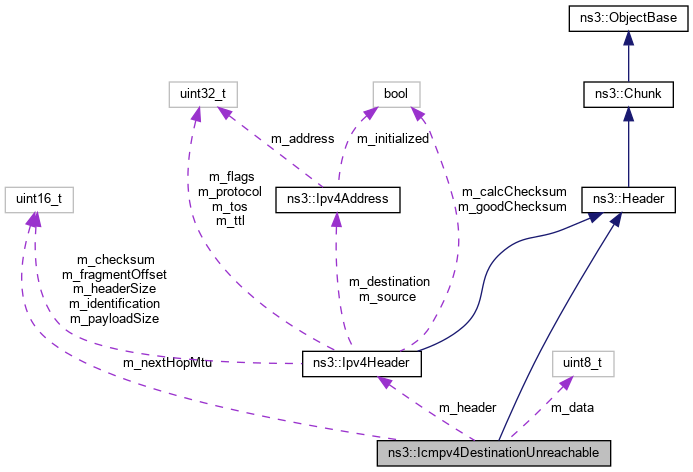

+ Collaboration diagram for ns3::Icmpv4DestinationUnreachable:

Public Types

enum  ErrorDestinationUnreachable_e {
  ICMPV4_NET_UNREACHABLE = 0 , ICMPV4_HOST_UNREACHABLE = 1 , ICMPV4_PROTOCOL_UNREACHABLE = 2 , ICMPV4_PORT_UNREACHABLE = 3 ,
  ICMPV4_FRAG_NEEDED = 4 , ICMPV4_SOURCE_ROUTE_FAILED = 5
}
 ICMP error code : Destination Unreachable. More...


Public Member Functions

 Icmpv4DestinationUnreachable ()

virtual ~Icmpv4DestinationUnreachable ()

void GetData (uint8_t payload[8]) const
 Get the ICMP carried data. More...

Ipv4Header GetHeader (void) const
 Get the ICMP carried IPv4 header. More...

uint16_t GetNextHopMtu (void) const
 Get the next hop MTU. More...

void SetData (Ptr< const Packet > data)
 Set the ICMP carried data. More...

void SetHeader (Ipv4Header header)
 Set the ICMP carried IPv4 header. More...

void SetNextHopMtu (uint16_t mtu)
 Set the next hop MTU. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get ICMP type. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Member Functions

virtual uint32_t Deserialize (Buffer::Iterator start)

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

virtual uint32_t GetSerializedSize (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const


Private Attributes

uint8_t m_data [8]
 carried data More...

Ipv4Header m_header
 carried IPv4 header More...

uint16_t m_nextHopMtu
 next hop MTU More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

ICMP Destination Unreachable header.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).

Definition at line 172 of file icmpv4.h.

Member Enumeration Documentation

◆ ErrorDestinationUnreachable_e

ICMP error code : Destination Unreachable.

Enumerator
ICMPV4_NET_UNREACHABLE
ICMPV4_HOST_UNREACHABLE
ICMPV4_PROTOCOL_UNREACHABLE
ICMPV4_PORT_UNREACHABLE
ICMPV4_FRAG_NEEDED
ICMPV4_SOURCE_ROUTE_FAILED

Definition at line 178 of file icmpv4.h.

Constructor & Destructor Documentation

◆ Icmpv4DestinationUnreachable()

ns3::Icmpv4DestinationUnreachable::Icmpv4DestinationUnreachable ( )

Definition at line 289 of file icmpv4.cc.

References m_data, and NS_LOG_FUNCTION.

◆ ~Icmpv4DestinationUnreachable()

ns3::Icmpv4DestinationUnreachable::~Icmpv4DestinationUnreachable ( )
virtual

Definition at line 339 of file icmpv4.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Icmpv4DestinationUnreachable::Deserialize ( Buffer::Iterator  start)
privatevirtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 367 of file icmpv4.cc.

References ns3::Ipv4Header::Deserialize(), ns3::Buffer::Iterator::GetDistanceFrom(), m_data, m_header, m_nextHopMtu, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

+ Here is the call graph for this function:

◆ GetData()

void ns3::Icmpv4DestinationUnreachable::GetData ( uint8_t  payload[8]) const

Get the ICMP carried data.

Parameters
payloadthe data (filled)

Definition at line 326 of file icmpv4.cc.

References m_data, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv4L4Protocol::HandleDestUnreach().

+ Here is the caller graph for this function:

◆ GetHeader()

Ipv4Header ns3::Icmpv4DestinationUnreachable::GetHeader ( void  ) const

Get the ICMP carried IPv4 header.

Returns
the header

Definition at line 332 of file icmpv4.cc.

References m_header, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv4L4Protocol::HandleDestUnreach().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::Icmpv4DestinationUnreachable::GetInstanceTypeId ( void  ) const
privatevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 343 of file icmpv4.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ GetNextHopMtu()

uint16_t ns3::Icmpv4DestinationUnreachable::GetNextHopMtu ( void  ) const

Get the next hop MTU.

Returns
the MTU

Definition at line 307 of file icmpv4.cc.

References m_nextHopMtu, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv4L4Protocol::HandleDestUnreach().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::Icmpv4DestinationUnreachable::GetSerializedSize ( void  ) const
privatevirtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 349 of file icmpv4.cc.

References ns3::Ipv4Header::GetSerializedSize(), m_header, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

◆ GetTypeId()

TypeId ns3::Icmpv4DestinationUnreachable::GetTypeId ( void  )
static

Get ICMP type.

Returns
the ICMP type

Definition at line 280 of file icmpv4.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

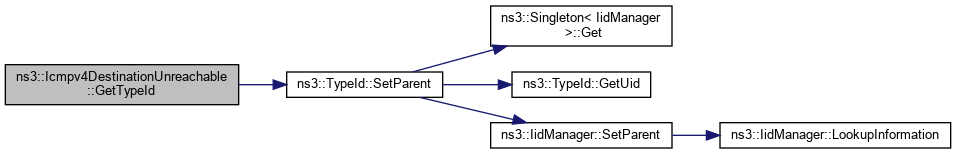

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::Icmpv4DestinationUnreachable::Print ( std::ostream &  os) const
privatevirtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 382 of file icmpv4.cc.

References m_data, m_header, NS_LOG_FUNCTION, and ns3::Ipv4Header::Print().

+ Here is the call graph for this function:

◆ Serialize()

void ns3::Icmpv4DestinationUnreachable::Serialize ( Buffer::Iterator  start) const
privatevirtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 355 of file icmpv4.cc.

References ns3::Ipv4Header::GetSerializedSize(), m_data, m_header, m_nextHopMtu, NS_LOG_FUNCTION, ns3::Ipv4Header::Serialize(), and visualizer.core::start().

+ Here is the call graph for this function:

◆ SetData()

void ns3::Icmpv4DestinationUnreachable::SetData ( Ptr< const Packet data)

Set the ICMP carried data.

Parameters
datathe data

Definition at line 314 of file icmpv4.cc.

References data, m_data, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv4L4Protocol::SendDestUnreach().

+ Here is the caller graph for this function:

◆ SetHeader()

void ns3::Icmpv4DestinationUnreachable::SetHeader ( Ipv4Header  header)

Set the ICMP carried IPv4 header.

Parameters
headerthe header

Definition at line 320 of file icmpv4.cc.

References m_header, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv4L4Protocol::SendDestUnreach().

+ Here is the caller graph for this function:

◆ SetNextHopMtu()

void ns3::Icmpv4DestinationUnreachable::SetNextHopMtu ( uint16_t  mtu)

Set the next hop MTU.

Parameters
mtuthe MTU

Definition at line 301 of file icmpv4.cc.

References m_nextHopMtu, and NS_LOG_FUNCTION.

Referenced by ns3::Icmpv4L4Protocol::SendDestUnreach().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_data

uint8_t ns3::Icmpv4DestinationUnreachable::m_data[8]
private

carried data

Definition at line 237 of file icmpv4.h.

Referenced by Icmpv4DestinationUnreachable(), Deserialize(), GetData(), Print(), Serialize(), and SetData().

◆ m_header

Ipv4Header ns3::Icmpv4DestinationUnreachable::m_header
private

carried IPv4 header

Definition at line 236 of file icmpv4.h.

Referenced by Deserialize(), GetHeader(), GetSerializedSize(), Print(), Serialize(), and SetHeader().

◆ m_nextHopMtu

uint16_t ns3::Icmpv4DestinationUnreachable::m_nextHopMtu
private

next hop MTU

Definition at line 235 of file icmpv4.h.

Referenced by Deserialize(), GetNextHopMtu(), Serialize(), and SetNextHopMtu().


The documentation for this class was generated from the following files:
