Header used by web browsing applications to transmit information about content type, content length and timestamps for delay statistics. More...

#include "http-header.h"

Inheritance diagram for ns3::HttpHeader:

Collaboration diagram for ns3::HttpHeader:

Public Types
enum	ContentType_t { NOT_SET = 0 , MAIN_OBJECT = 1 , EMBEDDED_OBJECT = 2 }
	The possible types of content (default = NOT_SET). More...

enum	HttpMethod { DELETE = 0 , GET = 1 , HEAD = 2 , PATCH = 3 , POST = 4 , PUT = 5 }

enum	HttpStatus { Continue = 100 , SwitchingProtocol = 101 , Processing = 102 , EarlyHints = 103 , Ok = 200 , Created = 201 , Accepted = 202 , NonAuthoritativeInformation = 203 , NoContent = 204 , ResetContent = 205 , PartialContent = 206 , MultiStatus = 207 , AlreadyReported = 208 , ImUsed = 226 , MultipleChoice = 300 , MovedPermanently = 301 , Found = 302 , SeeOther = 303 , NotModified = 304 , UseProxy = 305 , TemporaryRedirect = 307 , PermanentRedirect = 308 , BadRequest = 400 , Unauthorized = 401 , PaymentRequired = 402 , Forbidden = 403 , NotFound = 404 , MethodNotAllowed = 405 , NotAcceptable = 406 , ProxyAuthenticationRequired = 407 , RequestTimeout = 408 , Conflict = 409 , Gone = 410 , LengthRequired = 411 , PreconditionFailed = 412 , PayloadTooLarge = 413 , UriTooLong = 414 , UnsupportedMediaType = 415 , RangeNotSatisfiable = 416 , ExpectationFailed = 417 , ImaTeapot = 418 , MisdirectedRequest = 421 , UnprocessableEntity = 422 , Locked = 423 , FailedDependency = 424 , TooEarly = 425 , UpgradeRequired = 426 , PreconditionRequired = 428 , TooManyRequests = 429 , RequestHeaderFieldsTooLarge = 431 , UnavailableForLegalReasons = 451 , InternalServerError = 500 , NotImplemented = 501 , BadGateway = 502 , ServiceUnavailable = 503 , GatewayTimeout = 504 , HttpVersionNotSupported = 505 , VariantAlsoNegotiates = 506 , InsufficientStorage = 507 , LoopDetected = 508 , NotExtended = 510 , NetworkAuthenticationRequired = 511 }

Public Member Functions
	HttpHeader ()
	Creates an empty instance . More...

void	CreateRequest (const std::string &url, const std::string &method, const std::map< std::string, std::string > &parameters, const std::vector< std::string > &headers={})

void	CreateRequest (const std::string &url, const std::string &method, const std::vector< uint8_t > &body, const std::vector< std::string > &headers)

void	CreateRequest (const std::string &url, const std::string &method="GET", const std::string &body="", const std::vector< std::string > &headers={})

void	CreateResponse (const HttpHeader::HttpStatus status, const std::map< std::string, std::string > &body, const std::vector< std::string > &headers={})

void	CreateResponse (const HttpHeader::HttpStatus status, const std::string &body="", const std::vector< std::string > &headers={})

void	CreateResponse (const HttpHeader::HttpStatus status, const std::vector< uint8_t > &body, const std::vector< std::string > &headers)

virtual uint32_t	Deserialize (Buffer::Iterator start)

uint32_t	GetContentSize ()

uint32_t	GetHeaderSize ()

std::string	GetHeaderString ()

virtual TypeId	GetInstanceTypeId () const
	Get the most derived TypeId for this Object. More...

HttpMethod	GetMethod () const

std::vector< uint8_t >	GetPayload ()

std::string	GetPayloadString ()

std::string	GetRequestUri () const

virtual uint32_t	GetSerializedSize () const

uint32_t	GetSize () const

HttpStatus	GetStatus () const

std::string	GetStatusString () const

std::string	GetUri () const

bool	IsFragmented ()

void	ParseResponse ()

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetHeaderString (std::string input)

void	SetMethod (const std::string &m)

void	SetMethod (HttpMethod method)

void	SetStatus (HttpStatus status)

void	SetUri (const std::string &url)

std::string	ToString () const

std::string	urlEncode (const std::string &str)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Returns the object TypeId. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
std::vector< uint8_t >	m_allData

uint32_t	m_contentLength
	" Content length field (in bytes unit). More...

uint16_t	m_contentType
	" Content type field in integer format. More...

std::string	m_domain

bool	m_fragmented

std::vector< std::string >	m_headers

uint32_t	m_headerSize

uint16_t	m_method
	" Connection method field in integer format. More...

std::string	m_path

std::vector< uint8_t >	m_payload

std::string	m_request_uri

std::string	m_scheme

uint16_t	m_status
	" Connection status field in integer format. More...

std::string	m_uri

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Header used by web browsing applications to transmit information about content type, content length and timestamps for delay statistics.

The header contains the following fields (and their respective size when serialized):

content type (2 bytes);
content length (4 bytes);
client time stamp (8 bytes); and
server time stamp (8 bytes).

The header is attached to every packet transmitted by HttpClient and HttpServer applications. In received, split packets, only the first packet of transmitted object contains the header, which helps to identify how many bytes are left to be received.

The last 2 fields allow the applications to compute the propagation delay of each packet. The client TS field indicates the time when the request packet is sent by the HttpClient, while the server TS field indicates the time when the response packet is sent by the HttpServer.

Definition at line 56 of file http-header.h.

Member Enumeration Documentation

◆ ContentType_t

enum ns3::HttpHeader::ContentType_t

The possible types of content (default = NOT_SET).

Enumerator
NOT_SET	Integer equivalent = 0.
MAIN_OBJECT	Integer equivalent = 1.
EMBEDDED_OBJECT	Integer equivalent = 2.

Definition at line 62 of file http-header.h.

◆ HttpMethod

enum ns3::HttpHeader::HttpMethod

Enumerator
DELETE	Http Method Delete.
GET	Http Method GET.
HEAD	Http Method Head.
PATCH	Http Method Patch.
POST	Http Method Post.
PUT	Http Method Put.

Definition at line 69 of file http-header.h.

◆ HttpStatus

enum ns3::HttpHeader::HttpStatus

Enumerator
Continue
SwitchingProtocol
Processing
EarlyHints
Ok
Created
Accepted
NonAuthoritativeInformation
NoContent
ResetContent
PartialContent
MultiStatus
AlreadyReported
ImUsed
MultipleChoice
MovedPermanently
Found
SeeOther
NotModified
UseProxy
TemporaryRedirect
PermanentRedirect
BadRequest
Unauthorized
PaymentRequired
Forbidden
NotFound
MethodNotAllowed
NotAcceptable
ProxyAuthenticationRequired
RequestTimeout
Conflict
Gone
LengthRequired
PreconditionFailed
PayloadTooLarge
UriTooLong
UnsupportedMediaType
RangeNotSatisfiable
ExpectationFailed
ImaTeapot
MisdirectedRequest
UnprocessableEntity
Locked
FailedDependency
TooEarly
UpgradeRequired
PreconditionRequired
TooManyRequests
RequestHeaderFieldsTooLarge
UnavailableForLegalReasons
InternalServerError
NotImplemented
BadGateway
ServiceUnavailable
GatewayTimeout
HttpVersionNotSupported
VariantAlsoNegotiates
InsufficientStorage
LoopDetected
NotExtended
NetworkAuthenticationRequired

Definition at line 78 of file http-header.h.

Constructor & Destructor Documentation

◆ HttpHeader()

ns3::HttpHeader::HttpHeader ( )

Creates an empty instance .

Definition at line 33 of file http-header.cc.

References m_fragmented, and NS_LOG_FUNCTION.

Member Function Documentation

◆ CreateRequest() [1/3]

void ns3::HttpHeader::CreateRequest	(	const std::string &	url,
		const std::string &	method,
		const std::map< std::string, std::string > &	parameters,
		const std::vector< std::string > &	headers = `{}`
	)

Definition at line 44 of file http-header.cc.

References NS_LOG_FUNCTION, and urlEncode().

Referenced by CreateRequest().

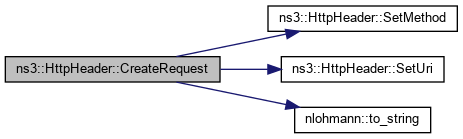

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateRequest() [2/3]

void ns3::HttpHeader::CreateRequest	(	const std::string &	url,
		const std::string &	method,
		const std::vector< uint8_t > &	body,
		const std::vector< std::string > &	headers
	)

Definition at line 84 of file http-header.cc.

References m_allData, m_contentLength, m_domain, m_headers, m_headerSize, m_path, m_payload, NS_LOG_FUNCTION, SetMethod(), SetUri(), and nlohmann::to_string().

Here is the call graph for this function:

◆ CreateRequest() [3/3]

void ns3::HttpHeader::CreateRequest	(	const std::string &	url,
		const std::string &	method = `"GET"`,
		const std::string &	body = `""`,
		const std::vector< std::string > &	headers = `{}`
	)

Definition at line 67 of file http-header.cc.

References CreateRequest(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ CreateResponse() [1/3]

void ns3::HttpHeader::CreateResponse	(	const HttpHeader::HttpStatus	status,
		const std::map< std::string, std::string > &	body,
		const std::vector< std::string > &	headers = `{}`
	)

Referenced by CreateResponse().

Here is the caller graph for this function:

◆ CreateResponse() [2/3]

void ns3::HttpHeader::CreateResponse	(	const HttpHeader::HttpStatus	status,
		const std::string &	body = `""`,
		const std::vector< std::string > &	headers = `{}`
	)

Definition at line 141 of file http-header.cc.

References CreateResponse().

Here is the call graph for this function:

◆ CreateResponse() [3/3]

void ns3::HttpHeader::CreateResponse	(	const HttpHeader::HttpStatus	status,
		const std::vector< uint8_t > &	body,
		const std::vector< std::string > &	headers
	)

Definition at line 154 of file http-header.cc.

References GetPayloadString(), GetStatusString(), m_allData, m_contentLength, m_headers, m_payload, m_status, NS_LOG_FUNCTION, SetStatus(), and nlohmann::to_string().

Here is the call graph for this function:

◆ Deserialize()

uint32_t ns3::HttpHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 518 of file http-header.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), GetSerializedSize(), m_allData, m_contentLength, m_headers, m_payload, NS_ASSERT, NS_LOG_FUNCTION, ParseResponse(), ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU32(), and visualizer.core::start().

Here is the call graph for this function:

◆ GetContentSize()

uint32_t ns3::HttpHeader::GetContentSize ( )

Definition at line 581 of file http-header.cc.

References m_contentLength, and NS_LOG_FUNCTION.

◆ GetHeaderSize()

uint32_t ns3::HttpHeader::GetHeaderSize ( )

Definition at line 576 of file http-header.cc.

References m_headerSize.

◆ GetHeaderString()

std::string ns3::HttpHeader::GetHeaderString ( )

Definition at line 410 of file http-header.cc.

References m_allData, m_contentLength, m_headerSize, and NS_LOG_FUNCTION.

◆ GetInstanceTypeId()

TypeId ns3::HttpHeader::GetInstanceTypeId ( ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 489 of file http-header.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetMethod()

HttpHeader::HttpMethod ns3::HttpHeader::GetMethod ( ) const

Returns: The connection method.

Definition at line 1197 of file http-header.cc.

References DELETE, GET, HEAD, m_method, NS_FATAL_ERROR, PATCH, POST, and PUT.

◆ GetPayload()

std::vector<uint8_t> ns3::HttpHeader::GetPayload ( )

inline

Definition at line 210 of file http-header.h.

References m_payload.

◆ GetPayloadString()

std::string ns3::HttpHeader::GetPayloadString ( )

inline

Definition at line 214 of file http-header.h.

References m_headers, m_payload, and ParseResponse().

Referenced by CreateResponse().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRequestUri()

std::string ns3::HttpHeader::GetRequestUri ( ) const

Returns: The request uri value

Definition at line 1282 of file http-header.cc.

References m_request_uri.

◆ GetSerializedSize()

uint32_t ns3::HttpHeader::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 495 of file http-header.cc.

References m_contentLength, and m_headerSize.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ GetSize()

uint32_t ns3::HttpHeader::GetSize ( void ) const

Returns: The content length (in bytes).

Definition at line 587 of file http-header.cc.

References m_contentLength, and m_headerSize.

◆ GetStatus()

HttpHeader::HttpStatus ns3::HttpHeader::GetStatus ( ) const

Returns: The connection status.

Definition at line 795 of file http-header.cc.

References Accepted, AlreadyReported, BadGateway, BadRequest, Conflict, Continue, Created, EarlyHints, ExpectationFailed, FailedDependency, Forbidden, Found, GatewayTimeout, Gone, HttpVersionNotSupported, ImaTeapot, ImUsed, InsufficientStorage, InternalServerError, LengthRequired, Locked, LoopDetected, m_status, MethodNotAllowed, MisdirectedRequest, MovedPermanently, MultipleChoice, MultiStatus, NetworkAuthenticationRequired, NoContent, NonAuthoritativeInformation, NotAcceptable, NotExtended, NotFound, NotImplemented, NotModified, NS_FATAL_ERROR, Ok, PartialContent, PayloadTooLarge, PaymentRequired, PermanentRedirect, PreconditionFailed, PreconditionRequired, Processing, ProxyAuthenticationRequired, RangeNotSatisfiable, RequestHeaderFieldsTooLarge, RequestTimeout, ResetContent, SeeOther, ServiceUnavailable, SwitchingProtocol, TemporaryRedirect, TooEarly, TooManyRequests, Unauthorized, UnavailableForLegalReasons, UnprocessableEntity, UnsupportedMediaType, UpgradeRequired, UriTooLong, UseProxy, and VariantAlsoNegotiates.

◆ GetStatusString()

std::string ns3::HttpHeader::GetStatusString ( ) const

Definition at line 999 of file http-header.cc.

References m_status, and NS_FATAL_ERROR.

Referenced by CreateResponse().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::HttpHeader::GetTypeId ( void )

static

Returns the object TypeId.

Returns: The object TypeId.

Definition at line 479 of file http-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetUri()

std::string ns3::HttpHeader::GetUri ( ) const

Returns: The uri value

Definition at line 1276 of file http-header.cc.

References m_uri.

◆ IsFragmented()

bool ns3::HttpHeader::IsFragmented ( )

inline

Definition at line 275 of file http-header.h.

References m_fragmented.

◆ ParseResponse()

void ns3::HttpHeader::ParseResponse ( )

Definition at line 204 of file http-header.cc.

References m_allData, m_contentLength, m_fragmented, m_headers, m_headerSize, m_payload, m_request_uri, m_status, m_uri, min, NS_FATAL_ERROR, NS_LOG_FUNCTION, and SetMethod().

Referenced by Deserialize(), GetPayloadString(), and SetHeaderString().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::HttpHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 557 of file http-header.cc.

References m_allData, m_contentLength, m_headerSize, and NS_LOG_FUNCTION.

Referenced by ToString().

Here is the caller graph for this function:

◆ Serialize()

void ns3::HttpHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 501 of file http-header.cc.

References m_allData, m_contentLength, NS_LOG_FUNCTION, and visualizer.core::start().

Here is the call graph for this function:
