ns3::EpcX2SnStatusTransferHeader Class Reference

EpcX2SnStatusTransferHeader. More...

#include "epc-x2-header.h"

+ Inheritance diagram for ns3::EpcX2SnStatusTransferHeader:

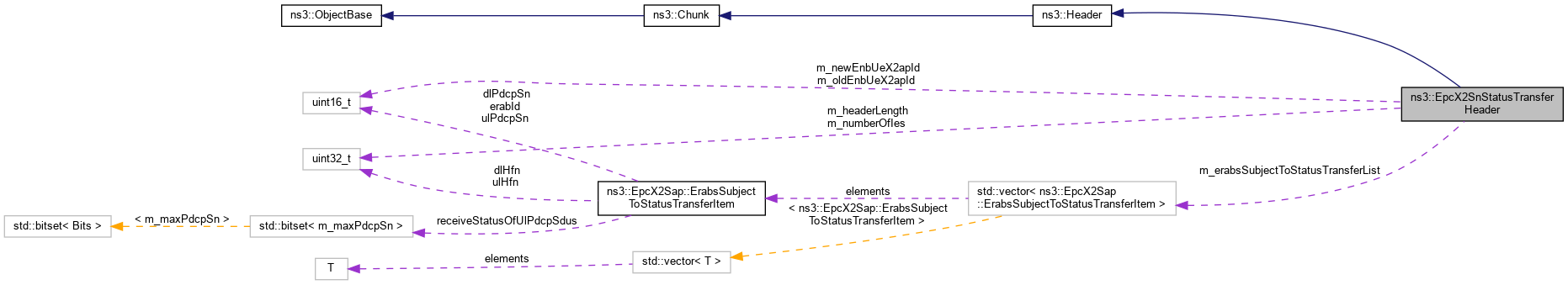

+ Collaboration diagram for ns3::EpcX2SnStatusTransferHeader:

Public Member Functions

 EpcX2SnStatusTransferHeader ()

virtual ~EpcX2SnStatusTransferHeader ()

virtual uint32_t Deserialize (Buffer::Iterator start)

std::vector< EpcX2Sap::ErabsSubjectToStatusTransferItemGetErabsSubjectToStatusTransferList () const
 Get ERABs subject to status transfer list function. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

uint32_t GetLengthOfIes () const
 Get length of IEs function. More...

uint16_t GetNewEnbUeX2apId () const
 Get new ENB UE X2 AP ID function. More...

uint32_t GetNumberOfIes () const
 Get number of IEs function. More...

uint16_t GetOldEnbUeX2apId () const
 Get old ENB UE X2 AP ID function. More...

virtual uint32_t GetSerializedSize (void) const

virtual void Print (std::ostream &os) const

virtual void Serialize (Buffer::Iterator start) const

void SetErabsSubjectToStatusTransferList (std::vector< EpcX2Sap::ErabsSubjectToStatusTransferItem > erabs)
 Set ERABs subject to status transfer list function. More...

void SetNewEnbUeX2apId (uint16_t x2apId)
 Set new ENB UE X2 AP ID function. More...

void SetOldEnbUeX2apId (uint16_t x2apId)
 Set old ENB UE X2 AP ID function. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

std::vector< EpcX2Sap::ErabsSubjectToStatusTransferItemm_erabsSubjectToStatusTransferList
 ERABs subject to status transfer list. More...

uint32_t m_headerLength
 header length More...

uint16_t m_newEnbUeX2apId
 new ENB UE X2 AP ID More...

uint32_t m_numberOfIes
 number of IEs More...

uint16_t m_oldEnbUeX2apId
 old ENB UE X2 AP ID More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

EpcX2SnStatusTransferHeader.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 48 bytes (on a 64-bit architecture).

Definition at line 397 of file epc-x2-header.h.

Constructor & Destructor Documentation

◆ EpcX2SnStatusTransferHeader()

ns3::EpcX2SnStatusTransferHeader::EpcX2SnStatusTransferHeader ( )

Definition at line 791 of file epc-x2-header.cc.

References m_erabsSubjectToStatusTransferList.

◆ ~EpcX2SnStatusTransferHeader()

ns3::EpcX2SnStatusTransferHeader::~EpcX2SnStatusTransferHeader ( )
virtual

Member Function Documentation

◆ Deserialize()

uint32_t ns3::EpcX2SnStatusTransferHeader::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 868 of file epc-x2-header.cc.

References ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::dlHfn, ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::dlPdcpSn, ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::erabId, GetSerializedSize(), bianchi11ax::k, m_erabsSubjectToStatusTransferList, m_headerLength, ns3::EpcX2Sap::m_maxPdcpSn, m_newEnbUeX2apId, m_numberOfIes, m_oldEnbUeX2apId, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadNtohU64(), ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::receiveStatusOfUlPdcpSdus, visualizer.core::start(), ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::ulHfn, and ns3::EpcX2Sap::ErabsSubjectToStatusTransferItem::ulPdcpSn.

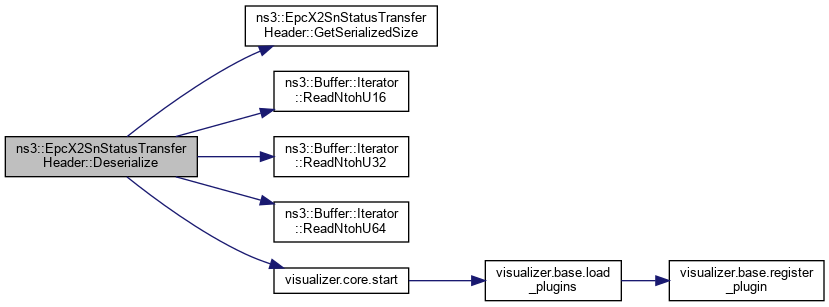

+ Here is the call graph for this function:

◆ GetErabsSubjectToStatusTransferList()

std::vector< EpcX2Sap::ErabsSubjectToStatusTransferItem > ns3::EpcX2SnStatusTransferHeader::GetErabsSubjectToStatusTransferList ( ) const

Get ERABs subject to status transfer list function.

Returns
std::vector <EpcX2Sap::ErabsSubjectToStatusTransferItem>

Definition at line 956 of file epc-x2-header.cc.

References m_erabsSubjectToStatusTransferList.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::EpcX2SnStatusTransferHeader::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 821 of file epc-x2-header.cc.

References GetTypeId().

+ Here is the call graph for this function:

◆ GetLengthOfIes()

uint32_t ns3::EpcX2SnStatusTransferHeader::GetLengthOfIes ( ) const

Get length of IEs function.

Returns
the length of IEs

Definition at line 969 of file epc-x2-header.cc.

References m_headerLength.

Referenced by ns3::EpcX2::DoSendSnStatusTransfer().

+ Here is the caller graph for this function:

◆ GetNewEnbUeX2apId()

uint16_t ns3::EpcX2SnStatusTransferHeader::GetNewEnbUeX2apId ( ) const

Get new ENB UE X2 AP ID function.

Returns
the new ENB UE X2AP ID

Definition at line 944 of file epc-x2-header.cc.

References m_newEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetNumberOfIes()

uint32_t ns3::EpcX2SnStatusTransferHeader::GetNumberOfIes ( ) const

Get number of IEs function.

Returns
the number of IEs

Definition at line 975 of file epc-x2-header.cc.

References m_numberOfIes.

Referenced by ns3::EpcX2::DoSendSnStatusTransfer().

+ Here is the caller graph for this function:

◆ GetOldEnbUeX2apId()

uint16_t ns3::EpcX2SnStatusTransferHeader::GetOldEnbUeX2apId ( ) const

Get old ENB UE X2 AP ID function.

Returns
the old ENB UE X2 AP ID

Definition at line 932 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::EpcX2SnStatusTransferHeader::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 827 of file epc-x2-header.cc.

References m_headerLength.

Referenced by Deserialize().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::EpcX2SnStatusTransferHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 810 of file epc-x2-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::EpcX2SnStatusTransferHeader::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 906 of file epc-x2-header.cc.

References m_erabsSubjectToStatusTransferList, m_newEnbUeX2apId, and m_oldEnbUeX2apId.

◆ Serialize()

void ns3::EpcX2SnStatusTransferHeader::Serialize ( Buffer::Iterator  start) const
virtual

◆ SetErabsSubjectToStatusTransferList()

void ns3::EpcX2SnStatusTransferHeader::SetErabsSubjectToStatusTransferList ( std::vector< EpcX2Sap::ErabsSubjectToStatusTransferItem erabs)

Set ERABs subject to status transfer list function.

Parameters
erabsstd::vector <EpcX2Sap::ErabsSubjectToStatusTransferItem>

Definition at line 962 of file epc-x2-header.cc.

References m_erabsSubjectToStatusTransferList, m_headerLength, and ns3::EpcX2Sap::m_maxPdcpSn.

Referenced by ns3::EpcX2::DoSendSnStatusTransfer().

+ Here is the caller graph for this function:

◆ SetNewEnbUeX2apId()

void ns3::EpcX2SnStatusTransferHeader::SetNewEnbUeX2apId ( uint16_t  x2apId)

Set new ENB UE X2 AP ID function.

Parameters
x2apIdthe new ENB UE X2AP ID

Definition at line 950 of file epc-x2-header.cc.

References m_newEnbUeX2apId.

Referenced by ns3::EpcX2::DoSendSnStatusTransfer().

+ Here is the caller graph for this function:

◆ SetOldEnbUeX2apId()

void ns3::EpcX2SnStatusTransferHeader::SetOldEnbUeX2apId ( uint16_t  x2apId)

Set old ENB UE X2 AP ID function.

Parameters
x2apIdthe old ENB UE X2 AP ID

Definition at line 938 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::DoSendSnStatusTransfer().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_erabsSubjectToStatusTransferList

std::vector<EpcX2Sap::ErabsSubjectToStatusTransferItem> ns3::EpcX2SnStatusTransferHeader::m_erabsSubjectToStatusTransferList
private

◆ m_headerLength

uint32_t ns3::EpcX2SnStatusTransferHeader::m_headerLength
private

◆ m_newEnbUeX2apId

uint16_t ns3::EpcX2SnStatusTransferHeader::m_newEnbUeX2apId
private

new ENB UE X2 AP ID

Definition at line 464 of file epc-x2-header.h.

Referenced by ~EpcX2SnStatusTransferHeader(), Deserialize(), GetNewEnbUeX2apId(), Print(), Serialize(), and SetNewEnbUeX2apId().

◆ m_numberOfIes

uint32_t ns3::EpcX2SnStatusTransferHeader::m_numberOfIes
private

number of IEs

Definition at line 460 of file epc-x2-header.h.

Referenced by ~EpcX2SnStatusTransferHeader(), Deserialize(), and GetNumberOfIes().

◆ m_oldEnbUeX2apId

uint16_t ns3::EpcX2SnStatusTransferHeader::m_oldEnbUeX2apId
private

old ENB UE X2 AP ID

Definition at line 463 of file epc-x2-header.h.

Referenced by ~EpcX2SnStatusTransferHeader(), Deserialize(), GetOldEnbUeX2apId(), Print(), Serialize(), and SetOldEnbUeX2apId().


The documentation for this class was generated from the following files:
