ns3::DsssPpdu::DsssSigHeader Class Reference

DSSS SIG PHY header. More...

#include "dsss-ppdu.h"

+ Inheritance diagram for ns3::DsssPpdu::DsssSigHeader:
+ Collaboration diagram for ns3::DsssPpdu::DsssSigHeader:

Public Member Functions

 DsssSigHeader ()

virtual ~DsssSigHeader ()

uint32_t Deserialize (Buffer::Iterator start) override

TypeId GetInstanceTypeId (void) const override
 Get the most derived TypeId for this Object. More...

uint16_t GetLength (void) const
 Return the LENGTH field of L-SIG (in bytes). More...

uint64_t GetRate (void) const
 Return the RATE field of L-SIG (in bit/s). More...

uint32_t GetSerializedSize (void) const override

void Print (std::ostream &os) const override

void Serialize (Buffer::Iterator start) const override

void SetLength (uint16_t length)
 Fill the LENGTH field of L-SIG (in bytes). More...

void SetRate (uint64_t rate)
 Fill the RATE field of L-SIG (in bit/s). More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint16_t m_length
 LENGTH field. More...

uint8_t m_rate
 RATE field. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

DSSS SIG PHY header.

See section 16.2.2 in IEEE 802.11-2016.

Definition at line 53 of file dsss-ppdu.h.

Constructor & Destructor Documentation

◆ DsssSigHeader()

ns3::DsssPpdu::DsssSigHeader::DsssSigHeader ( )

Definition at line 71 of file dsss-ppdu.cc.

◆ ~DsssSigHeader()

ns3::DsssPpdu::DsssSigHeader::~DsssSigHeader ( )
virtual

Definition at line 77 of file dsss-ppdu.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::DsssPpdu::DsssSigHeader::Deserialize ( Buffer::Iterator  start)
overridevirtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 187 of file dsss-ppdu.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

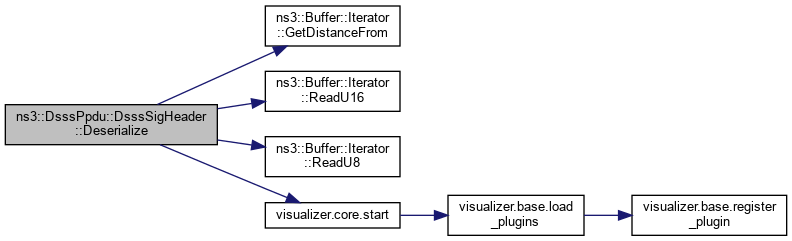

+ Here is the call graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::DsssPpdu::DsssSigHeader::GetInstanceTypeId ( void  ) const
overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 93 of file dsss-ppdu.cc.

◆ GetLength()

uint16_t ns3::DsssPpdu::DsssSigHeader::GetLength ( void  ) const

Return the LENGTH field of L-SIG (in bytes).

Returns
the LENGTH field of L-SIG expressed in bytes

Definition at line 172 of file dsss-ppdu.cc.

Referenced by ns3::DsssPpdu::GetTxDuration().

+ Here is the caller graph for this function:

◆ GetRate()

uint64_t ns3::DsssPpdu::DsssSigHeader::GetRate ( void  ) const

Return the RATE field of L-SIG (in bit/s).

Returns
the RATE field of L-SIG expressed in bit/s

Definition at line 141 of file dsss-ppdu.cc.

References NS_ASSERT_MSG.

Referenced by ns3::DsssPpdu::DoGetTxVector().

+ Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::DsssPpdu::DsssSigHeader::GetSerializedSize ( void  ) const
overridevirtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 106 of file dsss-ppdu.cc.

◆ GetTypeId()

TypeId ns3::DsssPpdu::DsssSigHeader::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 82 of file dsss-ppdu.cc.

References ns3::TypeId::SetParent().

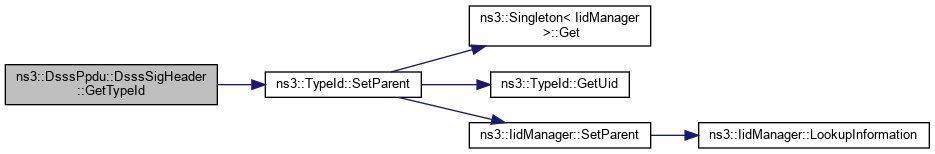

+ Here is the call graph for this function:

◆ Print()

void ns3::DsssPpdu::DsssSigHeader::Print ( std::ostream &  os) const
overridevirtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 99 of file dsss-ppdu.cc.

◆ Serialize()

void ns3::DsssPpdu::DsssSigHeader::Serialize ( Buffer::Iterator  start) const
overridevirtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 178 of file dsss-ppdu.cc.

References visualizer.core::start().

+ Here is the call graph for this function:

◆ SetLength()

void ns3::DsssPpdu::DsssSigHeader::SetLength ( uint16_t  length)

Fill the LENGTH field of L-SIG (in bytes).

Parameters
lengththe LENGTH field of L-SIG expressed in bytes

Definition at line 166 of file dsss-ppdu.cc.

Referenced by ns3::DsssPpdu::DsssPpdu().

+ Here is the caller graph for this function:

◆ SetRate()

void ns3::DsssPpdu::DsssSigHeader::SetRate ( uint64_t  rate)

Fill the RATE field of L-SIG (in bit/s).

Parameters
ratethe RATE field of L-SIG expressed in bit/s

Definition at line 112 of file dsss-ppdu.cc.

References NS_ASSERT_MSG.

Referenced by ns3::DsssPpdu::DsssPpdu().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_length

uint16_t ns3::DsssPpdu::DsssSigHeader::m_length
private

LENGTH field.

Definition at line 98 of file dsss-ppdu.h.

◆ m_rate

uint8_t ns3::DsssPpdu::DsssSigHeader::m_rate
private

RATE field.

Definition at line 97 of file dsss-ppdu.h.


The documentation for this class was generated from the following files:
