ns3::DsaAck Class Reference

This class implements the DSA-ACK message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.12 DSA-ACK message, page 64. More...

#include "mac-messages.h"

+ Inheritance diagram for ns3::DsaAck:

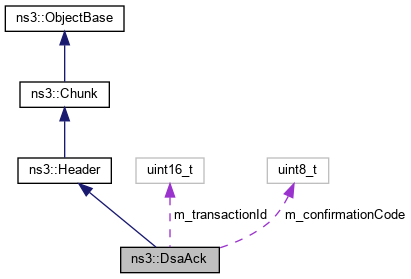

+ Collaboration diagram for ns3::DsaAck:

Public Member Functions

 DsaAck (void)

 ~DsaAck (void)

uint32_t Deserialize (Buffer::Iterator start)

uint16_t GetConfirmationCode (void) const
 Get confirmation code field. More...

virtual TypeId GetInstanceTypeId (void) const
 Get the most derived TypeId for this Object. More...

std::string GetName (void) const
 Get name field. More...

uint32_t GetSerializedSize (void) const

uint16_t GetTransactionId (void) const
 Get transaction ID field. More...

void Print (std::ostream &os) const

void Serialize (Buffer::Iterator start) const

void SetConfirmationCode (uint16_t confirmationCode)
 Set confirmation code field. More...

void SetTransactionId (uint16_t transactionId)
 Set transaction ID field. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint8_t m_confirmationCode
 confirmation code More...

uint16_t m_transactionId
 transaction ID More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

This class implements the DSA-ACK message described by "IEEE Standard for Local and metropolitan area networks Part 16: Air Interface for Fixed Broadband Wireless Access Systems" 6.3.2.3.12 DSA-ACK message, page 64.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 16 bytes (on a 64-bit architecture).

Definition at line 572 of file mac-messages.h.

Constructor & Destructor Documentation

◆ DsaAck()

ns3::DsaAck::DsaAck ( void  )

Definition at line 779 of file mac-messages.cc.

◆ ~DsaAck()

ns3::DsaAck::~DsaAck ( void  )

Definition at line 785 of file mac-messages.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::DsaAck::Deserialize ( Buffer::Iterator  start)
virtual
Parameters
startan iterator which points to where the header should read from.
Returns
the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 857 of file mac-messages.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), m_confirmationCode, m_transactionId, ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

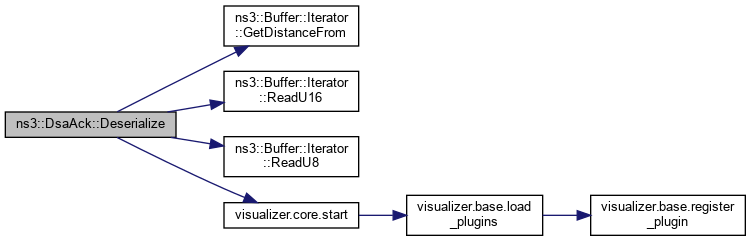

+ Here is the call graph for this function:

◆ GetConfirmationCode()

uint16_t ns3::DsaAck::GetConfirmationCode ( void  ) const

Get confirmation code field.

Returns
the confirmation code

Definition at line 808 of file mac-messages.cc.

References m_confirmationCode.

◆ GetInstanceTypeId()

TypeId ns3::DsaAck::GetInstanceTypeId ( void  ) const
virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns
The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 831 of file mac-messages.cc.

References GetTypeId().

+ Here is the call graph for this function:

◆ GetName()

std::string ns3::DsaAck::GetName ( void  ) const

Get name field.

Returns
the name string

Definition at line 814 of file mac-messages.cc.

◆ GetSerializedSize()

uint32_t ns3::DsaAck::GetSerializedSize ( void  ) const
virtual
Returns
the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 843 of file mac-messages.cc.

◆ GetTransactionId()

uint16_t ns3::DsaAck::GetTransactionId ( void  ) const

Get transaction ID field.

Returns
the transaction ID

Definition at line 796 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::BsServiceFlowManager::ProcessDsaAck().

+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::DsaAck::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 820 of file mac-messages.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

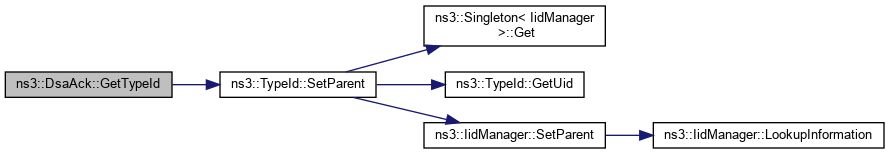

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::DsaAck::Print ( std::ostream &  os) const
virtual
Parameters
osoutput stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 837 of file mac-messages.cc.

References m_confirmationCode, and m_transactionId.

◆ Serialize()

void ns3::DsaAck::Serialize ( Buffer::Iterator  start) const
virtual
Parameters
startan iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 849 of file mac-messages.cc.

References m_confirmationCode, m_transactionId, visualizer.core::start(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

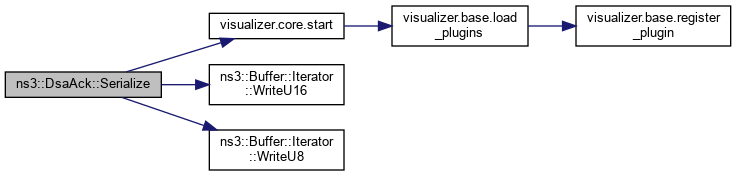

+ Here is the call graph for this function:

◆ SetConfirmationCode()

void ns3::DsaAck::SetConfirmationCode ( uint16_t  confirmationCode)

Set confirmation code field.

Parameters
confirmationCodethe confirmation code

Definition at line 802 of file mac-messages.cc.

References m_confirmationCode.

Referenced by ns3::SsServiceFlowManager::CreateDsaAck().

+ Here is the caller graph for this function:

◆ SetTransactionId()

void ns3::DsaAck::SetTransactionId ( uint16_t  transactionId)

Set transaction ID field.

Parameters
transactionIdthe transaction ID

Definition at line 790 of file mac-messages.cc.

References m_transactionId.

Referenced by ns3::SsServiceFlowManager::CreateDsaAck().

+ Here is the caller graph for this function:

Member Data Documentation

◆ m_confirmationCode

uint8_t ns3::DsaAck::m_confirmationCode
private

confirmation code

Definition at line 618 of file mac-messages.h.

Referenced by Deserialize(), GetConfirmationCode(), Print(), Serialize(), and SetConfirmationCode().

◆ m_transactionId

uint16_t ns3::DsaAck::m_transactionId
private

transaction ID

Definition at line 617 of file mac-messages.h.

Referenced by Deserialize(), GetTransactionId(), Print(), Serialize(), and SetTransactionId().


The documentation for this class was generated from the following files:
