Header of IPv6 Extension Destination. More...
#include "ipv6-extension-header.h"

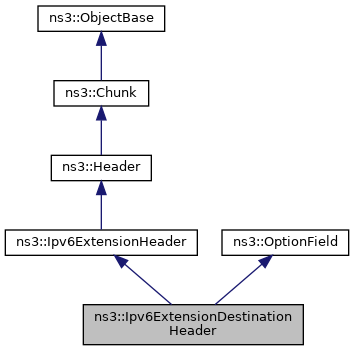

Inheritance diagram for ns3::Ipv6ExtensionDestinationHeader: Collaboration diagram for ns3::Ipv6ExtensionDestinationHeader:Public Member Functions | |
| Ipv6ExtensionDestinationHeader () | |
| Constructor. More... | |
| ~Ipv6ExtensionDestinationHeader () override | |
| Destructor. More... | |
| uint32_t | Deserialize (Buffer::Iterator start) override |
| Deserialize the packet. More... | |
| TypeId | GetInstanceTypeId () const override |
| Get the instance type ID. More... | |
| uint32_t | GetSerializedSize () const override |
| Get the serialized size of the packet. More... | |
| void | Print (std::ostream &os) const override |
| Print some information about the packet. More... | |
| void | Serialize (Buffer::Iterator start) const override |
| Serialize the packet. More... | |
| Public Member Functions inherited from ns3::Ipv6ExtensionHeader | |
| Ipv6ExtensionHeader () | |
| Constructor. More... | |
| ~Ipv6ExtensionHeader () override | |
| Destructor. More... | |
| uint16_t | GetLength () const |
| Get the length of the extension. More... | |
| uint8_t | GetNextHeader () const |
| Get the next header. More... | |
| void | SetLength (uint16_t length) |
| brief Set the length of the extension. More... | |
| void | SetNextHeader (uint8_t nextHeader) |
| Set the "Next header" field. More... | |
| Public Member Functions inherited from ns3::Header | |
| ~Header () override | |
| virtual uint32_t | Deserialize (Buffer::Iterator start)=0 |
| Deserialize the object from a buffer iterator. More... | |
| virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
| Deserialize the object from a buffer iterator. More... | |
| Public Member Functions inherited from ns3::Chunk | |
| virtual uint32_t | Deserialize (Buffer::Iterator start, Buffer::Iterator end) |
| Deserialize the object from a buffer iterator. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising errors. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
| Public Member Functions inherited from ns3::OptionField | |
| OptionField (uint32_t optionsOffset) | |
| Constructor. More... | |
| ~OptionField () | |
| Destructor. More... | |
| void | AddOption (const Ipv6OptionHeader &option) |
| Serialize the option, prepending pad1 or padn option as necessary. More... | |
| uint32_t | Deserialize (Buffer::Iterator start, uint32_t length) |
| Deserialize the packet. More... | |
| Buffer | GetOptionBuffer () |
| Get the buffer. More... | |
| uint32_t | GetOptionsOffset () const |
| Get the offset where the options begin, measured from the start of the extension header. More... | |
| uint32_t | GetSerializedSize () const |
| Get the serialized size of the packet. More... | |
| void | Serialize (Buffer::Iterator start) const |
| Serialize all added options. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Ipv6ExtensionHeader | |
| static TypeId | GetTypeId () |
| Get the type identificator. More... | |
| Static Public Member Functions inherited from ns3::Header | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::Chunk | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId () |
| Get the type ID. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted () |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Protected Attributes inherited from ns3::Ipv6ExtensionHeader | |
| uint8_t | m_length |
| The "length" field. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid () |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Header of IPv6 Extension Destination.
Definition at line 277 of file ipv6-extension-header.h.
| ns3::Ipv6ExtensionDestinationHeader::Ipv6ExtensionDestinationHeader | ( | ) |
Constructor.
Definition at line 310 of file ipv6-extension-header.cc.
|
override |
Destructor.
Definition at line 315 of file ipv6-extension-header.cc.
|
overridevirtual |
Deserialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6ExtensionHeader.
Definition at line 343 of file ipv6-extension-header.cc.
References ns3::OptionField::Deserialize(), ns3::Ipv6ExtensionHeader::GetLength(), GetSerializedSize(), ns3::Ipv6ExtensionHeader::m_length, ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6ExtensionHeader::SetNextHeader(), and two-ray-to-three-gpp-ch-calibration::start.
Referenced by ns3::SixLowPanNetDevice::DecompressLowPanNhc().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Get the instance type ID.
Reimplemented from ns3::Ipv6ExtensionHeader.
Definition at line 305 of file ipv6-extension-header.cc.
References GetTypeId().
Here is the call graph for this function:
|
overridevirtual |
Get the serialized size of the packet.
Reimplemented from ns3::Ipv6ExtensionHeader.
Definition at line 327 of file ipv6-extension-header.cc.
References ns3::OptionField::GetSerializedSize().
Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), Deserialize(), TestEmptyOptionField::DoRun(), TestOptionWithoutAlignment::DoRun(), TestOptionWithAlignment::DoRun(), TestFulfilledAlignment::DoRun(), and Serialize().
Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Get the type identificator.
Definition at line 295 of file ipv6-extension-header.cc.
References ns3::TypeId::AddConstructor().
Referenced by GetInstanceTypeId().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Print some information about the packet.
| os | output stream |
Reimplemented from ns3::Ipv6ExtensionHeader.
Definition at line 320 of file ipv6-extension-header.cc.
References ns3::Ipv6ExtensionHeader::GetLength(), and ns3::Ipv6ExtensionHeader::GetNextHeader().
Here is the call graph for this function:
|
overridevirtual |
Serialize the packet.
| start | Buffer iterator |
Reimplemented from ns3::Ipv6ExtensionHeader.
Definition at line 333 of file ipv6-extension-header.cc.
References ns3::Ipv6ExtensionHeader::GetNextHeader(), GetSerializedSize(), ns3::OptionField::Serialize(), two-ray-to-three-gpp-ch-calibration::start, and ns3::Buffer::Iterator::WriteU8().
Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), TestEmptyOptionField::DoRun(), TestOptionWithoutAlignment::DoRun(), TestOptionWithAlignment::DoRun(), and TestFulfilledAlignment::DoRun().

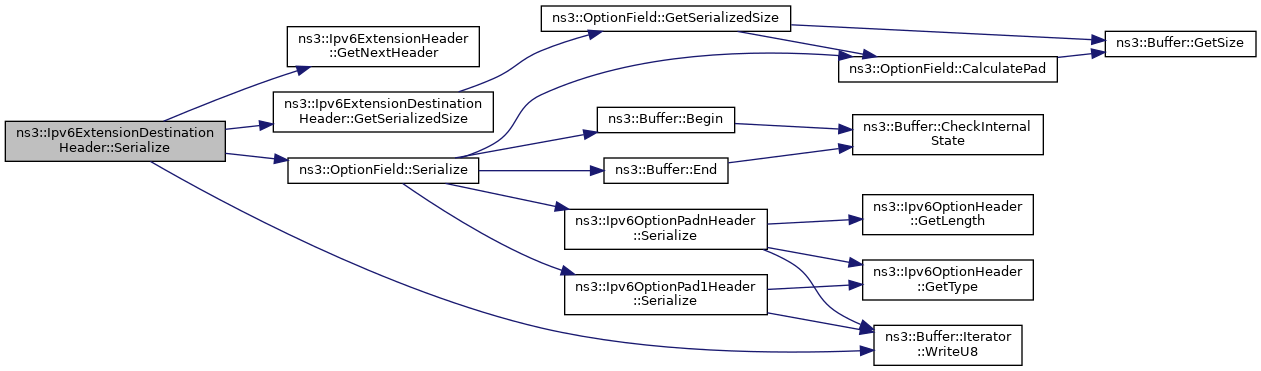

Here is the call graph for this function: Here is the caller graph for this function:
