ns3::NixVectorHelper< T > Class Template Reference

Helper class that adds Nix-vector routing to nodes. More...

#include "nix-vector-helper.h"

Inheritance diagram for ns3::NixVectorHelper< T >:

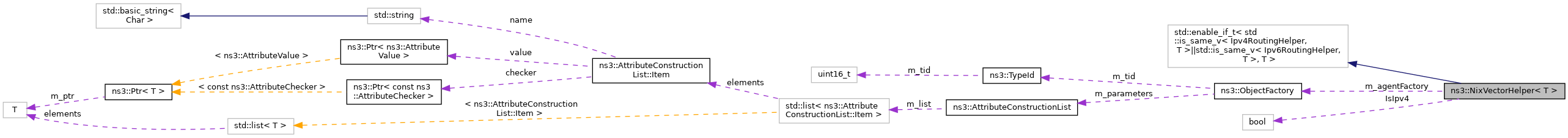

Collaboration diagram for ns3::NixVectorHelper< T >:

Public Member Functions
	NixVectorHelper ()
	Construct an NixVectorHelper to make life easier while adding Nix-vector routing to nodes.
	NixVectorHelper (const NixVectorHelper< T > &o)
	Construct an NixVectorHelper from another previously initialized instance (Copy Constructor).
NixVectorHelper< T > *	Copy () const override
Ptr< IpRoutingProtocol >	Create (Ptr< Node > node) const override
NixVectorHelper &	operator= (const NixVectorHelper &)=delete
void	PrintRoutingPathAt (Time printTime, Ptr< Node > source, IpAddress dest, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing path for a source and destination at a particular time.

Private Types
using	Ip = typename std::conditional_t< IsIpv4, Ipv4, Ipv6 >
	Alias for Ipv4 and Ipv6 classes.
using	IpAddress = typename std::conditional_t< IsIpv4, Ipv4Address, Ipv6Address >
	Alias for Ipv4Address and Ipv6Address classes.
using	IpRoutingProtocol = typename std::conditional_t< IsIpv4, Ipv4RoutingProtocol, Ipv6RoutingProtocol >
	Alias for Ipv4RoutingProtocol and Ipv6RoutingProtocol classes.

Static Private Member Functions
static void	PrintRoute (Ptr< Node > source, IpAddress dest, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing path for the source and destination.

Private Attributes
ObjectFactory	m_agentFactory
	Object factory.

Static Private Attributes
static constexpr bool	IsIpv4 = std::is_same_v<Ipv4RoutingHelper, T>
	Alias for determining whether the parent is Ipv4RoutingHelper or Ipv6RoutingHelper.

Detailed Description

template<typename T>
class ns3::NixVectorHelper< T >

Helper class that adds Nix-vector routing to nodes.

This class is expected to be used in conjunction with ns3::InternetStackHelper::SetRoutingHelper

Internal:

Since this class is meant to be specialized only by Ipv4RoutingHelper or Ipv6RoutingHelper the implementation of this class doesn't need to be exposed here; it is in nix-vector-helper.cc.

Definition at line 39 of file nix-vector-helper.h.

Member Typedef Documentation

Ip

template<typename T >

using ns3::NixVectorHelper< T >::Ip = typename std::conditional_t<IsIpv4, Ipv4, Ipv6>

private

Alias for Ipv4 and Ipv6 classes.

Definition at line 46 of file nix-vector-helper.h.

IpAddress

template<typename T >

using ns3::NixVectorHelper< T >::IpAddress = typename std::conditional_t<IsIpv4, Ipv4Address, Ipv6Address>

private

Alias for Ipv4Address and Ipv6Address classes.

Definition at line 48 of file nix-vector-helper.h.

IpRoutingProtocol

template<typename T >

using ns3::NixVectorHelper< T >::IpRoutingProtocol = typename std::conditional_t<IsIpv4, Ipv4RoutingProtocol, Ipv6RoutingProtocol>

private

Alias for Ipv4RoutingProtocol and Ipv6RoutingProtocol classes.

Definition at line 50 of file nix-vector-helper.h.

Constructor & Destructor Documentation

NixVectorHelper() [1/2]

template<typename T >

ns3::NixVectorHelper< T >::NixVectorHelper

(

)

Construct an NixVectorHelper to make life easier while adding Nix-vector routing to nodes.

Definition at line 23 of file nix-vector-helper.cc.

NixVectorHelper() [2/2]

template<typename T >

ns3::NixVectorHelper< T >::NixVectorHelper

(

const NixVectorHelper< T > &

o

)

Construct an NixVectorHelper from another previously initialized instance (Copy Constructor).

Parameters

o	object to copy

Definition at line 39 of file nix-vector-helper.cc.

Member Function Documentation

Copy()

template<typename T >

NixVectorHelper< T > * ns3::NixVectorHelper< T >::Copy ( ) const

override

Returns

pointer to clone of this NixVectorHelper

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Definition at line 49 of file nix-vector-helper.cc.

References ns3::Create().

Here is the call graph for this function:

Create()

template<typename T >

Ptr< typename NixVectorHelper< T >::IpRoutingProtocol > ns3::NixVectorHelper< T >::Create ( Ptr< Node >  node ) const

override

Parameters

node	the node on which the routing protocol will run

Returns

a newly-created routing protocol

This method will be called by ns3::InternetStackHelper::Install

Definition at line 56 of file nix-vector-helper.cc.

References ns3::Create(), and ns3::NixVectorRouting< T >::SetNode().

Referenced by visualizer.ipython_view.ConsoleView::__init__(), show_last_packets.ShowLastPackets.PacketList::__init__(), visualizer.ipython_view.ConsoleView::_write(), test-ns3.NS3BaseTestCase::config_ok(), visualizer.svgitem.SvgItem::do_set_property(), test-ns3.NS3StyleTestCase::setUp(), test-ns3.NS3BaseTestCase::setUp(), test-ns3.NS3ExpectedUseTestCase::setUp(), test-ns3.NS3BuildBaseTestCase::test_01_BuildExistingTargets(), test-ns3.NS3ExpectedUseTestCase::test_01_BuildProject(), test-ns3.NS3StyleTestCase::test_01_CheckCMakeFormat(), test-ns3.NS3QualityControlTestCase::test_01_CheckForDeadLinksInSources(), test-ns3.NS3DependenciesTestCase::test_01_CheckIfIncludedHeadersMatchLinkedModules(), test-ns3.NS3ConfigureBuildProfileTestCase::test_01_Debug(), test-ns3.NS3CommonSettingsTestCase::test_01_NoOption(), test-ns3.NS3UnusedSourcesTestCase::test_01_UnusedExampleSources(), test-ns3.NS3ExpectedUseTestCase::test_02_BuildAndRunExistingExecutableTarget(), test-ns3.NS3BuildBaseTestCase::test_02_BuildNonExistingTargets(), test-ns3.NS3QualityControlTestCase::test_02_MemoryCheckWithSanitizers(), test-ns3.NS3CommonSettingsTestCase::test_02_NoTaskLines(), test-ns3.NS3ConfigureBuildProfileTestCase::test_02_Release(), test-ns3.NS3ConfigureTestCase::test_02_Tests(), test-ns3.NS3UnusedSourcesTestCase::test_02_UnusedModuleSources(), test-ns3.NS3ExpectedUseTestCase::test_03_BuildAndRunExistingLibraryTarget(), test-ns3.NS3BuildBaseTestCase::test_03_BuildProject(), test-ns3.NS3CommonSettingsTestCase::test_03_CheckConfig(), test-ns3.NS3QualityControlTestCase::test_03_CheckImageBrightness(), test-ns3.NS3ConfigureBuildProfileTestCase::test_03_Optimized(), test-ns3.NS3UnusedSourcesTestCase::test_03_UnusedUtilsSources(), test-ns3.NS3ExpectedUseTestCase::test_04_BuildAndRunNonExistingTarget(), test-ns3.NS3BuildBaseTestCase::test_04_BuildProjectNoTaskLines(), test-ns3.NS3QualityControlTestCase::test_04_CheckForBrokenLogs(), test-ns3.NS3CommonSettingsTestCase::test_04_CheckProfile(), test-ns3.NS3ConfigureTestCase::test_04_DisableModules(), test-ns3.NS3ConfigureBuildProfileTestCase::test_04_Typo(), test-ns3.NS3BuildBaseTestCase::test_05_BreakBuild(), test-ns3.NS3CommonSettingsTestCase::test_05_CheckVersion(), test-ns3.NS3ConfigureTestCase::test_05_EnableModulesComma(), test-ns3.NS3ExpectedUseTestCase::test_05_RunNoBuildExistingExecutableTarget(), test-ns3.NS3ConfigureBuildProfileTestCase::test_05_TYPO(), test-ns3.NS3ConfigureTestCase::test_06_DisableModulesComma(), test-ns3.NS3ConfigureBuildProfileTestCase::test_06_OverwriteDefaultSettings(), test-ns3.NS3ExpectedUseTestCase::test_06_RunNoBuildExistingLibraryTarget(), test-ns3.NS3BuildBaseTestCase::test_06_TestVersionFile(), test-ns3.NS3BuildBaseTestCase::test_07_OutputDirectory(), test-ns3.NS3ExpectedUseTestCase::test_07_RunNoBuildNonExistingExecutableTarget(), test-ns3.NS3ConfigureTestCase::test_08_DryRun(), test-ns3.NS3BuildBaseTestCase::test_08_InstallationAndUninstallation(), test-ns3.NS3ExpectedUseTestCase::test_08_RunNoBuildGdb(), test-ns3.NS3ConfigureTestCase::test_09_PropagationOfReturnCode(), test-ns3.NS3ExpectedUseTestCase::test_09_RunNoBuildValgrind(), test-ns3.NS3BuildBaseTestCase::test_09_Scratches(), test-ns3.NS3BuildBaseTestCase::test_10_AmbiguityCheck(), test-ns3.NS3ConfigureTestCase::test_10_CheckConfig(), test-ns3.NS3ExpectedUseTestCase::test_10_DoxygenWithBuild(), test-ns3.NS3ConfigureTestCase::test_11_CheckProfile(), test-ns3.NS3ExpectedUseTestCase::test_11_DoxygenWithoutBuild(), test-ns3.NS3BuildBaseTestCase::test_11_StaticBuilds(), test-ns3.NS3ConfigureTestCase::test_12_CheckVersion(), test-ns3.NS3BuildBaseTestCase::test_12_CppyyBindings(), test-ns3.NS3ExpectedUseTestCase::test_12_SphinxDocumentation(), test-ns3.NS3ExpectedUseTestCase::test_13_Documentation(), test-ns3.NS3BuildBaseTestCase::test_13_FetchOptionalComponents(), test-ns3.NS3ConfigureTestCase::test_13_Scratches(), test-ns3.NS3ExpectedUseTestCase::test_14_EnableSudo(), test-ns3.NS3BuildBaseTestCase::test_14_LinkContribModuleToSrcModule(), test-ns3.NS3ConfigureTestCase::test_14_MpiCommandTemplate(), test-ns3.NS3ExpectedUseTestCase::test_15_CommandTemplate(), test-ns3.NS3ConfigureTestCase::test_15_InvalidLibrariesToLink(), test-ns3.NS3ExpectedUseTestCase::test_16_ForwardArgumentsToRunTargets(), test-ns3.NS3ConfigureTestCase::test_16_LibrariesContainingLib(), test-ns3.NS3ConfigureTestCase::test_17_CMakePerformanceTracing(), test-ns3.NS3ExpectedUseTestCase::test_17_RunNoBuildLldb(), test-ns3.NS3ConfigureTestCase::test_18_CheckBuildVersionAndVersionCache(), test-ns3.NS3ExpectedUseTestCase::test_18_CpmAndVcpkgManagers(), test-ns3.NS3ConfigureTestCase::test_19_FilterModuleExamplesAndTests(), test-ns3.NS3ConfigureTestCase::test_20_CheckFastLinkers(), test-ns3.NS3ConfigureTestCase::test_21_ClangTimeTrace(), test-ns3.NS3ConfigureTestCase::test_22_NinjaTrace(), test-ns3.NS3ConfigureTestCase::test_23_PrecompiledHeaders(), test-ns3.NS3ConfigureTestCase::test_24_CheckTestSettings(), python-unit-tests.TestSimulator::testAttributes(), python-unit-tests.TestSimulator::testCommandLine(), python-unit-tests.TestSimulator::testIdentity(), python-unit-tests.TestSimulator::testSchedule(), python-unit-tests.TestSimulator::testScheduleDestroy(), python-unit-tests.TestSimulator::testSubclass(), python-unit-tests.TestSimulator::testTimeComparison(), python-unit-tests.TestSimulator::testTimeNumericOperations(), python-unit-tests.TestSimulator::testTypeId(), and visualizer.core.Node::tooltip_query().

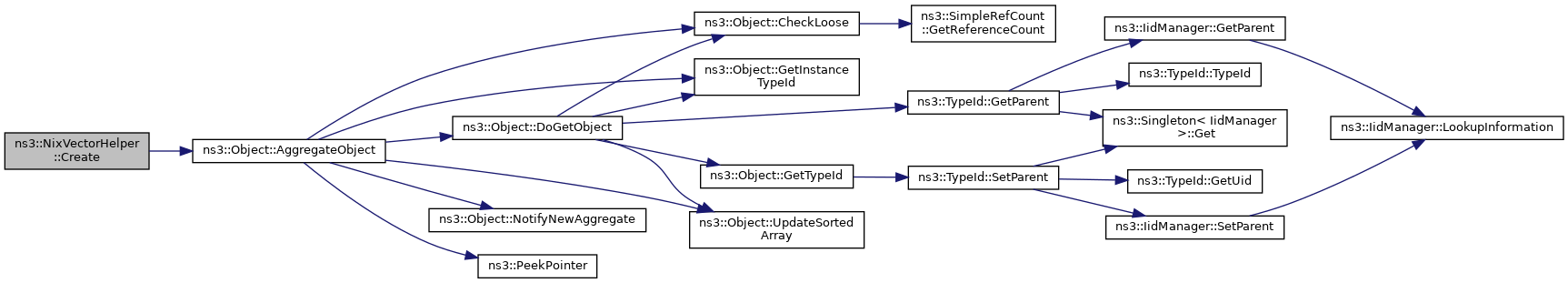

Here is the call graph for this function:

operator=()

template<typename T >

NixVectorHelper & ns3::NixVectorHelper< T >::operator= ( const NixVectorHelper< T > &  )

delete

PrintRoute()

template<typename T >

void ns3::NixVectorHelper< T >::PrintRoute ( Ptr< Node >  source, IpAddress  dest, Ptr< OutputStreamWrapper >  stream, Time::Unit  unit = Time::S  )

staticprivate

prints the routing path for the source and destination.

If the routing path does not exist, it prints that the path does not exist between the nodes in the ostream.

Parameters

source	the source node pointer to start traversing
dest	the IP destination address
stream	the output stream object to use
unit	the time unit to be used in the report

This method calls the PrintRoutingPath() method of the NixVectorRouting for the source and destination to provide the routing path.

Definition at line 78 of file nix-vector-helper.cc.

References ns3::Create(), and NS_ASSERT.

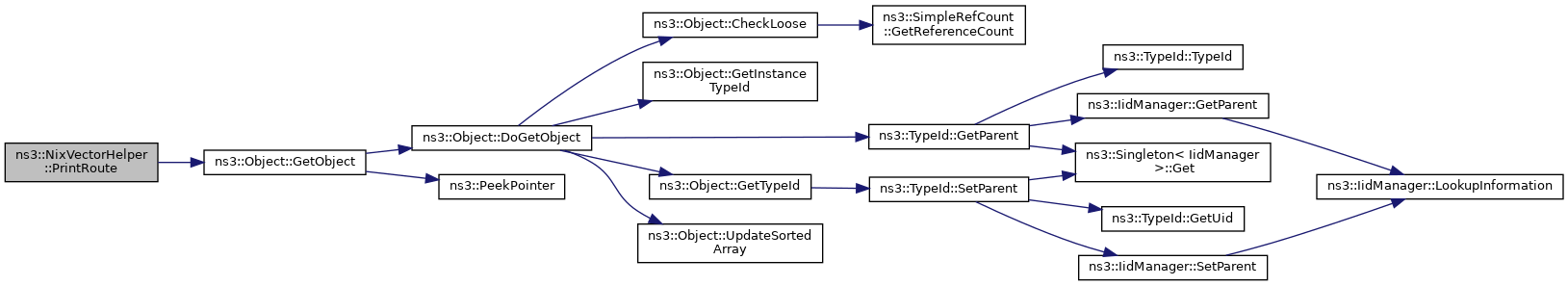

Here is the call graph for this function:

PrintRoutingPathAt()

template<typename T >

void ns3::NixVectorHelper< T >::PrintRoutingPathAt	(	Time	printTime,
		Ptr< Node >	source,
		IpAddress	dest,
		Ptr< OutputStreamWrapper >	stream,
		Time::Unit	unit = Time::S
	)

prints the routing path for a source and destination at a particular time.

If the routing path does not exist, it prints that the path does not exist between the nodes in the ostream.

Parameters

printTime	the time at which the routing path is supposed to be printed.
source	the source node pointer to start traversing
dest	the IP destination address
stream	the output stream object to use
unit	the time unit to be used in the report

This method calls the PrintRoutingPath() method of the NixVectorRouting for the source and destination to provide the routing path at the specified time.

Definition at line 67 of file nix-vector-helper.cc.

References ns3::Create(), and ns3::Simulator::Schedule().

Here is the call graph for this function:

Member Data Documentation

IsIpv4

template<typename T >

constexpr bool ns3::NixVectorHelper< T >::IsIpv4 = std::is_same_v<Ipv4RoutingHelper, T>

staticconstexprprivate

Alias for determining whether the parent is Ipv4RoutingHelper or Ipv6RoutingHelper.

Definition at line 44 of file nix-vector-helper.h.

m_agentFactory

template<typename T >

ObjectFactory ns3::NixVectorHelper< T >::m_agentFactory

private

Object factory.

Definition at line 108 of file nix-vector-helper.h.

---

The documentation for this class was generated from the following files:

• src/nix-vector-routing/helper/nix-vector-helper.h
• src/nix-vector-routing/helper/nix-vector-helper.cc
