Public Member Functions | Private Attributes | List of all members
ns3::Ipv6ListRoutingHelper Class Reference
Internet » IPv6 Helper classes

Helper class that adds ns3::Ipv6ListRouting objects. More...

#include "ipv6-list-routing-helper.h"

+ Inheritance diagram for ns3::Ipv6ListRoutingHelper:

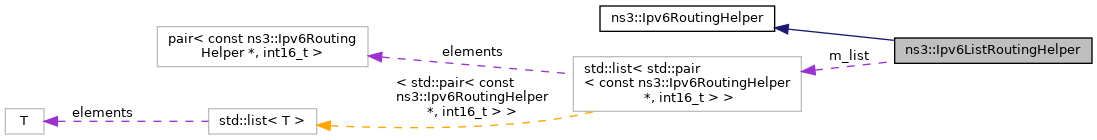

+ Collaboration diagram for ns3::Ipv6ListRoutingHelper:

Public Member Functions

 Ipv6ListRoutingHelper ()
 Construct an Ipv6 Ipv6ListRoutingHelper which is used to make life easier for people wanting to configure routing using Ipv6.

 Ipv6ListRoutingHelper (const Ipv6ListRoutingHelper &o)
 Construct an Ipv6ListRoutingHelper from another previously initialized instance (Copy Constructor).

 ~Ipv6ListRoutingHelper () override
 Destroy an Ipv6 Ipv6ListRoutingHelper.

void Add (const Ipv6RoutingHelper &routing, int16_t priority)

Ipv6ListRoutingHelper * Copy () const override

Ptr< Ipv6RoutingProtocol > Create (Ptr< Node > node) const override

Ipv6ListRoutingHelper & operator= (const Ipv6ListRoutingHelper &)=delete

- Public Member Functions inherited from ns3::Ipv6RoutingHelper
virtual ~Ipv6RoutingHelper ()
 Destroy an Ipv6 Ipv6RoutingHelper.


Private Attributes

std::list< std::pair< const Ipv6RoutingHelper *, int16_t > > m_list
 Container for pairs of Ipv6RoutingHelper pointer / priority.


Additional Inherited Members

- Static Public Member Functions inherited from ns3::Ipv6RoutingHelper
template<class T >
static Ptr< T > GetRouting (Ptr< Ipv6RoutingProtocol > protocol)
 Request a specified routing protocol <T> from Ipv6RoutingProtocol protocol.

static void PrintNeighborCacheAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the neighbor cache of all nodes at a particular time.

static void PrintNeighborCacheAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the neighbor cache of all nodes at regular intervals specified by user.

static void PrintNeighborCacheAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the neighbor cache of a node at a particular time.

static void PrintNeighborCacheEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the neighbor cache of a node at regular intervals specified by user.

static void PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of all nodes at a particular time.

static void PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of all nodes at regular intervals specified by user.

static void PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of a node at a particular time.

static void PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
 prints the routing tables of a node at regular intervals specified by user.


Detailed Description

Helper class that adds ns3::Ipv6ListRouting objects.

This class is expected to be used in conjunction with ns3::InternetStackHelper::SetRoutingHelper

Definition at line 27 of file ipv6-list-routing-helper.h.

Constructor & Destructor Documentation

◆ Ipv6ListRoutingHelper() [1/2]

ns3::Ipv6ListRoutingHelper::Ipv6ListRoutingHelper ( )

Construct an Ipv6 Ipv6ListRoutingHelper which is used to make life easier for people wanting to configure routing using Ipv6.

Definition at line 17 of file ipv6-list-routing-helper.cc.

Referenced by Copy().

+ Here is the caller graph for this function:

◆ ~Ipv6ListRoutingHelper()

ns3::Ipv6ListRoutingHelper::~Ipv6ListRoutingHelper ( )
override

Destroy an Ipv6 Ipv6ListRoutingHelper.

Definition at line 21 of file ipv6-list-routing-helper.cc.

References Create(), and m_list.

+ Here is the call graph for this function:

◆ Ipv6ListRoutingHelper() [2/2]

ns3::Ipv6ListRoutingHelper::Ipv6ListRoutingHelper ( const Ipv6ListRoutingHelper &  o)

Construct an Ipv6ListRoutingHelper from another previously initialized instance (Copy Constructor).

Parameters
oobject to be copied

Definition at line 29 of file ipv6-list-routing-helper.cc.

References Create(), and m_list.

+ Here is the call graph for this function:

Member Function Documentation

◆ Add()

void ns3::Ipv6ListRoutingHelper::Add ( const Ipv6RoutingHelper &  routing,
int16_t  priority
)
Parameters
routinga routing helper
prioritythe priority of the associated helper

Store in the internal list a reference to the input routing helper and associated priority. These helpers will be used later by the ns3::Ipv6ListRoutingHelper::Create method to create an ns3::Ipv6ListRouting object and add in it routing protocols created with the helpers.

Definition at line 44 of file ipv6-list-routing-helper.cc.

References Create(), and m_list.

+ Here is the call graph for this function:

◆ Copy()

Ipv6ListRoutingHelper * ns3::Ipv6ListRoutingHelper::Copy ( ) const
overridevirtual
Returns
pointer to clone of this Ipv6ListRoutingHelper

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Implements ns3::Ipv6RoutingHelper.

Definition at line 38 of file ipv6-list-routing-helper.cc.

References Ipv6ListRoutingHelper().

+ Here is the call graph for this function:

◆ Create()

Ptr< Ipv6RoutingProtocol > ns3::Ipv6ListRoutingHelper::Create ( Ptr< Node >  node) const
overridevirtual
Parameters
nodethe node on which the routing protocol will run
Returns
a newly-created routing protocol

This method will be called by ns3::InternetStackHelper::Install

Implements ns3::Ipv6RoutingHelper.

Definition at line 50 of file ipv6-list-routing-helper.cc.

References Create(), list, and m_list.

Referenced by visualizer.ipython_view.ConsoleView::__init__(), show_last_packets.ShowLastPackets.PacketList::__init__(), Ipv6ListRoutingHelper(), ~Ipv6ListRoutingHelper(), visualizer.ipython_view.ConsoleView::_write(), Add(), test-ns3.NS3BaseTestCase::config_ok(), Create(), visualizer.svgitem.SvgItem::do_set_property(), test-ns3.NS3StyleTestCase::setUp(), test-ns3.NS3BaseTestCase::setUp(), test-ns3.NS3ExpectedUseTestCase::setUp(), test-ns3.NS3BuildBaseTestCase::test_01_BuildExistingTargets(), test-ns3.NS3ExpectedUseTestCase::test_01_BuildProject(), test-ns3.NS3StyleTestCase::test_01_CheckCMakeFormat(), test-ns3.NS3QualityControlTestCase::test_01_CheckForDeadLinksInSources(), test-ns3.NS3DependenciesTestCase::test_01_CheckIfIncludedHeadersMatchLinkedModules(), test-ns3.NS3ConfigureBuildProfileTestCase::test_01_Debug(), test-ns3.NS3CommonSettingsTestCase::test_01_NoOption(), test-ns3.NS3UnusedSourcesTestCase::test_01_UnusedExampleSources(), test-ns3.NS3ExpectedUseTestCase::test_02_BuildAndRunExistingExecutableTarget(), test-ns3.NS3BuildBaseTestCase::test_02_BuildNonExistingTargets(), test-ns3.NS3QualityControlTestCase::test_02_MemoryCheckWithSanitizers(), test-ns3.NS3CommonSettingsTestCase::test_02_NoTaskLines(), test-ns3.NS3ConfigureBuildProfileTestCase::test_02_Release(), test-ns3.NS3ConfigureTestCase::test_02_Tests(), test-ns3.NS3UnusedSourcesTestCase::test_02_UnusedModuleSources(), test-ns3.NS3ExpectedUseTestCase::test_03_BuildAndRunExistingLibraryTarget(), test-ns3.NS3BuildBaseTestCase::test_03_BuildProject(), test-ns3.NS3CommonSettingsTestCase::test_03_CheckConfig(), test-ns3.NS3QualityControlTestCase::test_03_CheckImageBrightness(), test-ns3.NS3ConfigureBuildProfileTestCase::test_03_Optimized(), test-ns3.NS3UnusedSourcesTestCase::test_03_UnusedUtilsSources(), test-ns3.NS3ExpectedUseTestCase::test_04_BuildAndRunNonExistingTarget(), test-ns3.NS3BuildBaseTestCase::test_04_BuildProjectNoTaskLines(), test-ns3.NS3QualityControlTestCase::test_04_CheckForBrokenLogs(), test-ns3.NS3CommonSettingsTestCase::test_04_CheckProfile(), test-ns3.NS3ConfigureTestCase::test_04_DisableModules(), test-ns3.NS3ConfigureBuildProfileTestCase::test_04_Typo(), test-ns3.NS3BuildBaseTestCase::test_05_BreakBuild(), test-ns3.NS3CommonSettingsTestCase::test_05_CheckVersion(), test-ns3.NS3ConfigureTestCase::test_05_EnableModulesComma(), test-ns3.NS3ExpectedUseTestCase::test_05_RunNoBuildExistingExecutableTarget(), test-ns3.NS3ConfigureBuildProfileTestCase::test_05_TYPO(), test-ns3.NS3ConfigureTestCase::test_06_DisableModulesComma(), test-ns3.NS3ConfigureBuildProfileTestCase::test_06_OverwriteDefaultSettings(), test-ns3.NS3ExpectedUseTestCase::test_06_RunNoBuildExistingLibraryTarget(), test-ns3.NS3BuildBaseTestCase::test_06_TestVersionFile(), test-ns3.NS3BuildBaseTestCase::test_07_OutputDirectory(), test-ns3.NS3ExpectedUseTestCase::test_07_RunNoBuildNonExistingExecutableTarget(), test-ns3.NS3ConfigureTestCase::test_08_DryRun(), test-ns3.NS3BuildBaseTestCase::test_08_InstallationAndUninstallation(), test-ns3.NS3ExpectedUseTestCase::test_08_RunNoBuildGdb(), test-ns3.NS3ConfigureTestCase::test_09_PropagationOfReturnCode(), test-ns3.NS3ExpectedUseTestCase::test_09_RunNoBuildValgrind(), test-ns3.NS3BuildBaseTestCase::test_09_Scratches(), test-ns3.NS3BuildBaseTestCase::test_10_AmbiguityCheck(), test-ns3.NS3ConfigureTestCase::test_10_CheckConfig(), test-ns3.NS3ExpectedUseTestCase::test_10_DoxygenWithBuild(), test-ns3.NS3ConfigureTestCase::test_11_CheckProfile(), test-ns3.NS3ExpectedUseTestCase::test_11_DoxygenWithoutBuild(), test-ns3.NS3BuildBaseTestCase::test_11_StaticBuilds(), test-ns3.NS3ConfigureTestCase::test_12_CheckVersion(), test-ns3.NS3BuildBaseTestCase::test_12_CppyyBindings(), test-ns3.NS3ExpectedUseTestCase::test_12_SphinxDocumentation(), test-ns3.NS3ExpectedUseTestCase::test_13_Documentation(), test-ns3.NS3BuildBaseTestCase::test_13_FetchOptionalComponents(), test-ns3.NS3ConfigureTestCase::test_13_Scratches(), test-ns3.NS3ExpectedUseTestCase::test_14_EnableSudo(), test-ns3.NS3BuildBaseTestCase::test_14_LinkContribModuleToSrcModule(), test-ns3.NS3ConfigureTestCase::test_14_MpiCommandTemplate(), test-ns3.NS3ExpectedUseTestCase::test_15_CommandTemplate(), test-ns3.NS3ConfigureTestCase::test_15_InvalidLibrariesToLink(), test-ns3.NS3ExpectedUseTestCase::test_16_ForwardArgumentsToRunTargets(), test-ns3.NS3ConfigureTestCase::test_16_LibrariesContainingLib(), test-ns3.NS3ConfigureTestCase::test_17_CMakePerformanceTracing(), test-ns3.NS3ExpectedUseTestCase::test_17_RunNoBuildLldb(), test-ns3.NS3ConfigureTestCase::test_18_CheckBuildVersionAndVersionCache(), test-ns3.NS3ExpectedUseTestCase::test_18_CpmAndVcpkgManagers(), test-ns3.NS3ConfigureTestCase::test_19_FilterModuleExamplesAndTests(), test-ns3.NS3ConfigureTestCase::test_20_CheckFastLinkers(), test-ns3.NS3ConfigureTestCase::test_21_ClangTimeTrace(), test-ns3.NS3ConfigureTestCase::test_22_NinjaTrace(), test-ns3.NS3ConfigureTestCase::test_23_PrecompiledHeaders(), test-ns3.NS3ConfigureTestCase::test_24_CheckTestSettings(), python-unit-tests.TestSimulator::testAttributes(), python-unit-tests.TestSimulator::testCommandLine(), python-unit-tests.TestSimulator::testIdentity(), python-unit-tests.TestSimulator::testSchedule(), python-unit-tests.TestSimulator::testScheduleDestroy(), python-unit-tests.TestSimulator::testSubclass(), python-unit-tests.TestSimulator::testTimeComparison(), python-unit-tests.TestSimulator::testTimeNumericOperations(), python-unit-tests.TestSimulator::testTypeId(), and visualizer.core.Node::tooltip_query().

+ Here is the call graph for this function:

◆ operator=()

Ipv6ListRoutingHelper & ns3::Ipv6ListRoutingHelper::operator= ( const Ipv6ListRoutingHelper &  )
delete

Member Data Documentation

◆ m_list

std::list<std::pair<const Ipv6RoutingHelper*, int16_t> > ns3::Ipv6ListRoutingHelper::m_list
private

Container for pairs of Ipv6RoutingHelper pointer / priority.

Definition at line 82 of file ipv6-list-routing-helper.h.

Referenced by Ipv6ListRoutingHelper(), ~Ipv6ListRoutingHelper(), Add(), and Create().

The documentation for this class was generated from the following files:
