ns3::Ipv6ExtensionESPHeader Class Reference
Internet » IPv6 classes and sub-modules » IPV6 Header extension system.

Header of IPv6 Extension ESP. More...

#include "ipv6-extension-header.h"

+ Inheritance diagram for ns3::Ipv6ExtensionESPHeader:

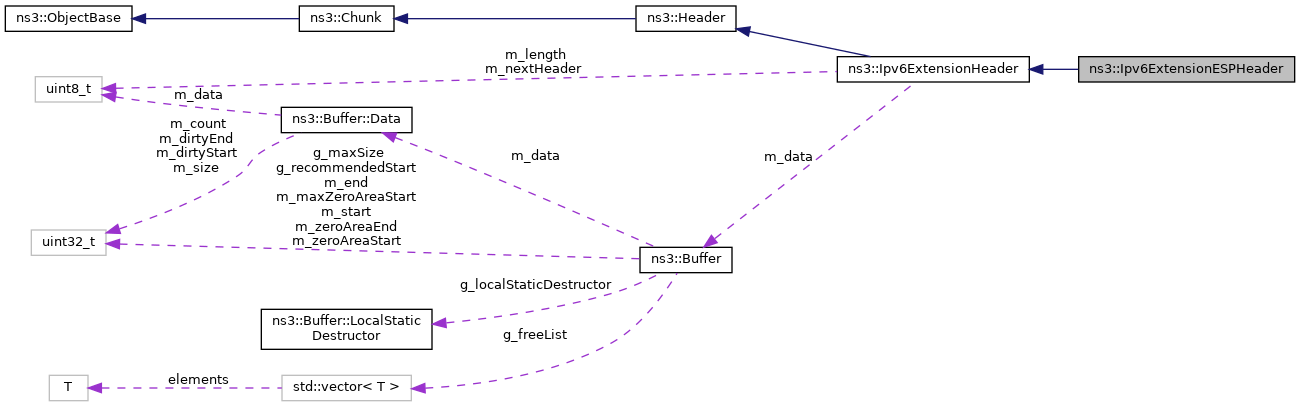

+ Collaboration diagram for ns3::Ipv6ExtensionESPHeader:

Public Member Functions

 Ipv6ExtensionESPHeader ()
 Constructor. More...

 ~Ipv6ExtensionESPHeader () override
 Destructor. More...

uint32_t Deserialize (Buffer::Iterator start) override
 Deserialize the packet. More...

TypeId GetInstanceTypeId () const override
 Get the instance type ID. More...

uint32_t GetSerializedSize () const override
 Get the serialized size of the packet. More...

void Print (std::ostream &os) const override
 Print some information about the packet. More...

void Serialize (Buffer::Iterator start) const override
 Serialize the packet. More...

- Public Member Functions inherited from ns3::Ipv6ExtensionHeader
 Ipv6ExtensionHeader ()
 Constructor. More...

 ~Ipv6ExtensionHeader () override
 Destructor. More...

uint16_t GetLength () const
 Get the length of the extension. More...

uint8_t GetNextHeader () const
 Get the next header. More...

void SetLength (uint16_t length)
 brief Set the length of the extension. More...

void SetNextHeader (uint8_t nextHeader)
 Set the "Next header" field. More...

- Public Member Functions inherited from ns3::Header
 ~Header () override

virtual uint32_t Deserialize (Buffer::Iterator start)=0
 Deserialize the object from a buffer iterator. More...

virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::Chunk
virtual uint32_t Deserialize (Buffer::Iterator start, Buffer::Iterator end)
 Deserialize the object from a buffer iterator. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Ipv6ExtensionHeader
static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed. More...

- Protected Attributes inherited from ns3::Ipv6ExtensionHeader
uint8_t m_length
 The "length" field. More...

- Related Functions inherited from ns3::ObjectBase
static TypeId GetObjectIid ()
 Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...


Detailed Description

Header of IPv6 Extension ESP.

Definition at line 626 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

◆ Ipv6ExtensionESPHeader()

ns3::Ipv6ExtensionESPHeader::Ipv6ExtensionESPHeader ( )

Constructor.

Definition at line 692 of file ipv6-extension-header.cc.

◆ ~Ipv6ExtensionESPHeader()

ns3::Ipv6ExtensionESPHeader::~Ipv6ExtensionESPHeader ( )
override

Destructor.

Definition at line 696 of file ipv6-extension-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Ipv6ExtensionESPHeader::Deserialize ( Buffer::Iterator  start)
overridevirtual

Deserialize the packet.

Parameters
startBuffer iterator
Returns
size of the packet
Todo:

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 720 of file ipv6-extension-header.cc.

◆ GetInstanceTypeId()

TypeId ns3::Ipv6ExtensionESPHeader::GetInstanceTypeId ( void  ) const
overridevirtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 687 of file ipv6-extension-header.cc.

References GetTypeId().

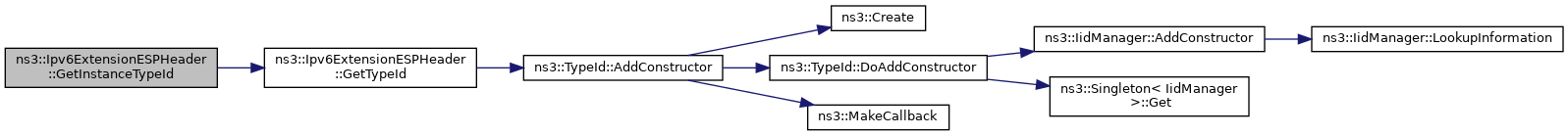

+ Here is the call graph for this function:

◆ GetSerializedSize()

uint32_t ns3::Ipv6ExtensionESPHeader::GetSerializedSize ( ) const
overridevirtual

Get the serialized size of the packet.

Returns
size
Todo:

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 707 of file ipv6-extension-header.cc.

◆ GetTypeId()

TypeId ns3::Ipv6ExtensionESPHeader::GetTypeId ( void  )
static

Get the type identificator.

Returns
type identificator

Definition at line 677 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

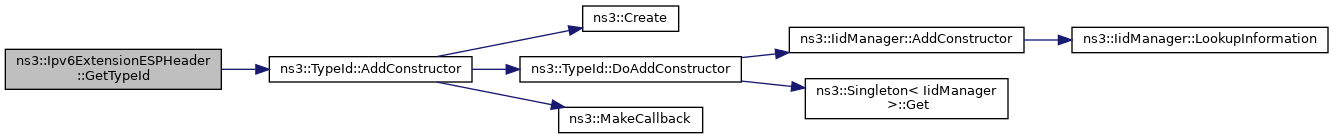

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Print()

void ns3::Ipv6ExtensionESPHeader::Print ( std::ostream &  os) const
overridevirtual

Print some information about the packet.

Parameters
osoutput stream
Todo:

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 701 of file ipv6-extension-header.cc.

◆ Serialize()

void ns3::Ipv6ExtensionESPHeader::Serialize ( Buffer::Iterator  start) const
overridevirtual

Serialize the packet.

Parameters
startBuffer iterator
Todo:

Reimplemented from ns3::Ipv6ExtensionHeader.

Definition at line 714 of file ipv6-extension-header.cc.

The documentation for this class was generated from the following files:
