a simple class to group together multiple gnuplots into one file, e.g. More...

#include "gnuplot.h"

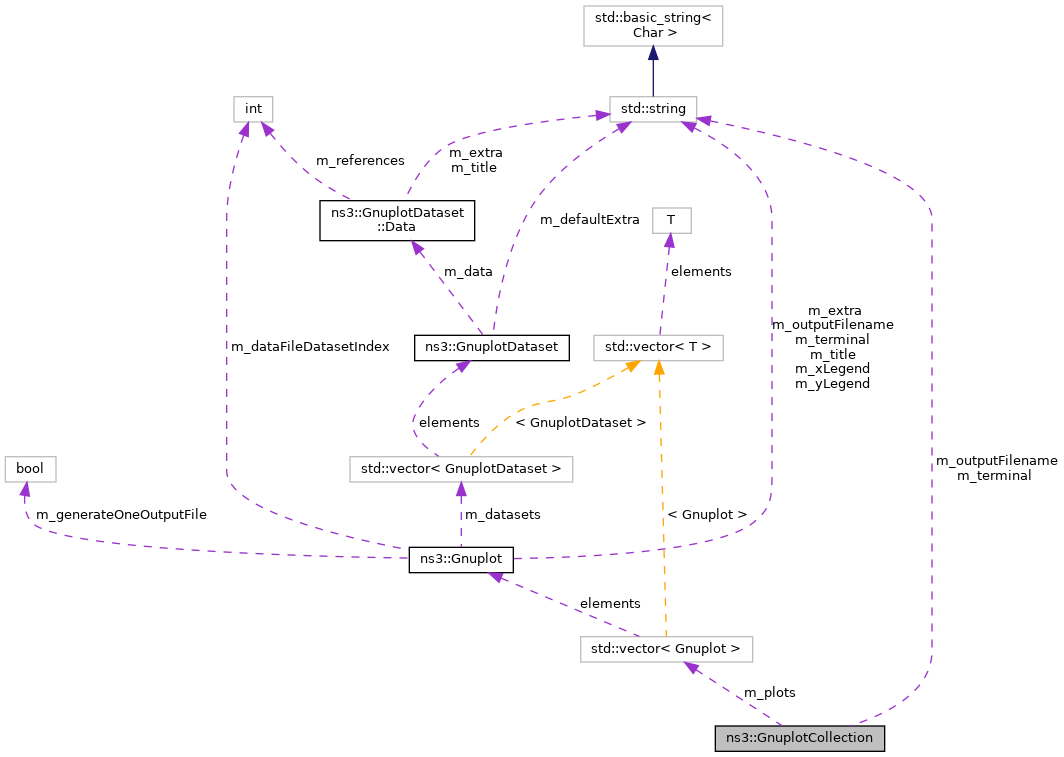

Collaboration diagram for ns3::GnuplotCollection:

Public Member Functions
	GnuplotCollection (const std::string &outputFilename)

	GnuplotCollection (const std::string &outputFilename)

void	AddPlot (const Gnuplot &plot)

void	AddPlot (const Gnuplot &plot)

void	GenerateOutput (std::ostream &os)

void	GenerateOutput (std::ostream &os)

void	GenerateOutput (std::ostream &osControl, std::ostream &osData, std::string dataFileName)

void	GenerateOutput (std::ostream &osControl, std::ostream &osData, std::string dataFileName)

Gnuplot &	GetPlot (unsigned int id)
	Return a pointer to one of the added plots.

Gnuplot &	GetPlot (unsigned int id)
	Return a pointer to one of the added plots.

void	SetTerminal (const std::string &terminal)

void	SetTerminal (const std::string &terminal)

Private Types
typedef std::vector< Gnuplot >	Plots
	Type of the Gnuplot collection.

typedef std::vector< Gnuplot >	Plots
	Type of the Gnuplot collection.

Private Attributes
std::string	m_outputFilename
	Output file name.

Plots	m_plots
	Plots in the collection.

std::string	m_terminal
	Gnuplot "terminal" to use.

Detailed Description

a simple class to group together multiple gnuplots into one file, e.g.

for PDF multi-page output terminals.

Definition at line 473 of file gnuplot.h.

Member Typedef Documentation

◆ Plots [1/2]

typedef std::vector<Gnuplot> ns3::GnuplotCollection::Plots

private

Type of the Gnuplot collection.

Definition at line 520 of file gnuplot.h.

◆ Plots [2/2]

typedef std::vector<Gnuplot> ns3::GnuplotCollection::Plots

private

Type of the Gnuplot collection.

Definition at line 520 of file gnuplot_new.h.

Constructor & Destructor Documentation

◆ GnuplotCollection() [1/2]

ns3::GnuplotCollection::GnuplotCollection ( const std::string & outputFilename )

Parameters

outputFilename the name of the file where the rendering of the graph will be generated if you feed the command stream output by GnuplotCollection::GenerateOutput to the gnuplot program.

Definition at line 898 of file gnuplot.cc.

◆ GnuplotCollection() [2/2]

ns3::GnuplotCollection::GnuplotCollection ( const std::string & outputFilename )

Parameters

outputFilename the name of the file where the rendering of the graph will be generated if you feed the command stream output by GnuplotCollection::GenerateOutput to the gnuplot program.

Member Function Documentation

◆ AddPlot() [1/2]

void ns3::GnuplotCollection::AddPlot ( const Gnuplot & plot )

Parameters

plot	add a plot to the collection to be plotted.

Definition at line 911 of file gnuplot.cc.

References ns3::Create(), and m_plots.

Here is the call graph for this function:

◆ AddPlot() [2/2]

void ns3::GnuplotCollection::AddPlot ( const Gnuplot & plot )

Parameters

plot	add a plot to the collection to be plotted.

◆ GenerateOutput() [1/4]

void ns3::GnuplotCollection::GenerateOutput ( std::ostream & os )

Parameters

os	the output stream on which the relevant gnuplot commands should be generated.

Definition at line 930 of file gnuplot.cc.

References ns3::Create(), ns3::Gnuplot::GenerateOutput(), m_outputFilename, m_plots, and m_terminal.

Here is the call graph for this function:

◆ GenerateOutput() [2/4]

void ns3::GnuplotCollection::GenerateOutput ( std::ostream & os )

Parameters

os	the output stream on which the relevant gnuplot commands should be generated.

◆ GenerateOutput() [3/4]

void ns3::GnuplotCollection::GenerateOutput	(	std::ostream &	osControl,
		std::ostream &	osData,
		std::string	dataFileName
	)

Parameters

osControl	the output stream on which the relevant gnuplot control commands should be generated. Including output file and terminal headers.
osData	the output stream on which the relevant gnuplot data values should be generated.
dataFileName	the name for the data file that will be written.

Definition at line 952 of file gnuplot.cc.

References ns3::Create(), m_outputFilename, m_plots, and m_terminal.

Here is the call graph for this function:

◆ GenerateOutput() [4/4]

void ns3::GnuplotCollection::GenerateOutput	(	std::ostream &	osControl,
		std::ostream &	osData,
		std::string	dataFileName
	)

Parameters

osControl	the output stream on which the relevant gnuplot control commands should be generated. Including output file and terminal headers.
osData	the output stream on which the relevant gnuplot data values should be generated.
dataFileName	the name for the data file that will be written.

◆ GetPlot() [1/2]

Gnuplot & ns3::GnuplotCollection::GetPlot ( unsigned int id )

Return a pointer to one of the added plots.

Parameters

id	index of plot to return

Returns: reference to plot, throws std::range_error if it does not exist.

Definition at line 917 of file gnuplot.cc.

References m_plots.

◆ GetPlot() [2/2]

Gnuplot & ns3::GnuplotCollection::GetPlot ( unsigned int id )

Return a pointer to one of the added plots.

Parameters

id	index of plot to return

Returns: reference to plot, throws std::range_error if it does not exist.

◆ SetTerminal() [1/2]

void ns3::GnuplotCollection::SetTerminal ( const std::string & terminal )

Parameters

terminal terminal setting string for output. The default terminal string is guessed from the output filename's extension.

Definition at line 905 of file gnuplot.cc.

References ns3::Create(), and m_terminal.

Here is the call graph for this function:

◆ SetTerminal() [2/2]

void ns3::GnuplotCollection::SetTerminal ( const std::string & terminal )

Parameters

terminal terminal setting string for output. The default terminal string is guessed from the output filename's extension.

Member Data Documentation

◆ m_outputFilename

std::string ns3::GnuplotCollection::m_outputFilename

private

Output file name.

Definition at line 522 of file gnuplot.h.

Referenced by GenerateOutput(), and GenerateOutput().

◆ m_plots

Plots ns3::GnuplotCollection::m_plots

private

Plots in the collection.

Definition at line 525 of file gnuplot.h.

Referenced by AddPlot(), GenerateOutput(), GenerateOutput(), and GetPlot().

◆ m_terminal

std::string ns3::GnuplotCollection::m_terminal

private

Gnuplot "terminal" to use.

Definition at line 523 of file gnuplot.h.

Referenced by GenerateOutput(), GenerateOutput(), and SetTerminal().

The documentation for this class was generated from the following files:

src/stats/model/gnuplot.h
src/stats/model/gnuplot_new.h
src/stats/model/gnuplot.cc
src/stats/model/gnuplot_new.cc
