ns3::Ipv4StaticRoutingHelper Class Reference

Helper class that adds ns3::Ipv4StaticRouting objects. More...

#include "ipv4-static-routing-helper.h"

Inheritance diagram for ns3::Ipv4StaticRoutingHelper:

Collaboration diagram for ns3::Ipv4StaticRoutingHelper:

Public Member Functions
	Ipv4StaticRoutingHelper ()
	Ipv4StaticRoutingHelper (const Ipv4StaticRoutingHelper &o)
	Construct an Ipv4StaticRoutingHelper from another previously initialized instance (Copy Constructor).
void	AddMulticastRoute (Ptr< Node > n, Ipv4Address source, Ipv4Address group, Ptr< NetDevice > input, NetDeviceContainer output)
	Add a multicast route to a node and net device using explicit Ptr<Node> and Ptr<NetDevice>
void	AddMulticastRoute (Ptr< Node > n, Ipv4Address source, Ipv4Address group, std::string inputName, NetDeviceContainer output)
	Add a multicast route to a node and device using a Ptr<Node> and a name string previously associated to the device using the Object Name Service.
void	AddMulticastRoute (std::string n, Ipv4Address source, Ipv4Address group, Ptr< NetDevice > input, NetDeviceContainer output)
	Add a multicast route to a node and device using a name string previously associated to the node using the Object Name Service and a Ptr<NetDevice>
void	AddMulticastRoute (std::string nName, Ipv4Address source, Ipv4Address group, std::string inputName, NetDeviceContainer output)
	Add a multicast route to a node and device using name strings previously associated to both the node and device using the Object Name Service.
Ipv4StaticRoutingHelper *	Copy () const override
Ptr< Ipv4RoutingProtocol >	Create (Ptr< Node > node) const override
Ptr< Ipv4StaticRouting >	GetStaticRouting (Ptr< Ipv4 > ipv4) const
	Try and find the static routing protocol as either the main routing protocol or in the list of routing protocols associated with the Ipv4 provided.
Ipv4StaticRoutingHelper &	operator= (const Ipv4StaticRoutingHelper &)=delete
void	SetDefaultMulticastRoute (Ptr< Node > n, Ptr< NetDevice > nd)
	Add a default route to the static routing protocol to forward packets out a particular interface.
void	SetDefaultMulticastRoute (Ptr< Node > n, std::string ndName)
	Add a default route to the static routing protocol to forward packets out a particular interface.
void	SetDefaultMulticastRoute (std::string nName, Ptr< NetDevice > nd)
	Add a default route to the static routing protocol to forward packets out a particular interface.
void	SetDefaultMulticastRoute (std::string nName, std::string ndName)
	Add a default route to the static routing protocol to forward packets out a particular interface.
Public Member Functions inherited from ns3::Ipv4RoutingHelper
virtual	~Ipv4RoutingHelper ()

Additional Inherited Members
Static Public Member Functions inherited from ns3::Ipv4RoutingHelper
template<class T >
static Ptr< T >	GetRouting (Ptr< Ipv4RoutingProtocol > protocol)
	Request a specified routing protocol <T> from Ipv4RoutingProtocol protocol.
static void	PrintNeighborCacheAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of all nodes at a particular time.
static void	PrintNeighborCacheAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of all nodes at regular intervals specified by user.
static void	PrintNeighborCacheAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of a node at a particular time.
static void	PrintNeighborCacheEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the neighbor cache of a node at regular intervals specified by user.
static void	PrintRoutingTableAllAt (Time printTime, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of all nodes at a particular time.
static void	PrintRoutingTableAllEvery (Time printInterval, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of all nodes at regular intervals specified by user.
static void	PrintRoutingTableAt (Time printTime, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of a node at a particular time.
static void	PrintRoutingTableEvery (Time printInterval, Ptr< Node > node, Ptr< OutputStreamWrapper > stream, Time::Unit unit=Time::S)
	prints the routing tables of a node at regular intervals specified by user.

Detailed Description

Helper class that adds ns3::Ipv4StaticRouting objects.

This class is expected to be used in conjunction with ns3::InternetStackHelper::SetRoutingHelper

Definition at line 32 of file ipv4-static-routing-helper.h.

Constructor & Destructor Documentation

Ipv4StaticRoutingHelper() [1/2]

ns3::Ipv4StaticRoutingHelper::Ipv4StaticRoutingHelper

(

)

Definition at line 27 of file ipv4-static-routing-helper.cc.

Referenced by Copy().

Here is the caller graph for this function:

Ipv4StaticRoutingHelper() [2/2]

ns3::Ipv4StaticRoutingHelper::Ipv4StaticRoutingHelper

(

const Ipv4StaticRoutingHelper &

o

)

Construct an Ipv4StaticRoutingHelper from another previously initialized instance (Copy Constructor).

Parameters

o	object to be copied

Definition at line 31 of file ipv4-static-routing-helper.cc.

Member Function Documentation

AddMulticastRoute() [1/4]

void ns3::Ipv4StaticRoutingHelper::AddMulticastRoute	(	Ptr< Node >	n,
		Ipv4Address	source,
		Ipv4Address	group,
		Ptr< NetDevice >	input,
		NetDeviceContainer	output
	)

Add a multicast route to a node and net device using explicit Ptr<Node> and Ptr<NetDevice>

Parameters

n	The node.
source	Source address.
group	Multicast group.
input	Input NetDevice.
output	Output NetDevices.

Definition at line 78 of file ipv4-static-routing-helper.cc.

References Create(), and NS_ASSERT_MSG.

Referenced by AddMulticastRoute(), AddMulticastRoute(), and AddMulticastRoute().

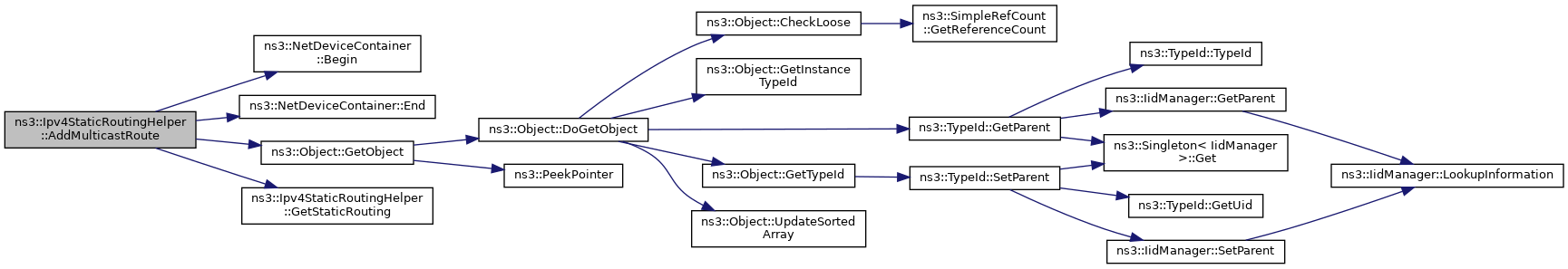

Here is the call graph for this function:

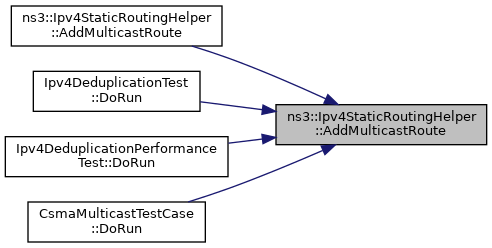

Here is the caller graph for this function:

AddMulticastRoute() [2/4]

void ns3::Ipv4StaticRoutingHelper::AddMulticastRoute	(	Ptr< Node >	n,
		Ipv4Address	source,
		Ipv4Address	group,
		std::string	inputName,
		NetDeviceContainer	output
	)

Add a multicast route to a node and device using a Ptr<Node> and a name string previously associated to the device using the Object Name Service.

Parameters

n	The node.
source	Source address.
group	Multicast group.
inputName	Input NetDevice.
output	Output NetDevices.

Definition at line 115 of file ipv4-static-routing-helper.cc.

References AddMulticastRoute(), and Create().

Here is the call graph for this function:

AddMulticastRoute() [3/4]

void ns3::Ipv4StaticRoutingHelper::AddMulticastRoute	(	std::string	n,
		Ipv4Address	source,
		Ipv4Address	group,
		Ptr< NetDevice >	input,
		NetDeviceContainer	output
	)

Add a multicast route to a node and device using a name string previously associated to the node using the Object Name Service and a Ptr<NetDevice>

Parameters

n	The node.
source	Source address.
group	Multicast group.
input	Input NetDevice.
output	Output NetDevices.

Definition at line 126 of file ipv4-static-routing-helper.cc.

References AddMulticastRoute(), and Create().

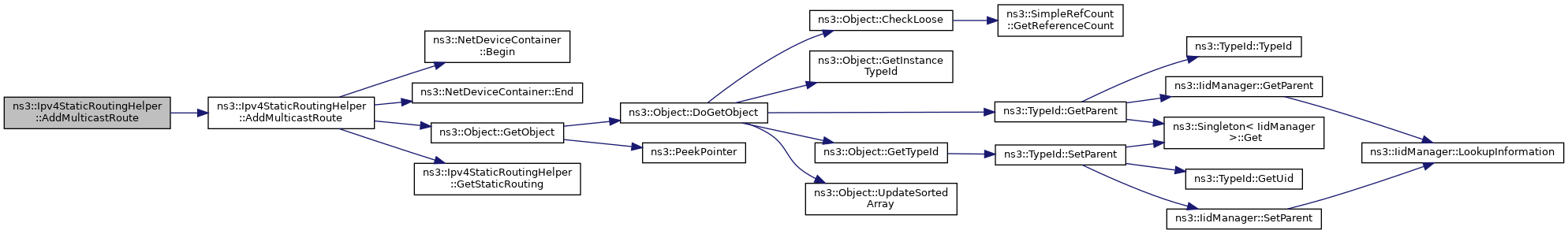

Here is the call graph for this function:

AddMulticastRoute() [4/4]

void ns3::Ipv4StaticRoutingHelper::AddMulticastRoute	(	std::string	nName,
		Ipv4Address	source,
		Ipv4Address	group,
		std::string	inputName,
		NetDeviceContainer	output
	)

Add a multicast route to a node and device using name strings previously associated to both the node and device using the Object Name Service.

Parameters

nName	The node.
source	Source address.
group	Multicast group.
inputName	Input NetDevice.
output	Output NetDevices.

Definition at line 137 of file ipv4-static-routing-helper.cc.

References AddMulticastRoute(), and Create().

Here is the call graph for this function:

Copy()

Ipv4StaticRoutingHelper * ns3::Ipv4StaticRoutingHelper::Copy ( ) const

overridevirtual

Returns

pointer to clone of this Ipv4StaticRoutingHelper

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Implements ns3::Ipv4RoutingHelper.

Definition at line 36 of file ipv4-static-routing-helper.cc.

References Ipv4StaticRoutingHelper().

Here is the call graph for this function:

Create()

Ptr< Ipv4RoutingProtocol > ns3::Ipv4StaticRoutingHelper::Create ( Ptr< Node >  node ) const

overridevirtual

Parameters

node	the node on which the routing protocol will run

Returns

a newly-created routing protocol

This method will be called by ns3::InternetStackHelper::Install

Implements ns3::Ipv4RoutingHelper.

Definition at line 42 of file ipv4-static-routing-helper.cc.

References Create().

Referenced by visualizer.ipython_view.ConsoleView::__init__(), show_last_packets.ShowLastPackets.PacketList::__init__(), visualizer.ipython_view.ConsoleView::_write(), AddMulticastRoute(), AddMulticastRoute(), AddMulticastRoute(), AddMulticastRoute(), test-ns3.NS3BaseTestCase::config_ok(), Create(), visualizer.svgitem.SvgItem::do_set_property(), GetStaticRouting(), SetDefaultMulticastRoute(), SetDefaultMulticastRoute(), SetDefaultMulticastRoute(), SetDefaultMulticastRoute(), test-ns3.NS3StyleTestCase::setUp(), test-ns3.NS3BaseTestCase::setUp(), test-ns3.NS3ExpectedUseTestCase::setUp(), test-ns3.NS3BuildBaseTestCase::test_01_BuildExistingTargets(), test-ns3.NS3ExpectedUseTestCase::test_01_BuildProject(), test-ns3.NS3StyleTestCase::test_01_CheckCMakeFormat(), test-ns3.NS3QualityControlTestCase::test_01_CheckForDeadLinksInSources(), test-ns3.NS3DependenciesTestCase::test_01_CheckIfIncludedHeadersMatchLinkedModules(), test-ns3.NS3ConfigureBuildProfileTestCase::test_01_Debug(), test-ns3.NS3CommonSettingsTestCase::test_01_NoOption(), test-ns3.NS3UnusedSourcesTestCase::test_01_UnusedExampleSources(), test-ns3.NS3ExpectedUseTestCase::test_02_BuildAndRunExistingExecutableTarget(), test-ns3.NS3BuildBaseTestCase::test_02_BuildNonExistingTargets(), test-ns3.NS3QualityControlTestCase::test_02_MemoryCheckWithSanitizers(), test-ns3.NS3CommonSettingsTestCase::test_02_NoTaskLines(), test-ns3.NS3ConfigureBuildProfileTestCase::test_02_Release(), test-ns3.NS3ConfigureTestCase::test_02_Tests(), test-ns3.NS3UnusedSourcesTestCase::test_02_UnusedModuleSources(), test-ns3.NS3ExpectedUseTestCase::test_03_BuildAndRunExistingLibraryTarget(), test-ns3.NS3BuildBaseTestCase::test_03_BuildProject(), test-ns3.NS3CommonSettingsTestCase::test_03_CheckConfig(), test-ns3.NS3QualityControlTestCase::test_03_CheckImageBrightness(), test-ns3.NS3ConfigureBuildProfileTestCase::test_03_Optimized(), test-ns3.NS3UnusedSourcesTestCase::test_03_UnusedUtilsSources(), test-ns3.NS3ExpectedUseTestCase::test_04_BuildAndRunNonExistingTarget(), test-ns3.NS3BuildBaseTestCase::test_04_BuildProjectNoTaskLines(), test-ns3.NS3QualityControlTestCase::test_04_CheckForBrokenLogs(), test-ns3.NS3CommonSettingsTestCase::test_04_CheckProfile(), test-ns3.NS3ConfigureTestCase::test_04_DisableModules(), test-ns3.NS3ConfigureBuildProfileTestCase::test_04_Typo(), test-ns3.NS3BuildBaseTestCase::test_05_BreakBuild(), test-ns3.NS3CommonSettingsTestCase::test_05_CheckVersion(), test-ns3.NS3ConfigureTestCase::test_05_EnableModulesComma(), test-ns3.NS3ExpectedUseTestCase::test_05_RunNoBuildExistingExecutableTarget(), test-ns3.NS3ConfigureBuildProfileTestCase::test_05_TYPO(), test-ns3.NS3ConfigureTestCase::test_06_DisableModulesComma(), test-ns3.NS3ConfigureBuildProfileTestCase::test_06_OverwriteDefaultSettings(), test-ns3.NS3ExpectedUseTestCase::test_06_RunNoBuildExistingLibraryTarget(), test-ns3.NS3BuildBaseTestCase::test_06_TestVersionFile(), test-ns3.NS3BuildBaseTestCase::test_07_OutputDirectory(), test-ns3.NS3ExpectedUseTestCase::test_07_RunNoBuildNonExistingExecutableTarget(), test-ns3.NS3ConfigureTestCase::test_08_DryRun(), test-ns3.NS3BuildBaseTestCase::test_08_InstallationAndUninstallation(), test-ns3.NS3ExpectedUseTestCase::test_08_RunNoBuildGdb(), test-ns3.NS3ConfigureTestCase::test_09_PropagationOfReturnCode(), test-ns3.NS3ExpectedUseTestCase::test_09_RunNoBuildValgrind(), test-ns3.NS3BuildBaseTestCase::test_09_Scratches(), test-ns3.NS3BuildBaseTestCase::test_10_AmbiguityCheck(), test-ns3.NS3ConfigureTestCase::test_10_CheckConfig(), test-ns3.NS3ExpectedUseTestCase::test_10_DoxygenWithBuild(), test-ns3.NS3ConfigureTestCase::test_11_CheckProfile(), test-ns3.NS3ExpectedUseTestCase::test_11_DoxygenWithoutBuild(), test-ns3.NS3BuildBaseTestCase::test_11_StaticBuilds(), test-ns3.NS3ConfigureTestCase::test_12_CheckVersion(), test-ns3.NS3BuildBaseTestCase::test_12_CppyyBindings(), test-ns3.NS3ExpectedUseTestCase::test_12_SphinxDocumentation(), test-ns3.NS3ExpectedUseTestCase::test_13_Documentation(), test-ns3.NS3BuildBaseTestCase::test_13_FetchOptionalComponents(), test-ns3.NS3ConfigureTestCase::test_13_Scratches(), test-ns3.NS3ExpectedUseTestCase::test_14_EnableSudo(), test-ns3.NS3BuildBaseTestCase::test_14_LinkContribModuleToSrcModule(), test-ns3.NS3ConfigureTestCase::test_14_MpiCommandTemplate(), test-ns3.NS3ExpectedUseTestCase::test_15_CommandTemplate(), test-ns3.NS3ConfigureTestCase::test_15_InvalidLibrariesToLink(), test-ns3.NS3ExpectedUseTestCase::test_16_ForwardArgumentsToRunTargets(), test-ns3.NS3ConfigureTestCase::test_16_LibrariesContainingLib(), test-ns3.NS3ConfigureTestCase::test_17_CMakePerformanceTracing(), test-ns3.NS3ExpectedUseTestCase::test_17_RunNoBuildLldb(), test-ns3.NS3ConfigureTestCase::test_18_CheckBuildVersionAndVersionCache(), test-ns3.NS3ExpectedUseTestCase::test_18_CpmAndVcpkgManagers(), test-ns3.NS3ConfigureTestCase::test_19_FilterModuleExamplesAndTests(), test-ns3.NS3ConfigureTestCase::test_20_CheckFastLinkers(), test-ns3.NS3ConfigureTestCase::test_21_ClangTimeTrace(), test-ns3.NS3ConfigureTestCase::test_22_NinjaTrace(), test-ns3.NS3ConfigureTestCase::test_23_PrecompiledHeaders(), test-ns3.NS3ConfigureTestCase::test_24_CheckTestSettings(), python-unit-tests.TestSimulator::testAttributes(), python-unit-tests.TestSimulator::testCommandLine(), python-unit-tests.TestSimulator::testIdentity(), python-unit-tests.TestSimulator::testSchedule(), python-unit-tests.TestSimulator::testScheduleDestroy(), python-unit-tests.TestSimulator::testSubclass(), python-unit-tests.TestSimulator::testTimeComparison(), python-unit-tests.TestSimulator::testTimeNumericOperations(), python-unit-tests.TestSimulator::testTypeId(), and visualizer.core.Node::tooltip_query().

Here is the call graph for this function:

GetStaticRouting()

Ptr< Ipv4StaticRouting > ns3::Ipv4StaticRoutingHelper::GetStaticRouting

(

Ptr< Ipv4 >

ipv4

)

const

Try and find the static routing protocol as either the main routing protocol or in the list of routing protocols associated with the Ipv4 provided.

Parameters

ipv4	the Ptr<Ipv4> to search for the static routing protocol

Returns

Ipv4StaticRouting pointer or 0 if not found

Definition at line 48 of file ipv4-static-routing-helper.cc.

References Create(), NS_ASSERT_MSG, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by LteAggregationThroughputScaleTestCase::GetThroughput().

Here is the call graph for this function:

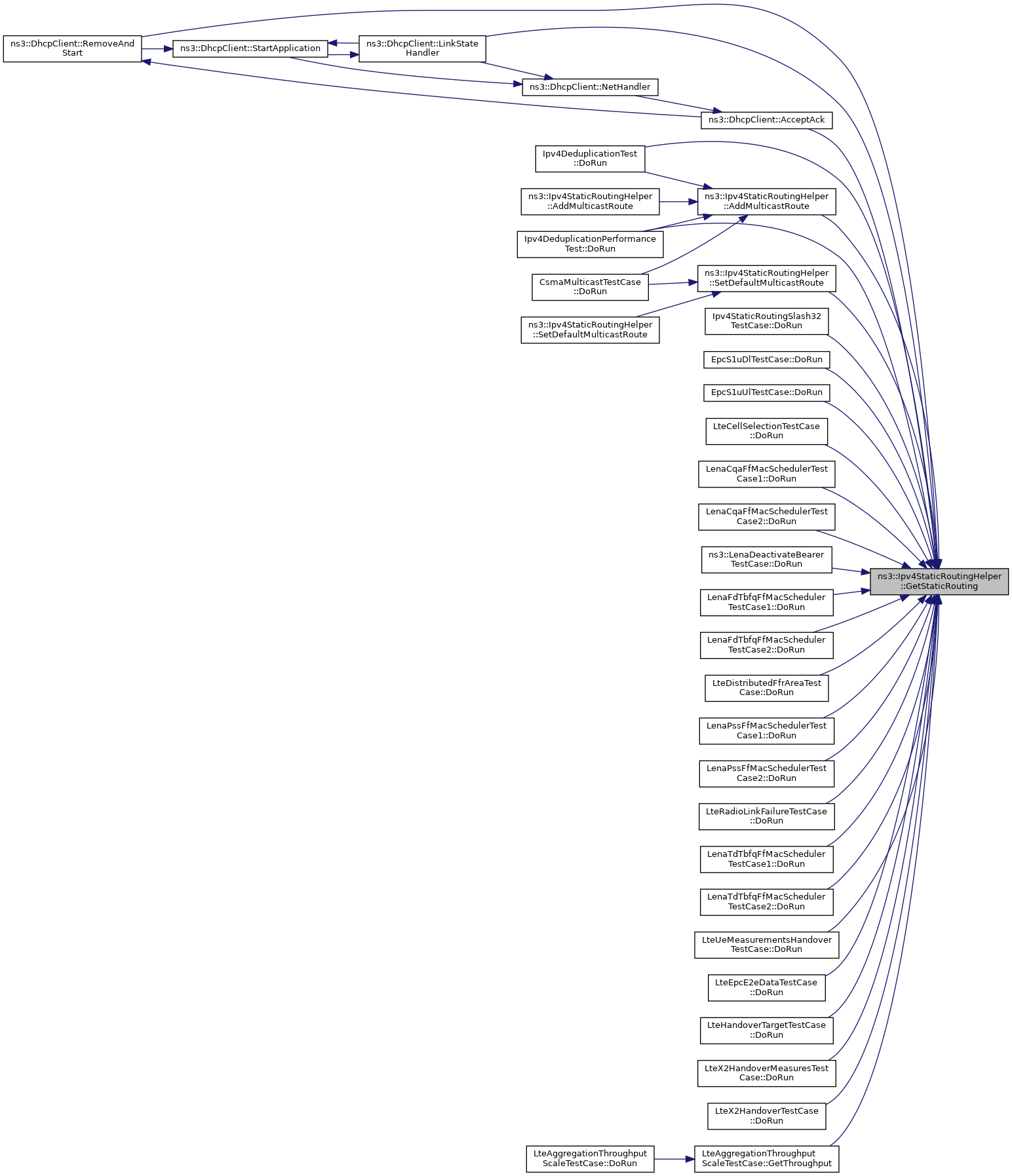

Here is the caller graph for this function:

operator=()

Ipv4StaticRoutingHelper & ns3::Ipv4StaticRoutingHelper::operator= ( const Ipv4StaticRoutingHelper &  )

delete

SetDefaultMulticastRoute() [1/4]

void ns3::Ipv4StaticRoutingHelper::SetDefaultMulticastRoute	(	Ptr< Node >	n,
		Ptr< NetDevice >	nd
	)

Add a default route to the static routing protocol to forward packets out a particular interface.

Functionally equivalent to: route add 224.0.0.0 netmask 240.0.0.0 dev nd

Parameters

n	node
nd	device of the node to add default route

Definition at line 149 of file ipv4-static-routing-helper.cc.

References Create(), and NS_ASSERT_MSG.

Referenced by SetDefaultMulticastRoute(), SetDefaultMulticastRoute(), and SetDefaultMulticastRoute().

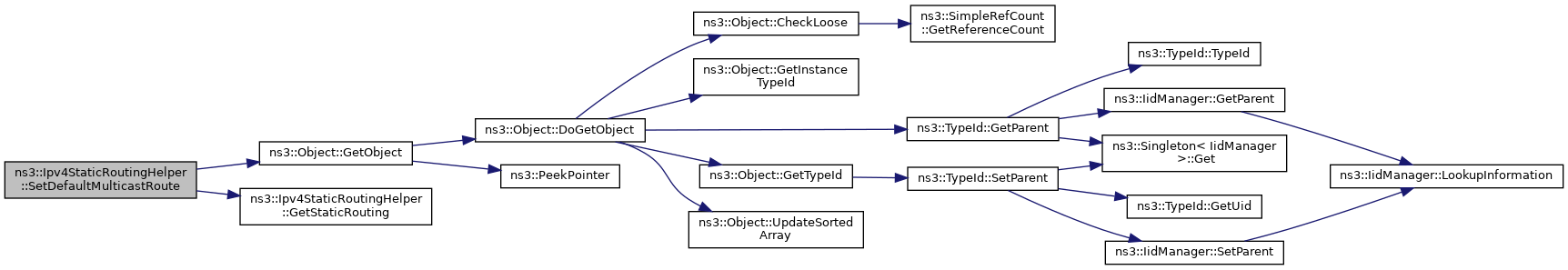

Here is the call graph for this function:

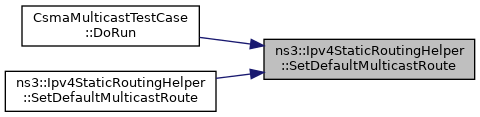

Here is the caller graph for this function:

SetDefaultMulticastRoute() [2/4]

void ns3::Ipv4StaticRoutingHelper::SetDefaultMulticastRoute	(	Ptr< Node >	n,
		std::string	ndName
	)

Add a default route to the static routing protocol to forward packets out a particular interface.

Functionally equivalent to: route add 224.0.0.0 netmask 240.0.0.0 dev nd

Parameters

n	node
ndName	string with name previously associated to device using the Object Name Service

Definition at line 168 of file ipv4-static-routing-helper.cc.

References Create(), and SetDefaultMulticastRoute().

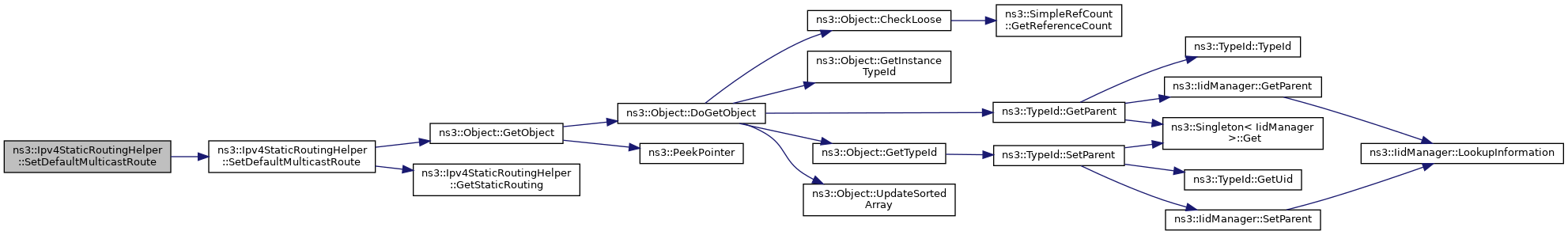

Here is the call graph for this function:

SetDefaultMulticastRoute() [3/4]

void ns3::Ipv4StaticRoutingHelper::SetDefaultMulticastRoute	(	std::string	nName,
		Ptr< NetDevice >	nd
	)

Add a default route to the static routing protocol to forward packets out a particular interface.

Functionally equivalent to: route add 224.0.0.0 netmask 240.0.0.0 dev nd

Parameters

nName	string with name previously associated to node using the Object Name Service
nd	device of the node to add default route

Definition at line 175 of file ipv4-static-routing-helper.cc.

References Create(), and SetDefaultMulticastRoute().

Here is the call graph for this function:

SetDefaultMulticastRoute() [4/4]

void ns3::Ipv4StaticRoutingHelper::SetDefaultMulticastRoute	(	std::string	nName,
		std::string	ndName
	)

Add a default route to the static routing protocol to forward packets out a particular interface.

Functionally equivalent to: route add 224.0.0.0 netmask 240.0.0.0 dev nd

Parameters

nName	string with name previously associated to node using the Object Name Service
ndName	string with name previously associated to device using the Object Name Service

Definition at line 182 of file ipv4-static-routing-helper.cc.

References Create(), and SetDefaultMulticastRoute().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• src/internet/helper/ipv4-static-routing-helper.h
• src/internet/helper/ipv4-static-routing-helper.cc
