ns3::DsrHelper Class Reference

DSR helper class to manage creation of DSR routing instance and to insert it on a node as a sublayer between transport and IP layers. More...

#include "dsr-helper.h"

Collaboration diagram for ns3::DsrHelper:

Public Member Functions
	DsrHelper ()
	Create an DsrHelper that makes life easier for people who want to install Dsr routing to nodes.
	DsrHelper (const DsrHelper &o)
	Construct an DsrHelper from another previously initialized instance (Copy Constructor).
	~DsrHelper ()
DsrHelper *	Copy () const
Ptr< ns3::dsr::DsrRouting >	Create (Ptr< Node > node) const
DsrHelper &	operator= (const DsrHelper &)=delete
void	Set (std::string name, const AttributeValue &value)
	Set attribute values for future instances of DSR that this helper creates.

Private Attributes
ObjectFactory	m_agentFactory
	DSR factory.

Detailed Description

DSR helper class to manage creation of DSR routing instance and to insert it on a node as a sublayer between transport and IP layers.

Definition at line 41 of file dsr-helper.h.

Constructor & Destructor Documentation

DsrHelper() [1/2]

ns3::DsrHelper::DsrHelper

(

)

Create an DsrHelper that makes life easier for people who want to install Dsr routing to nodes.

Definition at line 40 of file dsr-helper.cc.

References m_agentFactory, NS_LOG_FUNCTION, and ns3::ObjectFactory::SetTypeId().

Referenced by Copy().

Here is the call graph for this function:

Here is the caller graph for this function:

~DsrHelper()

ns3::DsrHelper::~DsrHelper

(

)

Definition at line 52 of file dsr-helper.cc.

References NS_LOG_FUNCTION.

DsrHelper() [2/2]

ns3::DsrHelper::DsrHelper

(

const DsrHelper &

o

)

Construct an DsrHelper from another previously initialized instance (Copy Constructor).

Parameters

o	object to copy from

Definition at line 46 of file dsr-helper.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Copy()

DsrHelper * ns3::DsrHelper::Copy

(

)

const

Returns

pointer to clone of this DsrHelper

This method is mainly for internal use by the other helpers; clients are expected to free the dynamic memory allocated by this method

Definition at line 58 of file dsr-helper.cc.

References DsrHelper(), and NS_LOG_FUNCTION.

Referenced by ns3::DsrMainHelper::DsrMainHelper(), ns3::DsrMainHelper::Install(), ns3::DsrMainHelper::operator=(), and ns3::DsrMainHelper::SetDsrHelper().

Here is the call graph for this function:

Here is the caller graph for this function:

Create()

Ptr< ns3::dsr::DsrRouting > ns3::DsrHelper::Create

(

Ptr< Node >

node

)

const

Parameters

node	the node on which the routing protocol will run

Returns

a newly-created L4 protocol

Definition at line 65 of file dsr-helper.cc.

References ns3::ObjectFactory::Create(), Create(), m_agentFactory, ns3::MakeCallback(), NS_LOG_FUNCTION, ns3::dsr::DsrRouting::Send(), and ns3::UdpL4Protocol::SetDownTarget().

Referenced by visualizer.ipython_view.ConsoleView::__init__(), show_last_packets.ShowLastPackets.PacketList::__init__(), visualizer.ipython_view.ConsoleView::_write(), test-ns3.NS3BaseTestCase::config_ok(), Create(), visualizer.svgitem.SvgItem::do_set_property(), ns3::DsrMainHelper::Install(), test-ns3.NS3StyleTestCase::setUp(), test-ns3.NS3BaseTestCase::setUp(), test-ns3.NS3ExpectedUseTestCase::setUp(), test-ns3.NS3BuildBaseTestCase::test_01_BuildExistingTargets(), test-ns3.NS3ExpectedUseTestCase::test_01_BuildProject(), test-ns3.NS3StyleTestCase::test_01_CheckCMakeFormat(), test-ns3.NS3QualityControlTestCase::test_01_CheckForDeadLinksInSources(), test-ns3.NS3DependenciesTestCase::test_01_CheckIfIncludedHeadersMatchLinkedModules(), test-ns3.NS3ConfigureBuildProfileTestCase::test_01_Debug(), test-ns3.NS3CommonSettingsTestCase::test_01_NoOption(), test-ns3.NS3UnusedSourcesTestCase::test_01_UnusedExampleSources(), test-ns3.NS3ExpectedUseTestCase::test_02_BuildAndRunExistingExecutableTarget(), test-ns3.NS3BuildBaseTestCase::test_02_BuildNonExistingTargets(), test-ns3.NS3QualityControlTestCase::test_02_MemoryCheckWithSanitizers(), test-ns3.NS3CommonSettingsTestCase::test_02_NoTaskLines(), test-ns3.NS3ConfigureBuildProfileTestCase::test_02_Release(), test-ns3.NS3ConfigureTestCase::test_02_Tests(), test-ns3.NS3UnusedSourcesTestCase::test_02_UnusedModuleSources(), test-ns3.NS3ExpectedUseTestCase::test_03_BuildAndRunExistingLibraryTarget(), test-ns3.NS3BuildBaseTestCase::test_03_BuildProject(), test-ns3.NS3CommonSettingsTestCase::test_03_CheckConfig(), test-ns3.NS3QualityControlTestCase::test_03_CheckImageBrightness(), test-ns3.NS3ConfigureBuildProfileTestCase::test_03_Optimized(), test-ns3.NS3UnusedSourcesTestCase::test_03_UnusedUtilsSources(), test-ns3.NS3ExpectedUseTestCase::test_04_BuildAndRunNonExistingTarget(), test-ns3.NS3BuildBaseTestCase::test_04_BuildProjectNoTaskLines(), test-ns3.NS3QualityControlTestCase::test_04_CheckForBrokenLogs(), test-ns3.NS3CommonSettingsTestCase::test_04_CheckProfile(), test-ns3.NS3ConfigureTestCase::test_04_DisableModules(), test-ns3.NS3ConfigureBuildProfileTestCase::test_04_Typo(), test-ns3.NS3BuildBaseTestCase::test_05_BreakBuild(), test-ns3.NS3CommonSettingsTestCase::test_05_CheckVersion(), test-ns3.NS3ConfigureTestCase::test_05_EnableModulesComma(), test-ns3.NS3ExpectedUseTestCase::test_05_RunNoBuildExistingExecutableTarget(), test-ns3.NS3ConfigureBuildProfileTestCase::test_05_TYPO(), test-ns3.NS3ConfigureTestCase::test_06_DisableModulesComma(), test-ns3.NS3ConfigureBuildProfileTestCase::test_06_OverwriteDefaultSettings(), test-ns3.NS3ExpectedUseTestCase::test_06_RunNoBuildExistingLibraryTarget(), test-ns3.NS3BuildBaseTestCase::test_06_TestVersionFile(), test-ns3.NS3BuildBaseTestCase::test_07_OutputDirectory(), test-ns3.NS3ExpectedUseTestCase::test_07_RunNoBuildNonExistingExecutableTarget(), test-ns3.NS3ConfigureTestCase::test_08_DryRun(), test-ns3.NS3BuildBaseTestCase::test_08_InstallationAndUninstallation(), test-ns3.NS3ExpectedUseTestCase::test_08_RunNoBuildGdb(), test-ns3.NS3ConfigureTestCase::test_09_PropagationOfReturnCode(), test-ns3.NS3ExpectedUseTestCase::test_09_RunNoBuildValgrind(), test-ns3.NS3BuildBaseTestCase::test_09_Scratches(), test-ns3.NS3BuildBaseTestCase::test_10_AmbiguityCheck(), test-ns3.NS3ConfigureTestCase::test_10_CheckConfig(), test-ns3.NS3ExpectedUseTestCase::test_10_DoxygenWithBuild(), test-ns3.NS3ConfigureTestCase::test_11_CheckProfile(), test-ns3.NS3ExpectedUseTestCase::test_11_DoxygenWithoutBuild(), test-ns3.NS3BuildBaseTestCase::test_11_StaticBuilds(), test-ns3.NS3ConfigureTestCase::test_12_CheckVersion(), test-ns3.NS3BuildBaseTestCase::test_12_CppyyBindings(), test-ns3.NS3ExpectedUseTestCase::test_12_SphinxDocumentation(), test-ns3.NS3ExpectedUseTestCase::test_13_Documentation(), test-ns3.NS3BuildBaseTestCase::test_13_FetchOptionalComponents(), test-ns3.NS3ConfigureTestCase::test_13_Scratches(), test-ns3.NS3ExpectedUseTestCase::test_14_EnableSudo(), test-ns3.NS3BuildBaseTestCase::test_14_LinkContribModuleToSrcModule(), test-ns3.NS3ConfigureTestCase::test_14_MpiCommandTemplate(), test-ns3.NS3ExpectedUseTestCase::test_15_CommandTemplate(), test-ns3.NS3ConfigureTestCase::test_15_InvalidLibrariesToLink(), test-ns3.NS3ExpectedUseTestCase::test_16_ForwardArgumentsToRunTargets(), test-ns3.NS3ConfigureTestCase::test_16_LibrariesContainingLib(), test-ns3.NS3ConfigureTestCase::test_17_CMakePerformanceTracing(), test-ns3.NS3ExpectedUseTestCase::test_17_RunNoBuildLldb(), test-ns3.NS3ConfigureTestCase::test_18_CheckBuildVersionAndVersionCache(), test-ns3.NS3ExpectedUseTestCase::test_18_CpmAndVcpkgManagers(), test-ns3.NS3ConfigureTestCase::test_19_FilterModuleExamplesAndTests(), test-ns3.NS3ConfigureTestCase::test_20_CheckFastLinkers(), test-ns3.NS3ConfigureTestCase::test_21_ClangTimeTrace(), test-ns3.NS3ConfigureTestCase::test_22_NinjaTrace(), test-ns3.NS3ConfigureTestCase::test_23_PrecompiledHeaders(), test-ns3.NS3ConfigureTestCase::test_24_CheckTestSettings(), python-unit-tests.TestSimulator::testAttributes(), python-unit-tests.TestSimulator::testCommandLine(), python-unit-tests.TestSimulator::testIdentity(), python-unit-tests.TestSimulator::testSchedule(), python-unit-tests.TestSimulator::testScheduleDestroy(), python-unit-tests.TestSimulator::testSubclass(), python-unit-tests.TestSimulator::testTimeComparison(), python-unit-tests.TestSimulator::testTimeNumericOperations(), python-unit-tests.TestSimulator::testTypeId(), and visualizer.core.Node::tooltip_query().

Here is the call graph for this function:

operator=()

DsrHelper & ns3::DsrHelper::operator= ( const DsrHelper &  )

delete

Set()

void ns3::DsrHelper::Set	(	std::string	name,
		const AttributeValue &	value
	)

Set attribute values for future instances of DSR that this helper creates.

Parameters

name	the node on which the routing protocol will run
value	newly-created L4 protocol

Definition at line 82 of file dsr-helper.cc.

References m_agentFactory, ns3::ObjectFactory::Set(), and ns3::value().

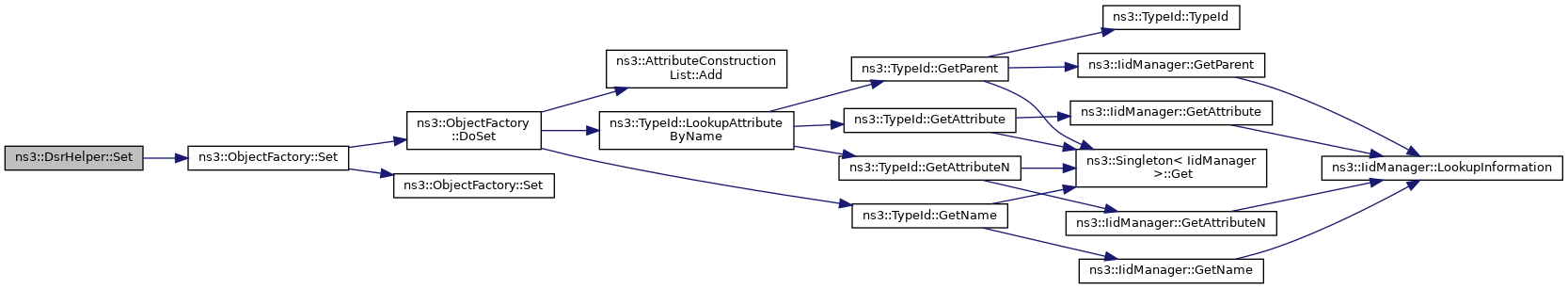

Here is the call graph for this function:

Member Data Documentation

m_agentFactory

ObjectFactory ns3::DsrHelper::m_agentFactory

private

DSR factory.

Definition at line 80 of file dsr-helper.h.

Referenced by DsrHelper(), Create(), and Set().

---

The documentation for this class was generated from the following files:

• src/dsr/helper/dsr-helper.h
• src/dsr/helper/dsr-helper.cc
