Structure storing the data for a 3D plot. More...

Inheritance diagram for ns3::Gnuplot3dDataset::Data3d:

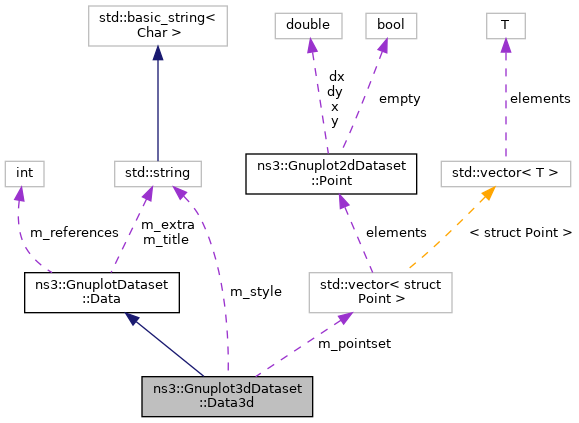

Collaboration diagram for ns3::Gnuplot3dDataset::Data3d:

Public Member Functions
	Data3d (const std::string &title)
	Initializes with value from m_defaultStyle.

	Data3d (const std::string &title)
	Initializes with value from m_defaultStyle.

std::string	GetCommand () const override
	Returns the plot type ("plot" or "splot").

std::string	GetCommand () const override
	Returns the plot type ("plot" or "splot").

bool	IsEmpty () const override
	Checks to see if this GnuplotDataset is empty.

bool	IsEmpty () const override
	Checks to see if this GnuplotDataset is empty.

void	PrintDataFile (std::ostream &os, bool generateOneOutputFile) const override
	Print the inline data file contents trailing the plot command.

void	PrintDataFile (std::ostream &os, bool generateOneOutputFile) const override
	Print the inline data file contents trailing the plot command.

void	PrintExpression (std::ostream &os, bool generateOneOutputFile, unsigned int dataFileDatasetIndex, std::string &dataFileName) const override
	Prints the plot description used as argument to (s)plot.

void	PrintExpression (std::ostream &os, bool generateOneOutputFile, unsigned int dataFileDatasetIndex, std::string &dataFileName) const override
	Prints the plot description used as argument to (s)plot.

Public Member Functions inherited from ns3::GnuplotDataset::Data
	Data (const std::string &title)
	Initializes the reference counter to 1 and sets m_title and m_extra.

	Data (const std::string &title)
	Initializes the reference counter to 1 and sets m_title and m_extra.

virtual	~Data ()
	Required.

virtual	~Data ()
	Required.

Public Attributes
PointSet	m_pointset
	The set of points in this data set.

std::string	m_style
	The plotting style to use for this dataset.

Public Attributes inherited from ns3::GnuplotDataset::Data
std::string	m_extra
	Extra parameters for the plot.

unsigned int	m_references
	ref/unref counter for garbage collection

std::string	m_title
	Dataset title.

Detailed Description

Structure storing the data for a 3D plot.

Definition at line 511 of file gnuplot.cc.

Constructor & Destructor Documentation

◆ Data3d() [1/2]

ns3::Gnuplot3dDataset::Data3d::Data3d ( const std::string & title )

Initializes with value from m_defaultStyle.

Parameters

title Dataset title

Definition at line 534 of file gnuplot.cc.

◆ Data3d() [2/2]

ns3::Gnuplot3dDataset::Data3d::Data3d ( const std::string & title )

Initializes with value from m_defaultStyle.

Parameters

title Dataset title

Member Function Documentation

◆ GetCommand() [1/2]

std::string ns3::Gnuplot3dDataset::Data3d::GetCommand ( ) const

overridevirtual

Returns the plot type ("plot" or "splot").

Returns: the plot type ("plot" or "splot").

Implements ns3::GnuplotDataset::Data.

Definition at line 541 of file gnuplot.cc.

◆ GetCommand() [2/2]

std::string ns3::Gnuplot3dDataset::Data3d::GetCommand ( ) const

overridevirtual

Returns the plot type ("plot" or "splot").

Returns: the plot type ("plot" or "splot").

Implements ns3::GnuplotDataset::Data.

◆ IsEmpty() [1/2]

bool ns3::Gnuplot3dDataset::Data3d::IsEmpty ( ) const

overridevirtual

Checks to see if this GnuplotDataset is empty.

Returns: indicates if this GnuplotDataset is empty.

Implements ns3::GnuplotDataset::Data.

Definition at line 587 of file gnuplot.cc.

◆ IsEmpty() [2/2]

bool ns3::Gnuplot3dDataset::Data3d::IsEmpty ( ) const

overridevirtual

Checks to see if this GnuplotDataset is empty.

Returns: indicates if this GnuplotDataset is empty.

Implements ns3::GnuplotDataset::Data.

◆ PrintDataFile() [1/2]

void ns3::Gnuplot3dDataset::Data3d::PrintDataFile	(	std::ostream &	os,
		bool	generateOneOutputFile
	)		const

overridevirtual

Print the inline data file contents trailing the plot command.

Empty for functions.

Parameters

os	Output stream
generateOneOutputFile	If true, generate only one output file.

Implements ns3::GnuplotDataset::Data.

Definition at line 571 of file gnuplot.cc.

References ns3::Create().

Here is the call graph for this function:

◆ PrintDataFile() [2/2]

void ns3::Gnuplot3dDataset::Data3d::PrintDataFile	(	std::ostream &	os,
		bool	generateOneOutputFile
	)		const

overridevirtual

Print the inline data file contents trailing the plot command.

Empty for functions.

Parameters

os	Output stream
generateOneOutputFile	If true, generate only one output file.

Implements ns3::GnuplotDataset::Data.

◆ PrintExpression() [1/2]

void ns3::Gnuplot3dDataset::Data3d::PrintExpression	(	std::ostream &	os,
		bool	generateOneOutputFile,
		unsigned int	dataFileDatasetIndex,
		std::string &	dataFileName
	)		const

overridevirtual

Prints the plot description used as argument to (s)plot.

Either the function expression or a datafile description. Should include m_title and m_extra in the output.

If more than one output file is being generated, i.e. separate data and control files, then the index for the current dataset and the name for the data file are also included.

Parameters

os	Output stream
generateOneOutputFile	If true, generate only one output file.
dataFileDatasetIndex	Dataset Index
dataFileName	Dataset file name

Implements ns3::GnuplotDataset::Data.

Definition at line 547 of file gnuplot.cc.

◆ PrintExpression() [2/2]

void ns3::Gnuplot3dDataset::Data3d::PrintExpression	(	std::ostream &	os,
		bool	generateOneOutputFile,
		unsigned int	dataFileDatasetIndex,
		std::string &	dataFileName
	)		const

overridevirtual

Prints the plot description used as argument to (s)plot.

Either the function expression or a datafile description. Should include m_title and m_extra in the output.

If more than one output file is being generated, i.e. separate data and control files, then the index for the current dataset and the name for the data file are also included.

Parameters

os	Output stream
generateOneOutputFile	If true, generate only one output file.
dataFileDatasetIndex	Dataset Index
dataFileName	Dataset file name

Implements ns3::GnuplotDataset::Data.

Member Data Documentation

◆ m_pointset

PointSet ns3::Gnuplot3dDataset::Data3d::m_pointset

The set of points in this data set.

Definition at line 517 of file gnuplot.cc.

◆ m_style

std::string ns3::Gnuplot3dDataset::Data3d::m_style

The plotting style to use for this dataset.

Definition at line 515 of file gnuplot.cc.

The documentation for this struct was generated from the following files:

src/stats/model/gnuplot.cc
src/stats/model/gnuplot_new.cc
