A flow queue used by the FqCoDel queue disc. More...

#include "fq-codel-queue-disc.h"

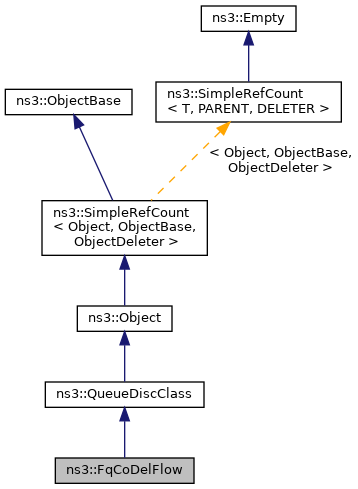

Inheritance diagram for ns3::FqCoDelFlow:

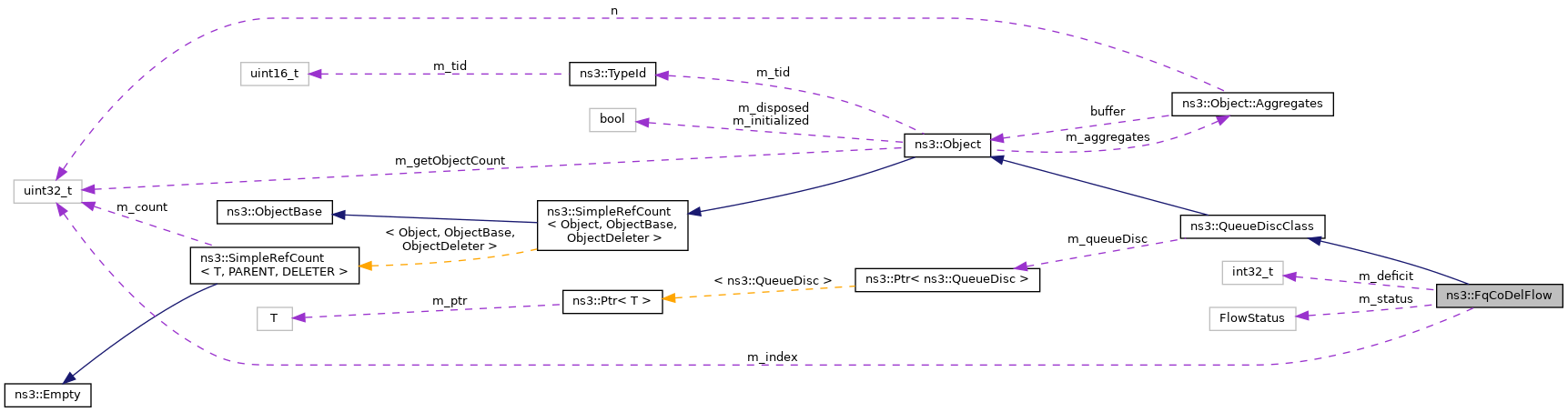

Collaboration diagram for ns3::FqCoDelFlow:

Public Types
enum	FlowStatus { INACTIVE , NEW_FLOW , OLD_FLOW }
	Used to determine the status of this flow queue. More...

Public Member Functions
	FqCoDelFlow ()
	FqCoDelFlow constructor. More...

	~FqCoDelFlow () override

int32_t	GetDeficit () const
	Get the deficit for this flow. More...

uint32_t	GetIndex () const
	Get the index of this flow. More...

FlowStatus	GetStatus () const
	Get the status of this flow. More...

void	IncreaseDeficit (int32_t deficit)
	Increase the deficit for this flow. More...

void	SetDeficit (uint32_t deficit)
	Set the deficit for this flow. More...

void	SetIndex (uint32_t index)
	Set the index for this flow. More...

void	SetStatus (FlowStatus status)
	Set the status for this flow. More...

Public Member Functions inherited from ns3::QueueDiscClass
	QueueDiscClass ()

	~QueueDiscClass () override

Ptr< QueueDisc >	GetQueueDisc () const
	Get the queue disc attached to this class. More...

void	SetQueueDisc (Ptr< QueueDisc > qd)
	Set the queue disc attached to this class. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::QueueDiscClass
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
int32_t	m_deficit
	the deficit for this flow More...

uint32_t	m_index
	the index for this flow More...

FlowStatus	m_status
	the status of this flow More...

Additional Inherited Members
Protected Member Functions inherited from ns3::QueueDiscClass
void	DoDispose () override
	Dispose of the object. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A flow queue used by the FqCoDel queue disc.

Definition at line 40 of file fq-codel-queue-disc.h.

Member Enumeration Documentation

◆ FlowStatus

enum ns3::FqCoDelFlow::FlowStatus

Used to determine the status of this flow queue.

Enumerator
INACTIVE
NEW_FLOW
OLD_FLOW

Definition at line 59 of file fq-codel-queue-disc.h.

Constructor & Destructor Documentation

◆ FqCoDelFlow()

ns3::FqCoDelFlow::FqCoDelFlow ( )

FqCoDelFlow constructor.

Definition at line 47 of file fq-codel-queue-disc.cc.

References NS_LOG_FUNCTION.

◆ ~FqCoDelFlow()

ns3::FqCoDelFlow::~FqCoDelFlow ( )

override

Definition at line 55 of file fq-codel-queue-disc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ GetDeficit()

int32_t ns3::FqCoDelFlow::GetDeficit ( ) const

Get the deficit for this flow.

Returns: the deficit for this flow

Definition at line 68 of file fq-codel-queue-disc.cc.

References m_deficit, and NS_LOG_FUNCTION.

◆ GetIndex()

uint32_t ns3::FqCoDelFlow::GetIndex ( ) const

Get the index of this flow.

Returns: the index of this flow

Definition at line 103 of file fq-codel-queue-disc.cc.

References m_index.

◆ GetStatus()

FqCoDelFlow::FlowStatus ns3::FqCoDelFlow::GetStatus ( ) const

Get the status of this flow.

Returns: the status of this flow

Definition at line 89 of file fq-codel-queue-disc.cc.

References m_status, and NS_LOG_FUNCTION.

◆ GetTypeId()

TypeId ns3::FqCoDelFlow::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 38 of file fq-codel-queue-disc.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ IncreaseDeficit()

void ns3::FqCoDelFlow::IncreaseDeficit ( int32_t deficit )

Increase the deficit for this flow.

Parameters

deficit the amount by which the deficit is to be increased

Definition at line 75 of file fq-codel-queue-disc.cc.

References m_deficit, and NS_LOG_FUNCTION.

◆ SetDeficit()

void ns3::FqCoDelFlow::SetDeficit ( uint32_t deficit )

Set the deficit for this flow.

Parameters

deficit the deficit for this flow

Definition at line 61 of file fq-codel-queue-disc.cc.

References m_deficit, and NS_LOG_FUNCTION.

◆ SetIndex()

void ns3::FqCoDelFlow::SetIndex ( uint32_t index )

Set the index for this flow.

Parameters

index the index for this flow

Definition at line 96 of file fq-codel-queue-disc.cc.

References m_index, and NS_LOG_FUNCTION.

◆ SetStatus()

void ns3::FqCoDelFlow::SetStatus ( FlowStatus status )

Set the status for this flow.

Parameters

status the status for this flow

Definition at line 82 of file fq-codel-queue-disc.cc.

References m_status, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_deficit

int32_t ns3::FqCoDelFlow::m_deficit

private

the deficit for this flow

Definition at line 103 of file fq-codel-queue-disc.h.

Referenced by GetDeficit(), IncreaseDeficit(), and SetDeficit().

◆ m_index

uint32_t ns3::FqCoDelFlow::m_index

private

the index for this flow

Definition at line 105 of file fq-codel-queue-disc.h.

Referenced by GetIndex(), and SetIndex().

◆ m_status

FlowStatus ns3::FqCoDelFlow::m_status

private

the status of this flow

Definition at line 104 of file fq-codel-queue-disc.h.

Referenced by GetStatus(), and SetStatus().

The documentation for this class was generated from the following files:

src/traffic-control/model/fq-codel-queue-disc.h
src/traffic-control/model/fq-codel-queue-disc.cc
