ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT > Class Template Reference

Construct a windowed filter. More...

#include "windowed-filter.h"

Inheritance diagram for ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >:

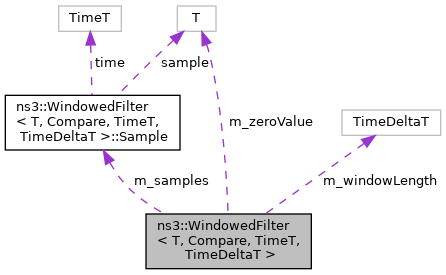

Collaboration diagram for ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >:

Classes
struct	Sample
	sample. More...

Public Member Functions
	WindowedFilter ()
	constructor More...
	WindowedFilter (TimeDeltaT windowLength, T zeroValue, TimeT zeroTime)
	constructor More...
T	GetBest () const
	Returns Max/Min value so far among the windowed samples. More...
T	GetSecondBest () const
	Returns second Max/Min value so far among the windowed samples. More...
T	GetThirdBest () const
	Returns third Max/Min value so far among the windowed samples. More...
void	Reset (T new_sample, TimeT new_time)
	Resets all estimates to new sample. More...
void	SetWindowLength (TimeDeltaT windowLength)
	Changes the window length. More...
void	Update (T new_sample, TimeT new_time)
	Updates best estimates with |sample|, and expires and updates best estimates as necessary. More...

Public Attributes
Sample	m_samples [3]
	Best estimate is element 0. More...
TimeDeltaT	m_windowLength
	Time length of window. More...
T	m_zeroValue
	Uninitialized value of T. More...

Detailed Description

template<class T, class Compare, typename TimeT, typename TimeDeltaT>
class ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >

Construct a windowed filter.

Use the following to construct a windowed filter object of type T. For example, a min filter using QuicTime as the time type: WindowedFilter<T, MinFilter<T>, QuicTime, QuicTime::Delta> ObjectName; max filter using 64-bit integers as the time type: WindowedFilter<T, MaxFilter<T>, uint64_t, int64_t> ObjectName;

Parameters

T	– type of the measurement that is being filtered.
Compare	– MinFilter<T> or MaxFilter<T>, depending on the type of filter desired.
TimeT	– the type used to represent timestamps.
TimeDeltaT	– the type used to represent continuous time intervals between two timestamps. Has to be the type of (a - b) if both |a| and |b| are of type TimeT.

Definition at line 135 of file windowed-filter.h.

Constructor & Destructor Documentation

WindowedFilter() [1/2]

template<class T , class Compare , typename TimeT , typename TimeDeltaT >

ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::WindowedFilter ( )

inline

constructor

Definition at line 141 of file windowed-filter.h.

WindowedFilter() [2/2]

template<class T , class Compare , typename TimeT , typename TimeDeltaT >

ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::WindowedFilter ( TimeDeltaT  windowLength, T  zeroValue, TimeT  zeroTime  )

inline

constructor

Parameters

windowLength	is the period after which a best estimate expires.
zeroValue	is used as the uninitialized value for objects of T. Importantly, zeroValue should be an invalid value for a true sample.
zeroTime	is the time of instance record time.

Definition at line 152 of file windowed-filter.h.

Member Function Documentation

GetBest()

template<class T , class Compare , typename TimeT , typename TimeDeltaT >

T ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::GetBest ( ) const

inline

Returns Max/Min value so far among the windowed samples.

Returns

returns Best (max/min) value so far among the windowed samples.

Definition at line 246 of file windowed-filter.h.

References ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_samples, and ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Sample::sample.

Referenced by ns3::TcpBbr::AckAggregationCwnd(), ns3::TcpBbr::CheckFullPipe(), ns3::TcpBbr::InFlight(), ns3::TcpBbr::SetPacingRate(), ns3::TcpBbr::UpdateAckAggregation(), and ns3::TcpBbr::UpdateBtlBw().

Here is the caller graph for this function:

GetSecondBest()

template<class T , class Compare , typename TimeT , typename TimeDeltaT >

T ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::GetSecondBest ( ) const

inline

Returns second Max/Min value so far among the windowed samples.

Returns

returns second Best (max/min) value so far among the windowed samples.

Definition at line 255 of file windowed-filter.h.

References ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_samples, and ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Sample::sample.

GetThirdBest()

template<class T , class Compare , typename TimeT , typename TimeDeltaT >

T ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::GetThirdBest ( ) const

inline

Returns third Max/Min value so far among the windowed samples.

Returns

returns third Best (max/min) value so far among the windowed samples.

Definition at line 264 of file windowed-filter.h.

References ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_samples, and ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Sample::sample.

Reset()

template<class T , class Compare , typename TimeT , typename TimeDeltaT >

void ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Reset ( T  new_sample, TimeT  new_time  )

inline

Resets all estimates to new sample.

Parameters

new_sample	update new sample.
new_time	record time of the new sample.

Definition at line 237 of file windowed-filter.h.

References ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_samples.

Referenced by ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Update().

Here is the caller graph for this function:

SetWindowLength()

template<class T , class Compare , typename TimeT , typename TimeDeltaT >

void ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::SetWindowLength ( TimeDeltaT  windowLength )

inline

Changes the window length.

Does not update any current samples.

Parameters

windowLength

is the period after which a best estimate expires.

Definition at line 165 of file windowed-filter.h.

References ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_windowLength.

Update()

template<class T , class Compare , typename TimeT , typename TimeDeltaT >

void ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Update ( T  new_sample, TimeT  new_time  )

inline

Updates best estimates with |sample|, and expires and updates best estimates as necessary.

Parameters

new_sample	update new sample.
new_time	record time of the new sample.

Definition at line 177 of file windowed-filter.h.

References ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_samples, ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_windowLength, ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_zeroValue, and ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Reset().

Referenced by ns3::TcpBbr::UpdateBtlBw().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_samples

template<class T , class Compare , typename TimeT , typename TimeDeltaT >

Sample ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_samples[3]

Best estimate is element 0.

Definition at line 298 of file windowed-filter.h.

Referenced by ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::GetBest(), ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::GetSecondBest(), ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::GetThirdBest(), ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Reset(), and ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Update().

m_windowLength

template<class T , class Compare , typename TimeT , typename TimeDeltaT >

TimeDeltaT ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_windowLength

Time length of window.

Definition at line 296 of file windowed-filter.h.

Referenced by ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::SetWindowLength(), and ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Update().

m_zeroValue

template<class T , class Compare , typename TimeT , typename TimeDeltaT >

T ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::m_zeroValue

Uninitialized value of T.

Definition at line 297 of file windowed-filter.h.

Referenced by ns3::WindowedFilter< T, Compare, TimeT, TimeDeltaT >::Update().

---

The documentation for this class was generated from the following file:

• src/internet/model/windowed-filter.h
