Data structure that stores channel parameters. More...

#include "matrix-based-channel-model.h"

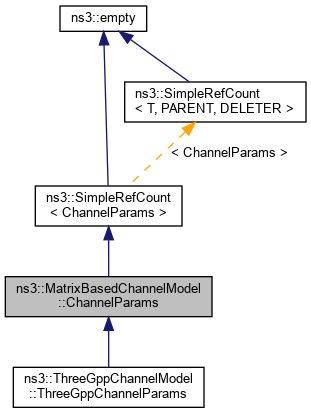

Inheritance diagram for ns3::MatrixBasedChannelModel::ChannelParams:

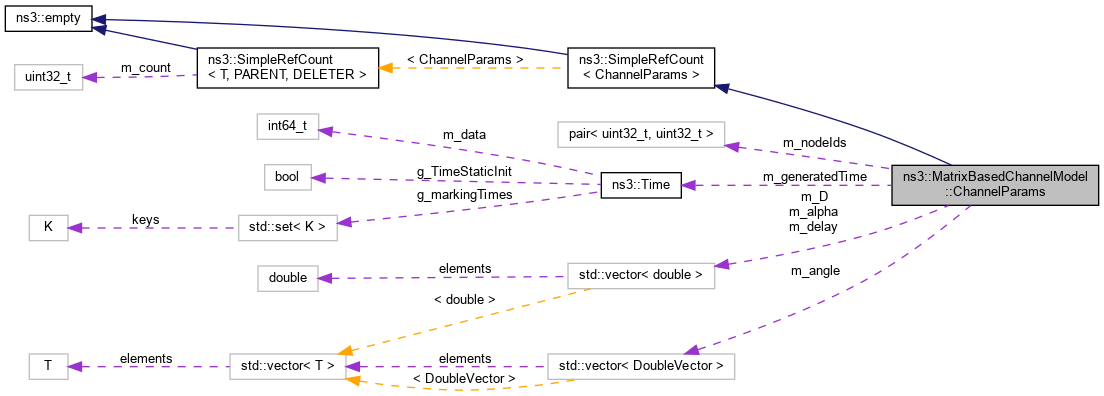

Collaboration diagram for ns3::MatrixBasedChannelModel::ChannelParams:

Public Member Functions
virtual	~ChannelParams ()=default
	Destructor for ChannelParams. More...

Public Member Functions inherited from ns3::SimpleRefCount< ChannelParams >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Attributes
DoubleVector	m_alpha
	alpha term per cluster as described in 3GPP TR 37.885 v15.3.0, Sec. More...

Double2DVector	m_angle
	cluster angle angle[direction][n], where direction = 0(AOA), 1(ZOA), 2(AOD), 3(ZOD) in degree. More...

DoubleVector	m_D
	D term per cluster as described in 3GPP TR 37.885 v15.3.0, Sec. More...

DoubleVector	m_delay
	cluster delay in nanoseconds. More...

Time	m_generatedTime
	generation time More...

std::pair< uint32_t, uint32_t >	m_nodeIds
	the first element is the s-node ID (the transmitter when the channel params were generated), the second element is the u-node ID (the receiver when the channel params were generated generated) More...

Detailed Description

Data structure that stores channel parameters.

Definition at line 93 of file matrix-based-channel-model.h.

Constructor & Destructor Documentation

◆ ~ChannelParams()

virtual ns3::MatrixBasedChannelModel::ChannelParams::~ChannelParams ( )

virtualdefault

Destructor for ChannelParams.

Member Data Documentation

◆ m_alpha

DoubleVector ns3::MatrixBasedChannelModel::ChannelParams::m_alpha

alpha term per cluster as described in 3GPP TR 37.885 v15.3.0, Sec.

6.2.3 for calculating doppler

Definition at line 98 of file matrix-based-channel-model.h.

◆ m_angle

Double2DVector ns3::MatrixBasedChannelModel::ChannelParams::m_angle

cluster angle angle[direction][n], where direction = 0(AOA), 1(ZOA), 2(AOD), 3(ZOD) in degree.

Definition at line 97 of file matrix-based-channel-model.h.

◆ m_D

DoubleVector ns3::MatrixBasedChannelModel::ChannelParams::m_D

D term per cluster as described in 3GPP TR 37.885 v15.3.0, Sec.

6.2.3 for calculating doppler

Definition at line 99 of file matrix-based-channel-model.h.

◆ m_delay

DoubleVector ns3::MatrixBasedChannelModel::ChannelParams::m_delay

cluster delay in nanoseconds.

Definition at line 96 of file matrix-based-channel-model.h.

◆ m_generatedTime

Time ns3::MatrixBasedChannelModel::ChannelParams::m_generatedTime

generation time

Definition at line 95 of file matrix-based-channel-model.h.

◆ m_nodeIds

std::pair<uint32_t, uint32_t> ns3::MatrixBasedChannelModel::ChannelParams::m_nodeIds

the first element is the s-node ID (the transmitter when the channel params were generated), the second element is the u-node ID (the receiver when the channel params were generated generated)

Definition at line 100 of file matrix-based-channel-model.h.

The documentation for this struct was generated from the following file:

src/spectrum/model/matrix-based-channel-model.h
