ns3::EpcX2Sap::CellMeasurementResultItem Struct Reference

Cell Measurement Result Item as it is used in the RESOURCE STATUS UPDATE message. More...

#include "epc-x2-sap.h"

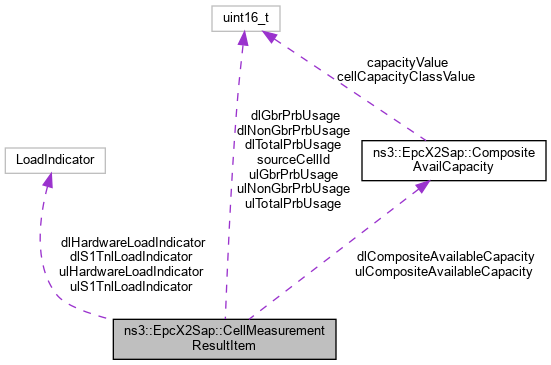

Collaboration diagram for ns3::EpcX2Sap::CellMeasurementResultItem:

Public Attributes
CompositeAvailCapacity	dlCompositeAvailableCapacity
	DL composite available capacity. More...
uint16_t	dlGbrPrbUsage
	DL GBR PRB usage. More...
LoadIndicator	dlHardwareLoadIndicator
	DL hardware load indicator. More...
uint16_t	dlNonGbrPrbUsage
	DL Non GBR PRB usage. More...
LoadIndicator	dlS1TnlLoadIndicator
	DL S1 TNL load indicator. More...
uint16_t	dlTotalPrbUsage
	DL Total PRB usage. More...
uint16_t	sourceCellId
	source cell id More...
CompositeAvailCapacity	ulCompositeAvailableCapacity
	UL composite available capacity. More...
uint16_t	ulGbrPrbUsage
	UL GBR PRB usage. More...
LoadIndicator	ulHardwareLoadIndicator
	UL hardware load indicator. More...
uint16_t	ulNonGbrPrbUsage
	UL Non GBR PRB usage. More...
LoadIndicator	ulS1TnlLoadIndicator
	UL S1 TNL load indicator. More...
uint16_t	ulTotalPrbUsage
	UL Total PRB usage. More...

Detailed Description

Cell Measurement Result Item as it is used in the RESOURCE STATUS UPDATE message.

See section 9.1.2.14 for further info about the parameters

Definition at line 193 of file epc-x2-sap.h.

Member Data Documentation

dlCompositeAvailableCapacity

CompositeAvailCapacity ns3::EpcX2Sap::CellMeasurementResultItem::dlCompositeAvailableCapacity

DL composite available capacity.

Definition at line 210 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

dlGbrPrbUsage

uint16_t ns3::EpcX2Sap::CellMeasurementResultItem::dlGbrPrbUsage

DL GBR PRB usage.

Definition at line 203 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

dlHardwareLoadIndicator

LoadIndicator ns3::EpcX2Sap::CellMeasurementResultItem::dlHardwareLoadIndicator

DL hardware load indicator.

Definition at line 197 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

dlNonGbrPrbUsage

uint16_t ns3::EpcX2Sap::CellMeasurementResultItem::dlNonGbrPrbUsage

DL Non GBR PRB usage.

Definition at line 205 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

dlS1TnlLoadIndicator

LoadIndicator ns3::EpcX2Sap::CellMeasurementResultItem::dlS1TnlLoadIndicator

DL S1 TNL load indicator.

Definition at line 200 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

dlTotalPrbUsage

uint16_t ns3::EpcX2Sap::CellMeasurementResultItem::dlTotalPrbUsage

DL Total PRB usage.

Definition at line 207 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

sourceCellId

uint16_t ns3::EpcX2Sap::CellMeasurementResultItem::sourceCellId

source cell id

Definition at line 195 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

ulCompositeAvailableCapacity

CompositeAvailCapacity ns3::EpcX2Sap::CellMeasurementResultItem::ulCompositeAvailableCapacity

UL composite available capacity.

Definition at line 211 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

ulGbrPrbUsage

uint16_t ns3::EpcX2Sap::CellMeasurementResultItem::ulGbrPrbUsage

UL GBR PRB usage.

Definition at line 204 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

ulHardwareLoadIndicator

LoadIndicator ns3::EpcX2Sap::CellMeasurementResultItem::ulHardwareLoadIndicator

UL hardware load indicator.

Definition at line 198 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

ulNonGbrPrbUsage

uint16_t ns3::EpcX2Sap::CellMeasurementResultItem::ulNonGbrPrbUsage

UL Non GBR PRB usage.

Definition at line 206 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

ulS1TnlLoadIndicator

LoadIndicator ns3::EpcX2Sap::CellMeasurementResultItem::ulS1TnlLoadIndicator

UL S1 TNL load indicator.

Definition at line 201 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

ulTotalPrbUsage

uint16_t ns3::EpcX2Sap::CellMeasurementResultItem::ulTotalPrbUsage

UL Total PRB usage.

Definition at line 208 of file epc-x2-sap.h.

Referenced by ns3::EpcX2ResourceStatusUpdateHeader::Deserialize(), and ns3::EpcX2ResourceStatusUpdateHeader::Serialize().

---

The documentation for this struct was generated from the following file:

• src/lte/model/epc-x2-sap.h
