pcap-file-test-suite.cc File Reference
#include <iostream>
#include <cstdio>
#include <cstdlib>
#include <sstream>
#include <cstring>
#include "ns3/log.h"
#include "ns3/test.h"
#include "ns3/pcap-file.h"

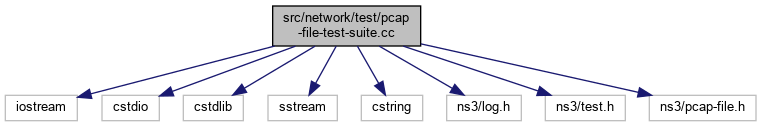

+ Include dependency graph for pcap-file-test-suite.cc:

Go to the source code of this file.

Classes

class  DiffTestCase
 Test case to make sure that the Pcap::Diff method works as expected. More...

class  FileHeaderTestCase
 Test case to make sure that the Pcap File Object can write out correct pcap file headers in both endian cases, and then read them in correctly. More...

struct  PacketEntry
 PCAP Packet structure. More...

class  PcapFileTestSuite
 PCAP file utils TestSuite. More...

class  ReadFileTestCase
 Test case to make sure that the Pcap File Object can read out the contents of a known good pcap file. More...

class  ReadModeCreateTestCase
 Test case to make sure that the Pcap File Object can open an existing pcap file. More...

class  RecordHeaderTestCase
 Test case to make sure that the Pcap File Object can write pcap packet records in both endian cases, and then read them in correctly. More...

class  WriteModeCreateTestCase
 Test case to make sure that the Pcap File Object can do its most basic job and create an empty pcap file. More...


Functions

static bool CheckFileExists (std::string filename)

static bool CheckFileLength (std::string filename, uint64_t sizeExpected)

static uint16_t Swap (uint16_t val)

static uint32_t Swap (uint32_t val)


Variables

static const PacketEntry knownPackets []

static const uint32_t N_KNOWN_PACKETS = 6

static const uint32_t N_PACKET_BYTES = 16

static PcapFileTestSuite pcapFileTestSuite
 Static variable for test initialization. More...


Function Documentation

◆ CheckFileExists()

static bool CheckFileExists ( std::string  filename)
static

Definition at line 50 of file pcap-file-test-suite.cc.

Referenced by WriteModeCreateTestCase::DoRun(), and ReadModeCreateTestCase::DoRun().

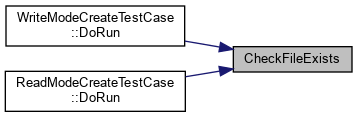

+ Here is the caller graph for this function:

◆ CheckFileLength()

static bool CheckFileLength ( std::string  filename,
uint64_t  sizeExpected
)
static

Definition at line 64 of file pcap-file-test-suite.cc.

Referenced by WriteModeCreateTestCase::DoRun().

+ Here is the caller graph for this function:

◆ Swap() [1/2]

static uint16_t Swap ( uint16_t  val)
static

Definition at line 38 of file pcap-file-test-suite.cc.

Referenced by FileHeaderTestCase::DoRun(), and RecordHeaderTestCase::DoRun().

+ Here is the caller graph for this function:

◆ Swap() [2/2]

static uint32_t Swap ( uint32_t  val)
static

Definition at line 44 of file pcap-file-test-suite.cc.

Variable Documentation

◆ knownPackets

const PacketEntry knownPackets[]
static
Initial value:
= {
{ 2, 3696, 46, 46, { 0x0001, 0x0800, 0x0604, 0x0001, 0x0000, 0x0000, 0x0003, 0x0a01,
0x0201, 0xffff, 0xffff, 0xffff, 0x0a01, 0x0204, 0x0000, 0x0000}},
{ 2, 3707, 46, 46, { 0x0001, 0x0800, 0x0604, 0x0002, 0x0000, 0x0000, 0x0006, 0x0a01,
0x0204, 0x0000, 0x0000, 0x0003, 0x0a01, 0x0201, 0x0000, 0x0000}},
{ 2, 3801, 1070, 1070, { 0x4500, 0x041c, 0x0000, 0x0000, 0x3f11, 0x0000, 0x0a01, 0x0101,
0x0a01, 0x0204, 0xc001, 0x0009, 0x0408, 0x0000, 0x0000, 0x0000}},
{ 2, 3811, 46, 46, { 0x0001, 0x0800, 0x0604, 0x0001, 0x0000, 0x0000, 0x0006, 0x0a01,
0x0204, 0xffff, 0xffff, 0xffff, 0x0a01, 0x0201, 0x0000, 0x0000}},
{ 2, 3822, 46, 46, { 0x0001, 0x0800, 0x0604, 0x0002, 0x0000, 0x0000, 0x0003, 0x0a01,
0x0201, 0x0000, 0x0000, 0x0006, 0x0a01, 0x0204, 0x0000, 0x0000}},
{ 2, 3915, 1070, 1070, { 0x4500, 0x041c, 0x0000, 0x0000, 0x4011, 0x0000, 0x0a01, 0x0204,
0x0a01, 0x0101, 0x0009, 0xc001, 0x0408, 0x0000, 0x0000, 0x0000}}
}

Definition at line 1027 of file pcap-file-test-suite.cc.

Referenced by ReadFileTestCase::DoRun(), and DiffTestCase::DoRun().

◆ N_KNOWN_PACKETS

const uint32_t N_KNOWN_PACKETS = 6
static

Definition at line 1013 of file pcap-file-test-suite.cc.

Referenced by ReadFileTestCase::DoRun(), and DiffTestCase::DoRun().

◆ N_PACKET_BYTES

const uint32_t N_PACKET_BYTES = 16
static

Definition at line 1014 of file pcap-file-test-suite.cc.

Referenced by ReadFileTestCase::DoRun(), and DiffTestCase::DoRun().

◆ pcapFileTestSuite

PcapFileTestSuite pcapFileTestSuite
static

Static variable for test initialization.

Definition at line 1172 of file pcap-file-test-suite.cc.
