anonymous_namespace{length.cc} Namespace Reference

Unnamed namespace. More...

## Classes

class  EnumHash
Functor for hashing Length::Unit values. More...

## Functions

double Convert (const ns3::Length::Quantity &from, ns3::Length::Unit toUnit)
Convert a Length::Quantity to the equivalent value in another unit. More...

double Convert (double value, ns3::Length::Unit fromUnit, ns3::Length::Unit toUnit)
Convert a value in one unit to the equivalent value in another unit. More...

double FootToMeter (double value)
Convert a value in feet to the equivalent value in meters. More...

double MeterToFoot (double value)
Convert a value in meters to the equivalent value in feet. More...

template<class R >
double MeterToUS (double value)
Convert a value from meters to a US Customary unit (inches, feet, yards etc.) More...

template<class R >
double ScaleValue (double value)
Helper function to scale an input value by a given ratio. More...

template<class R >
double USToMeter (double value)
Convert a value from a US Customary unit (inches, feet, yards etc.) to meters. More...

## Detailed Description

Unnamed namespace.

## ◆ Convert() [1/2]

 double anonymous_namespace{length.cc}::Convert ( const ns3::Length::Quantity & from, ns3::Length::Unit toUnit )

Convert a Length::Quantity to the equivalent value in another unit.

Parameters
 from Quantity with the current value and unit toUnit Target unit
Returns
Result of converting the quantity value to the requested units

Definition at line 201 of file length.cc.

References ns3::Length::Quantity::Unit(), and ns3::Length::Quantity::Value().

Referenced by ns3::Length::Length(), ns3::Length::As(), and ns3::Length::operator=().

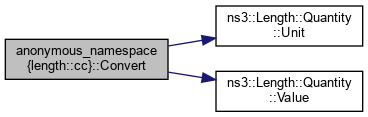

Here is the call graph for this function:

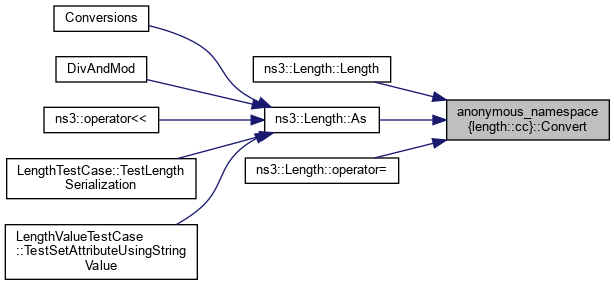

Here is the caller graph for this function:

## ◆ Convert() [2/2]

 double anonymous_namespace{length.cc}::Convert ( double value, ns3::Length::Unit fromUnit, ns3::Length::Unit toUnit )

Convert a value in one unit to the equivalent value in another unit.

Parameters
 value Length value in `fromUnit` units fromUnit Unit of `value` toUnit Target unit
Returns
Result of converting value from `fromUnit` to `toUnit`

Helper to generate hash values from pairs of Length::Units

Definition at line 132 of file length.cc.

References FootToMeter(), MeterToFoot(), and NS_FATAL_ERROR.

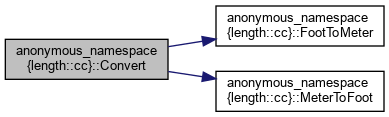

Here is the call graph for this function:

## ◆ FootToMeter()

 double anonymous_namespace{length.cc}::FootToMeter ( double value )

Convert a value in feet to the equivalent value in meters.

Parameters
 value Input value in feet
Returns
Equivalent value in meters

Definition at line 72 of file length.cc.

Referenced by Convert(), and USToMeter().

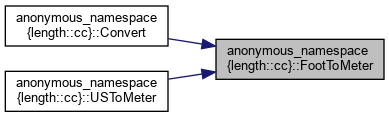

Here is the caller graph for this function:

## ◆ MeterToFoot()

 double anonymous_namespace{length.cc}::MeterToFoot ( double value )

Convert a value in meters to the equivalent value in feet.

Parameters
 value Input value in meters
Returns
Equivalent value in feet

Definition at line 84 of file length.cc.

Referenced by Convert(), and MeterToUS().

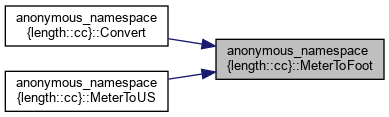

Here is the caller graph for this function:

## ◆ MeterToUS()

template<class R >
 double anonymous_namespace{length.cc}::MeterToUS ( double value )

Convert a value from meters to a US Customary unit (inches, feet, yards etc.)

Value is converted to feet then scaled to the desired US Customary unit

Template Parameters
 R std::ratio needed to convert feet to desired US customary unit
Parameters
 value Input value in meters
Returns
Equivalent value in a US customary unit

Definition at line 118 of file length.cc.

References MeterToFoot().

Here is the call graph for this function:

## ◆ ScaleValue()

template<class R >
 double anonymous_namespace{length.cc}::ScaleValue ( double value )

Helper function to scale an input value by a given ratio.

Template Parameters
 R a std::ratio
Parameters
 value Input value to scale by R
Returns
The result of value * R::num / R::den

Definition at line 60 of file length.cc.

## ◆ USToMeter()

template<class R >
 double anonymous_namespace{length.cc}::USToMeter ( double value )

Convert a value from a US Customary unit (inches, feet, yards etc.) to meters.

Value is scaled to feet then converted to meters

Template Parameters
 R std::ratio needed to convert value to feet
Parameters
 value Input value in some US Customary unit
Returns
Equivalent value in meters

Definition at line 101 of file length.cc.

References FootToMeter().

Here is the call graph for this function:
