Management of lengths in real world units. More...
Modules | |
Length test suite | |
Files | |
file | length-example.cc |
Demonstrates usage of the ns3::Length class. | |
file | length.cc |
ns3::Length implementation | |
file | length.h |
Declaration of ns3::Length class. | |
Classes | |
class | ns3::Length |
Represents a length in meters. More... | |
Functions | |
void | ArithmeticOperators () |
Demonstrates the use of ns3::Length arithmetic operators. More... | |
void | Constructors () |
Demonstrates the use of ns3::Length constructors. More... | |
void | Conversions () |
Demonstrates the use of ns3::Length conversions. More... | |
int64_t | ns3::Div (const Length &numerator, const Length &denominator, Length *remainder=nullptr) |
Calculate how many times numerator can be split into denominator sized pieces. More... | |
void | DivAndMod () |
Demonstrates the use of ns3::Length multiplications and divisions. More... | |
void | EqualityOperators () |
Demonstrates the use of ns3::Length equality operators. More... | |
std::optional< Length::Unit > | ns3::FromString (std::string unitString) |
Find the equivalent Length::Unit for a unit string. More... | |
Length | ns3::Mod (const Length &numerator, const Length &denominator) |
Calculate the amount remaining after dividing two lengths. More... | |
bool | ns3::operator!= (const Length &left, const Length &right) |
Compare two length objects for inequality. More... | |
Length | ns3::operator* (const Length &l, double scalar) |
Multiply a length value by a scalar. More... | |
Length | ns3::operator* (double scalar, const Length &l) |
Multiply a length value by a scalar. More... | |
Length | ns3::operator+ (const Length &left, const Length &right) |
Add two length values together. More... | |
Length | ns3::operator- (const Length &left, const Length &right) |
Subtract two length values. More... | |
Length | ns3::operator/ (const Length &left, double scalar) |
Divide a length value by a scalar. More... | |
double | ns3::operator/ (const Length &numerator, const Length &denominator) |
Divide a length value by another length value. More... | |
bool | ns3::operator< (const Length &left, const Length &right) |
Check if left has a value less than right . More... | |

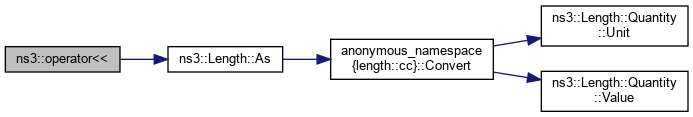

std::ostream & | ns3::operator<< (std::ostream &stream, const Length &l) |
Write a length value to an output stream. More... | |

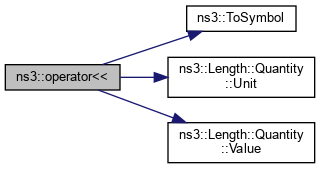

std::ostream & | ns3::operator<< (std::ostream &stream, const Length::Quantity &q) |
Write a Quantity to an output stream. More... | |
std::ostream & | ns3::operator<< (std::ostream &stream, Length::Unit unit) |
Write a Length::Unit to an output stream. More... | |
bool | ns3::operator<= (const Length &left, const Length &right) |
Check if left has a value less than or equal to right . More... | |
bool | ns3::operator== (const Length &left, const Length &right) |
Compare two length objects for equality. More... | |
bool | ns3::operator> (const Length &left, const Length &right) |
Check if left has a value greater than right . More... | |
bool | ns3::operator>= (const Length &left, const Length &right) |
Check if left has a value greater than or equal to right . More... | |
std::istream & | ns3::operator>> (std::istream &stream, Length &l) |
Read a length value from an input stream. More... | |
std::string | ns3::ToName (Length::Unit unit, bool plural=false) |
Return the name of the supplied unit. More... | |
std::string | ns3::ToSymbol (Length::Unit unit) |
Return the symbol of the supplied unit. More... | |
Length | ns3::NanoMeters (double value) |
Construct a length from a value in the indicated unit. More... | |
Length | ns3::MicroMeters (double value) |
Construct a length from a value in the indicated unit. More... | |
Length | ns3::MilliMeters (double value) |
Construct a length from a value in the indicated unit. More... | |
Length | ns3::CentiMeters (double value) |
Construct a length from a value in the indicated unit. More... | |
Length | ns3::Meters (double value) |
Construct a length from a value in the indicated unit. More... | |
Length | ns3::KiloMeters (double value) |
Construct a length from a value in the indicated unit. More... | |
Length | ns3::NauticalMiles (double value) |
Construct a length from a value in the indicated unit. More... | |
Length | ns3::Inches (double value) |
Construct a length from a value in the indicated unit. More... | |
Length | ns3::Feet (double value) |
Construct a length from a value in the indicated unit. More... | |
Length | ns3::Yards (double value) |
Construct a length from a value in the indicated unit. More... | |
Length | ns3::Miles (double value) |
Construct a length from a value in the indicated unit. More... | |
Management of lengths in real world units.
void ArithmeticOperators | ( | ) |
Demonstrates the use of ns3::Length arithmetic operators.
Definition at line 83 of file length-example.cc.
References ns3::Meters().
Length ns3::CentiMeters | ( | double | value | ) |
Construct a length from a value in the indicated unit.
value | The numerical value. |
Definition at line 796 of file length.cc.
Referenced by LengthTestCase::TestBuilderFreeFunctions().
void Constructors | ( | ) |
Demonstrates the use of ns3::Length constructors.
Definition at line 40 of file length-example.cc.
void Conversions | ( | ) |
Demonstrates the use of ns3::Length conversions.
Definition at line 64 of file length-example.cc.
References ns3::Length::As().

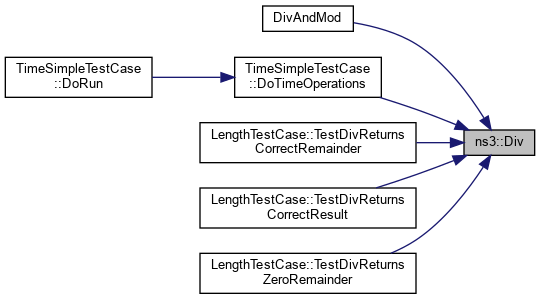

int64_t ns3::Div | ( | const Length & | numerator, |
const Length & | denominator, | ||
Length * | remainder = nullptr |
||
) |
Calculate how many times numerator
can be split into denominator
sized pieces.
If the result of numerator / denominator
is not a whole number, the result is rounded toward zero to the nearest whole number. The amount remaining after the division can be retrieved by passing a pointer to a Length in remainder
. The remainder will be less than denominator
and have the same sign as numerator
.
NS_FATAL_ERROR is called if denominator
is 0.
numerator | The value to split |
denominator | The length of each split |
remainder | Location to store the remainder |
numerator
can be split into denominator
sized pieces, rounded down to the nearest whole number Definition at line 474 of file length.cc.
References ns3::Length::GetDouble(), and NS_FATAL_ERROR.
Referenced by DivAndMod(), TimeSimpleTestCase::DoTimeOperations(), LengthTestCase::TestDivReturnsCorrectRemainder(), LengthTestCase::TestDivReturnsCorrectResult(), and LengthTestCase::TestDivReturnsZeroRemainder().
void DivAndMod | ( | ) |
Demonstrates the use of ns3::Length multiplications and divisions.
Definition at line 146 of file length-example.cc.
References ns3::Length::As(), ns3::Div(), ns3::Feet(), and ns3::Mod().
void EqualityOperators | ( | ) |
Demonstrates the use of ns3::Length equality operators.
Definition at line 111 of file length-example.cc.
References ns3::Meters().

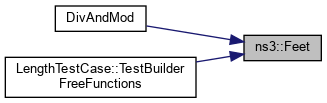

Length ns3::Feet | ( | double | value | ) |
Construct a length from a value in the indicated unit.
value | The numerical value. |
Definition at line 826 of file length.cc.
Referenced by DivAndMod(), and LengthTestCase::TestBuilderFreeFunctions().
std::optional< Length::Unit > ns3::FromString | ( | std::string | unitString | ) |
Find the equivalent Length::Unit for a unit string.
The string value can be a symbol or name (plural or singular).
The string comparison ignores case so strings like "NanoMeter", "centiMeter", "METER" will all match the correct unit.
Leading and trailing whitespace are trimmed from the string before searching for a match.
unitString | String containing the symbol or name of a length unit |
Definition at line 572 of file length.cc.
Referenced by ns3::Length::Length(), and ns3::Length::TryParse().
Length ns3::Inches | ( | double | value | ) |
Construct a length from a value in the indicated unit.
value | The numerical value. |
Definition at line 820 of file length.cc.
Referenced by LengthTestCase::TestBuilderFreeFunctions().
Length ns3::KiloMeters | ( | double | value | ) |
Construct a length from a value in the indicated unit.
value | The numerical value. |
Definition at line 808 of file length.cc.
Referenced by LengthValueTestCase::TestAttributeConstructor(), LengthValueTestCase::TestAttributeDeserialization(), LengthValueTestCase::TestAttributeSerialization(), and LengthTestCase::TestBuilderFreeFunctions().
Length ns3::Meters | ( | double | value | ) |
Construct a length from a value in the indicated unit.
value | The numerical value. |
Definition at line 802 of file length.cc.
Referenced by ArithmeticOperators(), EqualityOperators(), and LengthTestCase::TestBuilderFreeFunctions().
Length ns3::MicroMeters | ( | double | value | ) |
Construct a length from a value in the indicated unit.
value | The numerical value. |
Definition at line 784 of file length.cc.
Referenced by LengthTestCase::TestBuilderFreeFunctions().
Length ns3::Miles | ( | double | value | ) |
Construct a length from a value in the indicated unit.
value | The numerical value. |
Definition at line 838 of file length.cc.
Referenced by LengthTestCase::TestBuilderFreeFunctions().
Length ns3::MilliMeters | ( | double | value | ) |
Construct a length from a value in the indicated unit.
value | The numerical value. |
Definition at line 790 of file length.cc.
Referenced by LengthTestCase::TestBuilderFreeFunctions().

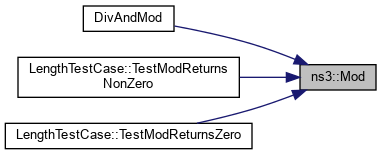

Calculate the amount remaining after dividing two lengths.
The returned value will be less than denominator
and have the same sign as numerator
.
NS_FATAL_ERROR is called if denominator
is 0.
numerator | The value to split |
denominator | The length of each split |
numerator
into denominator
sized pieces. Definition at line 493 of file length.cc.
References ns3::Length::GetDouble(), and NS_FATAL_ERROR.
Referenced by DivAndMod(), LengthTestCase::TestModReturnsNonZero(), and LengthTestCase::TestModReturnsZero().
Length ns3::NanoMeters | ( | double | value | ) |
Construct a length from a value in the indicated unit.
value | The numerical value. |
Definition at line 778 of file length.cc.
Referenced by LengthTestCase::TestBuilderFreeFunctions().
Length ns3::NauticalMiles | ( | double | value | ) |
Construct a length from a value in the indicated unit.
value | The numerical value. |
Definition at line 814 of file length.cc.
Referenced by LengthTestCase::TestBuilderFreeFunctions().
bool ns3::operator!= | ( | const Length & | left, |
const Length & | right | ||
) |
Compare two length objects for inequality.
Equivalent to:
left | Left length object |
right | Right length object |
left
and right
do not have the same value Definition at line 395 of file length.cc.
References ns3::Length::GetDouble().
Multiply a length value by a scalar.
Multiplies the value l
by scalar
and returns a new Length object containing the result.
l | The Length object |
scalar | Multiplication factor |
l * scalar
. Definition at line 439 of file length.cc.
References ns3::Length::GetDouble().
Add two length values together.
Adds the values of left
to right
and returns a new Length object containing the result.
left + right
. Definition at line 425 of file length.cc.
References ns3::Length::GetDouble().
Subtract two length values.
Subtracts the value of right
from left
and returns a new Length object containing the result.
left - right
. Definition at line 432 of file length.cc.
References ns3::Length::GetDouble().
Divide a length value by a scalar.
Divides the value left
by scalar
and returns a new Length object containing the result.
scalar
must contain a non zero value. NS_FATAL_ERROR is called if scalar
is zero
left | Length value |
scalar | Multiplication factor |
left / scalar
. Definition at line 452 of file length.cc.
References NS_FATAL_ERROR.
Divide a length value by another length value.
Divides the value numerator
by the value denominator
and returns a scalar value containing the result.
The return value will be NaN if denominator
is 0.
numerator | The top value of the division |
denominator | The bottom value of the division |
numerator / denominator
or NaN if denominator
is 0. Definition at line 463 of file length.cc.
References ns3::Length::GetDouble().
Check if left
has a value less than right
.
Equivalent to:
left | Left length object |
right | Right length object |
left
is less than right
Definition at line 400 of file length.cc.
References ns3::Length::GetDouble().
std::ostream & ns3::operator<< | ( | std::ostream & | stream, |
const Length & | l | ||
) |
Write a length value to an output stream.
The output of the length is in meters.
Equivalent to:
stream | Output stream |
l | Length value to write to the stream |
Definition at line 656 of file length.cc.
References ns3::Length::As().
std::ostream & ns3::operator<< | ( | std::ostream & | stream, |
const Length::Quantity & | q | ||
) |
Write a Quantity to an output stream.
The data written to the output stream will have the format <value> <symbol>
Equivalent to:
stream | Output stream |
q | Quantity to write to the output stream |
Definition at line 664 of file length.cc.
References ns3::ToSymbol(), ns3::Length::Quantity::Unit(), and ns3::Length::Quantity::Value().
std::ostream & ns3::operator<< | ( | std::ostream & | stream, |
Length::Unit | unit | ||
) |
Write a Length::Unit to an output stream.
Writes the name of unit
to the output stream
Equivalent to:
stream | Output stream |
unit | Length unit to output |
Definition at line 672 of file length.cc.
References ns3::ToName().
Check if left
has a value less than or equal to right
.
Equivalent to:
left | Left length object |
right | Right length object |
left
is less than or equal to right
Definition at line 406 of file length.cc.
References ns3::Length::GetDouble().
Compare two length objects for equality.
Equivalent to:
left | Left length object |
right | Right length object |
left
and right
have the same value Definition at line 389 of file length.cc.
References ns3::Length::GetDouble().
Check if left
has a value greater than right
.
Equivalent to:
left | Left length object |
right | Right length object |
left
is greater than right
Definition at line 413 of file length.cc.
References ns3::Length::GetDouble().
Check if left
has a value greater than or equal to right
.
Equivalent to:
left | Left length object |
right | Right length object |
left
is greater than or equal to right
Definition at line 419 of file length.cc.
References ns3::Length::GetDouble().
std::istream & ns3::operator>> | ( | std::istream & | stream, |
Length & | l | ||
) |
Read a length value from an input stream.
The expected format of the input is <number> <unit> or <number><unit> This function calls NS_ABORT if the input stream does not contain a valid length string
stream | Input stream |
l | Object where the deserialized value will be stored |
Definition at line 732 of file length.cc.
References NS_LOG_LOGIC, ns3::ParseLengthString(), and ns3::Length::swap().
std::string ns3::ToName | ( | Length::Unit | unit, |
bool | plural = false |
||
) |
Return the name of the supplied unit.
The value returned by this function is the common name of unit
. The output is always lowercase.
If plural
is true, then the plural form of the common name is returned instead.
unit | The unit to name |
plural | Boolean indicating if the returned string should contain the plural form of the name |
unit
Definition at line 536 of file length.cc.
References NS_FATAL_ERROR.
Referenced by ns3::operator<<().
std::string ns3::ToSymbol | ( | Length::Unit | unit | ) |
Return the symbol of the supplied unit.
The symbol of the unit is the shortened form of the unit name and is usually two or three characters long
unit | The unit to symbolize |
unit
Definition at line 506 of file length.cc.
References NS_FATAL_ERROR.
Referenced by ns3::operator<<().
Length ns3::Yards | ( | double | value | ) |
Construct a length from a value in the indicated unit.
value | The numerical value. |
Definition at line 832 of file length.cc.
Referenced by LengthTestCase::TestBuilderFreeFunctions().
