ns3::XmlConfigSave Class Reference

A class to enable saving of configuration store in an XML file. More...

#include "xml-config.h"

Inheritance diagram for ns3::XmlConfigSave:

Collaboration diagram for ns3::XmlConfigSave:

Public Member Functions
	XmlConfigSave ()
virtual	~XmlConfigSave ()
virtual void	Attributes (void)
	Load or save the attributes values. More...
virtual void	Default (void)
	Load or save the default values. More...
virtual void	Global (void)
	Load or save the global values. More...
virtual void	SetFilename (std::string filename)
	Set the file name. More...
Public Member Functions inherited from ns3::FileConfig
virtual	~FileConfig ()
void	SetSaveDeprecated (bool saveDeprecated)
	Set if to save deprecated attributes. More...

Private Attributes
xmlTextWriterPtr	m_writer
	XML writer. More...

Additional Inherited Members
Protected Attributes inherited from ns3::FileConfig
bool	m_saveDeprecated
	save deprecated attributes More...

Detailed Description

A class to enable saving of configuration store in an XML file.

Definition at line 36 of file xml-config.h.

Constructor & Destructor Documentation

XmlConfigSave()

ns3::XmlConfigSave::XmlConfigSave

(

)

Definition at line 36 of file xml-config.cc.

References NS_LOG_FUNCTION.

~XmlConfigSave()

ns3::XmlConfigSave::~XmlConfigSave ( )

virtual

Definition at line 79 of file xml-config.cc.

References m_writer, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Member Function Documentation

Attributes()

void ns3::XmlConfigSave::Attributes ( void  )

virtual

Load or save the attributes values.

Implements ns3::FileConfig.

Definition at line 180 of file xml-config.cc.

References ns3::StringValue::Get(), ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), ns3::FileConfig::m_saveDeprecated, m_writer, ns3::TypeId::AttributeInformation::name, NS_FATAL_ERROR, NS_LOG_WARN, ns3::FileConfig::SetSaveDeprecated(), and ns3::TypeId::AttributeInformation::supportLevel.

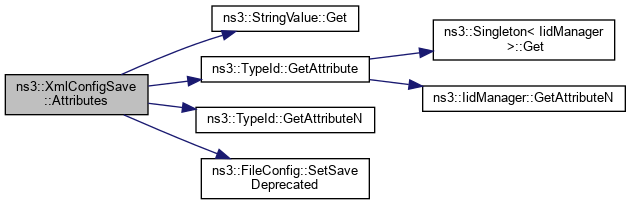

Here is the call graph for this function:

Default()

void ns3::XmlConfigSave::Default ( void  )

virtual

Load or save the default values.

Implements ns3::FileConfig.

Definition at line 101 of file xml-config.cc.

References ns3::TypeId::GetAttribute(), ns3::TypeId::GetAttributeN(), ns3::TypeId::LookupByName(), ns3::FileConfig::m_saveDeprecated, m_writer, ns3::TypeId::AttributeInformation::name, NS_FATAL_ERROR, NS_LOG_WARN, ns3::FileConfig::SetSaveDeprecated(), and ns3::TypeId::AttributeInformation::supportLevel.

Here is the call graph for this function:

Global()

void ns3::XmlConfigSave::Global ( void  )

virtual

Load or save the global values.

Implements ns3::FileConfig.

Definition at line 254 of file xml-config.cc.

References ns3::GlobalValue::Begin(), ns3::GlobalValue::End(), m_writer, and NS_FATAL_ERROR.

Here is the call graph for this function:

SetFilename()

void ns3::XmlConfigSave::SetFilename ( std::string  filename )

virtual

Set the file name.

Parameters

filename

the filename

Implements ns3::FileConfig.

Definition at line 42 of file xml-config.cc.

References m_writer, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Member Data Documentation

m_writer

xmlTextWriterPtr ns3::XmlConfigSave::m_writer

private

XML writer.

Definition at line 47 of file xml-config.h.

Referenced by ~XmlConfigSave(), Attributes(), Default(), Global(), and SetFilename().

---

The documentation for this class was generated from the following files:

• src/config-store/model/xml-config.h
• src/config-store/model/xml-config.cc
