ns3::OmnetDataOutput::OmnetOutputCallback Class Reference

Class to generate OMNeT output. More...

Inheritance diagram for ns3::OmnetDataOutput::OmnetOutputCallback:

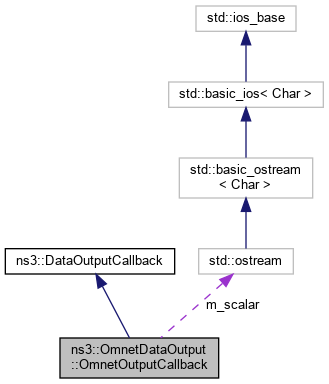

Collaboration diagram for ns3::OmnetDataOutput::OmnetOutputCallback:

Public Member Functions
	OmnetOutputCallback (std::ostream *scalar)
	Constructor. More...
void	OutputSingleton (std::string context, std::string name, double val)
	Generates a single data output. More...
void	OutputSingleton (std::string context, std::string name, int val)
	Generates a single data output. More...
void	OutputSingleton (std::string context, std::string name, std::string val)
	Generates a single data output. More...
void	OutputSingleton (std::string context, std::string name, Time val)
	Generates a single data output. More...
void	OutputSingleton (std::string context, std::string name, uint32_t val)
	Generates a single data output. More...
void	OutputStatistic (std::string context, std::string name, const StatisticalSummary *statSum)
	Generates data statistics. More...
Public Member Functions inherited from ns3::DataOutputCallback
virtual	~DataOutputCallback ()
	Destructor. More...

Private Attributes
std::ostream *	m_scalar
	output stream More...

Detailed Description

Class to generate OMNeT output.

Definition at line 61 of file omnet-data-output.h.

Constructor & Destructor Documentation

OmnetOutputCallback()

OmnetDataOutput::OmnetOutputCallback::OmnetOutputCallback

(

std::ostream *

scalar

)

Constructor.

Parameters

scalar

the output stream

Definition at line 150 of file omnet-data-output.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

OutputSingleton() [1/5]

void OmnetDataOutput::OmnetOutputCallback::OutputSingleton ( std::string  context, std::string  name, double  val  )

virtual

Generates a single data output.

Parameters

context	the output context
name	the output name
val	the value

Implements ns3::DataOutputCallback.

Definition at line 216 of file omnet-data-output.cc.

References NS_LOG_FUNCTION.

OutputSingleton() [2/5]

void OmnetDataOutput::OmnetOutputCallback::OutputSingleton ( std::string  context, std::string  name, int  val  )

virtual

Generates a single data output.

Parameters

context	the output context
name	the output name
val	the value

Implements ns3::DataOutputCallback.

Definition at line 186 of file omnet-data-output.cc.

References NS_LOG_FUNCTION.

OutputSingleton() [3/5]

void OmnetDataOutput::OmnetOutputCallback::OutputSingleton ( std::string  context, std::string  name, std::string  val  )

virtual

Generates a single data output.

Parameters

context	the output context
name	the output name
val	the value

Implements ns3::DataOutputCallback.

Definition at line 231 of file omnet-data-output.cc.

References NS_LOG_FUNCTION.

OutputSingleton() [4/5]

void OmnetDataOutput::OmnetOutputCallback::OutputSingleton ( std::string  context, std::string  name, Time  val  )

virtual

Generates a single data output.

Parameters

context	the output context
name	the output name
val	the value

Implements ns3::DataOutputCallback.

Definition at line 246 of file omnet-data-output.cc.

References ns3::Time::GetTimeStep(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

OutputSingleton() [5/5]

void OmnetDataOutput::OmnetOutputCallback::OutputSingleton ( std::string  context, std::string  name, uint32_t  val  )

virtual

Generates a single data output.

Parameters

context	the output context
name	the output name
val	the value

Implements ns3::DataOutputCallback.

Definition at line 201 of file omnet-data-output.cc.

References NS_LOG_FUNCTION.

OutputStatistic()

void OmnetDataOutput::OmnetOutputCallback::OutputStatistic ( std::string  context, std::string  name, const StatisticalSummary *  statSum  )

virtual

Generates data statistics.

Parameters

context	the output context
name	the output name
statSum	the stats to print

Implements ns3::DataOutputCallback.

Definition at line 158 of file omnet-data-output.cc.

References ns3::StatisticalSummary::getCount(), ns3::StatisticalSummary::getMax(), ns3::StatisticalSummary::getMean(), ns3::StatisticalSummary::getMin(), ns3::StatisticalSummary::getSqrSum(), ns3::StatisticalSummary::getStddev(), ns3::StatisticalSummary::getSum(), ns3::isNaN(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Data Documentation

m_scalar

std::ostream* ns3::OmnetDataOutput::OmnetOutputCallback::m_scalar

private

output stream

Definition at line 130 of file omnet-data-output.h.

---

The documentation for this class was generated from the following files:

• src/stats/model/omnet-data-output.h
• src/stats/model/omnet-data-output.cc
