The MU EDCA Parameter Set. More...

#include "mu-edca-parameter-set.h"

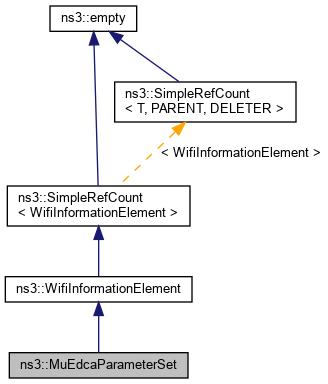

Inheritance diagram for ns3::MuEdcaParameterSet:

Collaboration diagram for ns3::MuEdcaParameterSet:

Classes
struct	ParameterRecord
	MU AC Parameter Record type. More...

Public Member Functions
	MuEdcaParameterSet ()

uint8_t	DeserializeInformationField (Buffer::Iterator start, uint8_t length)
	Deserialize information field function. More...

WifiInformationElementId	ElementId () const
	Get the wifi information element ID. More...

WifiInformationElementId	ElementIdExt () const
	Get the wifi information element ID extension. More...

uint8_t	GetInformationFieldSize () const
	Get information field size function. More...

uint8_t	GetMuAifsn (uint8_t aci) const
	Get the AIFSN subfield of the ACI/AIFSN field in the MU AC Parameter Record field corresponding to the given AC Index (aci). More...

uint16_t	GetMuCwMax (uint8_t aci) const
	Get the CWmax value encoded by the ECWmax subfield of the ECWmin/ECWmax field in the MU AC Parameter Record field corresponding to the given AC Index (aci). More...

uint16_t	GetMuCwMin (uint8_t aci) const
	Get the CWmin value encoded by the ECWmin subfield of the ECWmin/ECWmax field in the MU AC Parameter Record field corresponding to the given AC Index (aci). More...

Time	GetMuEdcaTimer (uint8_t aci) const
	Get the MU EDCA Timer value encoded in the MU AC Parameter Record field corresponding to the given AC Index (aci). More...

uint8_t	GetQosInfo (void) const
	Return the QoS Info field in the MuEdcaParameterSet information element. More...

uint16_t	GetSerializedSize () const
	Return the serialized size of this EDCA Parameter Set. More...

bool	IsPresent (void) const
	Return true if a valid MU EDCA Parameter Set is present in this object. More...

Buffer::Iterator	Serialize (Buffer::Iterator start) const
	This information element is a bit special in that it is only included if the STA is an HE STA. More...

void	SerializeInformationField (Buffer::Iterator start) const
	Serialize information field function. More...

void	SetMuAifsn (uint8_t aci, uint8_t aifsn)
	Set the AIFSN subfield of the ACI/AIFSN field in the MU AC Parameter Record field corresponding to the given AC Index (aci). More...

void	SetMuCwMax (uint8_t aci, uint16_t cwMax)
	Set the ECWmax subfield of the ECWmin/ECWmax field in the MU AC Parameter Record field corresponding to the given AC Index (aci). More...

void	SetMuCwMin (uint8_t aci, uint16_t cwMin)
	Set the ECWmin subfield of the ECWmin/ECWmax field in the MU AC Parameter Record field corresponding to the given AC Index (aci). More...

void	SetMuEdcaTimer (uint8_t aci, Time timer)
	Set the MU EDCA Timer field in the MU AC Parameter Record field corresponding to the given AC Index (aci). More...

void	SetQosInfo (uint8_t qosInfo)
	Set the QoS Info field in the MuEdcaParameterSet information element. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE, which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE if it is present. More...

virtual bool	operator== (WifiInformationElement const &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
uint8_t	m_qosInfo
	QoS info field. More...

std::array< ParameterRecord, 4 >	m_records
	MU AC Parameter Record fields. More...

Detailed Description

The MU EDCA Parameter Set.

The 802.11ax MU EDCA Parameter Set.

Definition at line 36 of file mu-edca-parameter-set.h.

Constructor & Destructor Documentation

◆ MuEdcaParameterSet()

ns3::MuEdcaParameterSet::MuEdcaParameterSet ( )

Definition at line 27 of file mu-edca-parameter-set.cc.

Member Function Documentation

◆ DeserializeInformationField()

uint8_t ns3::MuEdcaParameterSet::DeserializeInformationField	(	Buffer::Iterator	start,
		uint8_t	length
	)

virtual

Deserialize information field function.

Parameters

start	the iterator
length	the length

Returns: the size

Implements ns3::WifiInformationElement.

Definition at line 194 of file mu-edca-parameter-set.cc.

References ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::MuEdcaParameterSet::ElementId ( ) const

virtual

Get the wifi information element ID.

Returns: the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 34 of file mu-edca-parameter-set.cc.

References IE_EXTENSION.

◆ ElementIdExt()

WifiInformationElementId ns3::MuEdcaParameterSet::ElementIdExt ( ) const

virtual

Get the wifi information element ID extension.

Returns: the wifi information element ID extension

Reimplemented from ns3::WifiInformationElement.

Definition at line 40 of file mu-edca-parameter-set.cc.

References IE_EXT_MU_EDCA_PARAMETER_SET.

◆ GetInformationFieldSize()

uint8_t ns3::MuEdcaParameterSet::GetInformationFieldSize ( void ) const

virtual

Get information field size function.

Returns: the information field size

Implements ns3::WifiInformationElement.

Definition at line 151 of file mu-edca-parameter-set.cc.

References NS_ASSERT.

◆ GetMuAifsn()

uint8_t ns3::MuEdcaParameterSet::GetMuAifsn ( uint8_t aci ) const

Get the AIFSN subfield of the ACI/AIFSN field in the MU AC Parameter Record field corresponding to the given AC Index (aci).

Parameters

aci	the AC Index

Returns: the value of the AIFSN subfield

Definition at line 121 of file mu-edca-parameter-set.cc.

References NS_ABORT_MSG_IF.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetMuCwMax()

uint16_t ns3::MuEdcaParameterSet::GetMuCwMax ( uint8_t aci ) const

Get the CWmax value encoded by the ECWmax subfield of the ECWmin/ECWmax field in the MU AC Parameter Record field corresponding to the given AC Index (aci).

Parameters

aci	the AC Index

Returns: the CWmax value

Definition at line 136 of file mu-edca-parameter-set.cc.

References NS_ABORT_MSG_IF.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetMuCwMin()

uint16_t ns3::MuEdcaParameterSet::GetMuCwMin ( uint8_t aci ) const

Get the CWmin value encoded by the ECWmin subfield of the ECWmin/ECWmax field in the MU AC Parameter Record field corresponding to the given AC Index (aci).

Parameters

aci	the AC Index

Returns: the CWmin value

Definition at line 128 of file mu-edca-parameter-set.cc.

References NS_ABORT_MSG_IF.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ GetMuEdcaTimer()

Time ns3::MuEdcaParameterSet::GetMuEdcaTimer ( uint8_t aci ) const

Get the MU EDCA Timer value encoded in the MU AC Parameter Record field corresponding to the given AC Index (aci).

Parameters

aci	the AC Index

Returns: the MU EDCA Timer value

Definition at line 144 of file mu-edca-parameter-set.cc.

References ns3::MicroSeconds(), and NS_ABORT_MSG_IF.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetQosInfo()

uint8_t ns3::MuEdcaParameterSet::GetQosInfo ( void ) const

Return the QoS Info field in the MuEdcaParameterSet information element.

Returns: the QoS Info field in the MuEdcaParameterSet information element

Definition at line 115 of file mu-edca-parameter-set.cc.

◆ GetSerializedSize()

uint16_t ns3::MuEdcaParameterSet::GetSerializedSize ( void ) const

virtual

Return the serialized size of this EDCA Parameter Set.

Returns: the serialized size of this EDCA Parameter Set

Reimplemented from ns3::WifiInformationElement.

Definition at line 169 of file mu-edca-parameter-set.cc.

Referenced by ns3::MgtAssocResponseHeader::GetSerializedSize(), and ns3::MgtProbeResponseHeader::GetSerializedSize().

Here is the caller graph for this function:

◆ IsPresent()

bool ns3::MuEdcaParameterSet::IsPresent ( void ) const

Return true if a valid MU EDCA Parameter Set is present in this object.

Returns: true if a valid MU EDCA Parameter Set is present in this object

Definition at line 46 of file mu-edca-parameter-set.cc.

References NS_ABORT_MSG_IF.

Referenced by ns3::StaWifiMac::UpdateApInfoFromAssocResp(), and ns3::StaWifiMac::UpdateApInfoFromBeacon().

Here is the caller graph for this function:

◆ Serialize()

Buffer::Iterator ns3::MuEdcaParameterSet::Serialize ( Buffer::Iterator start ) const

virtual

This information element is a bit special in that it is only included if the STA is an HE STA.

To support this we override the Serialize and GetSerializedSize methods of WifiInformationElement.

Parameters

start iterator start

Returns: an iterator

Reimplemented from ns3::WifiInformationElement.

Definition at line 159 of file mu-edca-parameter-set.cc.

Referenced by ns3::MgtAssocResponseHeader::Serialize(), and ns3::MgtProbeResponseHeader::Serialize().

Here is the caller graph for this function:

◆ SerializeInformationField()

void ns3::MuEdcaParameterSet::SerializeInformationField ( Buffer::Iterator start ) const

virtual

Serialize information field function.

Parameters

start the iterator

Implements ns3::WifiInformationElement.

Definition at line 179 of file mu-edca-parameter-set.cc.

References visualizer.core::start().

Here is the call graph for this function:

◆ SetMuAifsn()

void ns3::MuEdcaParameterSet::SetMuAifsn	(	uint8_t	aci,
		uint8_t	aifsn
	)

Set the AIFSN subfield of the ACI/AIFSN field in the MU AC Parameter Record field corresponding to the given AC Index (aci).

Note that aifsn can either be zero (EDCA disabled) or in the range from 2 to 15.

Parameters

aci	the AC Index
aifsn	the value for the AIFSN subfield

Definition at line 67 of file mu-edca-parameter-set.cc.

References NS_ABORT_MSG_IF.

Referenced by ns3::ApWifiMac::GetMuEdcaParameterSet().

Here is the caller graph for this function:

◆ SetMuCwMax()

void ns3::MuEdcaParameterSet::SetMuCwMax	(	uint8_t	aci,
		uint16_t	cwMax
	)

Set the ECWmax subfield of the ECWmin/ECWmax field in the MU AC Parameter Record field corresponding to the given AC Index (aci).

Note that cwMax must be a power of 2 minus 1 in the range from 0 to 32767.

Parameters

aci	the AC Index
cwMax	the CWmax value encoded by the ECWmax field

Definition at line 89 of file mu-edca-parameter-set.cc.

References NS_ABORT_MSG_IF.

Referenced by ns3::ApWifiMac::GetMuEdcaParameterSet().

Here is the caller graph for this function:

◆ SetMuCwMin()

void ns3::MuEdcaParameterSet::SetMuCwMin	(	uint8_t	aci,
		uint16_t	cwMin
	)

Set the ECWmin subfield of the ECWmin/ECWmax field in the MU AC Parameter Record field corresponding to the given AC Index (aci).

Note that cwMin must be a power of 2 minus 1 in the range from 0 to 32767.

Parameters

aci	the AC Index
cwMin	the CWmin value encoded by the ECWmin field

Definition at line 77 of file mu-edca-parameter-set.cc.

References NS_ABORT_MSG_IF.

Referenced by ns3::ApWifiMac::GetMuEdcaParameterSet().

Here is the caller graph for this function:

◆ SetMuEdcaTimer()

void ns3::MuEdcaParameterSet::SetMuEdcaTimer	(	uint8_t	aci,
		Time	timer
	)

Set the MU EDCA Timer field in the MU AC Parameter Record field corresponding to the given AC Index (aci).

Note that timer must be an integer multiple of 8 TUs (i.e., 8 * 1024 = 8192 microseconds) in the range from 8.192 milliseconds to 2088.96 milliseconds. A value of 0 is used to indicate that the MU EDCA Parameter Set element must not be sent and therefore it is only allowed if the MU EDCA Timer is set to 0 for all ACs.

Parameters

aci	the AC Index
timer	the value for the timer encoded by the MU EDCA Timer field

Definition at line 101 of file mu-edca-parameter-set.cc.

References ns3::Time::GetMicroSeconds(), ns3::Time::IsStrictlyPositive(), ns3::MicroSeconds(), and NS_ABORT_MSG_IF.

Referenced by ns3::ApWifiMac::GetMuEdcaParameterSet().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetQosInfo()

void ns3::MuEdcaParameterSet::SetQosInfo ( uint8_t qosInfo )

Set the QoS Info field in the MuEdcaParameterSet information element.

Parameters

qosInfo the QoS Info field in the MuEdcaParameterSet information element

Definition at line 61 of file mu-edca-parameter-set.cc.

Referenced by ns3::ApWifiMac::GetMuEdcaParameterSet().

Here is the caller graph for this function:

Member Data Documentation

◆ m_qosInfo

uint8_t ns3::MuEdcaParameterSet::m_qosInfo

private

QoS info field.

Definition at line 189 of file mu-edca-parameter-set.h.

◆ m_records

std::array<ParameterRecord, 4> ns3::MuEdcaParameterSet::m_records

private

MU AC Parameter Record fields.

Definition at line 190 of file mu-edca-parameter-set.h.

The documentation for this class was generated from the following files:

src/wifi/model/he/mu-edca-parameter-set.h
src/wifi/model/he/mu-edca-parameter-set.cc

Classes

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MuEdcaParameterSet()

Member Function Documentation

◆ DeserializeInformationField()

◆ ElementId()

◆ ElementIdExt()

◆ GetInformationFieldSize()

◆ GetMuAifsn()

◆ GetMuCwMax()

◆ GetMuCwMin()

◆ GetMuEdcaTimer()

◆ GetQosInfo()

◆ GetSerializedSize()

◆ IsPresent()

◆ Serialize()

◆ SerializeInformationField()

◆ SetMuAifsn()

◆ SetMuCwMax()

◆ SetMuCwMin()

◆ SetMuEdcaTimer()

◆ SetQosInfo()

Member Data Documentation

◆ m_qosInfo

◆ m_records
