ns3::LteUeRrcSapUser Class Referenceabstract

Part of the RRC protocol. More...

#include "lte-rrc-sap.h"

+ Inheritance diagram for ns3::LteUeRrcSapUser:
+ Collaboration diagram for ns3::LteUeRrcSapUser:

Classes

struct  SetupParameters
 SetupParameters structure. More...


Public Member Functions

virtual void SendIdealUeContextRemoveRequest (uint16_t rnti)=0
 Send UE context remove request function. More...

virtual void SendMeasurementReport (MeasurementReport msg)=0
 Send a MeasurementReport message to the serving eNodeB during a measurement reporting procedure (Section 5.5.5 of TS 36.331). More...

virtual void SendRrcConnectionReconfigurationCompleted (RrcConnectionReconfigurationCompleted msg)=0
 Send an RRCConnectionReconfigurationComplete message to the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331). More...

virtual void SendRrcConnectionReestablishmentComplete (RrcConnectionReestablishmentComplete msg)=0
 Send an RRCConnectionReestablishmentComplete message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void SendRrcConnectionReestablishmentRequest (RrcConnectionReestablishmentRequest msg)=0
 Send an RRCConnectionReestablishmentRequest message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331). More...

virtual void SendRrcConnectionRequest (RrcConnectionRequest msg)=0
 Send an _RRCConnectionRequest message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void SendRrcConnectionSetupCompleted (RrcConnectionSetupCompleted msg)=0
 Send an RRCConnectionSetupComplete message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331). More...

virtual void Setup (SetupParameters params)=0
 Setup function. More...

- Public Member Functions inherited from ns3::LteRrcSap
virtual ~LteRrcSap ()


Additional Inherited Members

- Public Types inherited from ns3::LteRrcSap
enum  ReestablishmentCause { RECONFIGURATION_FAILURE , HANDOVER_FAILURE , OTHER_FAILURE }
 ReestablishmentCause enumeration. More...

- Static Public Member Functions inherited from ns3::LteRrcSap
static double ConvertPdschConfigDedicated2Double (PdschConfigDedicated pdschConfigDedicated)
 Convert PDSCH config dedicated function. More...

- Static Public Attributes inherited from ns3::LteRrcSap
static const uint8_t MaxReportCells = 8
 Constraint values. More...


Detailed Description

Part of the RRC protocol.

This Service Access Point (SAP) is used by the UE RRC to send messages to the eNB. Each method defined in this class corresponds to the transmission of a message that is defined in Section 6.2.2 of TS 36.331.

Definition at line 916 of file lte-rrc-sap.h.

Member Function Documentation

◆ SendIdealUeContextRemoveRequest()

virtual void ns3::LteUeRrcSapUser::SendIdealUeContextRemoveRequest ( uint16_t  rnti)
pure virtual

Send UE context remove request function.

Request eNodeB to remove UE context once radio link failure or random access failure is detected. It is needed since no RLF detection mechanism at eNodeB is implemented.

Parameters
rntithe C-RNTI of the UE

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::RadioLinkFailureDetected().

+ Here is the caller graph for this function:

◆ SendMeasurementReport()

virtual void ns3::LteUeRrcSapUser::SendMeasurementReport ( MeasurementReport  msg)
pure virtual

Send a MeasurementReport message to the serving eNodeB during a measurement reporting procedure (Section 5.5.5 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::SendMeasurementReport().

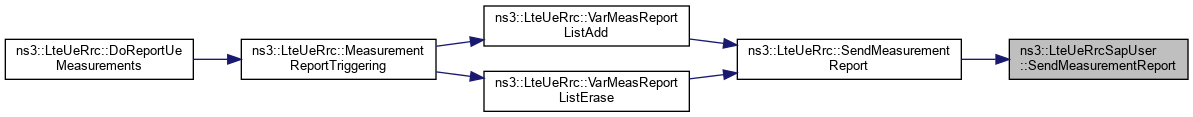

+ Here is the caller graph for this function:

◆ SendRrcConnectionReconfigurationCompleted()

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionReconfigurationCompleted ( RrcConnectionReconfigurationCompleted  msg)
pure virtual

Send an RRCConnectionReconfigurationComplete message to the serving eNodeB during an RRC connection reconfiguration procedure (Section 5.3.5 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::DoNotifyRandomAccessSuccessful(), and ns3::LteUeRrc::DoRecvRrcConnectionReconfiguration().

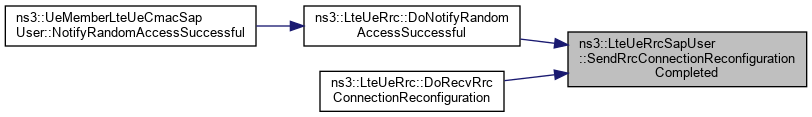

+ Here is the caller graph for this function:

◆ SendRrcConnectionReestablishmentComplete()

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionReestablishmentComplete ( RrcConnectionReestablishmentComplete  msg)
pure virtual

Send an RRCConnectionReestablishmentComplete message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

◆ SendRrcConnectionReestablishmentRequest()

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionReestablishmentRequest ( RrcConnectionReestablishmentRequest  msg)
pure virtual

Send an RRCConnectionReestablishmentRequest message to the serving eNodeB during an RRC connection re-establishment procedure (Section 5.3.7 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

◆ SendRrcConnectionRequest()

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionRequest ( RrcConnectionRequest  msg)
pure virtual

Send an _RRCConnectionRequest message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::DoNotifyRandomAccessSuccessful().

+ Here is the caller graph for this function:

◆ SendRrcConnectionSetupCompleted()

virtual void ns3::LteUeRrcSapUser::SendRrcConnectionSetupCompleted ( RrcConnectionSetupCompleted  msg)
pure virtual

Send an RRCConnectionSetupComplete message to the serving eNodeB during an RRC connection establishment procedure (Section 5.3.3 of TS 36.331).

Parameters
msgthe message

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::DoRecvRrcConnectionSetup().

+ Here is the caller graph for this function:

◆ Setup()

virtual void ns3::LteUeRrcSapUser::Setup ( SetupParameters  params)
pure virtual

Setup function.

Parameters
paramsthe setup parameters

Implemented in ns3::MemberLteUeRrcSapUser< C >.

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), and ns3::LteUeRrc::DoInitialize().

+ Here is the caller graph for this function:

The documentation for this class was generated from the following file:
