ns3::EnbMacMemberLteEnbPhySapUser Class Reference

-------— PHY-SAP More...

Inheritance diagram for ns3::EnbMacMemberLteEnbPhySapUser:

Collaboration diagram for ns3::EnbMacMemberLteEnbPhySapUser:

Public Member Functions
	EnbMacMemberLteEnbPhySapUser (LteEnbMac *mac)
	Constructor. More...
virtual void	DlInfoListElementHarqFeeback (DlInfoListElement_s params)
	Notify the HARQ on the DL tranmission status. More...
virtual void	ReceiveLteControlMessage (Ptr< LteControlMessage > msg)
	Receive SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel. More...
virtual void	ReceivePhyPdu (Ptr< Packet > p)
	Called by the Phy to notify the MAC of the reception of a new PHY-PDU. More...
virtual void	ReceiveRachPreamble (uint32_t prachId)
	notify the reception of a RACH preamble on the PRACH More...
virtual void	SubframeIndication (uint32_t frameNo, uint32_t subframeNo)
	Trigger the start from a new frame (input from Phy layer) More...
virtual void	UlCqiReport (FfMacSchedSapProvider::SchedUlCqiInfoReqParameters ulcqi)
	Returns to MAC level the UL-CQI evaluated. More...
virtual void	UlInfoListElementHarqFeeback (UlInfoListElement_s params)
	Notify the HARQ on the UL tranmission status. More...
Public Member Functions inherited from ns3::LteEnbPhySapUser
virtual	~LteEnbPhySapUser ()

Private Attributes
LteEnbMac *	m_mac
	the MAC More...

Detailed Description

-------— PHY-SAP

Definition at line 260 of file lte-enb-mac.cc.

Constructor & Destructor Documentation

EnbMacMemberLteEnbPhySapUser()

ns3::EnbMacMemberLteEnbPhySapUser::EnbMacMemberLteEnbPhySapUser

(

LteEnbMac *

mac

)

Constructor.

Parameters

mac

the MAC

Definition at line 283 of file lte-enb-mac.cc.

Member Function Documentation

DlInfoListElementHarqFeeback()

void ns3::EnbMacMemberLteEnbPhySapUser::DlInfoListElementHarqFeeback ( DlInfoListElement_s  params )

virtual

Notify the HARQ on the DL tranmission status.

Parameters

params

Implements ns3::LteEnbPhySapUser.

Definition at line 325 of file lte-enb-mac.cc.

References ns3::LteEnbMac::DoDlInfoListElementHarqFeeback(), and m_mac.

Here is the call graph for this function:

ReceiveLteControlMessage()

void ns3::EnbMacMemberLteEnbPhySapUser::ReceiveLteControlMessage ( Ptr< LteControlMessage >  msg )

virtual

Receive SendLteControlMessage (PDCCH map, CQI feedbacks) using the ideal control channel.

Parameters

msg	the Ideal Control Message to receive

Implements ns3::LteEnbPhySapUser.

Definition at line 301 of file lte-enb-mac.cc.

References ns3::LteEnbMac::DoReceiveLteControlMessage(), and m_mac.

Here is the call graph for this function:

ReceivePhyPdu()

void ns3::EnbMacMemberLteEnbPhySapUser::ReceivePhyPdu ( Ptr< Packet >  p )

virtual

Called by the Phy to notify the MAC of the reception of a new PHY-PDU.

Parameters

p

Implements ns3::LteEnbPhySapUser.

Definition at line 289 of file lte-enb-mac.cc.

References ns3::LteEnbMac::DoReceivePhyPdu(), and m_mac.

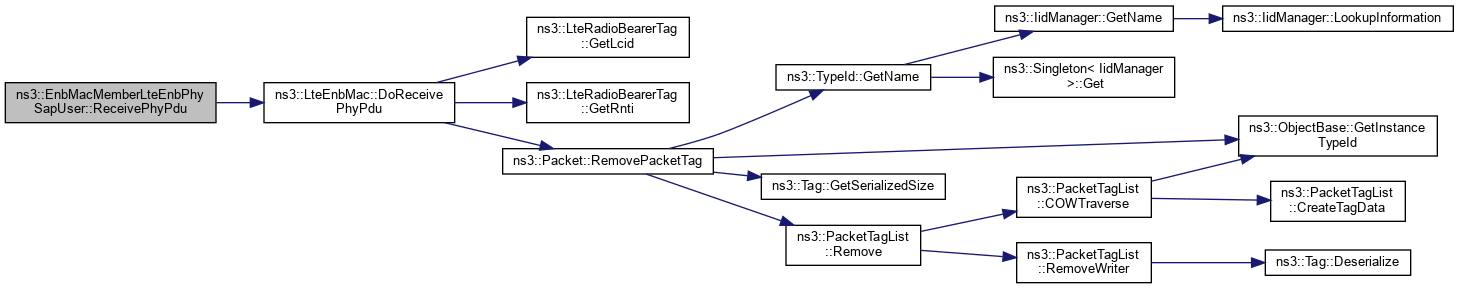

Here is the call graph for this function:

ReceiveRachPreamble()

void ns3::EnbMacMemberLteEnbPhySapUser::ReceiveRachPreamble ( uint32_t  prachId )

virtual

notify the reception of a RACH preamble on the PRACH

Parameters

prachId

the ID of the preamble

Implements ns3::LteEnbPhySapUser.

Definition at line 307 of file lte-enb-mac.cc.

References ns3::LteEnbMac::DoReceiveRachPreamble(), and m_mac.

Here is the call graph for this function:

SubframeIndication()

void ns3::EnbMacMemberLteEnbPhySapUser::SubframeIndication ( uint32_t  frameNo, uint32_t  subframeNo  )

virtual

Trigger the start from a new frame (input from Phy layer)

Parameters

frameNo	frame number
subframeNo	subframe number

Implements ns3::LteEnbPhySapUser.

Definition at line 295 of file lte-enb-mac.cc.

References ns3::LteEnbMac::DoSubframeIndication(), and m_mac.

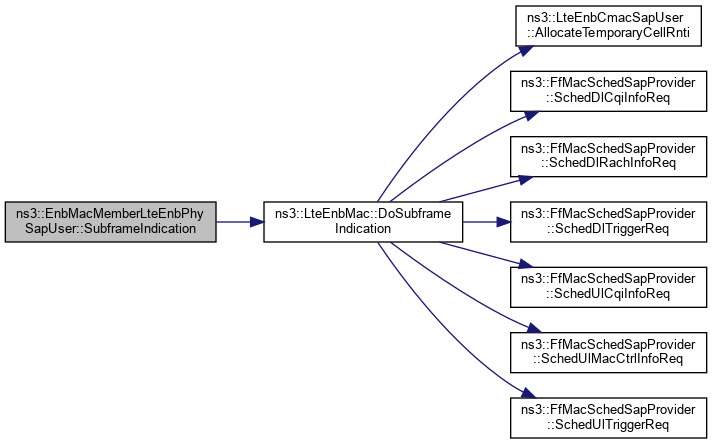

Here is the call graph for this function:

UlCqiReport()

void ns3::EnbMacMemberLteEnbPhySapUser::UlCqiReport ( FfMacSchedSapProvider::SchedUlCqiInfoReqParameters  ulcqi )

virtual

Returns to MAC level the UL-CQI evaluated.

Parameters

ulcqi

the UL-CQI (see FF MAC API 4.3.29)

Implements ns3::LteEnbPhySapUser.

Definition at line 313 of file lte-enb-mac.cc.

References ns3::LteEnbMac::DoUlCqiReport(), and m_mac.

Here is the call graph for this function:

UlInfoListElementHarqFeeback()

void ns3::EnbMacMemberLteEnbPhySapUser::UlInfoListElementHarqFeeback ( UlInfoListElement_s  params )

virtual

Notify the HARQ on the UL tranmission status.

Parameters

params

Implements ns3::LteEnbPhySapUser.

Definition at line 319 of file lte-enb-mac.cc.

References ns3::LteEnbMac::DoUlInfoListElementHarqFeeback(), and m_mac.

Here is the call graph for this function:

Member Data Documentation

m_mac

LteEnbMac* ns3::EnbMacMemberLteEnbPhySapUser::m_mac

private

the MAC

Definition at line 280 of file lte-enb-mac.cc.

Referenced by DlInfoListElementHarqFeeback(), ReceiveLteControlMessage(), ReceivePhyPdu(), ReceiveRachPreamble(), SubframeIndication(), UlCqiReport(), and UlInfoListElementHarqFeeback().

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-enb-mac.cc
