anonymous_namespace{sample-show-progress.cc}::Hold Class Reference

Execute a function periodically, which takes more or less time to run. More...

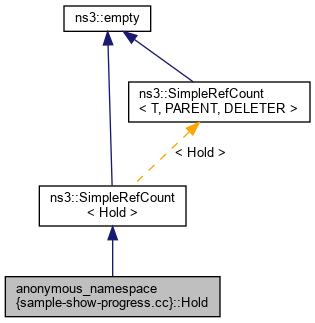

Inheritance diagram for anonymous_namespace{sample-show-progress.cc}::Hold:

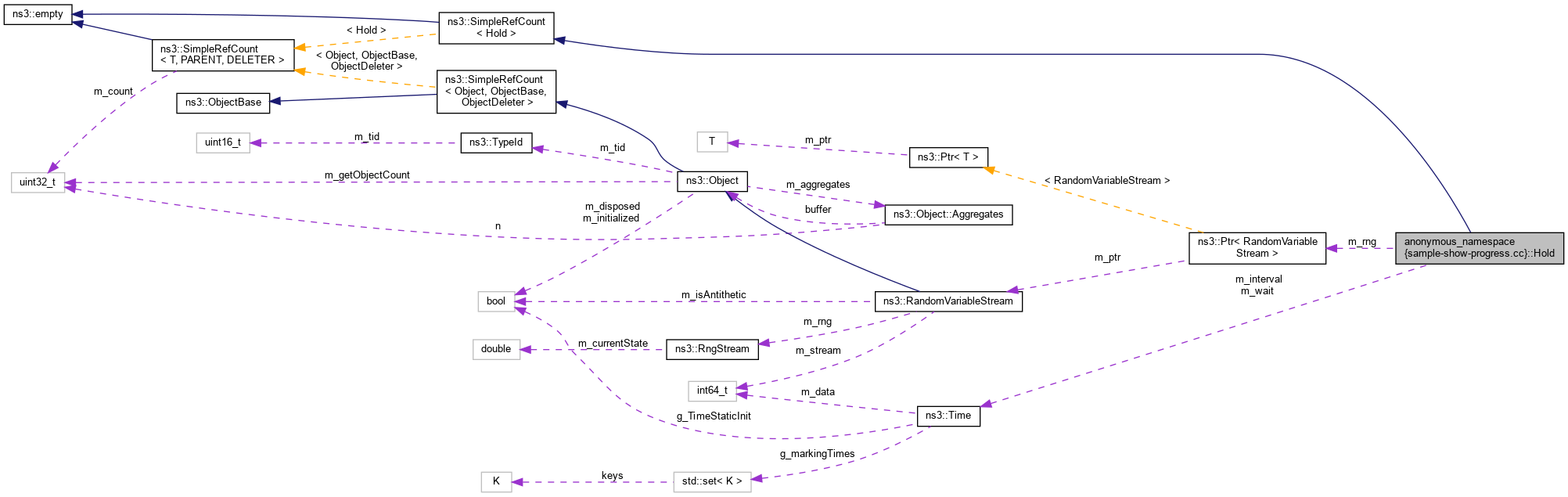

Collaboration diagram for anonymous_namespace{sample-show-progress.cc}::Hold:

Public Member Functions
	Hold (Ptr< RandomVariableStream > rng)
	Create a hold with a specified random number generator for the wait time. More...
	Hold (Time wait, Time interval)
	Create a Hold with mean inter-event time wait, changing workload every interval. More...
void	Event (void)
	The Hold event. More...
Public Member Functions inherited from ns3::SimpleRefCount< Hold >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= ([[maybe_unused]] const SimpleRefCount &o)
	Assignment operator. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
Time	m_interval
	Time between switching workloads. More...
Ptr< RandomVariableStream >	m_rng
	The random number generator for the interval between events. More...
Time	m_wait
	Mean inter-event time. More...

Detailed Description

Execute a function periodically, which takes more or less time to run.

Inspired by PHOLD.

Definition at line 54 of file sample-show-progress.cc.

Constructor & Destructor Documentation

Hold() [1/2]

anonymous_namespace{sample-show-progress.cc}::Hold::Hold ( Time  wait, Time  interval  )

inline

Create a Hold with mean inter-event time wait, changing workload every interval.

Parameters

wait	The mean inter-event time.
interval	How often to change work load. This should be an order of magnitude larger than wait.

Definition at line 65 of file sample-show-progress.cc.

Hold() [2/2]

anonymous_namespace{sample-show-progress.cc}::Hold::Hold ( Ptr< RandomVariableStream >  rng )

inline

Create a hold with a specified random number generator for the wait time.

The RNG value will be interpreted as seconds.

Parameters

rng	The random variable generator to use for the inter-event time.

Definition at line 79 of file sample-show-progress.cc.

Member Function Documentation

Event()

void anonymous_namespace{sample-show-progress.cc}::Hold::Event ( void  )

inline

The Hold event.

Definition at line 84 of file sample-show-progress.cc.

References ns3::int64x64_t::GetHigh(), ns3::Time::GetNanoSeconds(), ns3::Simulator::Now(), NS_LOG_LOGIC, ns3::Simulator::Schedule(), and ns3::Seconds().

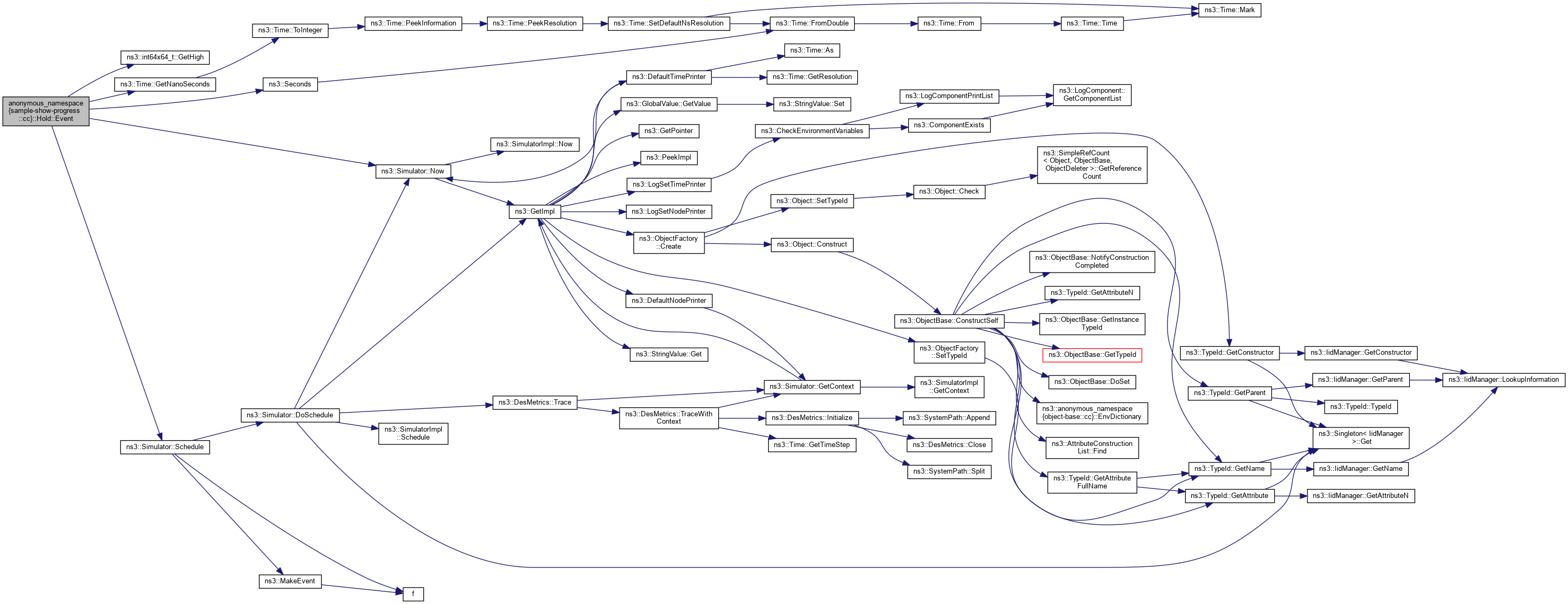

Here is the call graph for this function:

Member Data Documentation

m_interval

Time anonymous_namespace{sample-show-progress.cc}::Hold::m_interval

private

Time between switching workloads.

Definition at line 105 of file sample-show-progress.cc.

m_rng

Ptr<RandomVariableStream> anonymous_namespace{sample-show-progress.cc}::Hold::m_rng

private

The random number generator for the interval between events.

Definition at line 101 of file sample-show-progress.cc.

m_wait

Time anonymous_namespace{sample-show-progress.cc}::Hold::m_wait

private

Mean inter-event time.

Definition at line 103 of file sample-show-progress.cc.

---

The documentation for this class was generated from the following file:

• src/core/examples/sample-show-progress.cc
