Tx Duration Test. More...

Inheritance diagram for TxDurationTest:

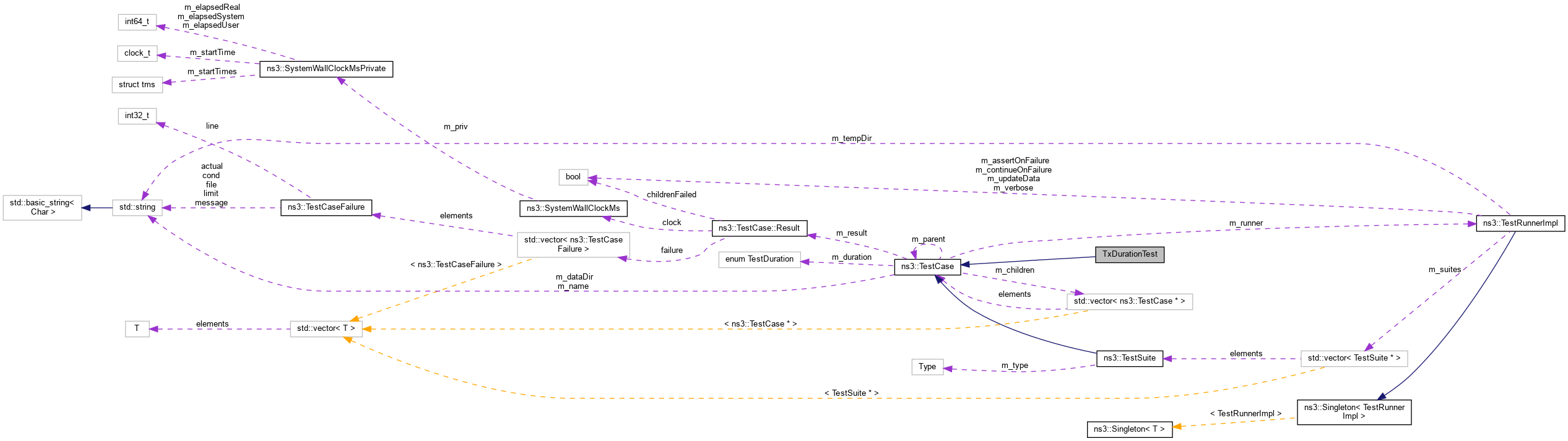

Collaboration diagram for TxDurationTest:

Public Member Functions
	TxDurationTest ()

virtual	~TxDurationTest ()

void	DoRun (void) override
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
bool	CheckPayloadDuration (uint32_t size, WifiMode payloadMode, uint16_t channelWidth, uint16_t guardInterval, WifiPreamble preamble, Time knownDuration)
	Check if the payload tx duration returned by InterferenceHelper corresponds to a known value. More...

bool	CheckTxDuration (uint32_t size, WifiMode payloadMode, uint16_t channelWidth, uint16_t guardInterval, WifiPreamble preamble, Time knownDuration)
	Check if the overall tx duration returned by InterferenceHelper corresponds to a known value. More...

Static Private Member Functions
static Time	CalculateTxDurationUsingList (std::list< uint32_t > sizes, std::list< uint16_t > staIds, WifiTxVector txVector, WifiPhyBand band)
	Calculate the overall Tx duration returned by WifiPhy for list of sizes. More...

static bool	CheckHeMuTxDuration (std::list< uint32_t > sizes, std::list< HeMuUserInfo > userInfos, uint16_t channelWidth, uint16_t guardInterval, Time knownDuration)
	Check if the overall Tx duration returned by WifiPhy for a HE MU PPDU corresponds to a known value. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Tx Duration Test.

Definition at line 44 of file tx-duration-test.cc.

Constructor & Destructor Documentation

◆ TxDurationTest()

TxDurationTest::TxDurationTest ( )

Definition at line 117 of file tx-duration-test.cc.

◆ ~TxDurationTest()

TxDurationTest::~TxDurationTest ( )

virtual

Definition at line 122 of file tx-duration-test.cc.

Member Function Documentation

◆ CalculateTxDurationUsingList()

Time TxDurationTest::CalculateTxDurationUsingList	(	std::list< uint32_t >	sizes,
		std::list< uint16_t >	staIds,
		WifiTxVector	txVector,
		WifiPhyBand	band
	)

staticprivate

Calculate the overall Tx duration returned by WifiPhy for list of sizes.

A map of WifiPsdu indexed by STA-ID is built using the provided lists and handed over to the corresponding SU/MU WifiPhy Tx duration computing method. Note that provided lists should be of same size.

Parameters

sizes	the list of PSDU sizes for each station in octets
staIds	the list of STA-IDs of each station
txVector	the TXVECTOR used for the transmission of the PPDU
band	the selected wifi PHY band

Returns: the overall Tx duration for the list of sizes (SU or MU PPDU)

Definition at line 311 of file tx-duration-test.cc.

References ns3::WifiMacHeader::GetSerializedSize(), NS_ASSERT, ns3::WifiMacHeader::SetType(), and ns3::WIFI_MAC_CTL_ACK.

Referenced by CheckHeMuTxDuration(), and CheckTxDuration().

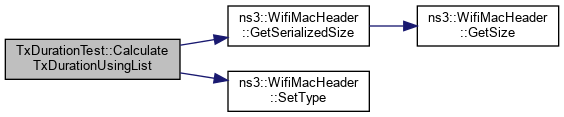

Here is the call graph for this function:

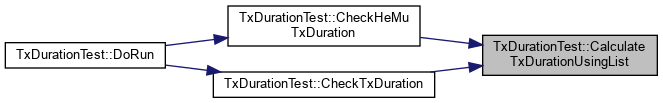

Here is the caller graph for this function:

◆ CheckHeMuTxDuration()

bool TxDurationTest::CheckHeMuTxDuration	(	std::list< uint32_t >	sizes,
		std::list< HeMuUserInfo >	userInfos,
		uint16_t	channelWidth,
		uint16_t	guardInterval,
		Time	knownDuration
	)

staticprivate

Check if the overall Tx duration returned by WifiPhy for a HE MU PPDU corresponds to a known value.

Parameters

sizes	the list of PSDU sizes for each station in octets
userInfos	the list of HE MU specific user transmission parameters
channelWidth	the channel width used for the transmission (in MHz)
guardInterval	the guard interval duration used for the transmission (in nanoseconds)
knownDuration	the known duration value of the transmission

Returns: true if values correspond, false otherwise

Definition at line 245 of file tx-duration-test.cc.

References CalculateTxDurationUsingList(), ns3::WifiMode::GetDataRate(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), ns3::HeRu::RuSpec::GetRuType(), ns3::MicroSeconds(), ns3::NanoSeconds(), NS_ABORT_MSG_IF, NS_ASSERT, third::phy, ns3::HeMuUserInfo::ru, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetHeMuUserInfo(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetStbc(), ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_PHY_BAND_5GHZ, and ns3::WIFI_PREAMBLE_HE_MU.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckPayloadDuration()

bool TxDurationTest::CheckPayloadDuration	(	uint32_t	size,
		WifiMode	payloadMode,
		uint16_t	channelWidth,
		uint16_t	guardInterval,
		WifiPreamble	preamble,
		Time	knownDuration
	)

private

Check if the payload tx duration returned by InterferenceHelper corresponds to a known value.

Parameters

size	size of payload in octets (includes everything after the PHY header)
payloadMode	the WifiMode used for the transmission
channelWidth	the channel width used for the transmission (in MHz)
guardInterval	the guard interval duration used for the transmission (in nanoseconds)
preamble	the WifiPreamble used for the transmission
knownDuration	the known duration value of the transmission

Returns: true if values correspond, false otherwise

Definition at line 127 of file tx-duration-test.cc.

References ns3::WifiMode::GetDataRate(), ns3::WifiMode::GetModulationClass(), ns3::MicroSeconds(), third::phy, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetMode(), ns3::WifiTxVector::SetNess(), ns3::WifiTxVector::SetNss(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetStbc(), ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_MOD_CLASS_HT, ns3::WIFI_MOD_CLASS_OFDM, ns3::WIFI_MOD_CLASS_VHT, ns3::WIFI_PHY_BAND_2_4GHZ, and ns3::WIFI_PHY_BAND_5GHZ.

Referenced by DoRun().

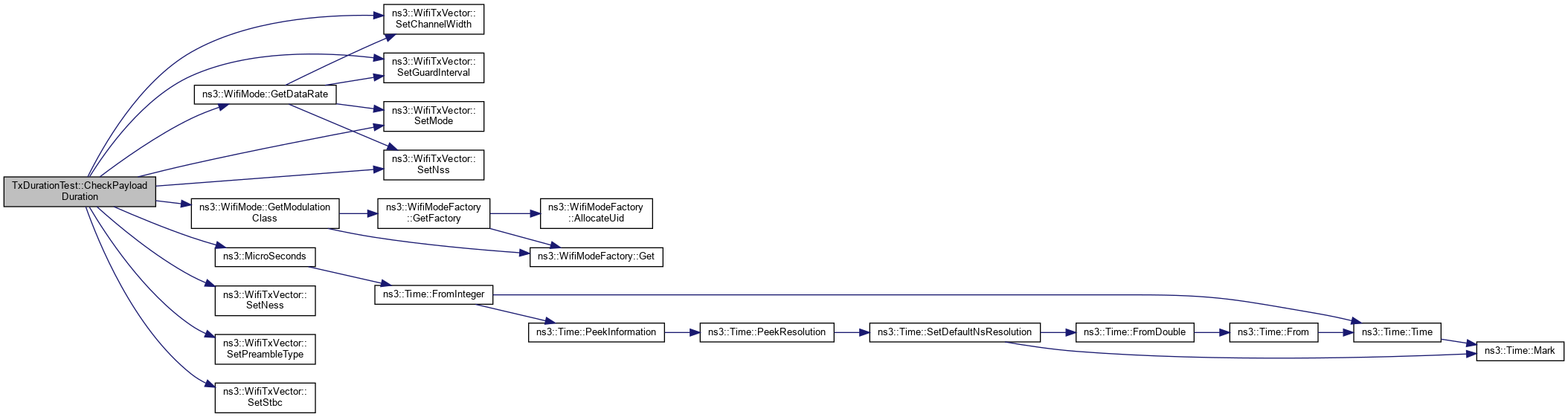

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckTxDuration()

bool TxDurationTest::CheckTxDuration	(	uint32_t	size,
		WifiMode	payloadMode,
		uint16_t	channelWidth,
		uint16_t	guardInterval,
		WifiPreamble	preamble,
		Time	knownDuration
	)

private

Check if the overall tx duration returned by InterferenceHelper corresponds to a known value.

Parameters

size	size of payload in octets (includes everything after the PHY header)
payloadMode	the WifiMode used for the transmission
channelWidth	the channel width used for the transmission (in MHz)
guardInterval	the guard interval duration used for the transmission (in nanoseconds)
preamble	the WifiPreamble used for the transmission
knownDuration	the known duration value of the transmission
